Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

28 part groups · 3 illustrations

Illustrations

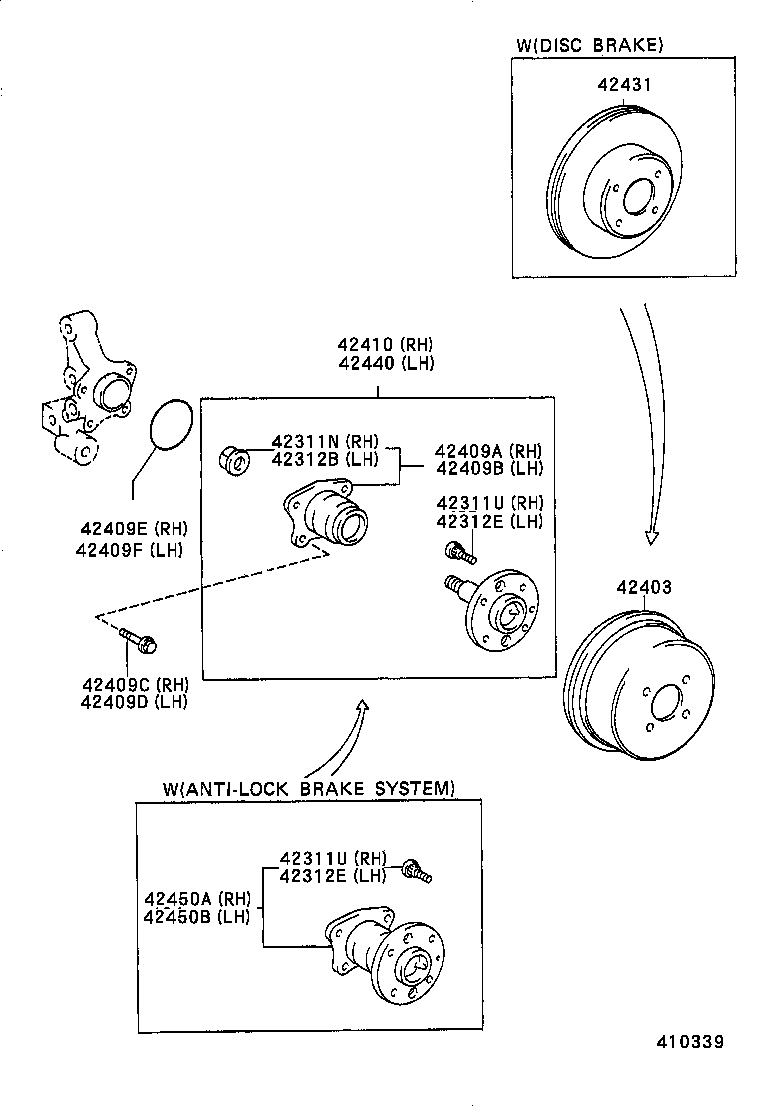

Figure MCM219A MCM219A 1991-09 → 1994-01 Figure MCM219A MCM219A 1994-01 → — Figure 410339 410339 1991-08 → —

Part groups

PNCDescription
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42311V Seal, Oil(FOR REAR AXLE SHAFT RH)
42311W Bearing(FOR REAR AXLE SHAFT OUTER RH)
42311X Bearing(FOR REAR AXLE SHAFT INNER RH)
42311Y Washer, Claw(FOR REAR AXLE SHAFT RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312C Seal, Oil(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42312F Bearing(FOR REAR AXLE SHAFT OUTER LH)
42312G Bearing(FOR REAR AXLE SHAFT INNER LH)
42312H Washer, Claw(FOR REAR AXLE SHAFT LH)
42403 Drum Sub-assy, Rear Brake
42409A Bearing Sub-assy, Rear Axle, RH
42409B Bearing Sub-assy, Rear Axle, LH
42409C Bolt (FOR REAR AXLE BEARING RH)
42409D Bolt (FOR REAR AXLE BEARING LH)
42409E Ring, O (FOR REAR AXLE BEARING RH)
42409F Ring, O (FOR REAR AXLE BEARING LH)
42410 Hub & Bearing Assy, Rear Axle, RH
42418B Cap, Rear Hub Grease, RH
42418C Cap, Rear Hub Grease, LH
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42450A Hub & Bearing Assy, Rear Axle, RH
42450B Hub & Bearing Assy, Rear Axle, LH
43525D Cap, Rear Wheel Adjusting Lock, RH
43525E Cap, Rear Wheel Adjusting Lock, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
