Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

16 part groups · 10 illustrations

Illustrations

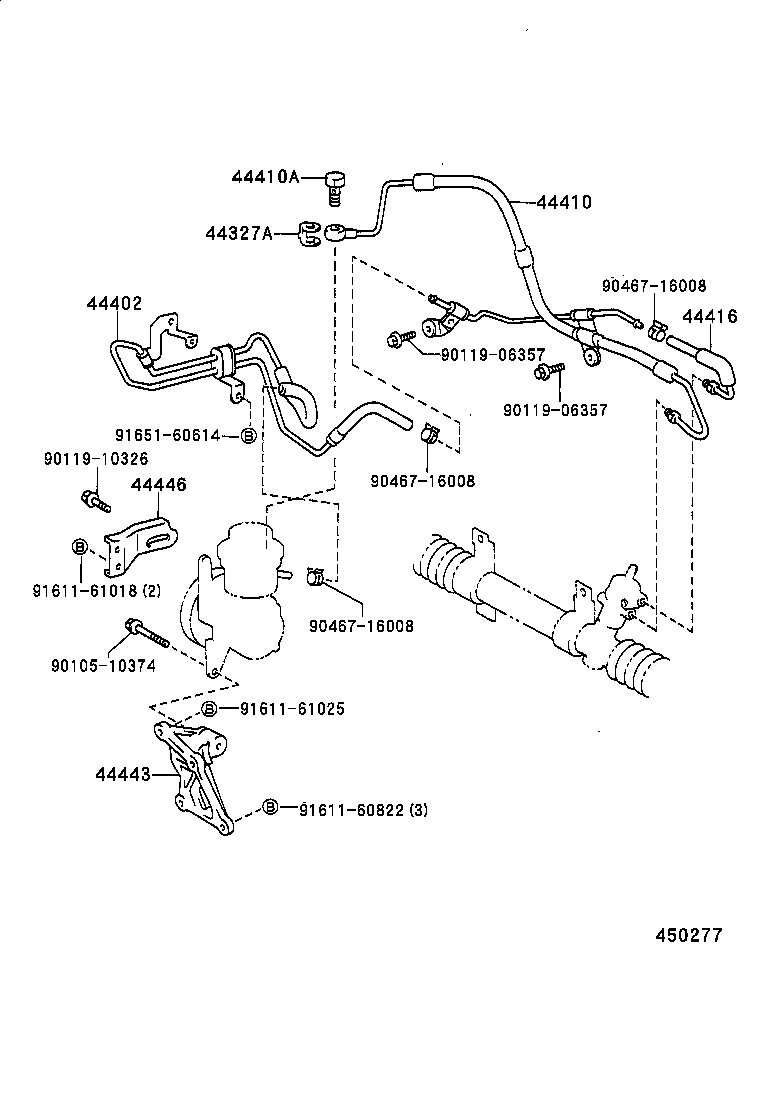

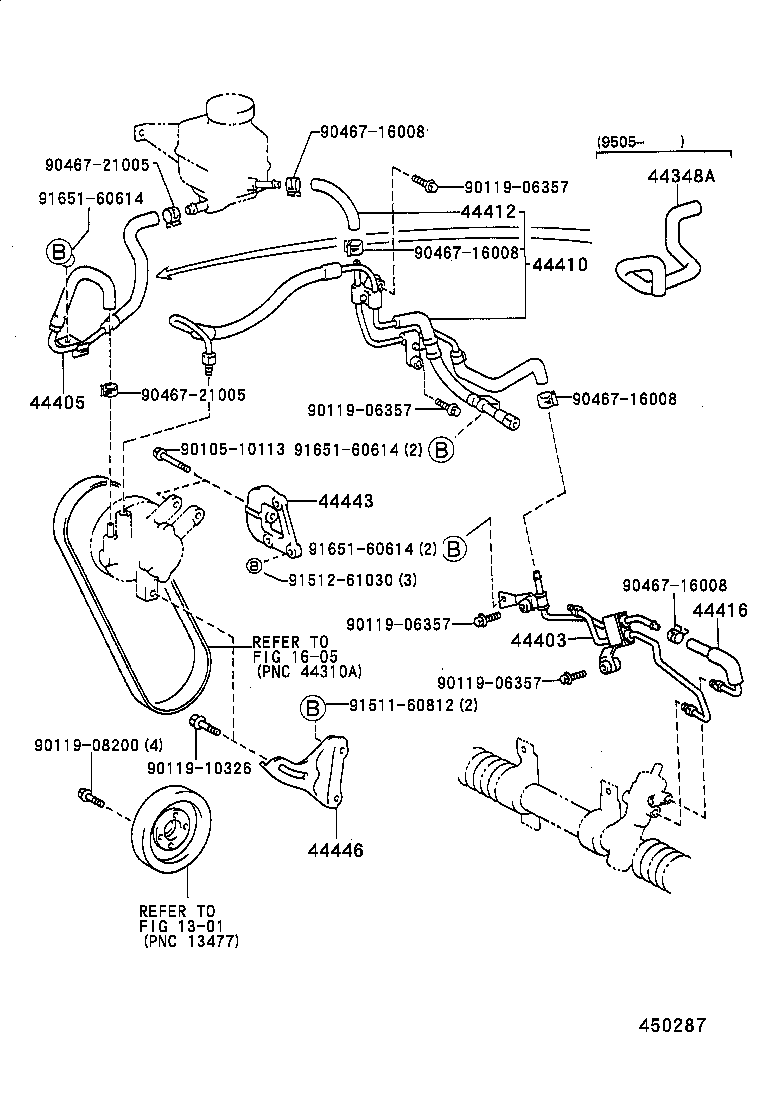

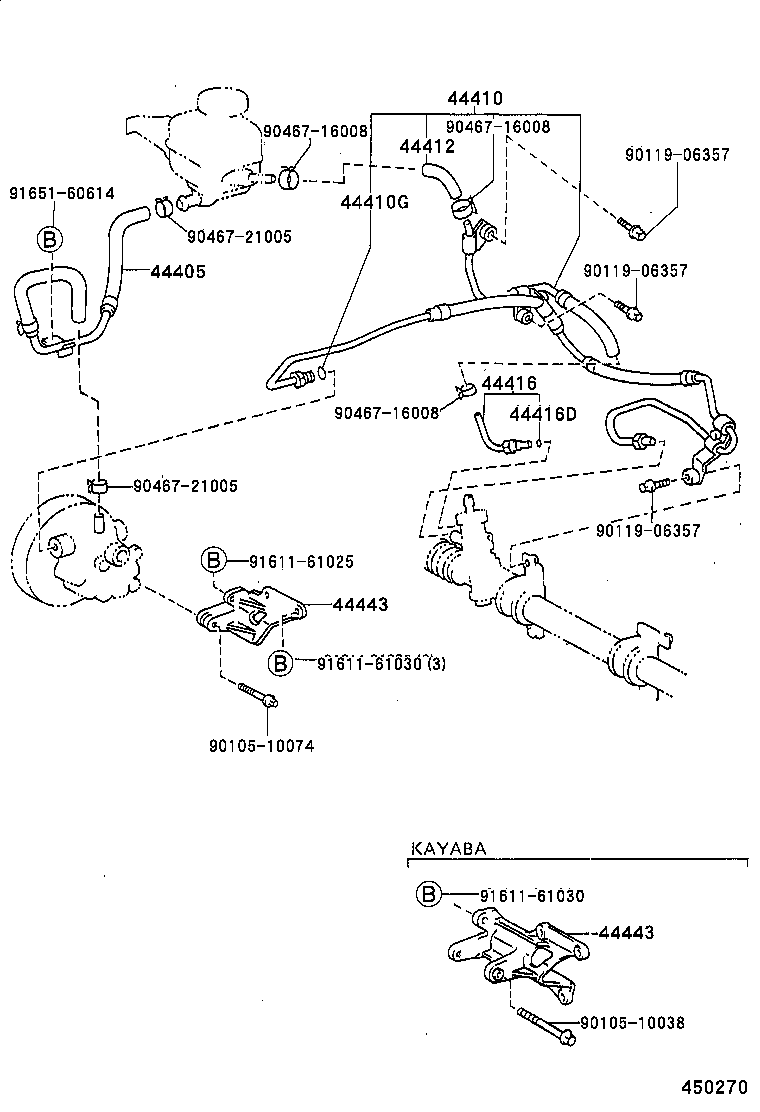

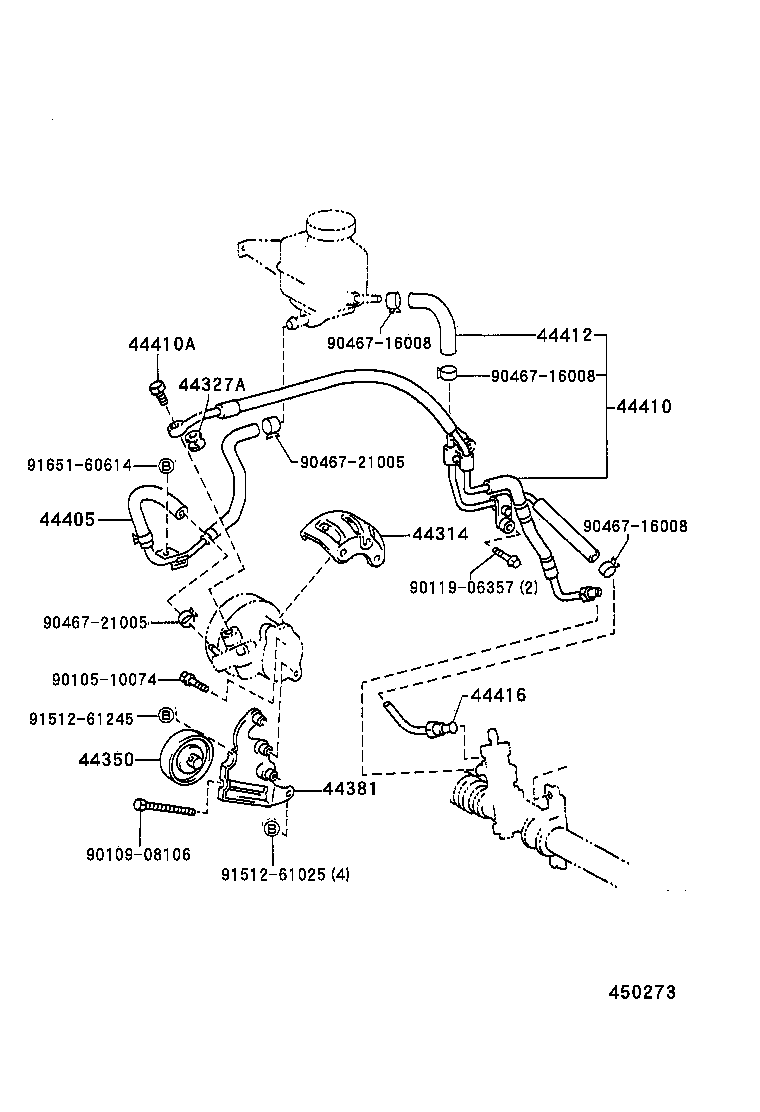

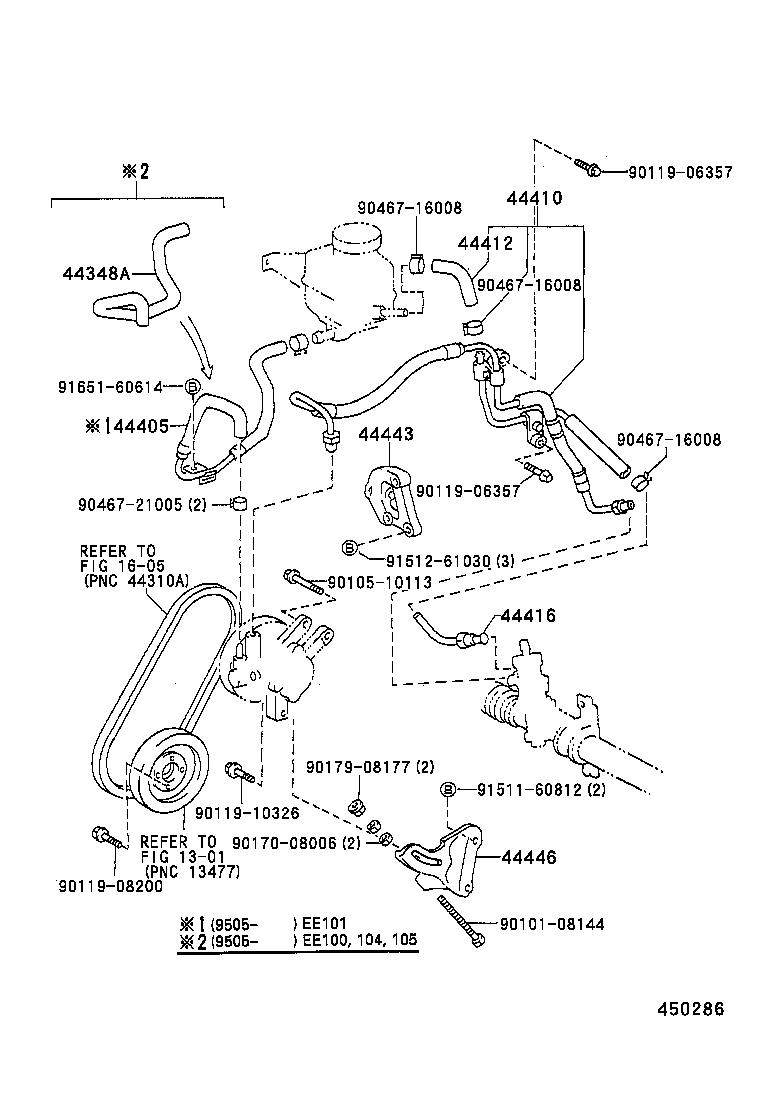

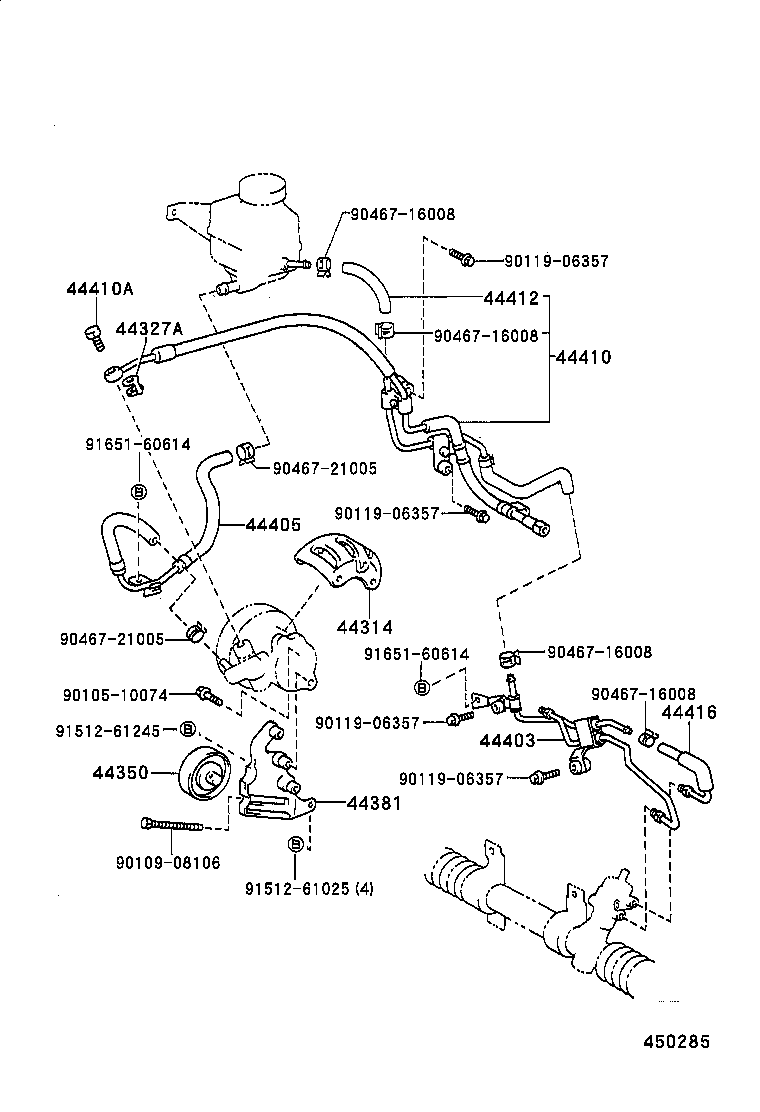

Figure 450276 450276 1991-08 → — Figure 450277 450277 1992-07 → — Figure 450277 450277 1993-01 → — Figure 450277 450277 1993-09 → — Figure 450284 450284 1992-05 → — Figure 450270 450270 1991-08 → — Figure 450285 450285 1992-05 → — Figure 450273 450273 1996-03 → — Figure 450286 450286 1991-08 → — Figure 450287 450287 1992-05 → —

Part groups

PNCDescription
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44403 Tube Sub-assy, Pressure Feed, NO.1
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416D Ring, O(FOR RETURN TUBE)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
