Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

16 part groups · 9 illustrations

Illustrations

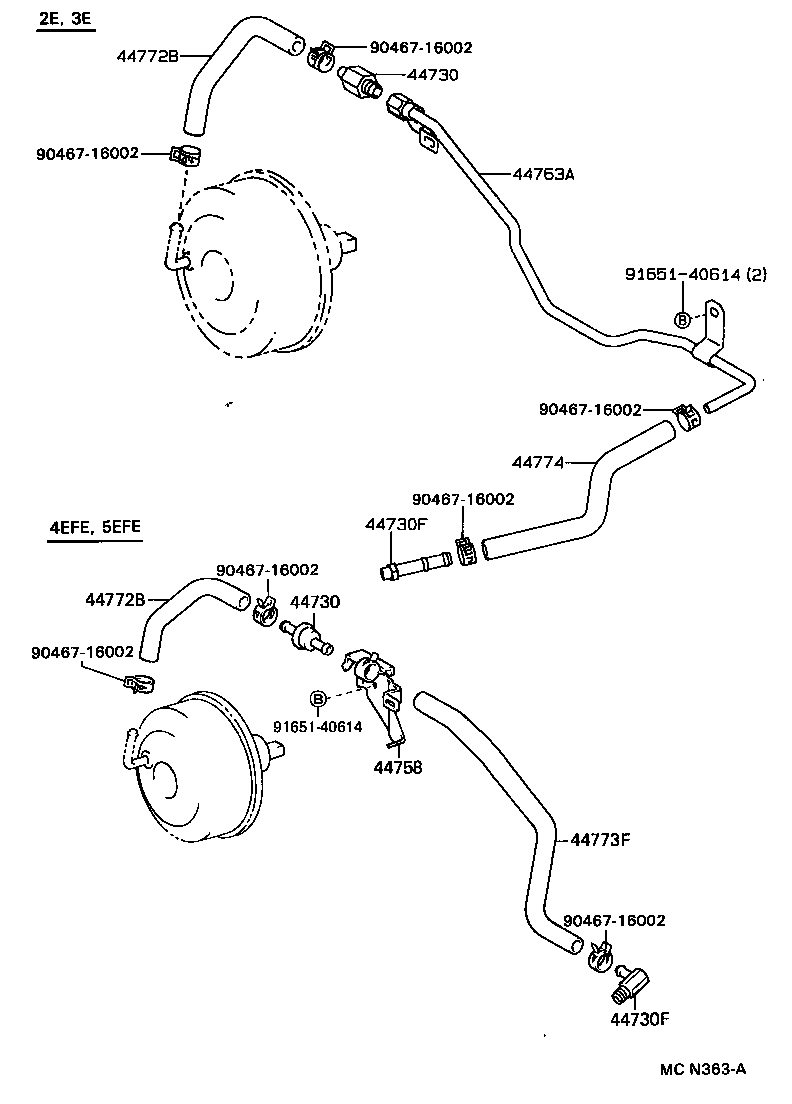

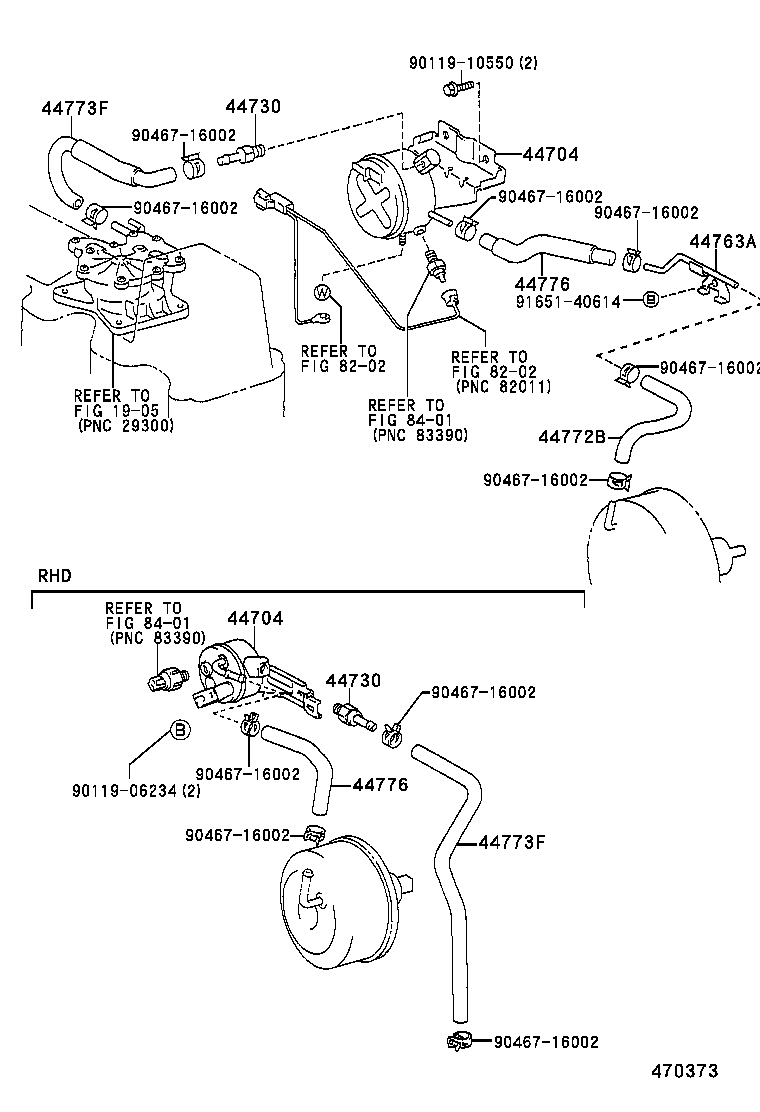

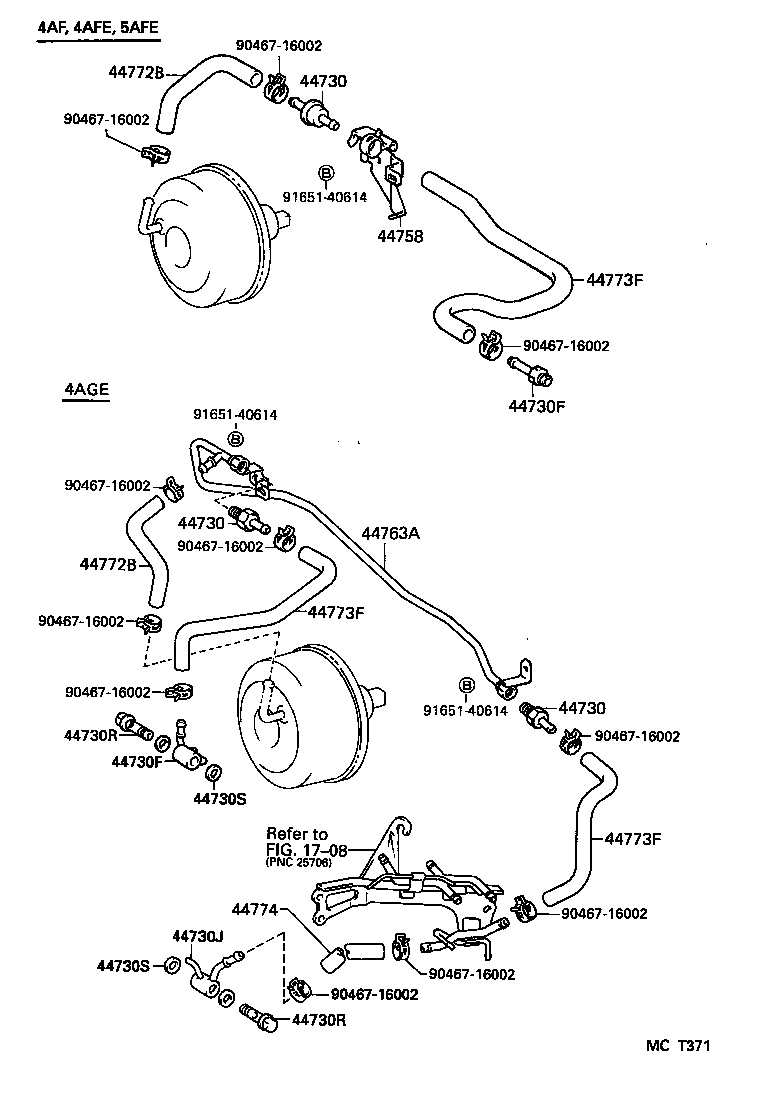

Figure MCL892A MCL892A 1991-08 → 1995-05 Figure MCL892A MCL892A 1995-05 → — Figure MCT069 MCT069 1995-05 → — Figure MCT371 MCT371 1991-08 → 1995-05 Figure MCT371 MCT371 1995-05 → — Figure MCT070 MCT070 1995-05 → — Figure MCN364B MCN364B 1992-05 → — Figure MCN363A MCN363A 1991-08 → — Figure 470373 470373 1992-05 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730J Way(FOR BOOSTER VACUUM)
44730R Bolt, Union(FOR VACUUM HOSE UNION)
44730S Gasket(FOR VACUUM HOSE UNION)
44731C Bracket, Brake Booster
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
