Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

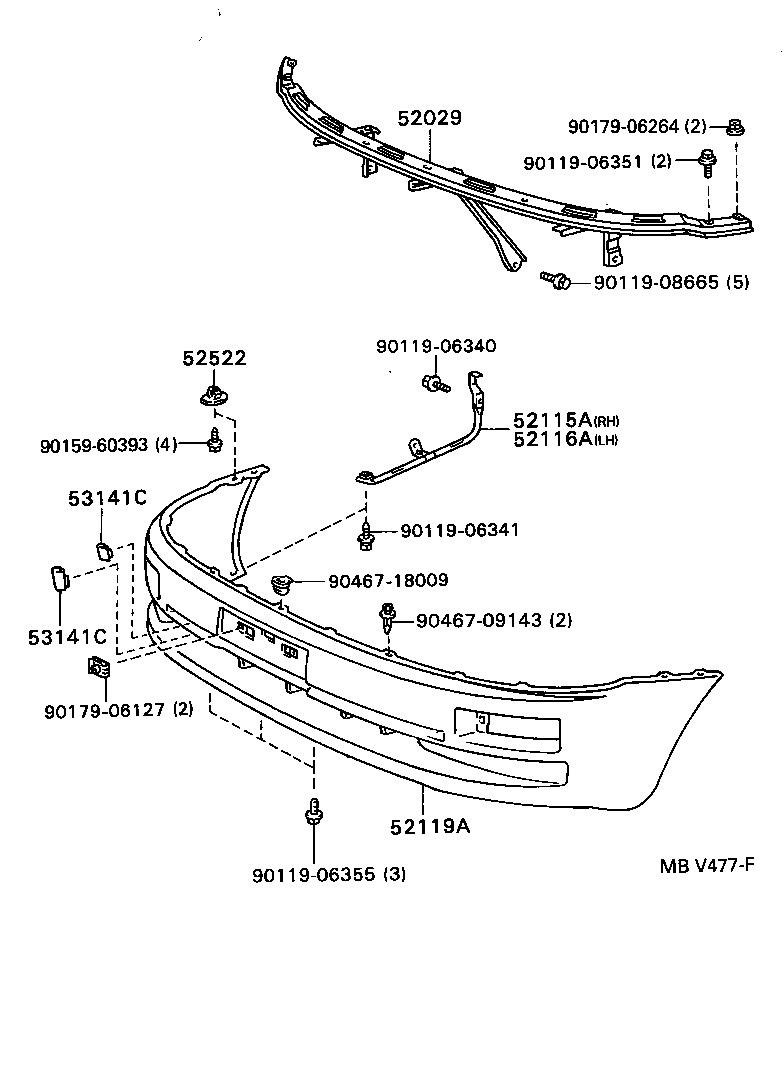

Figure 520210A 520210A 1991-08 → — Figure MBV477F MBV477F 1991-08 → 1995-05

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52143A Arm, Front Bumper, Inner RH
52144A Arm, Front Bumper, Inner LH
52147A Bracket, Front Bumper Stay, RH
52147E Bracket, Front Bumper Mounting, RH
52148A Bracket, Front Bumper Stay, LH
52148E Bracket, Front Bumper Mounting, LH
52187D Guide, Front Bumper Location, RH
52188C Guide, Front Bumper Location, LH
52522 Retainer, Front Bumper Upper Side
53141C Garnish, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
