Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

Figure MBV483C

MBV483C 1991-08 → —

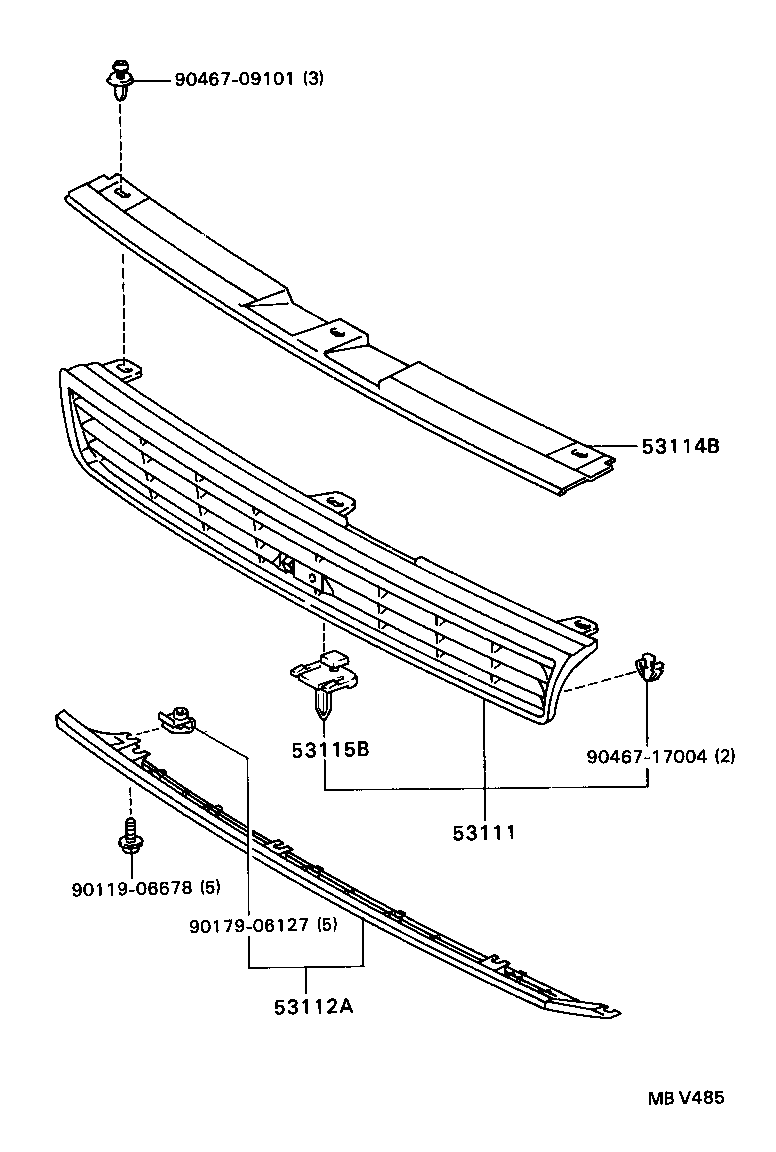

Figure MBV485

MBV485 1991-08 → 1995-05

Part groups

PNC	Description
53111	Grille, Radiator
53112A	Grille, Radiator, Lower
53114B	Grille, Radiator, Upper
53115B	Bracket, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
