Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

39 part groups · 7 illustrations

Illustrations

530177 1991-08 → 1995-05

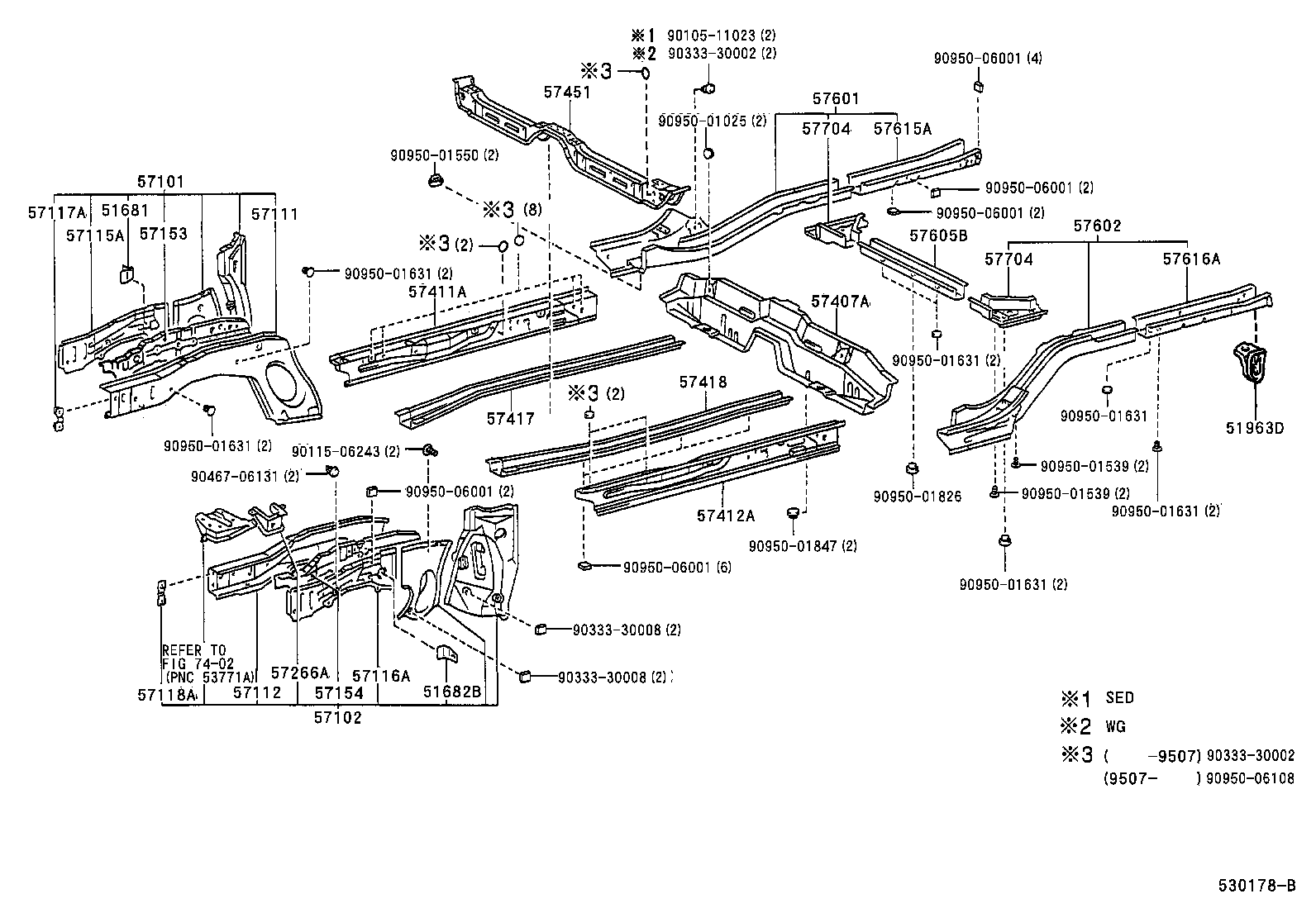

530178B 1995-05 → —

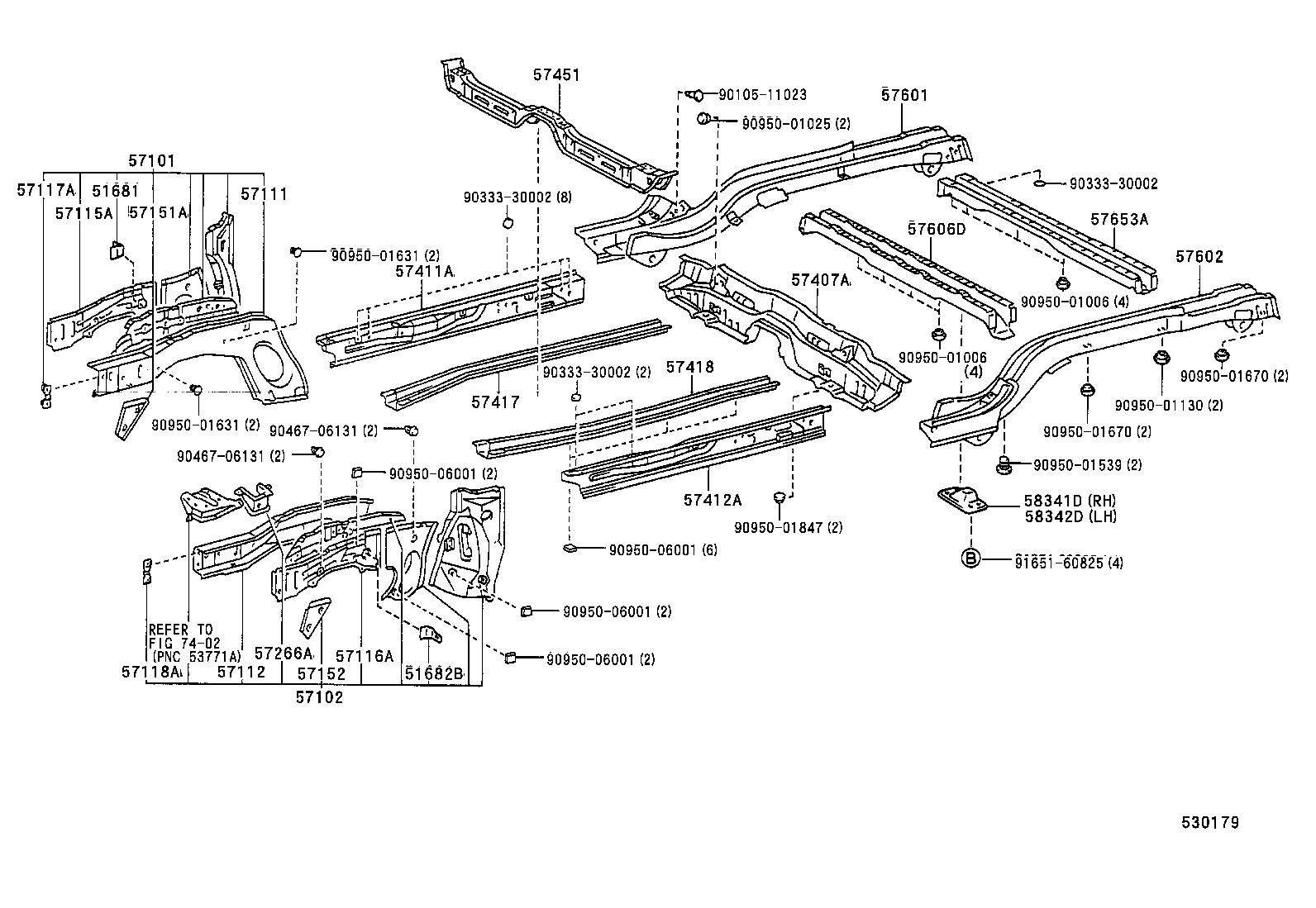

530179 1991-09 → 1994-01

530179 1994-01 → 1995-05

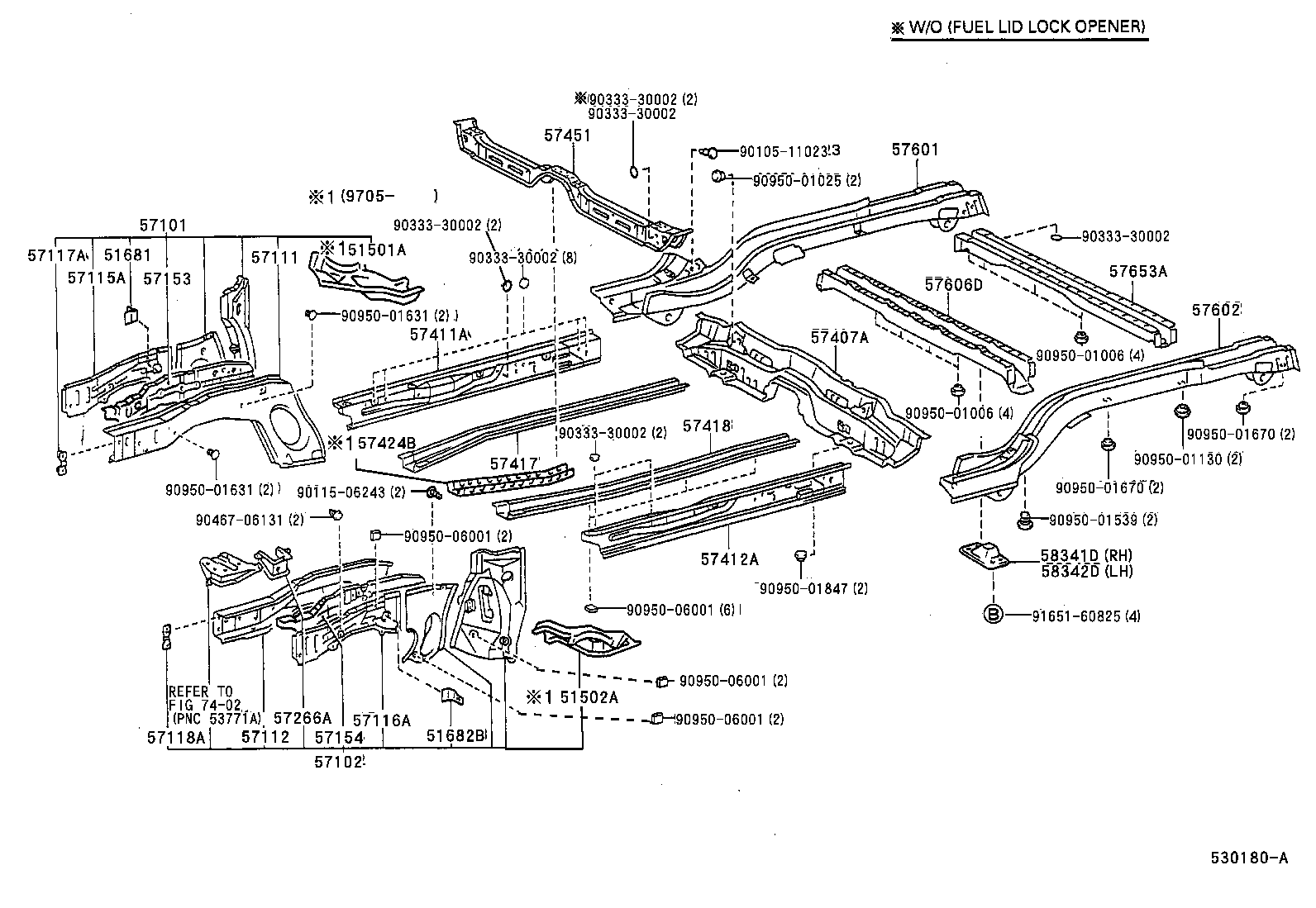

530180A 1995-05 → 1997-04

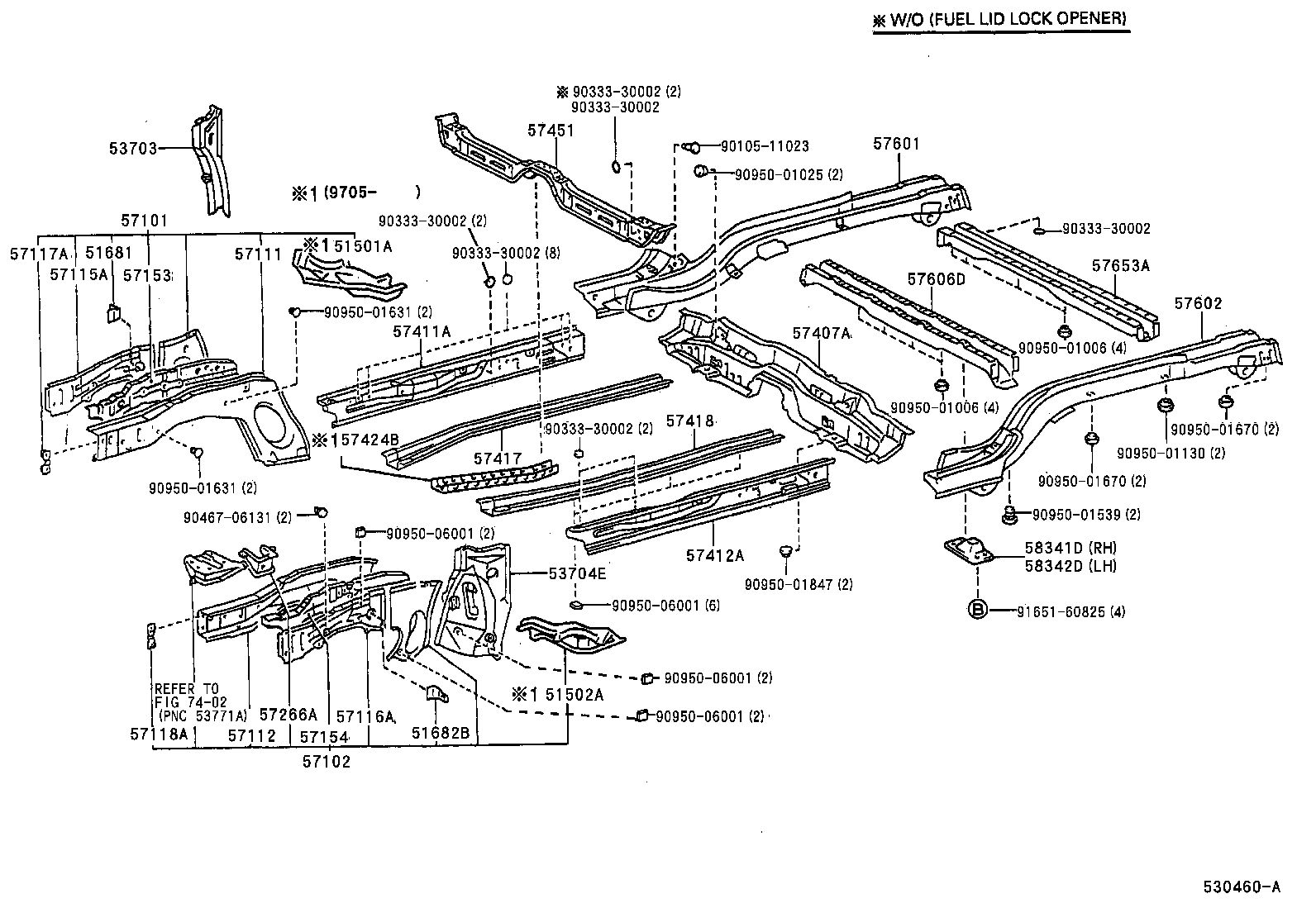

530460A 1997-04 → —

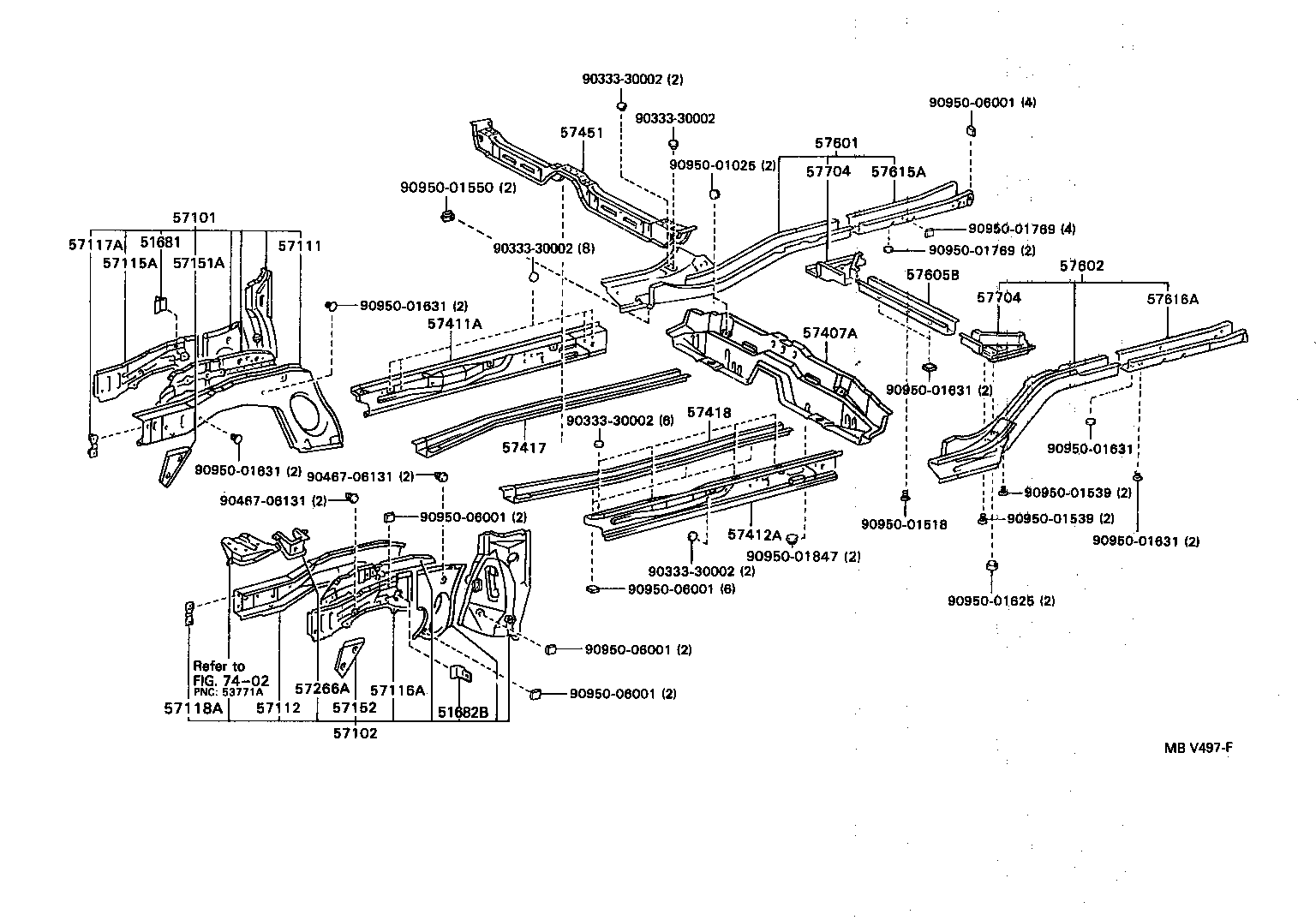

MBV497F 1991-08 → 1995-05

Part groups

PNC	Description
51501A	Reinforcement Sub-assy, Front Suspension Member, RH
51502A	Reinforcement Sub-assy, Front Suspension Member, LH
51681	Bracket, Flexible Hose
51682B	Bracket, Flexible Hose, LH
51963D	Hook, Transport, Rear LH
53703	Apron Sub-assy, Front Fender, Rear RH
53704E	Apron Sub-assy, Front Fender, Rear LH
57101	Member Sub-assy, Front Side, RH
57102	Member Sub-assy, Front Side, LH
57111	Member, Front Side, RH
57112	Member, Front Side, LH
57115A	Plate, Front Side Member, Outer RH
57116A	Plate, Front Side Member, Outer LH
57117A	Reinforcement, Front Bumper Mounting
57118A	Reinforcement, Front Bumper Mounting, LH
57151A	Reinforcement, Front Side Member, NO.1 RH
57152	Reinforcement, Front Side Member, NO.1 LH
57153	Reinforcement, Front Side Member, NO.2 RH
57154	Reinforcement, Front Side Member, NO.2 LH
57266A	Bracket, Engine Mounting, LH
57407A	Member Sub-assy, Center Floor Cross
57411A	Member, Floor Side, Inner RH
57412A	Member, Floor Side, Inner LH
57417	Reinforcement, Front Floor Under, RH
57418	Reinforcement, Front Floor Under, LH
57424B	Reinforcement, Front Floor Under, Inner LH
57451	Member, Front Floor Cross
57601	Member Sub-assy, Rear Floor Side, RH
57601B	Member Sub-assy, Rear Floor Side, Front RH
57602	Member Sub-assy, Rear Floor Side, LH
57602B	Member Sub-assy, Rear Floor Side, Front LH
57605B	Member Sub-assy, Rear Floor Cross, NO.1
57606D	Member Sub-assy, Rear Absorber Mounting
57615A	Member, Rear Floor Side, Rear RH
57616A	Member, Rear Floor Side, Rear LH
57653A	Member, Rear Floor Cross, NO.2
57704	Support Sub-assy, Rear Suspension Spring
58341D	Bracket, Rear Absorber Mounting, NO.1 RH
58342D	Bracket, Rear Absorber Mounting, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
