Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

15 part groups · 2 illustrations

Illustrations

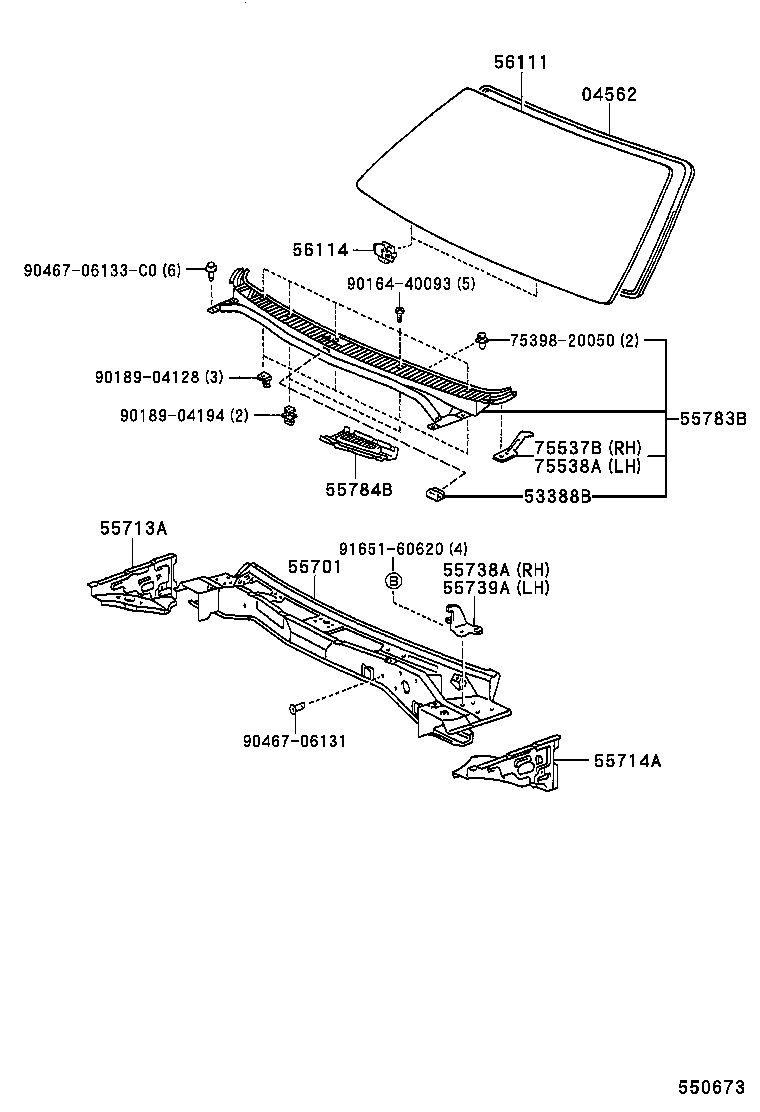

Figure 550154A 550154A 1991-08 → — Figure 550673 550673 1991-08 → 1995-05

Part groups

PNCDescription
04562 Dam Kit, Windshield Glass
53388B Cushion, Hood, Rear
55077A Cover Sub-assy, Heater Air Duct Hole
55701 Panel Sub-assy, Cowl
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55738A Stopper, Hood, RH
55739A Stopper, Hood, LH
55783B Louver, Cowl Top Ventilator, Center NO.1
55784B Louver, Cowl Top Ventilator, Center NO.2
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56114 Retainer, Windshield Glass
75537B Pad, Windshield Moulding, RH
75538A Pad, Windshield Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
