Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04

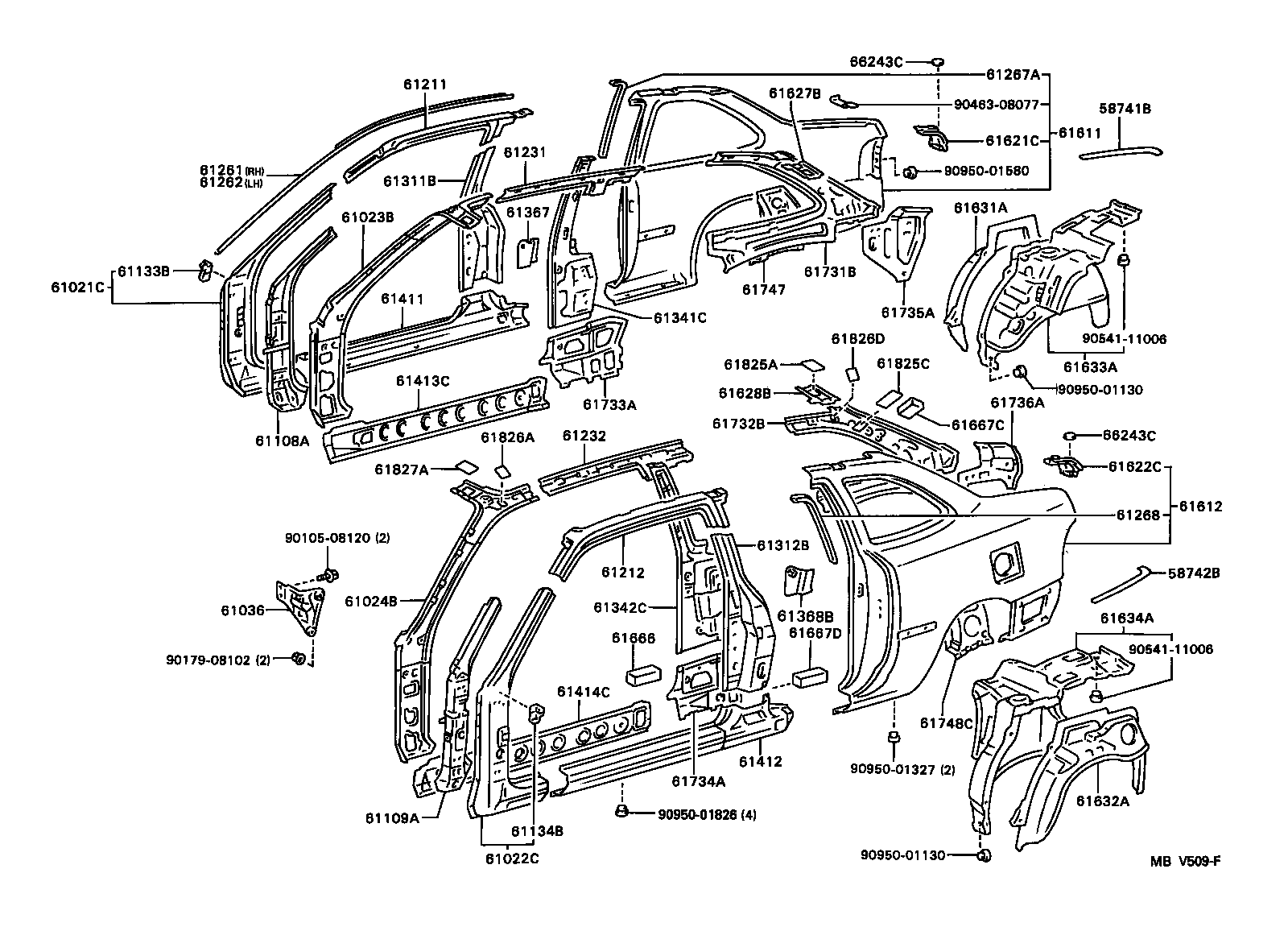

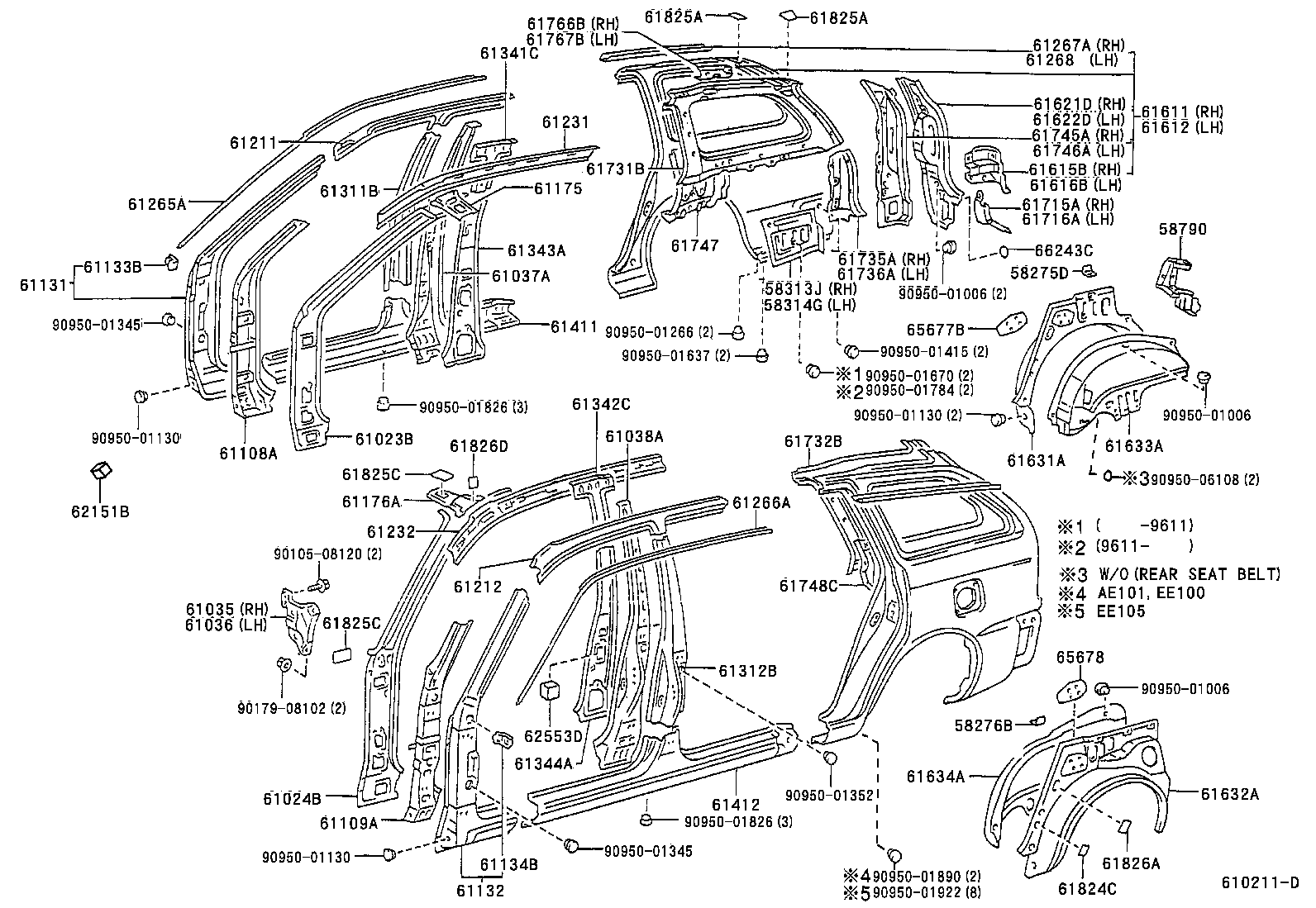

Side Member
88 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58275D | Bracket, Wire Harness Protector, RH |
| 58276B | Bracket, Wire Harness Protector, LH |
| 58313J | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314G | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58741B | Protector, Quarter Panel, RH |
| 58742B | Protector, Quarter Panel, LH |
| 58790 | Carrier Assy, Jack |
| 61021C | Pillar Sub-assy, Front Body, RH |
| 61022C | Pillar Sub-assy, Front Body, LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61035 | Bracket Sub-assy, Instrument Panel TO Cowl Side, RH |
| 61036 | Bracket Sub-assy, Instrument Panel TO Cowl Side, LH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61133B | Bracket, Front Body Pillar ,Outer RH |
| 61134B | Bracket, Front Body Pillar Outer, LH |
| 61175 | Reinforcement, Front Body Pillar, Inner NO.2 RH |
| 61176A | Reinforcement, Front Body Pillar, Inner NO.2 LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61261 | Channel, Roof Drip, RH |
| 61262 | Channel, Roof Drip, LH |
| 61265A | Channel, Roof Drip Side, Center RH |
| 61266A | Channel, Roof Drip Side, Center LH |
| 61267A | Channel, Roof Drip Side, Rear RH |
| 61268 | Channel, Roof Drip Side, Rear LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61341C | Pillar, Center Body, Inner Upper RH |
| 61342C | Pillar, Center Body, Inner Upper LH |
| 61343A | Pillar, Center Body, Inner RH |
| 61344A | Pillar, Center Body, Inner LH |
| 61367 | Reinforcement, Belt Anchor TO Center Pillar, Lower |
| 61368B | Reinforcement, Belt Anchor TO Center Pillar, Lower LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61413C | Reinforcement, Rocker Panel, NO.2 RH |
| 61414C | Reinforcement, Rocker Panel, NO.2 LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61615B | Reinforcement, Quarter Panel, Outer Front |
| 61616B | Reinforcement, Quarter Panel, Outer Rear |
| 61621C | Trough, Luggage Compartment Opening, RH |
| 61621D | Trough, Back Door Opening, RH |
| 61622C | Trough, Luggage Compartment Opening, LH |
| 61622D | Trough, Back Door Opening, LH |
| 61627B | Extension, Quarter Panel, Upper Rear RH |
| 61628B | Extension, Quarter Panel, Upper Rear LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61666 | Seal, Quarter Panel |
| 61667C | Seal, Qaurter Panel, NO.1 |
| 61667D | Seal, Quarter Panel |
| 61715A | Extension, Roof Side, Inner Upper RH |
| 61716A | Extension, Roof Side, Inner Upper LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61733A | Panel, Roof Side, Inner Front RH |
| 61734A | Panel, Roof Side, Inner Front LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61745A | Reinforcement, Back Door Opening, Lower RH |
| 61746A | Reinforcement, Back Door Opening, Lower LH |
| 61747 | Brace, Roof Side Inner TO Wheel House, RH |
| 61748C | Brace, Roof Side Inner TO Wheel House, LH |
| 61766B | Reinforcement, Belt Anchor TO Roof Side, Inner RH |
| 61767B | Reinforcement, Belt Anchor TO Roof Side, Inner LH |
| 61824 | Plate, Noise Control, NO.1 |
| 61824C | Pad, Noise Shutter, NO.1 |
| 61825A | Plate, Noise Control, NO.2 |
| 61825C | Pad, Noise Shutter, NO.2 |
| 61826A | Plate, Noise Control, NO.3 |
| 61826D | Plate, Noise Control, NO.3 |
| 61827A | Plate, Noise Control, NO.4 |
| 62151B | Pad, Cowl Side Silencer |
| 62553D | Pad, Pillar, NO.3 |
| 65677B | Patch, Wheel House, Rear RH |
| 65678 | Patch, Wheel House, Rear LH |
| 66243C | Protector, Rear Body, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
