Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04

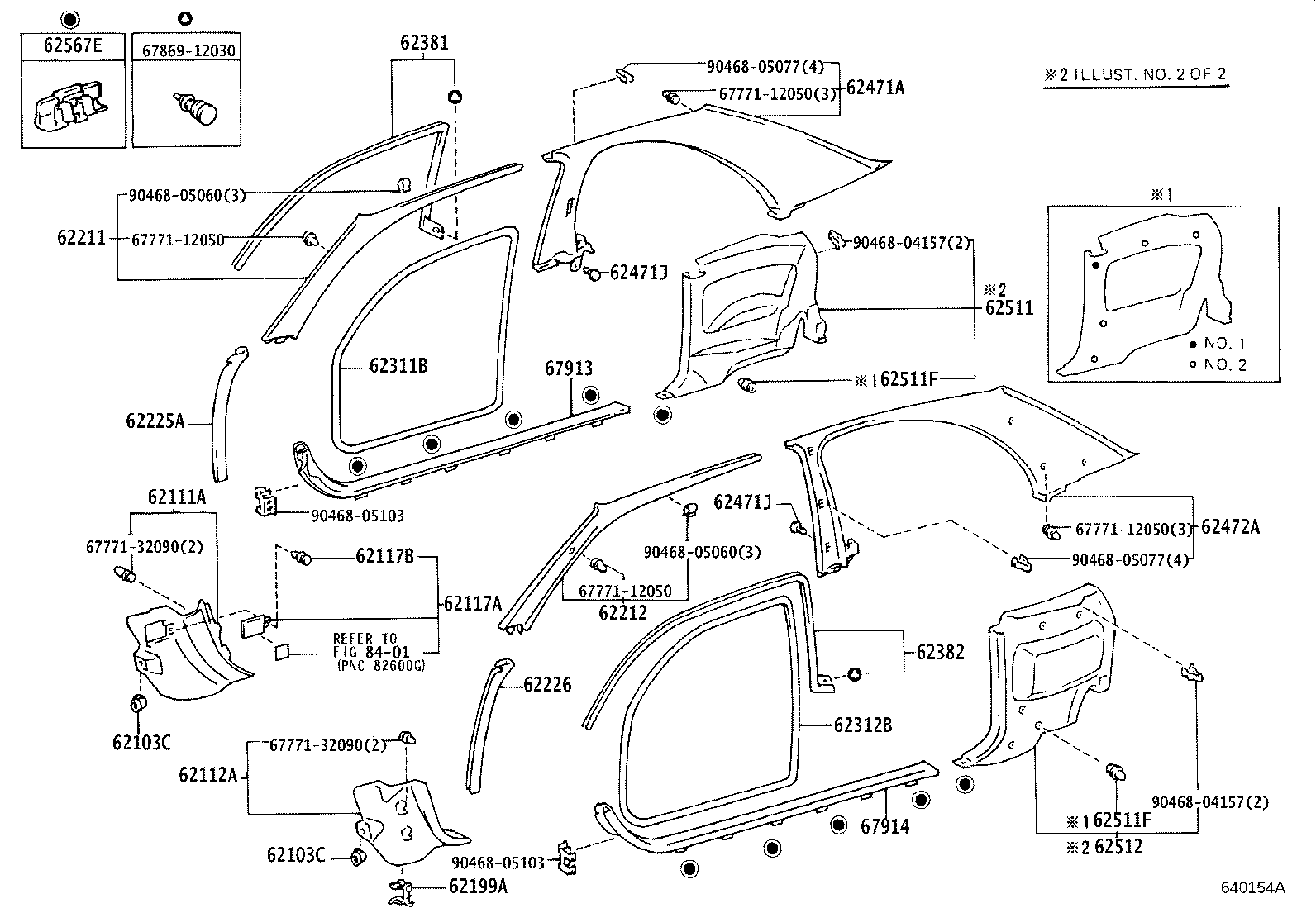

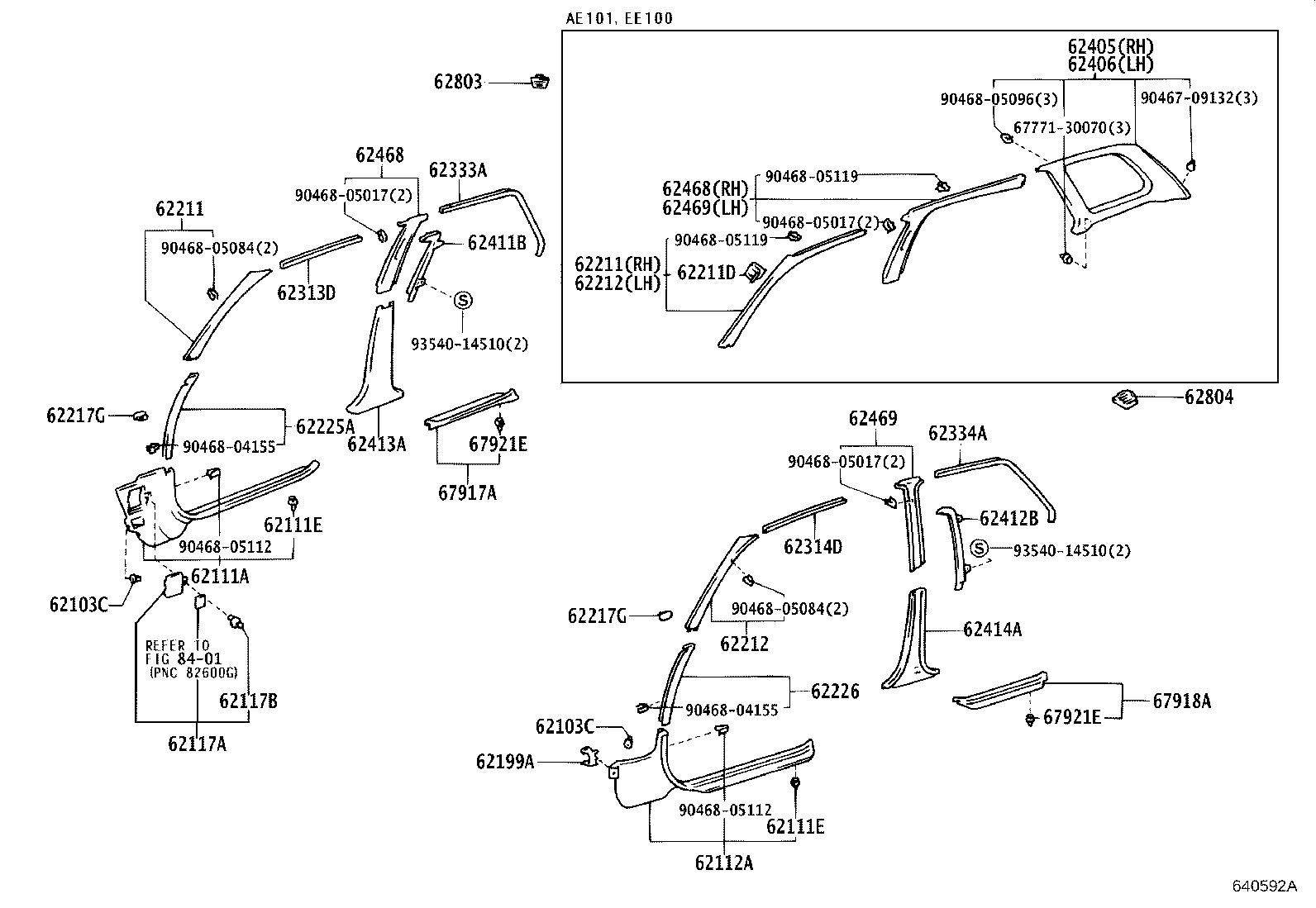

Inside Trim Board & Door Opening Trim Moulding
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103C | Clip, Cowl Side Trim Board Set |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62111E | Retainer, Cowl Side Trim |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62199A | Holder, Fusee |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62381 | Weatherstrip, Roof Side Rail, Front RH |
| 62382 | Weatherstrip, Roof Side Rail, Front LH |
| 62405 | Garnish Sub-assy, Roof Side, Inner RH |
| 62406 | Garnish Sub-assy, Roof Side, Inner LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62468 | Garnish, Center Pillar, Rear RH |
| 62469 | Garnish, Center Pillar, Rear LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62487A | Cover, Roof Side Inner Garnish, RH |
| 62488A | Cover, Roof Side Inner Garnish, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62567E | Clamp, Rocker Panel Inner Protector, NO.2 |
| 62803 | Grille Sub-assy, Room Ventilation, RH |
| 62804 | Grille Sub-assy, Room Ventilation, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67921E | Retainer, Rear Door Scuff Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
