Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04

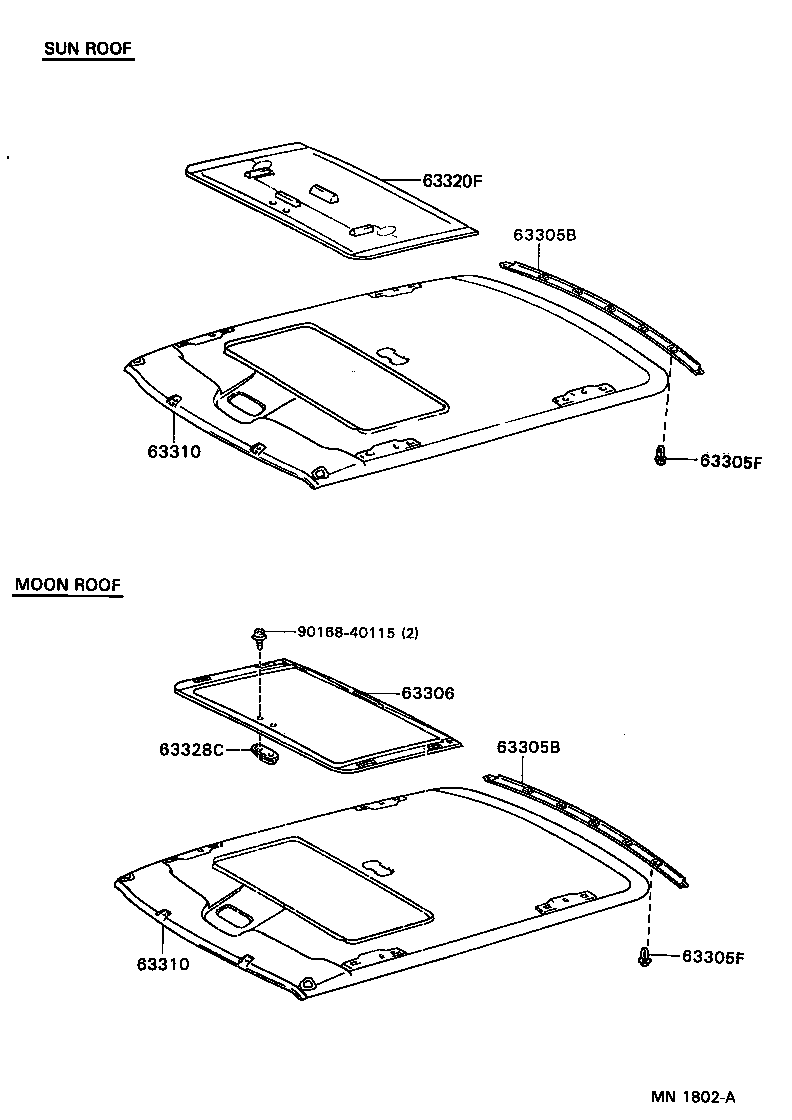

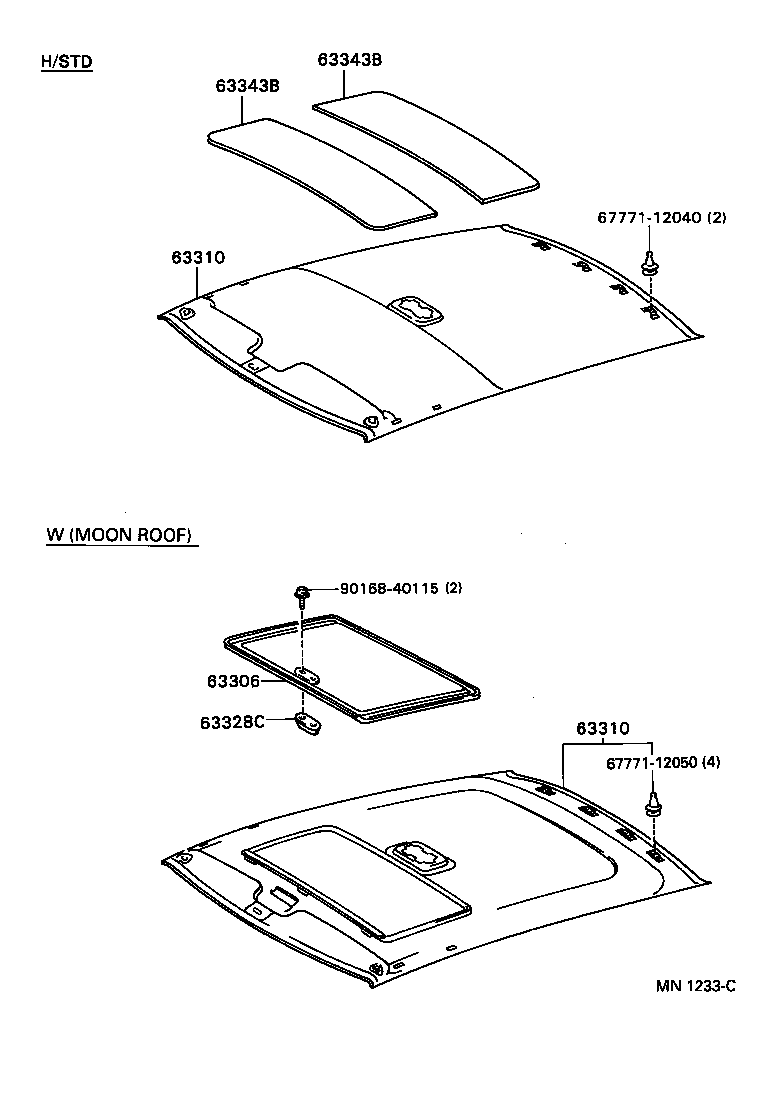

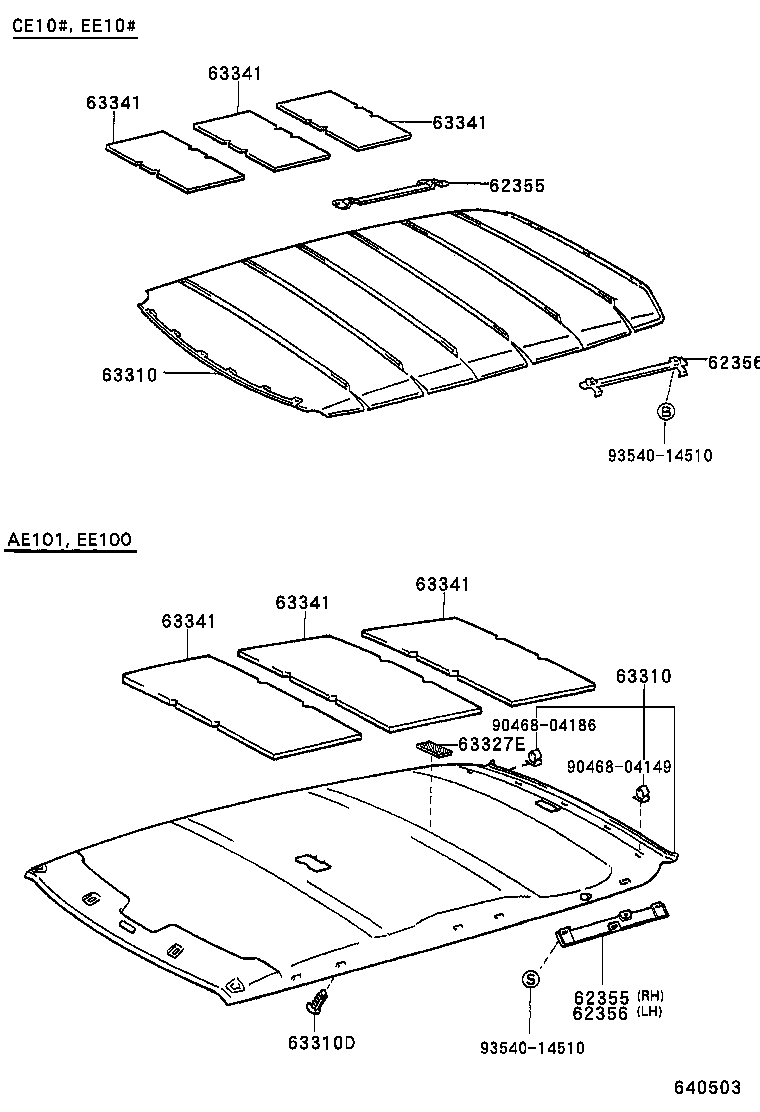

Roof Headlining & Silencer Pad
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62355 | Retainer, Quarter Window Inside Trim, RH |
| 62356 | Retainer, Quarter Window Inside Trim, LH |
| 62527C | Pad, Quarter Trim |
| 63305B | Trim Sub-assy, Roof Headlining, Rear |
| 63305F | Clip(FOR ROOF HEADLINING TRIM) |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63320F | Headlining Assy, Sun Roof |
| 63327E | Fastener, Roof Headlining, NO.1 |
| 63328C | Knob, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341D | Pad, Roof Silencer, Front |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63342A | Silencer, Roof, NO.2 |
| 63343B | Pad, Roof Silencer, Rear |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63381 | Retainer, Headlining, Front |
| 63391 | Trim, Roof Headlining, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
