Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04

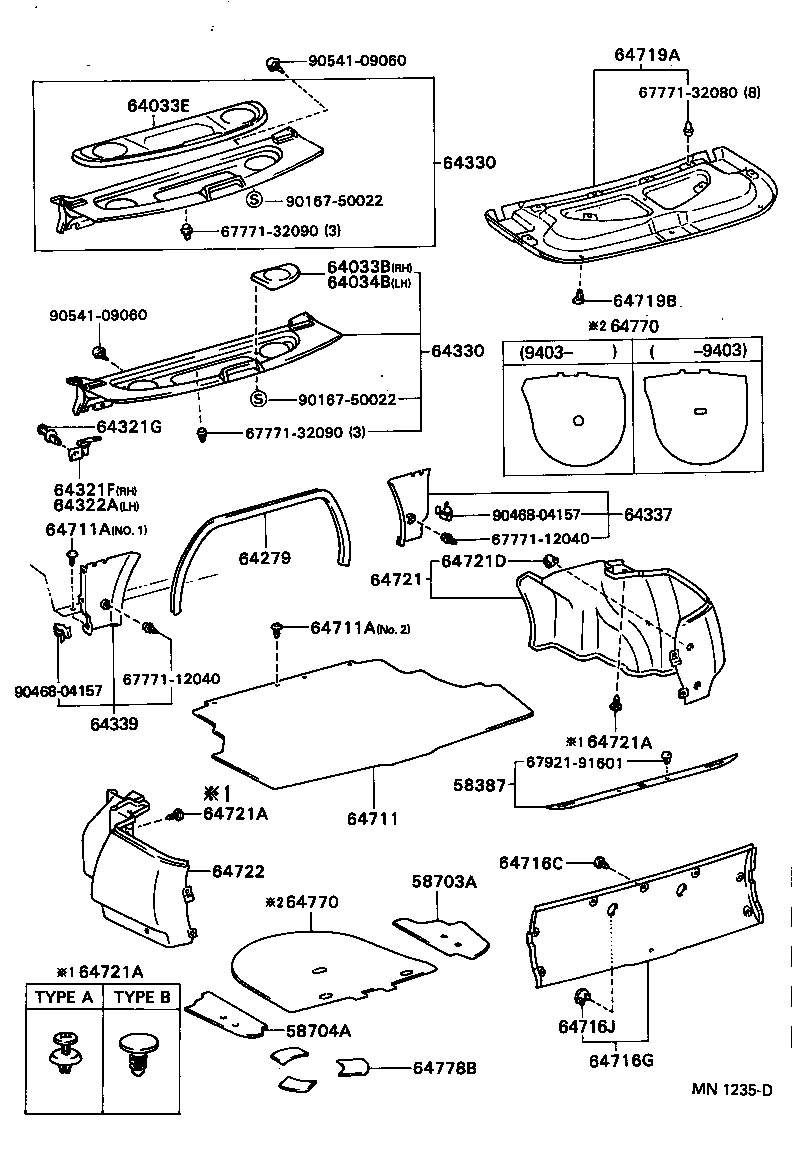

Package Tray Panel & Luggage Compartment Mat
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704A | Cover Sub-assy, Luggage Compartment Side, LH |
| 64033B | Grille Sub-assy, Rear Speaker, RH |
| 64033E | Grille Sub-assy, Rear Speaker |
| 64034B | Grille Sub-assy, Rear Speaker, LH |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271G | Board, Room Partition, RH |
| 64272B | Board, Room Partition, LH |
| 64279 | Protector, Room Partition |
| 64321F | Bracket, Package Tray Trim, RH |
| 64321G | Clip(FOR PACKAGE TRIM SIDE) |
| 64322A | Bracket, Package Tray Trim, LH |
| 64330 | Panel Assy, Package Tray Trim |
| 64337 | Garnish, Package Tray Trim, RH |
| 64339 | Garnish, Package Tray Trim, LH |
| 64711 | Mat, Luggage Compartment Floor |
| 64711A | Clip(FOR LUGGAGE COMPARTMENT FLOOR MAT) |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64716J | Plug, Hole(FOR LUGGAGE COMPARTMENT REAR COVER) |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721D | Plug, Hole(FOR LUGGAGE COMPARTMENT INNER COVER) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64770 | Cover Assy, Spare Wheel |
| 64778B | Protector, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
