Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

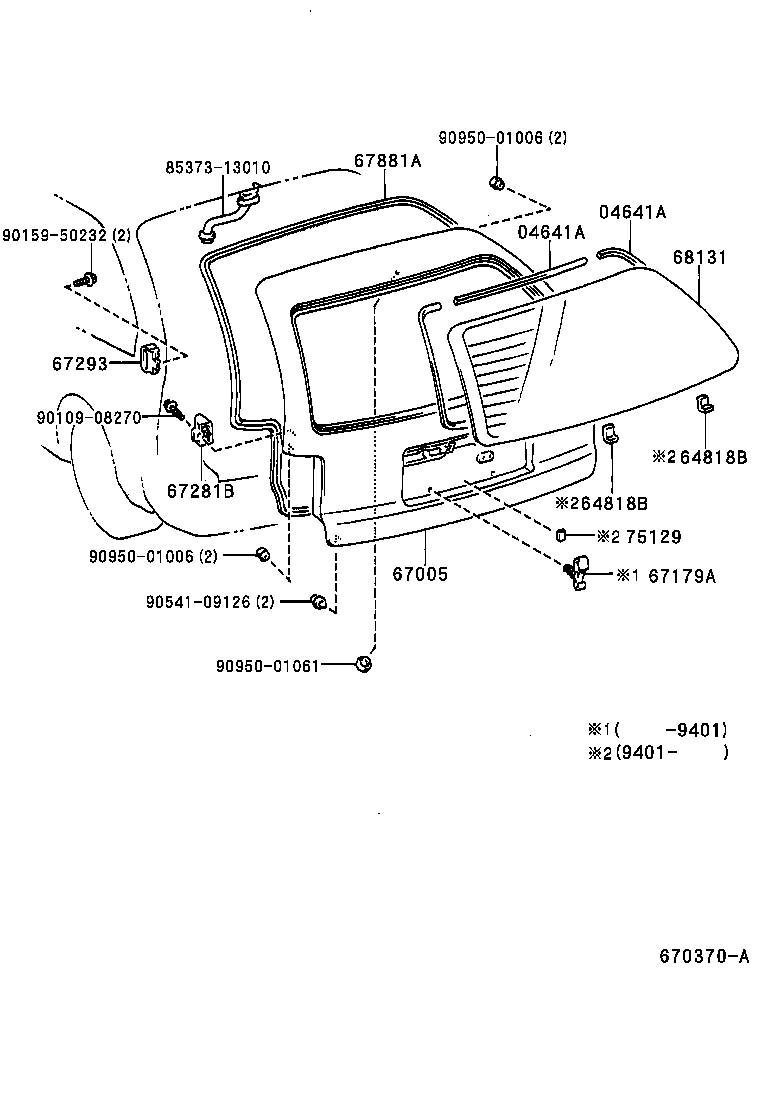

Figure 670380 670380 1991-09 → — Figure 670370A 670370A 1991-09 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
63137 Cover, Back Door Opening Upper, Inner
63337B Cover, Back Door Opening Frame, Upper RH
63338G Cover, Back Door Opening Frame, Upper LH
64791A Clip(FOR BACK DOOR TRIM)
64791C Cover, Back Door Trim, RH
64792 Cover, Back Door Trim, LH
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67179A Retainer, License Plate
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67881A Weatherstrip, Back Door
68131 Glass, Back Door
75129 Cushion, Rear License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
