Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

77 part groups · 18 illustrations

Illustrations

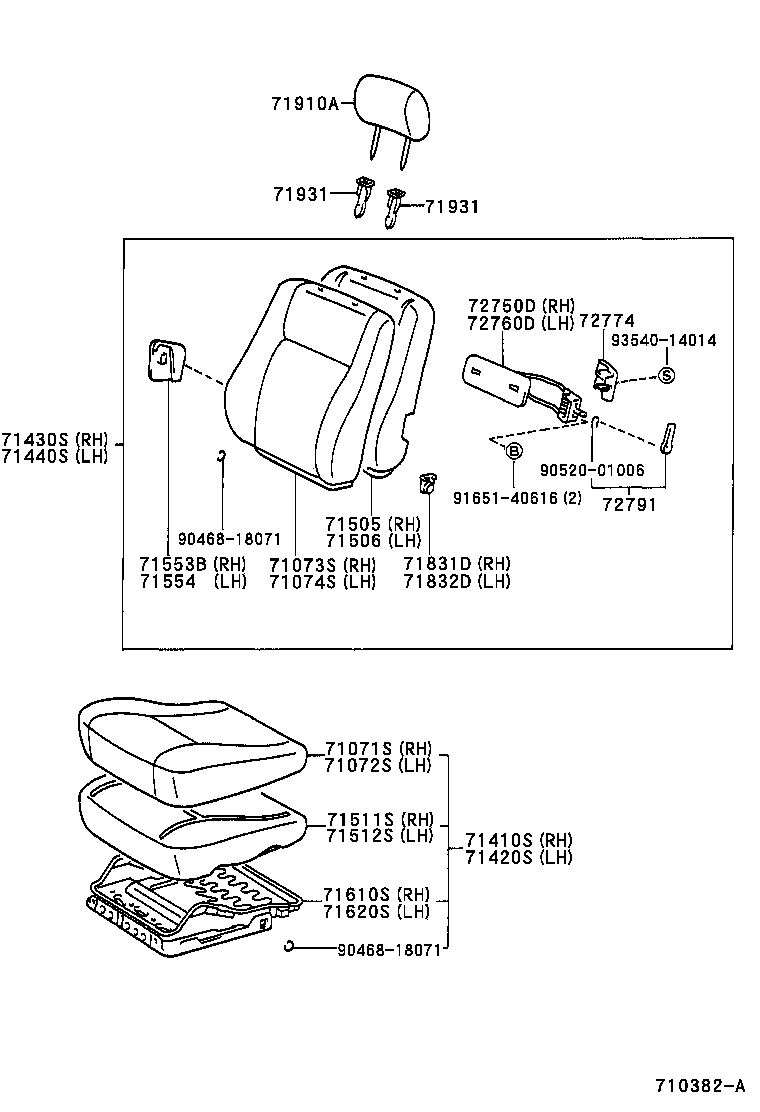

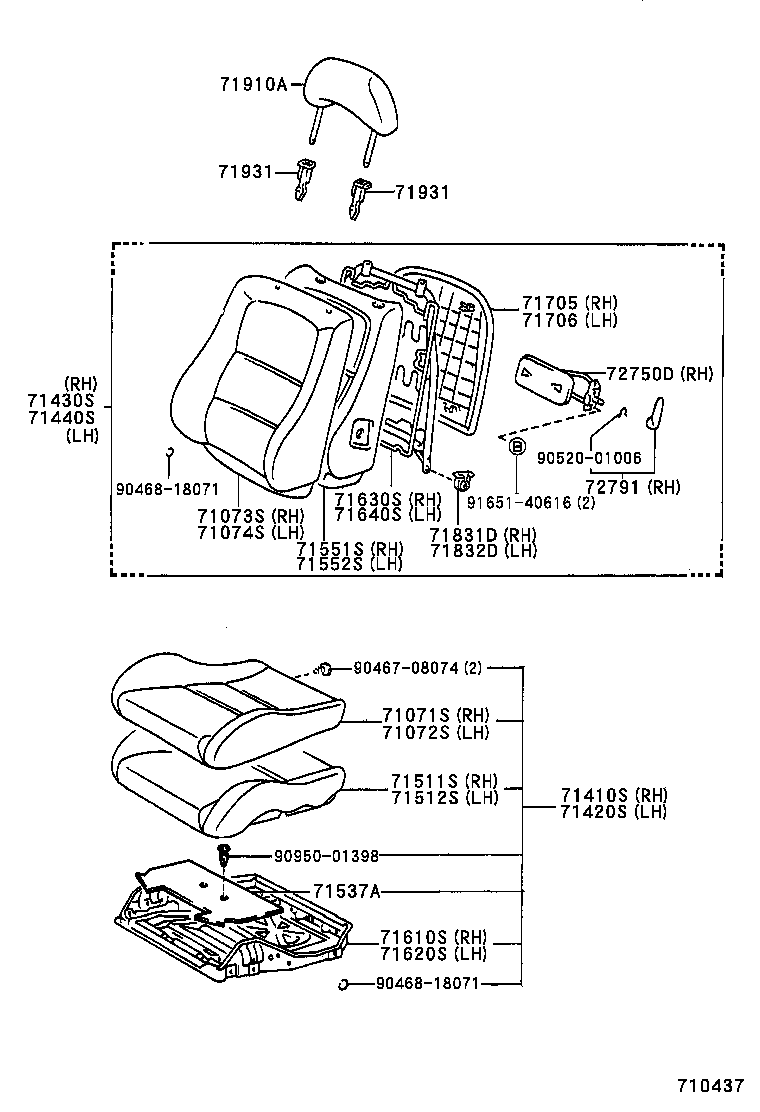

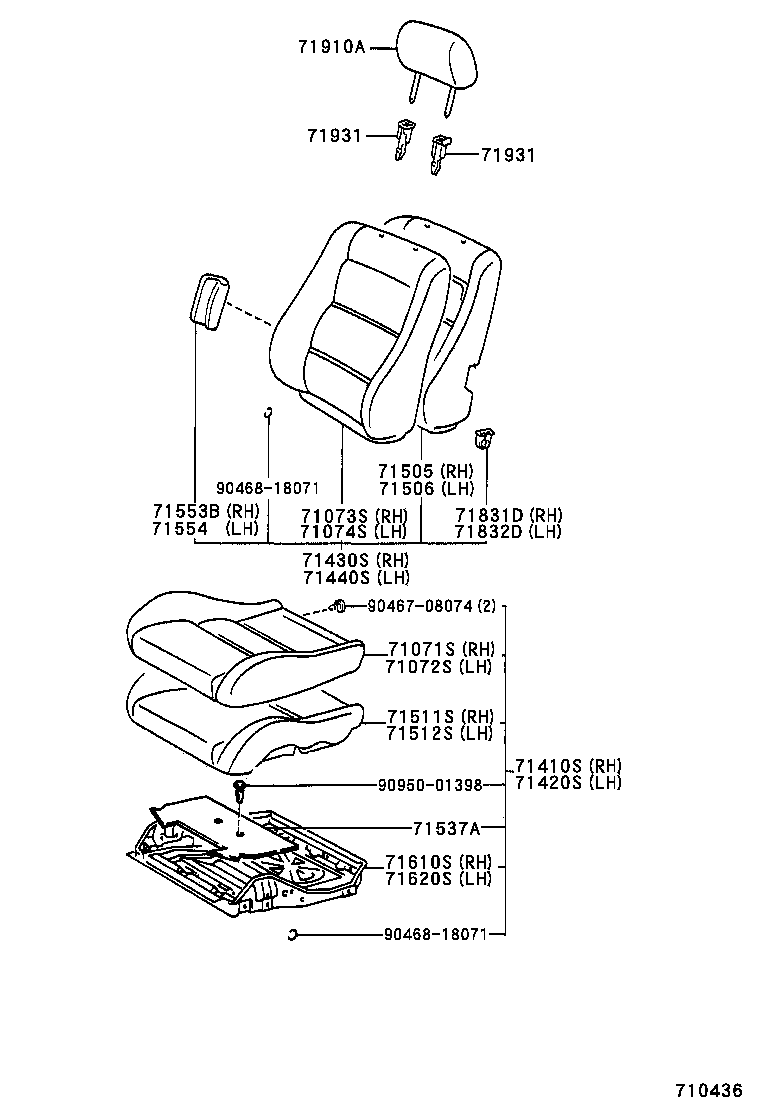

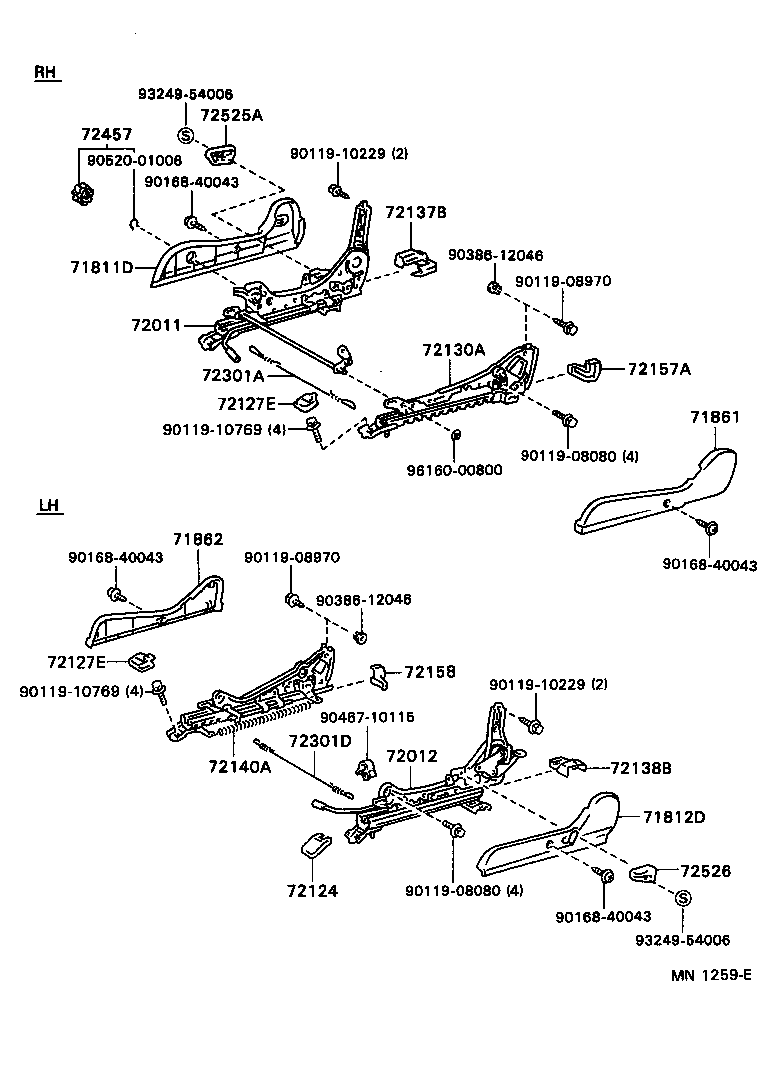

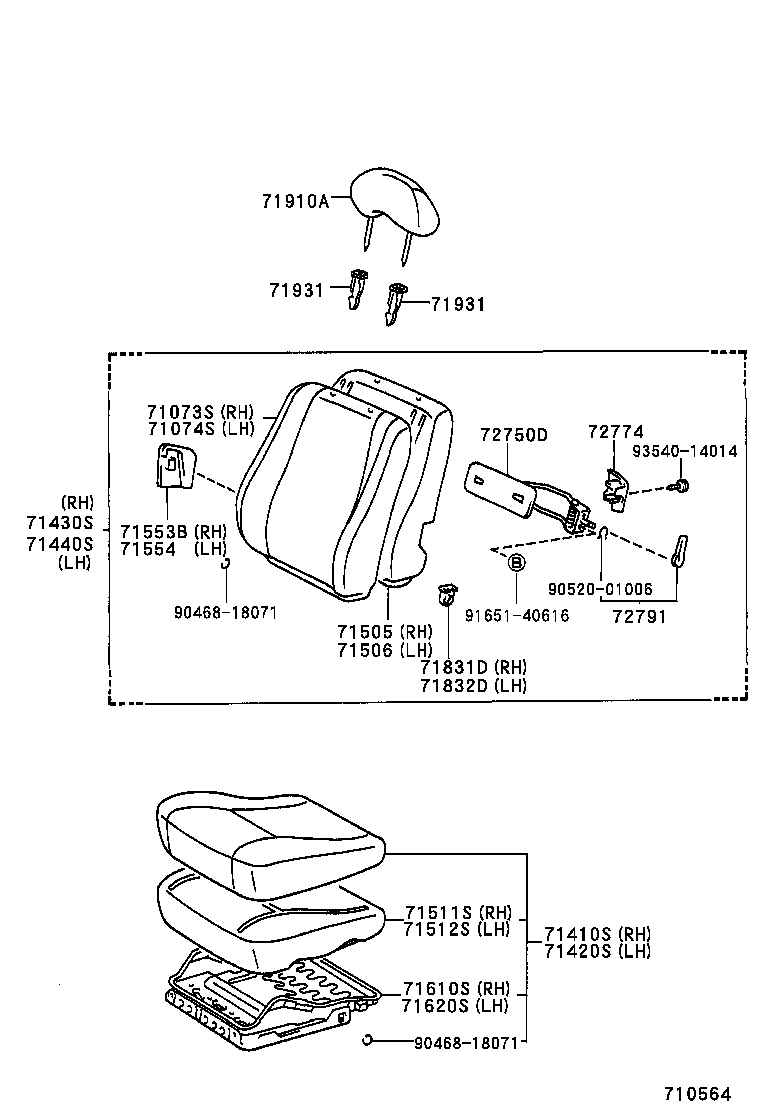

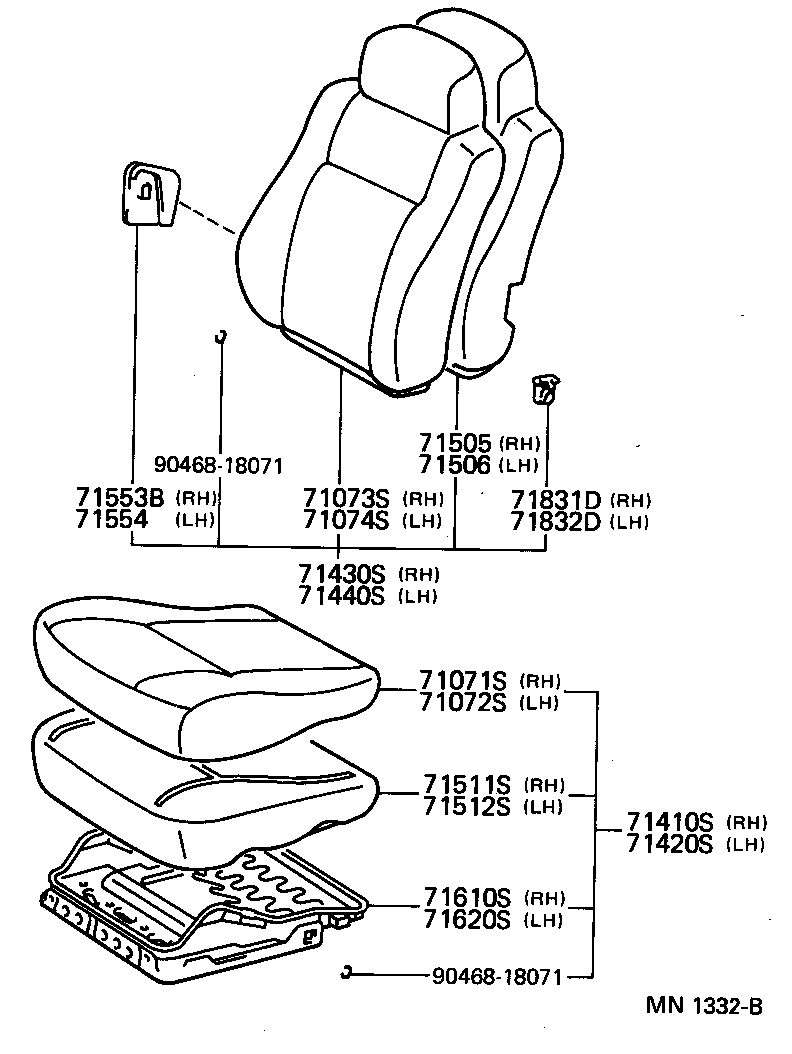

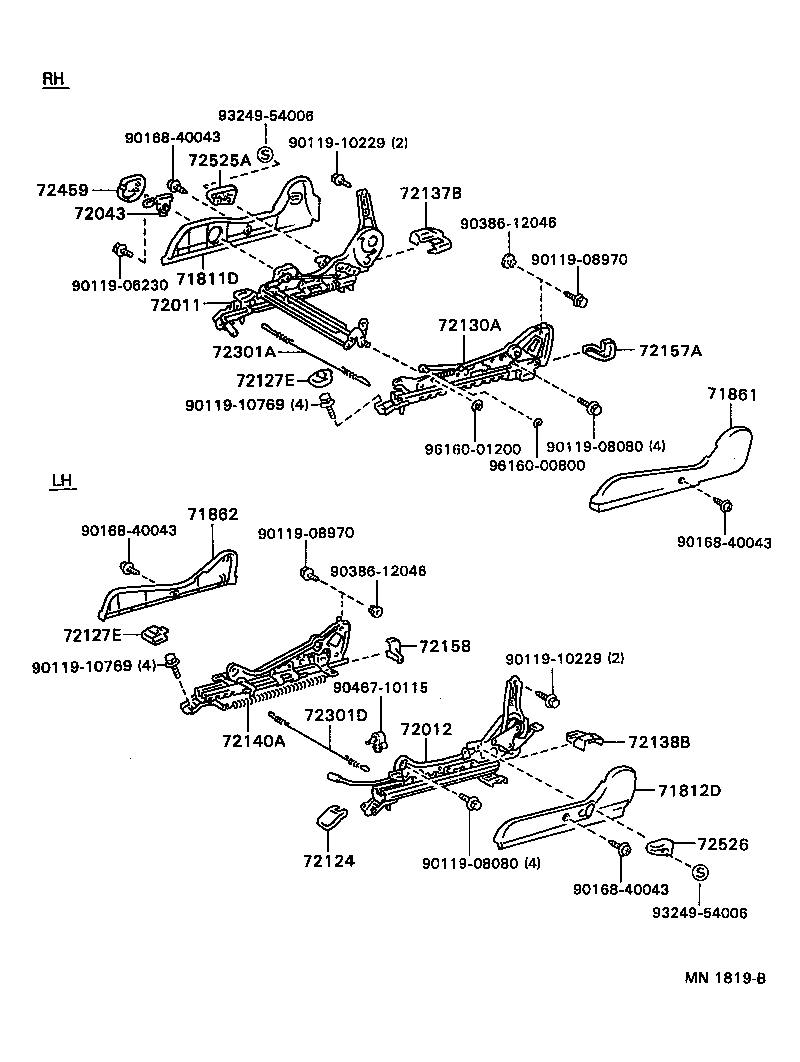

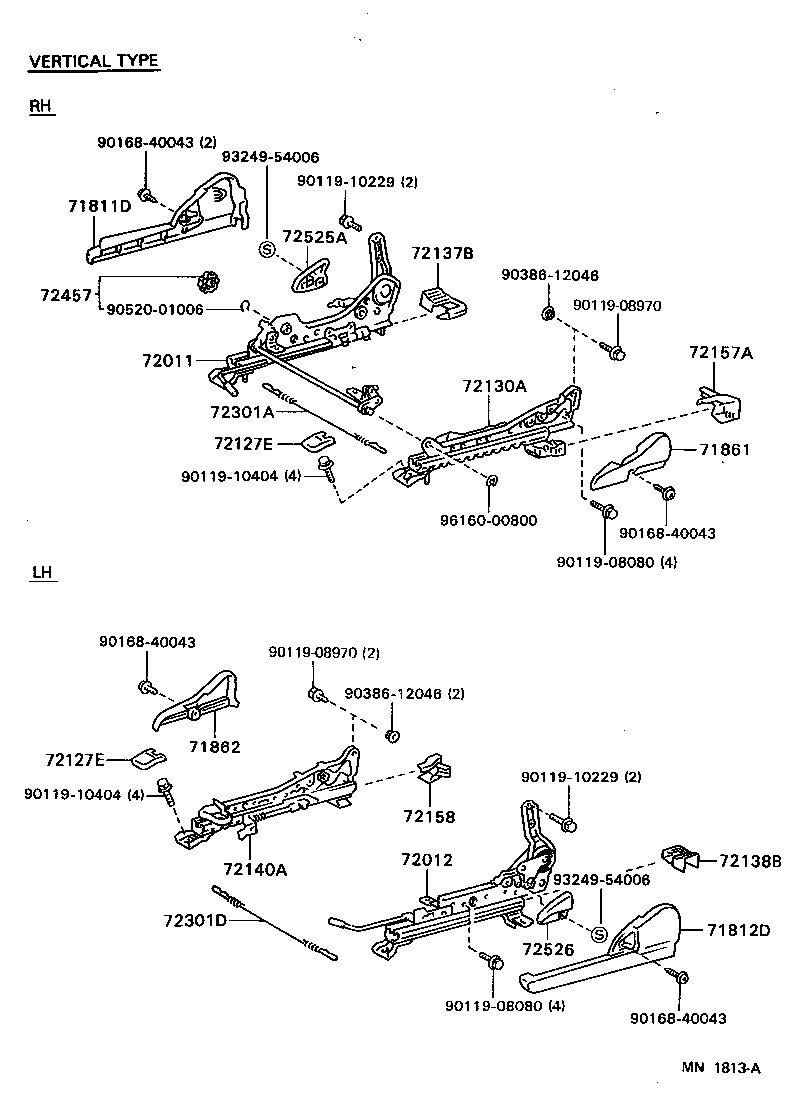

Figure MN1249B MN1249B 1991-08 → — Figure MN1249B MN1249B 1992-07 → — Figure 710382A 710382A 1991-08 → — Figure 710382A 710382A 1993-09 → — Figure 710380B 710380B 1991-08 → 1995-05 Figure 710564 710564 1991-08 → 1995-10 Figure 710436 710436 1991-08 → 1995-05 Figure 710437 710437 1991-08 → 1995-05 Figure MN2365A MN2365A 1993-05 → 1995-05 Figure MN1332B MN1332B 1991-09 → — Figure MN1252B MN1252B 1991-08 → — Figure MN1813A MN1813A 1991-08 → — Figure MN1819B MN1819B 1991-08 → 1995-05 Figure MN1259E MN1259E 1991-08 → 1995-05 Figure 710383A 710383A 1993-05 → 1995-05 Figure MN1814B MN1814B 1992-05 → — Figure 710384 710384 1992-07 → — Figure 710385 710385 1992-07 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71121 Bracket, Front Seat Cushion, RH
71122 Bracket, Front Seat Cushion, LH
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71505 Pad Sub-assy, Front Seatback W/Frame, RH
71506 Pad Sub-assy, Front Seatback W/Frame, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71553B Pad, Front Seatback, B
71554 Pad, Front Seatback, C
71598 Plate, Seat Cover
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71811C Cover, Reclining Adjuster, RH
71811D Shield, Front Seat Cushion, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72043 Lever Sub-assy, Seat Lifter
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72124 Cover, Seat Track Bracket, Outer Front LH
72127E Cover, Seat Track Bracket, Inner Front
72130A Track Assy, Front Seat, Inner RH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72257 Striker, Front Seat Lock
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72457 Knob, Vertical Seat Adjuster
72459 Cap, Vertical Seat Adjuster Knob
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72568 Plate, Reclining Bolt Lock
72591A Lever, Reclining Remote Control
72593 Knob, Reclining Remote Control Lever
72597 Bezel, Reclining Remote Control
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72774 Protector, Lumbar Support Spring
72791 Lever, Lumbar Support
72795 Pad, Lumbar Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
