Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

60 part groups · 9 illustrations

Illustrations

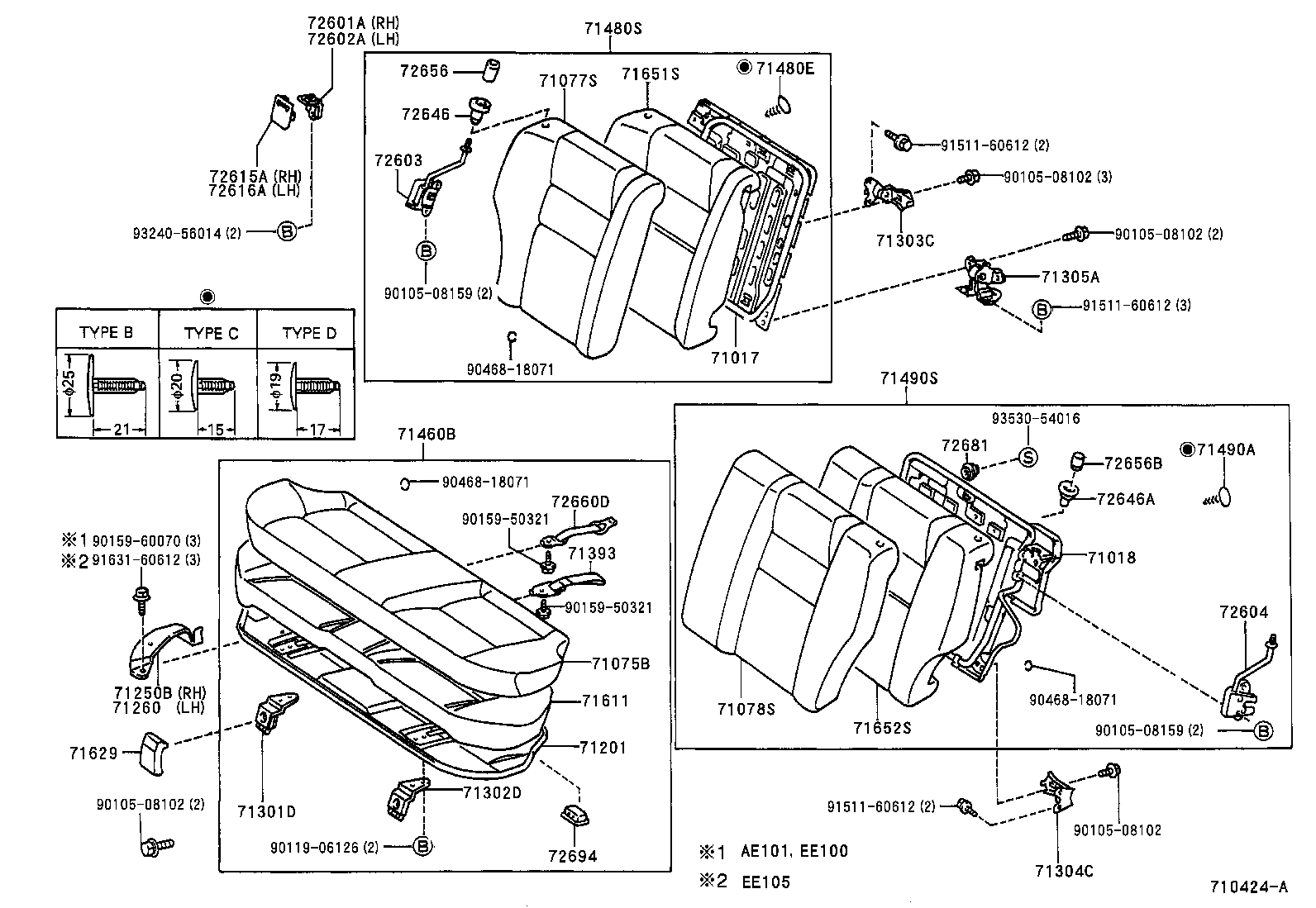

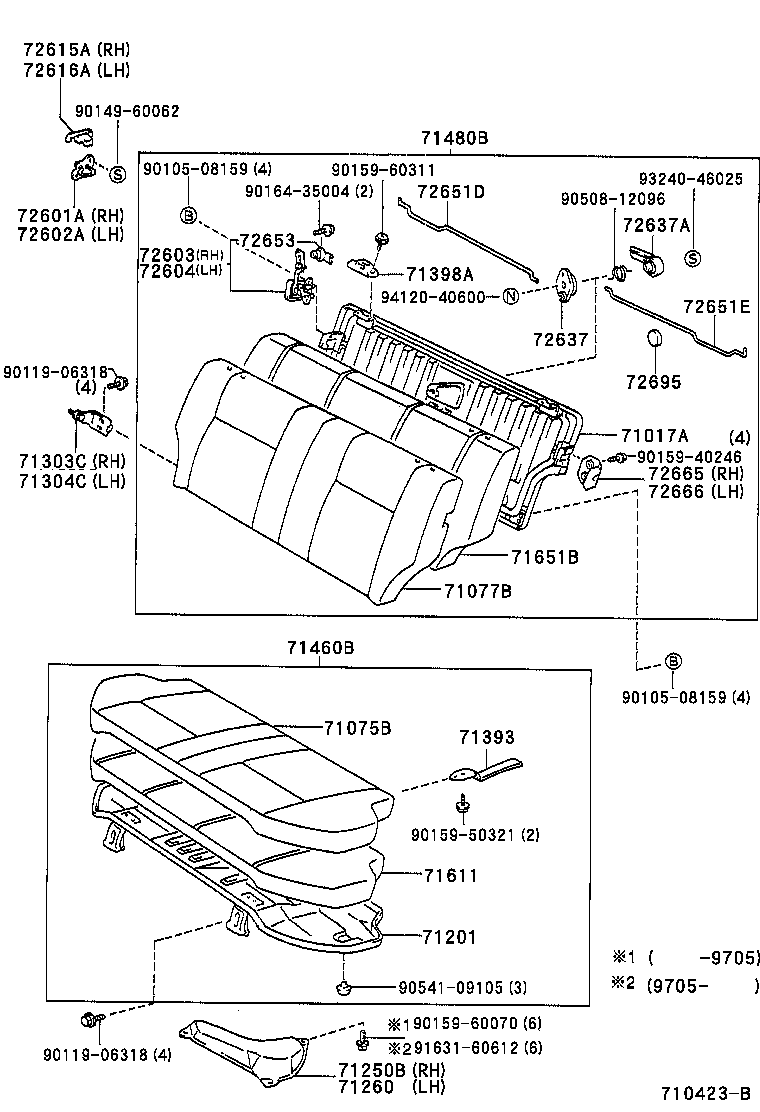

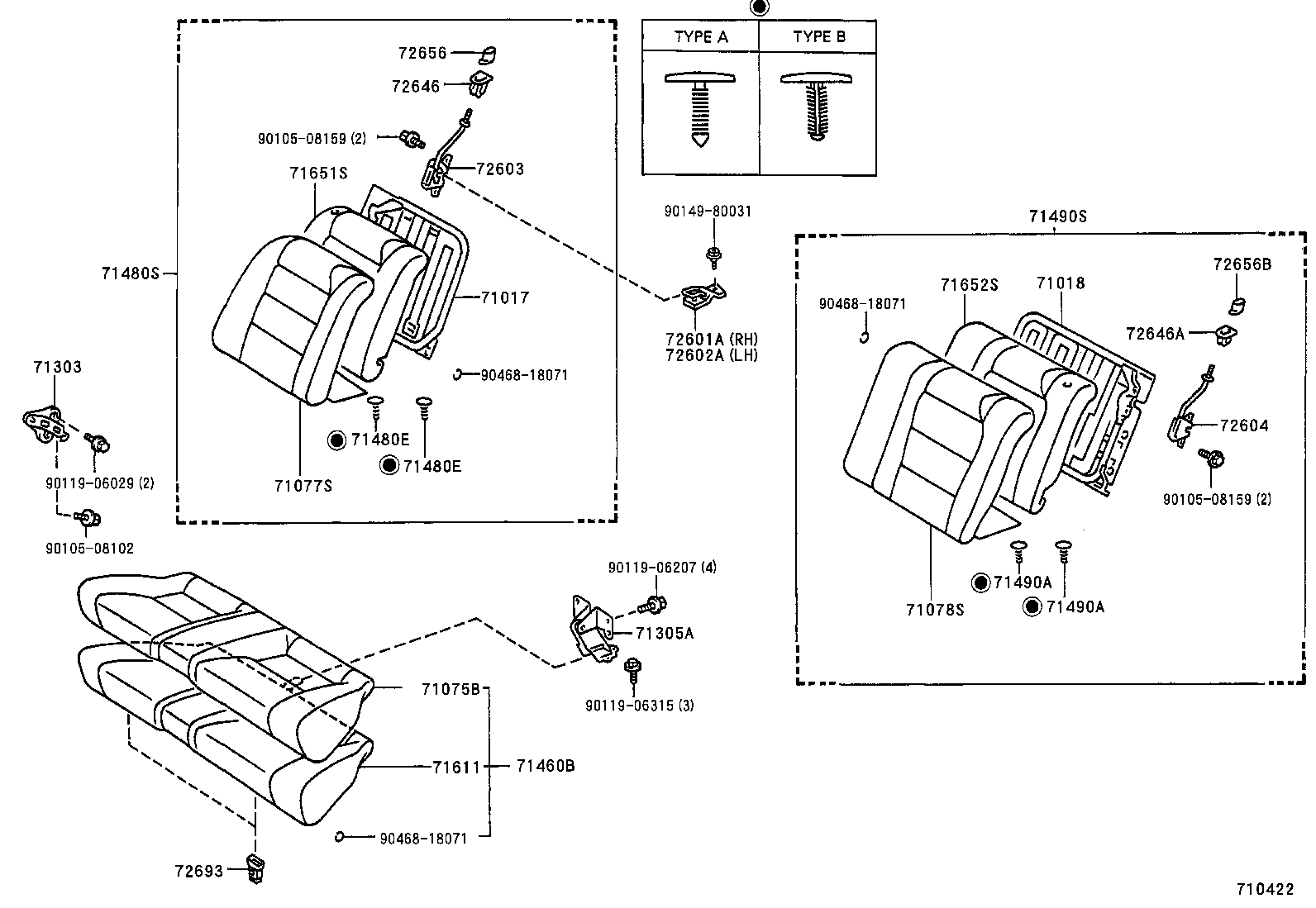

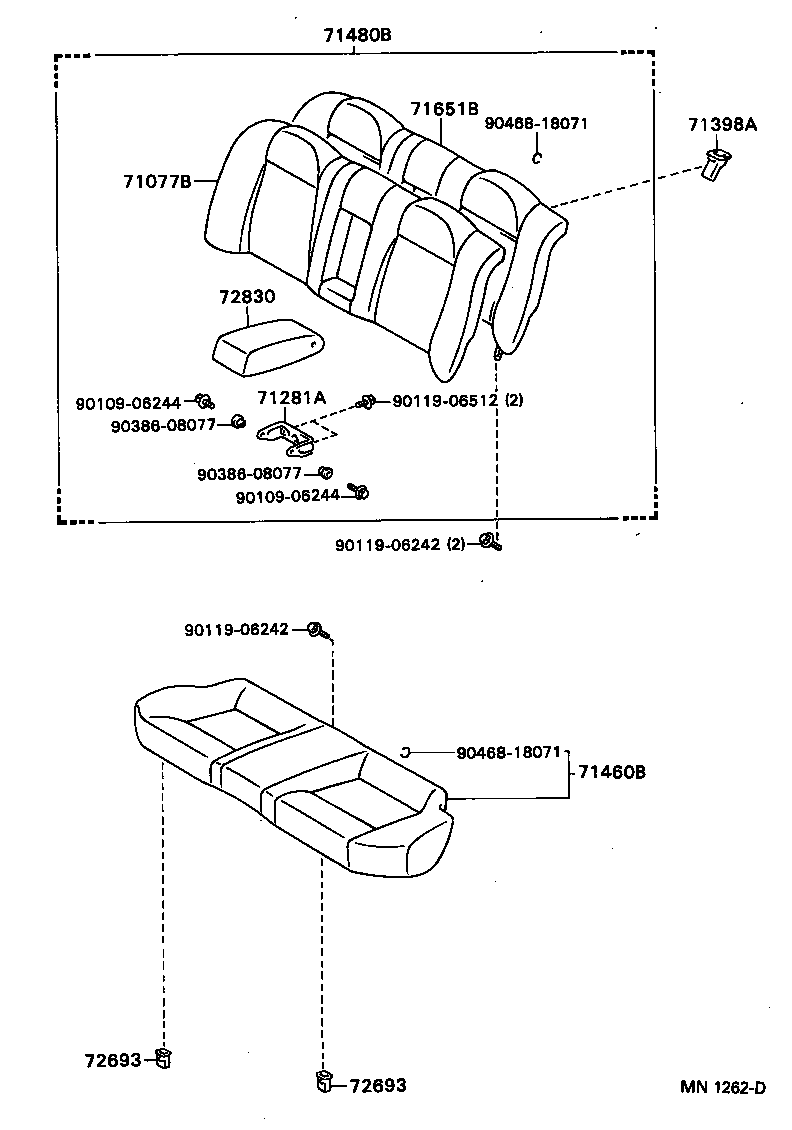

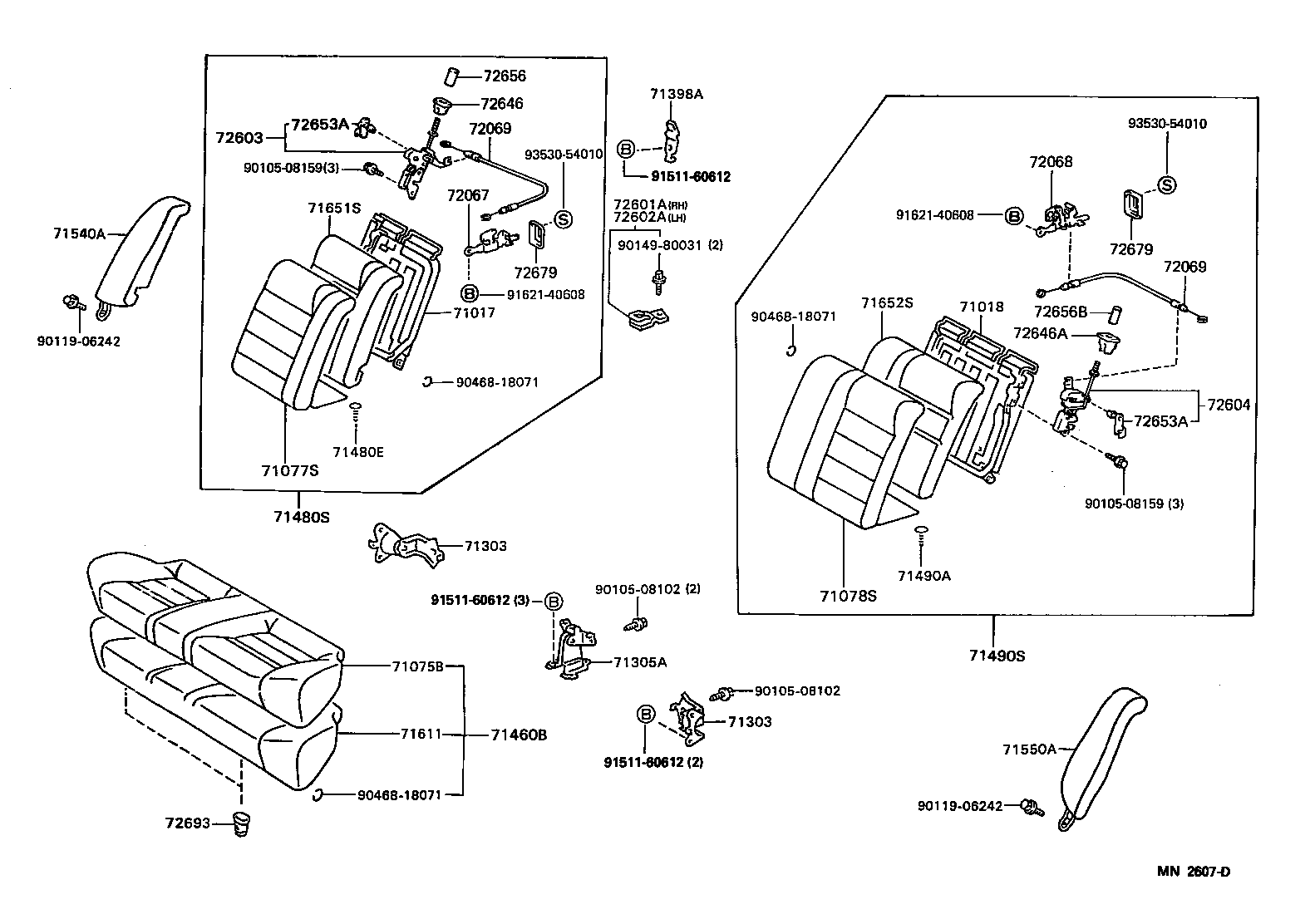

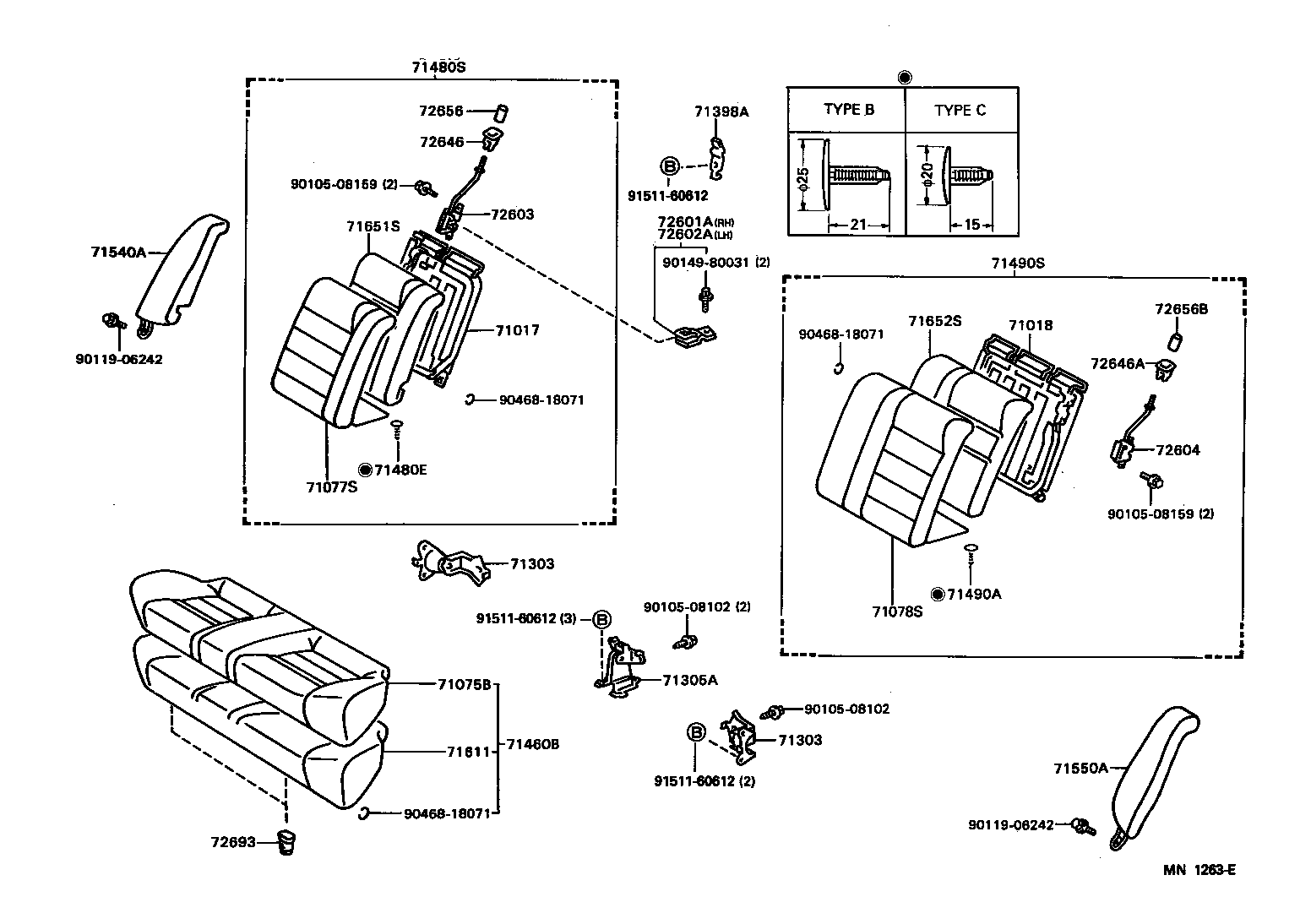

Figure MN1261B MN1261B 1991-08 → — Figure MN1262D MN1262D 1991-08 → — Figure MN1263E MN1263E 1991-08 → — Figure MN1263E MN1263E 1992-05 → — Figure MN2607D MN2607D 1993-09 → — Figure 710422 710422 1991-08 → 1995-05 Figure 710424A 710424A 1992-05 → — Figure 710423B 710423B 1991-09 → — Figure 710423B 710423B 1992-05 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71201 Panel Sub-assy, Rear Seat Cushion
71250B Bracket Assy, Seat, Outer RH
71260 Bracket Assy, Seat, Outer LH
71281A Hinge, Rear Seat Center Armrest
71301D Hinge Sub-assy, Rear Seat, RH
71302D Hinge Sub-assy, Rear Seat, LH
71303 Hinge Sub-assy, Rear Seatback
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71393 Band, Rear Seat Cushion
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480E Clip, Rear Seatback, RH
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490A Clip, Rear Seatback, LH
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A Back Assy, Rear Side Seat, RH
71550A Back Assy, Rear Side Seat, LH
71611 Pad, Rear Seat Cushion
71629 Cover, Rear Seat Cushion Hinge
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
72067 Lever Sub-assy, Rear Back Lock Control, RH
72068 Lever Sub-assy, Rear Back Lock Control, LH
72069 Cable Sub-assy, Rear Seatback Lock Control
72601A Striker Sub-assy, Rear Seatback Look, RH
72602A Striker Sub-assy, Rear Seatback Lock, LH
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72637 Lever, Rear Seatback Rod Control, Inner
72637A Handle, Rear Seat Lock
72646 Grommet, Rear Seatback Stop Button
72646A Grommet, Rear Seatback Stop Button
72651D Rod, Rear Seatback Lock, RH
72651E Rod, Rear Seatback Lock, LH
72653 Hook, Rear Seatback Rear Lock
72653A Snap, Rear Seatback Lock Rod
72656 Button, Rear Seatback Stop Release
72656B Button, Rear Seatback Stop Release
72660D Support Assy, Rear Seat Cushion
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72679 Bezel, Rear Seatback Lock Control
72681 Hook, Rear Seatback Lock, Lower
72693 Hook, Rear Seat Cushion Lock
72694 Cover, Rear Seat Cushion Lock
72695 Silencer, Rear Seatback Lock Control Rod
72830 Armrest Assy, Rear Seat, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
