Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

31 part groups · 5 illustrations

Illustrations

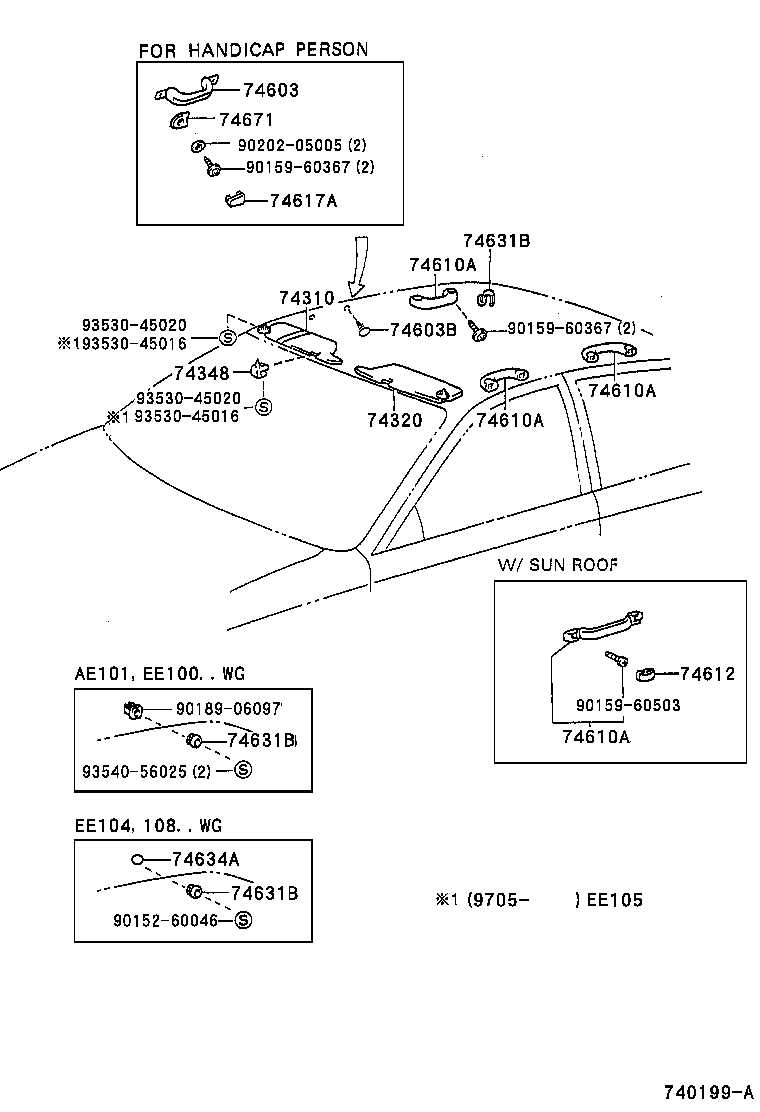

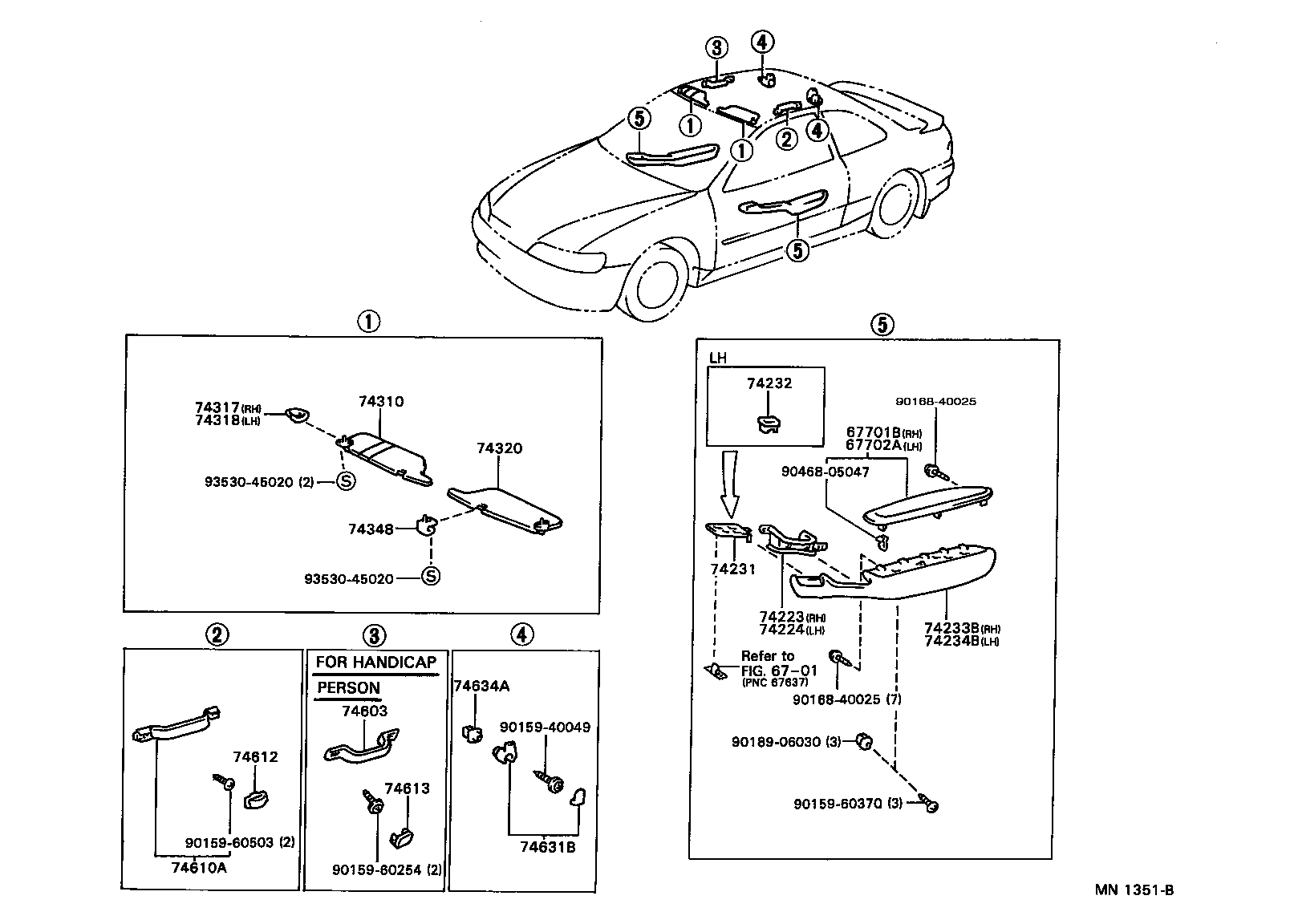

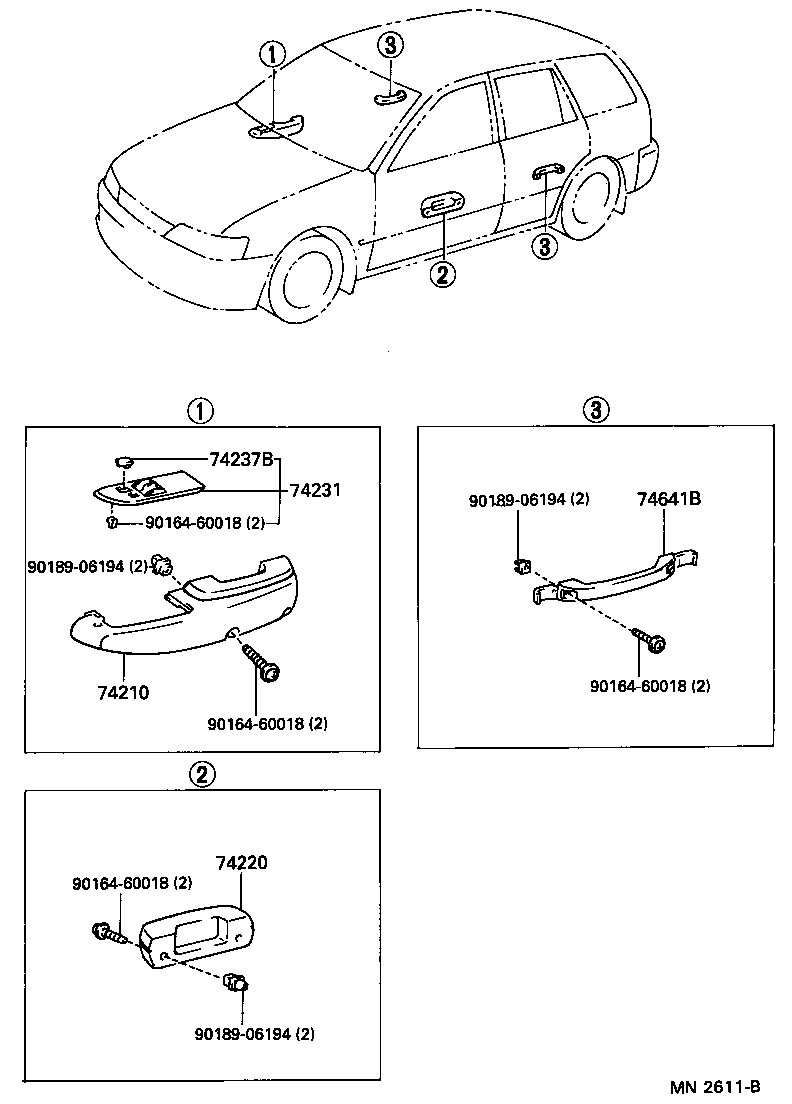

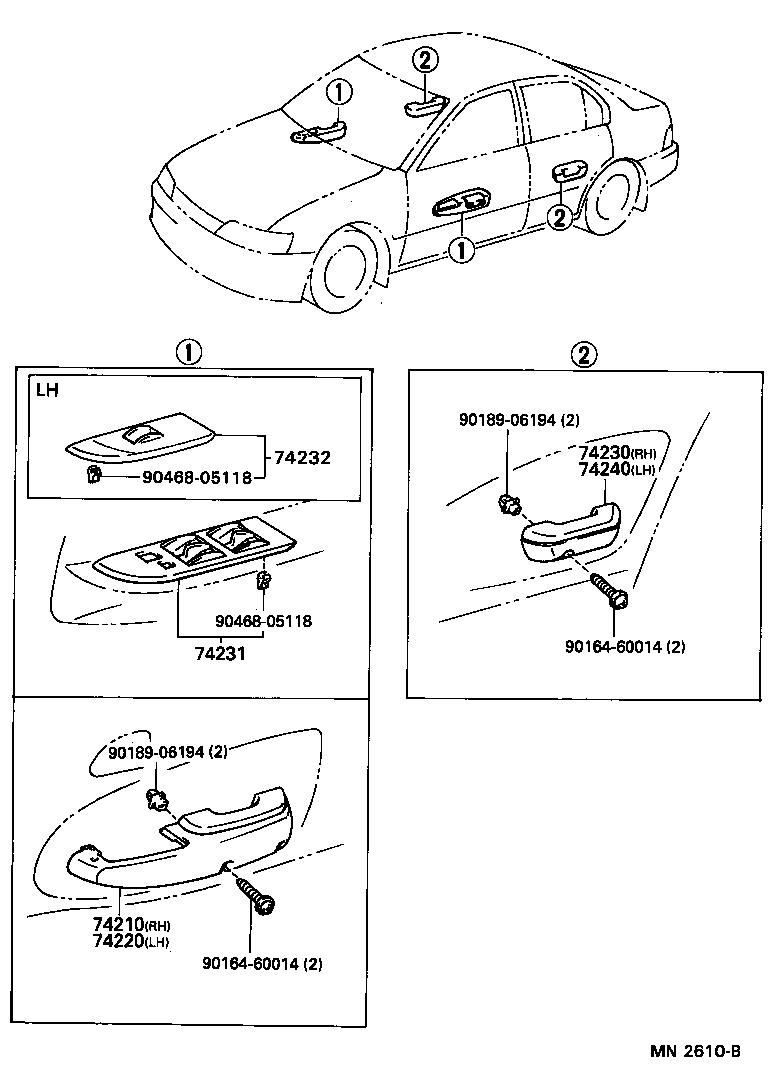

Figure 740324 740324 1991-08 → — Figure MN1351B MN1351B 1991-08 → 1995-05 Figure MN2610B MN2610B 1993-05 → — Figure MN2611B MN2611B 1994-01 → — Figure 740199A 740199A 1991-08 → —

Part groups

PNCDescription
67701B Cover Sub-assy, Door Trim, RH
67702A Cover Sub-assy, Door Trim, LH
74210 Armrest Assy, Front, RH
74215A Base, Door Armrest RH
74216A Base, Door Armrest, LH
74220 Armrest Assy, Front, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74233B Panel, Front Door Armrest Base, Lower RH
74234B Panel, Front Door Armrest Base, Lower LH
74237B Cap, Door Armrest Base
74240 Armrest Assy, Rear, LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74603B Clip (FOR ASSIST GRIP)
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74613 Plug, Assist Grip
74617A Plug, Assist Grip
74631B Hook, Coat
74634A Collar, Coat Hook
74641B Grip, Door Assist
74671 Support, Assist Grip
74811B Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
