Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

15 part groups · 3 illustrations

Illustrations

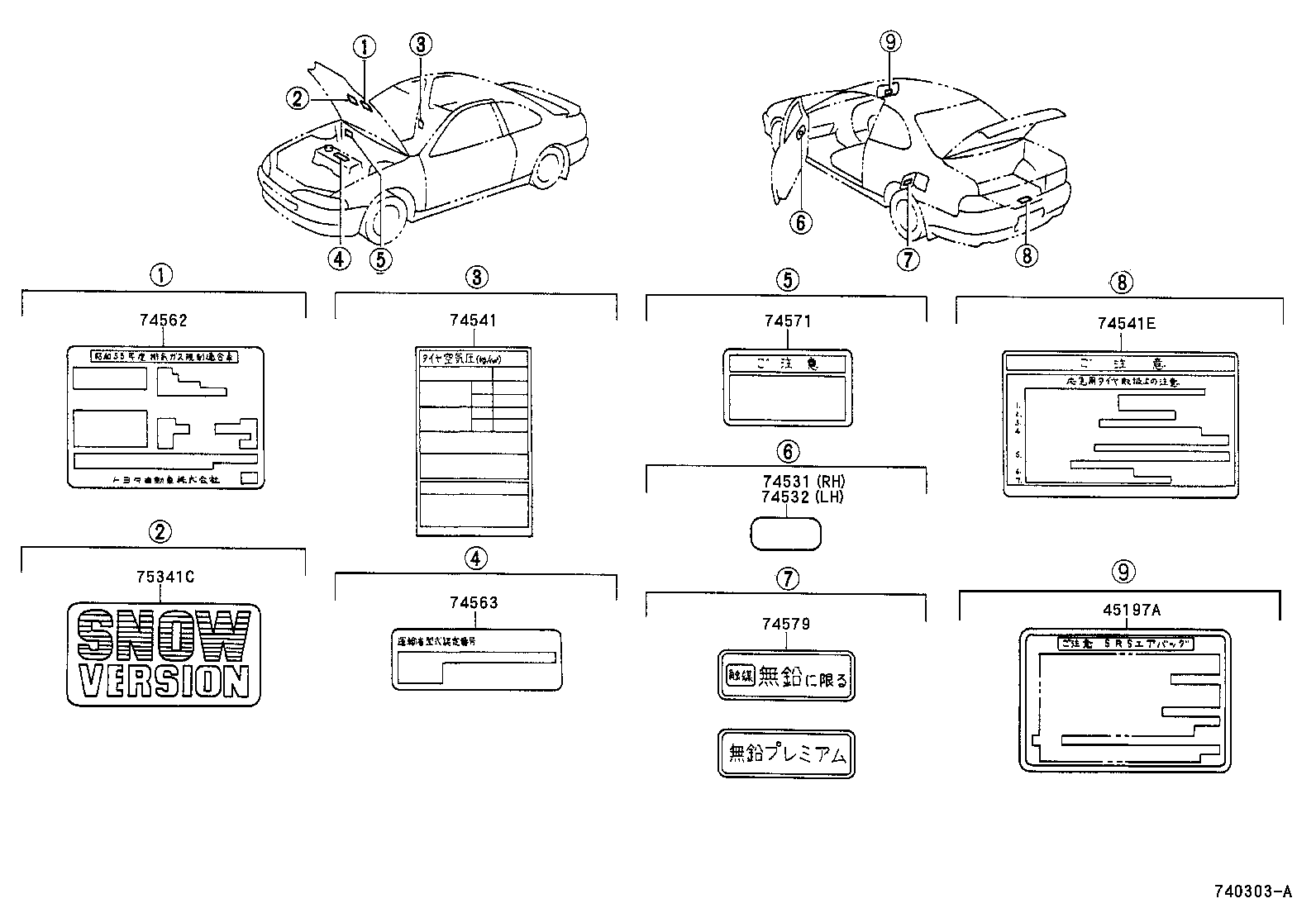

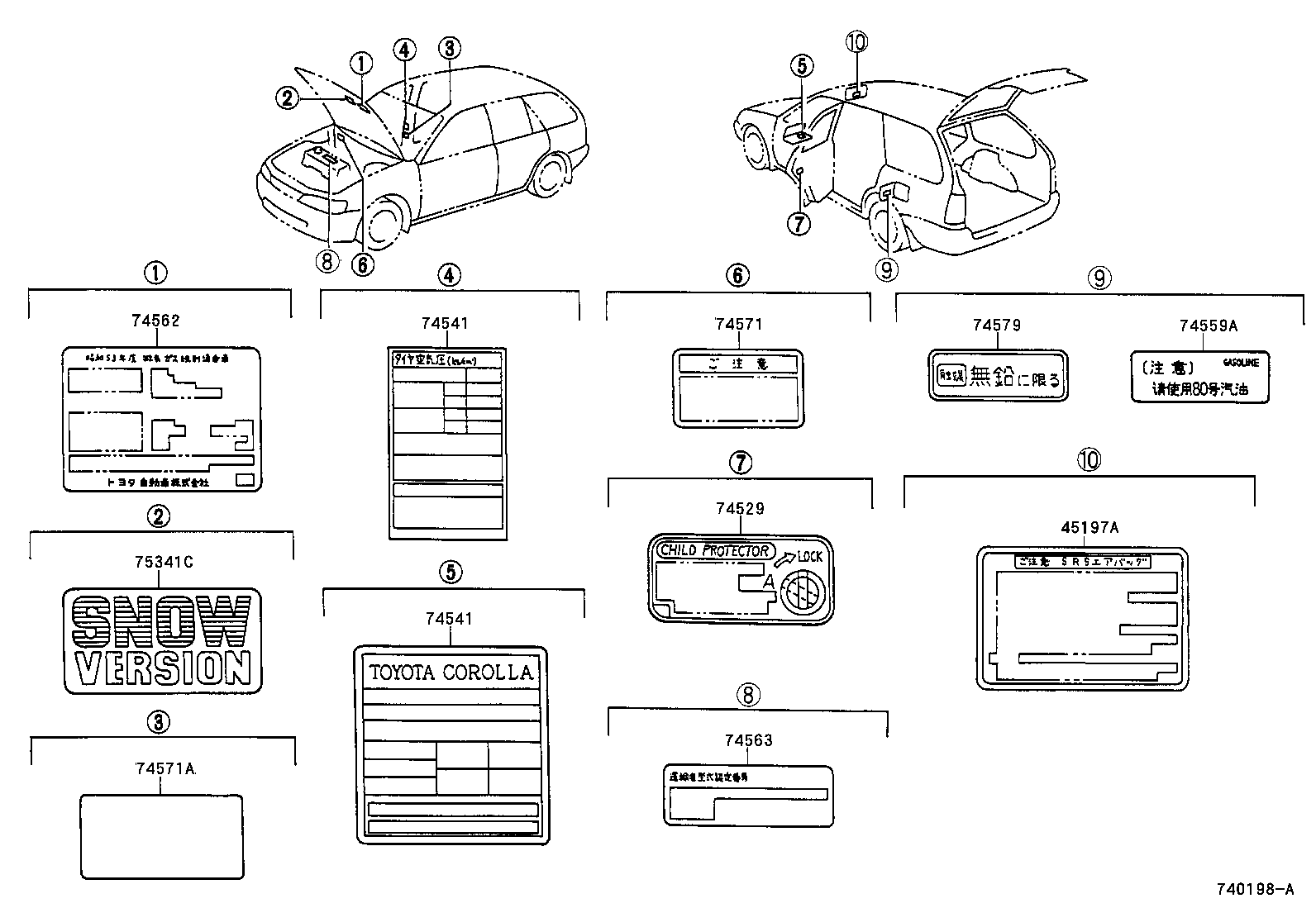

Figure 740128 740128 1991-08 → — Figure 740303A 740303A 1991-08 → 1995-05 Figure 740198A 740198A 1991-09 → —

Part groups

PNCDescription
45197A Label, Airbag Caution
47939B Label, Load Sensing Valve Marking Information
74515A Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74531 Plate, Door Inside Handle Caution, RH
74532 Plate, Door Inside Handle Caution, LH
74541 Plate, Tire Pressure Caution
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74562 Plate, Emission Control System Information
74563 Plate, Emission Control Device Identification
74571 Plate, Brake Fluid Caution
74571A Film, Label Cover
74579 Plate, Unleaded Fuel Caution
75341C Plate, Hood Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
