Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

13 part groups · 3 illustrations

Illustrations

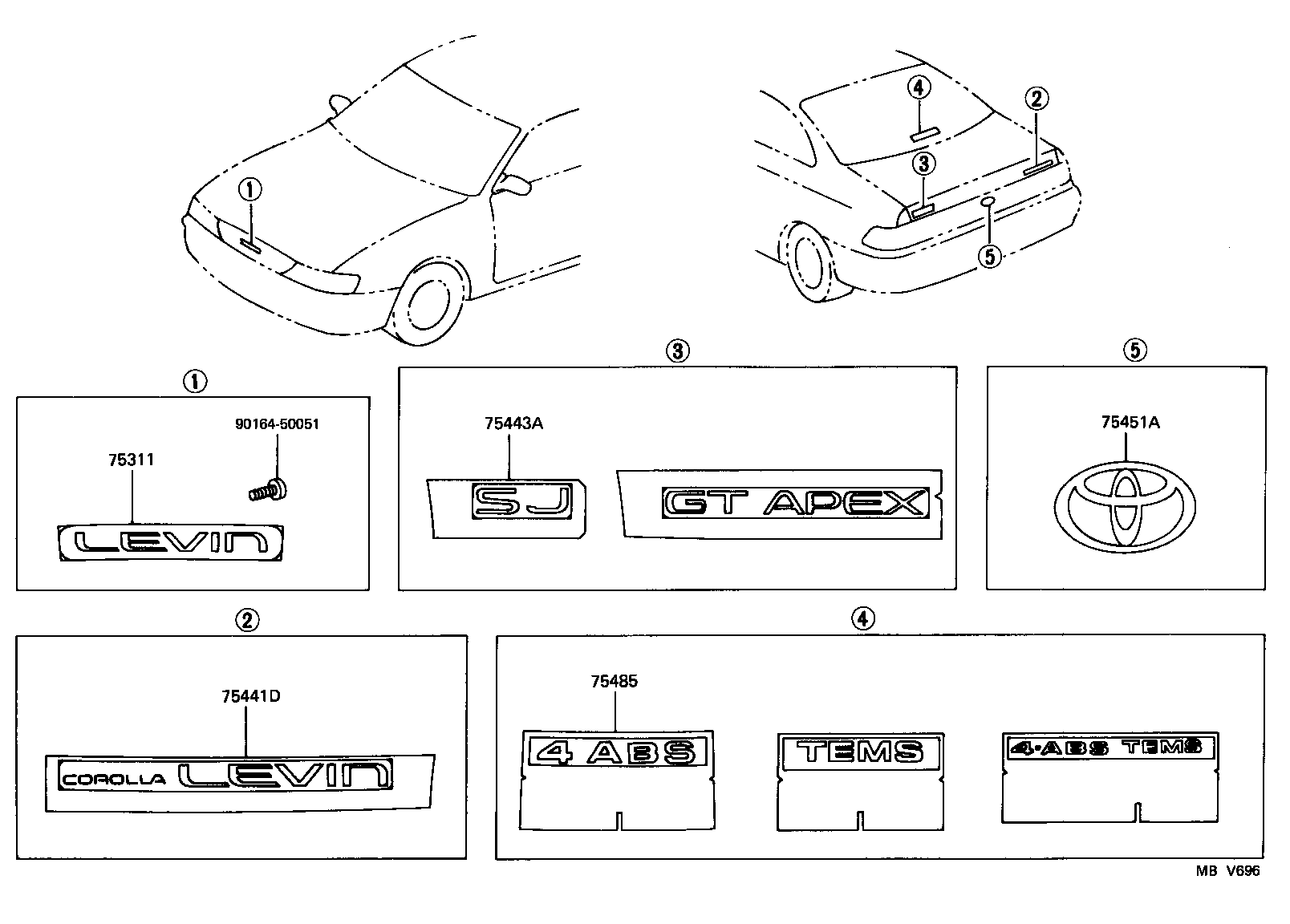

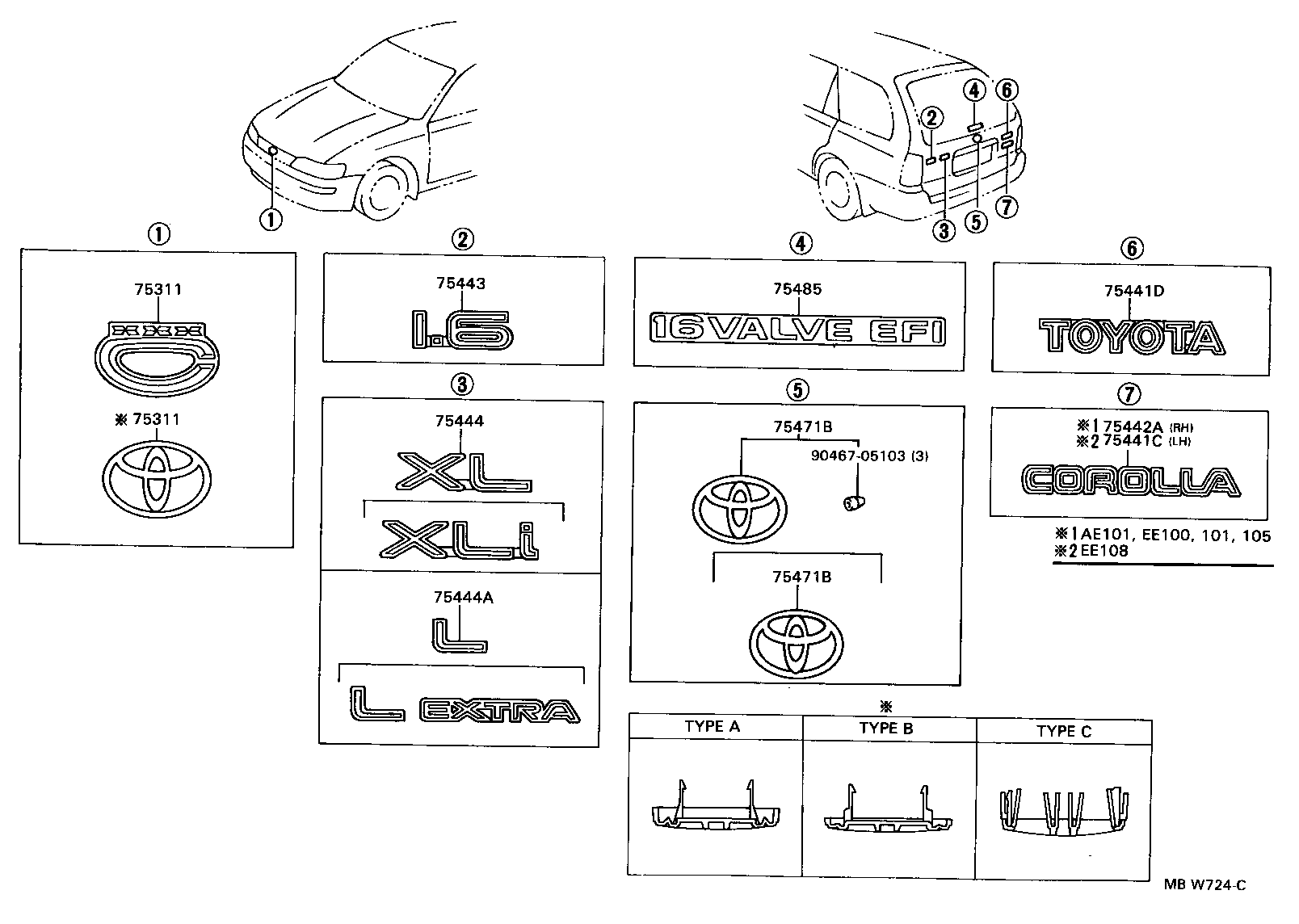

Figure 750219A 750219A 1991-08 → — Figure MBV696 MBV696 1991-08 → 1995-05 Figure MBW724C MBW724C 1991-09 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75350 Emblem Assy, Front Fender
75441C Plate, Back Door Name
75441D Plate, Luggage Compartment Door Name, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75444A Plate, Back Door Name, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75451A Emblem, Lower Back Panel, NO.1
75471B Plate, Rear Body Name, NO.1
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
