Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

26 part groups · 3 illustrations

Illustrations

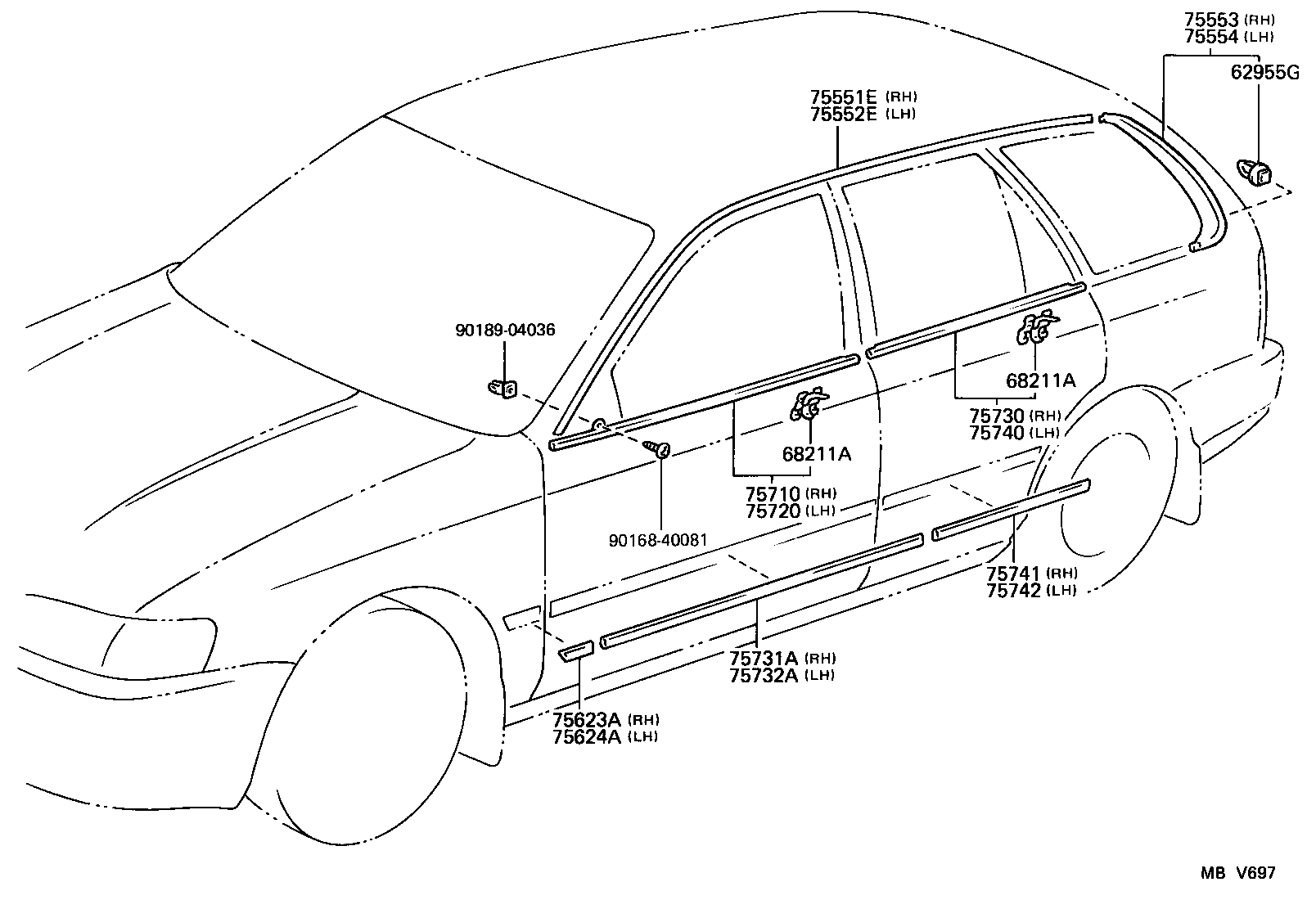

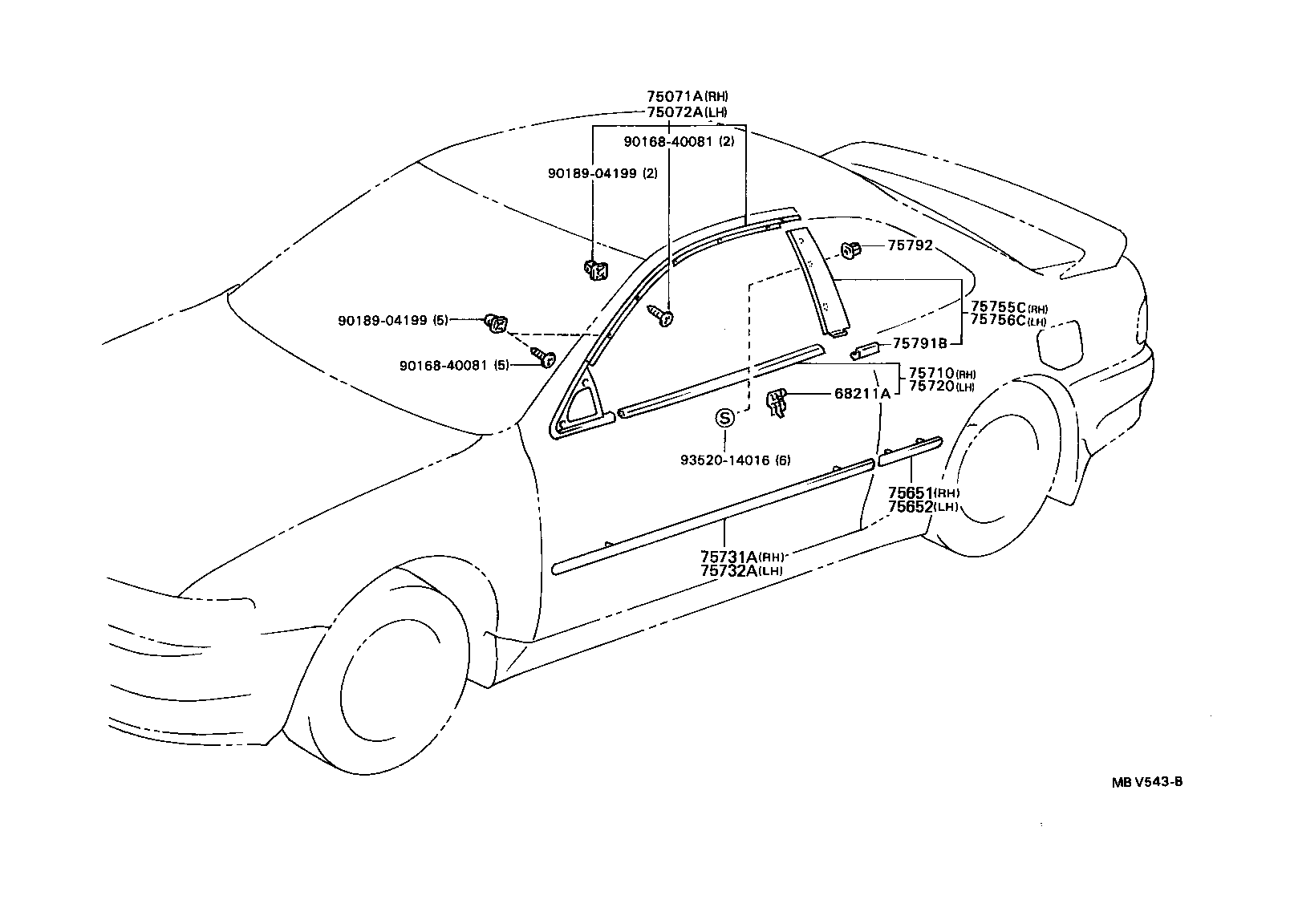

Figure MBV542B MBV542B 1991-08 → — Figure MBV543B MBV543B 1991-08 → 1995-05 Figure MBV697 MBV697 1991-09 → —

Part groups

PNCDescription
62955G Retainer, Quarter Vent Louver
68211A Clip, Door Belt Moulding
75055C Moulding Sub-assy, Roof Drip Side Finish, Rear RH
75056C Moulding Sub-assy, Roof Drip Side Finish, Rear LH
75071A Moulding Sub-assy, Front Door, Outside RH
75072A Moulding Sub-assy, Front Door, Outside LH
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75791B Clip, Belt Moulding Side
75792 Clip, Door Window Frame Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
