Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

14 part groups · 4 illustrations

Illustrations

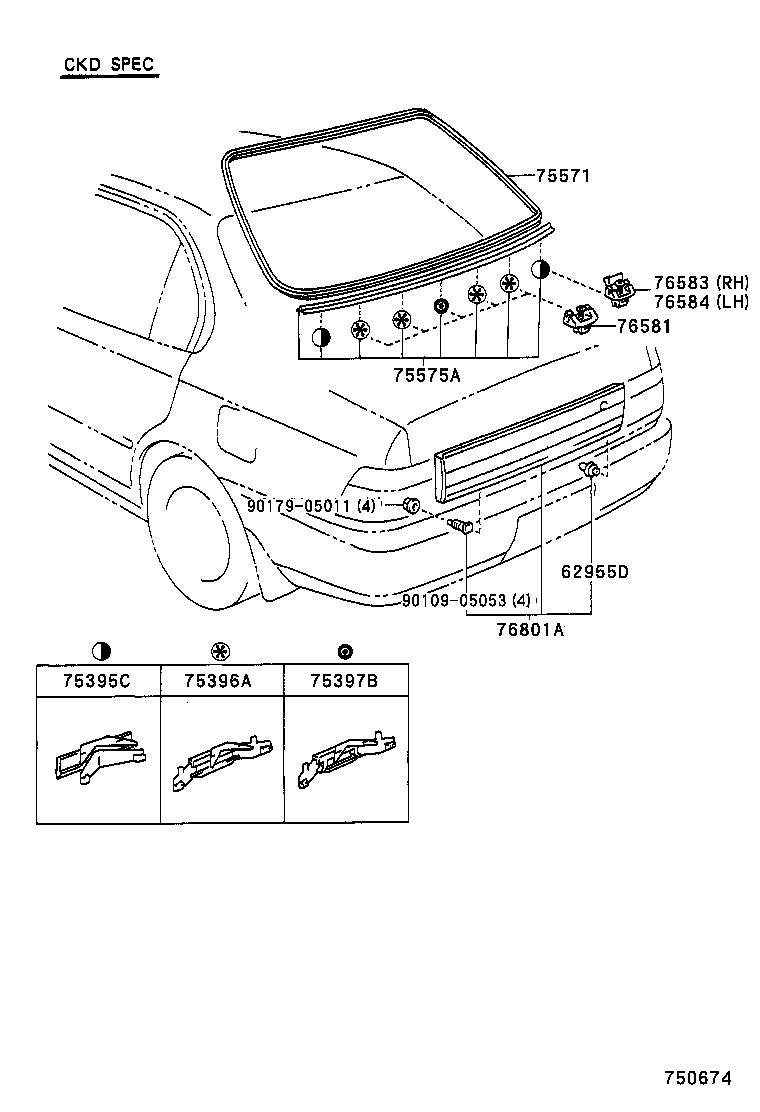

Figure 750394A 750394A 1991-08 → — Figure 750674 750674 1991-08 → — Figure 750805 750805 1991-08 → 1995-05 Figure MBV698 MBV698 1991-09 → —

Part groups

PNCDescription
62955D Retainer, Luggage Compartment Door Garnish
62955E Retainer, Lower Back Finish Panel
75395C Clip, Outside Moulding, NO.1
75396A Clip, Outside Moulding, NO.2
75397B Clip, Back Window Moulding, NO.3
75494A Clip, Outside Moulding, NO.3
75571 Moulding, Back Window, Outside Upper
75575A Moulding, Back Window, Outside Lower
75803E Moulding Sub-assy, Lower Back Panel
75819 Clip, Luggage Compartment Door Moulding
76581 Retainer, Back Window Outside Moulding
76583 Retainer, Back Window Outside Lower Moulding, RH
76584 Retainer, Back Window Outside Lower Moulding, LH
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
