Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

7 part groups · 8 illustrations

Illustrations

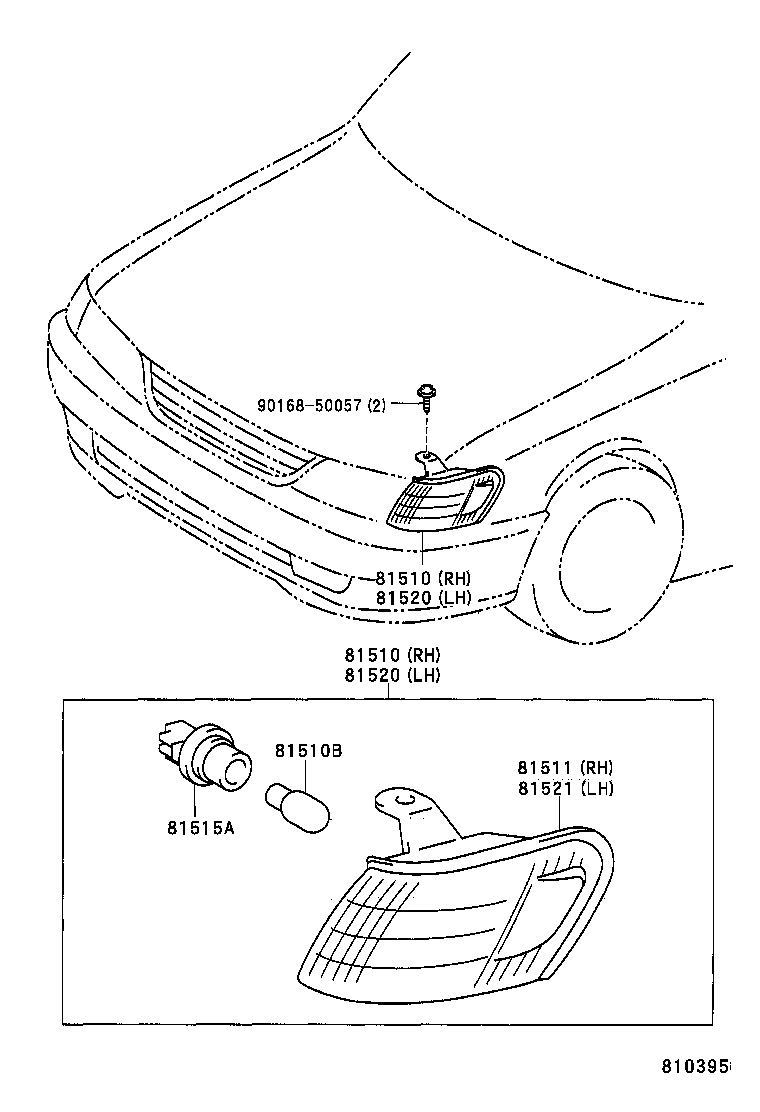

Figure 810290 810290 1991-08 → 1993-05 Figure 810290 810290 1993-05 → 1995-08 Figure 810290 810290 1995-08 → 1997-04 Figure 810284 810284 1993-05 → — Figure 810289 810289 1993-05 → — Figure MER858 MER858 1991-08 → 1993-05 Figure 810285 810285 1993-05 → — Figure 810395 810395 1999-07 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515 Wire Sub-assy, Front Turn Signal Lamp Body
81515A Plug Assy, Front Turn Signal Lamp
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
