Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

45 part groups · 21 illustrations

Illustrations

Figure 820479A 820479A 1991-08 → — Figure 820469 820469 1991-08 → — Figure 820480 820480 1992-05 → — Figure 820481 820481 1991-08 → — Figure 820673A 820673A 1991-08 → — Figure MER965 MER965 1992-06 → — Figure 820478B 820478B 1992-05 → — Figure 820482A 820482A 1991-08 → — Figure 821726 821726 1991-08 → — Figure 820452A 820452A 1991-08 → — Figure 820483A 820483A 1992-05 → — Figure 820472 820472 1991-08 → — Figure MES241 MES241 1991-08 → — Figure MER980B MER980B 1991-08 → — Figure 820475 820475 1992-05 → — Figure 820484 820484 1991-09 → — Figure 820473 820473 1991-08 → — Figure 821727 821727 1991-08 → — Figure 820458 820458 1991-08 → — Figure 820477 820477 1991-08 → — Figure 820444 820444 1991-08 → —

Part groups

PNCDescription

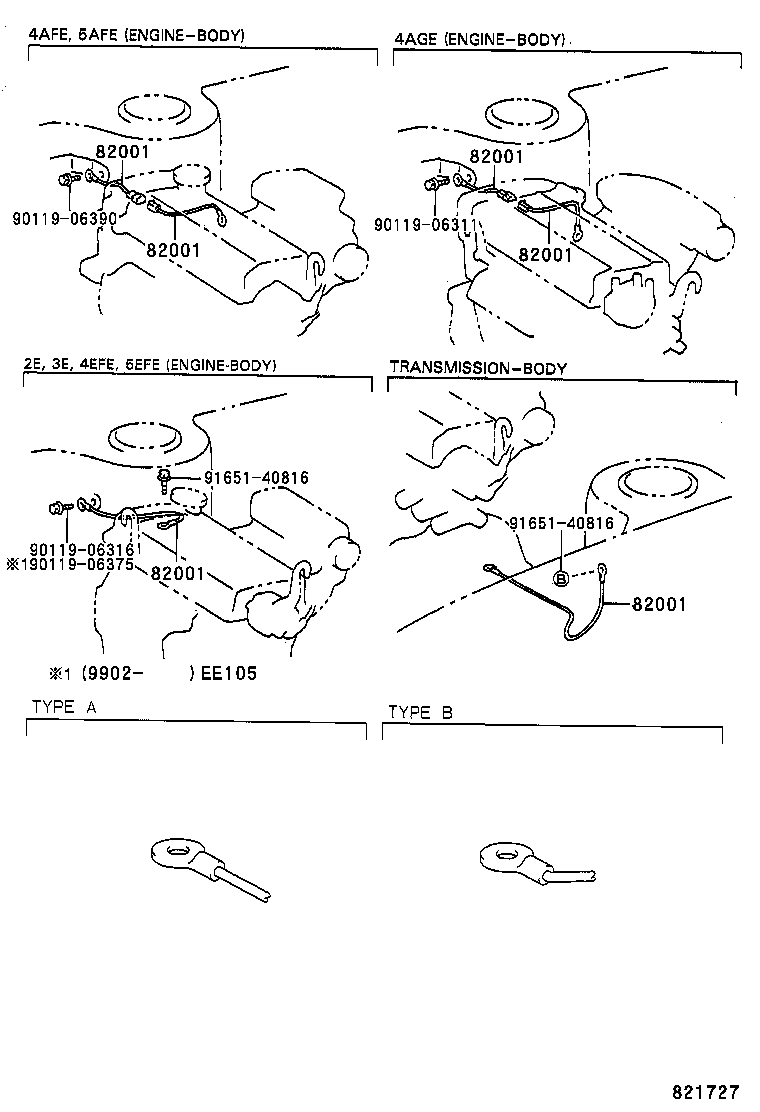

82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System

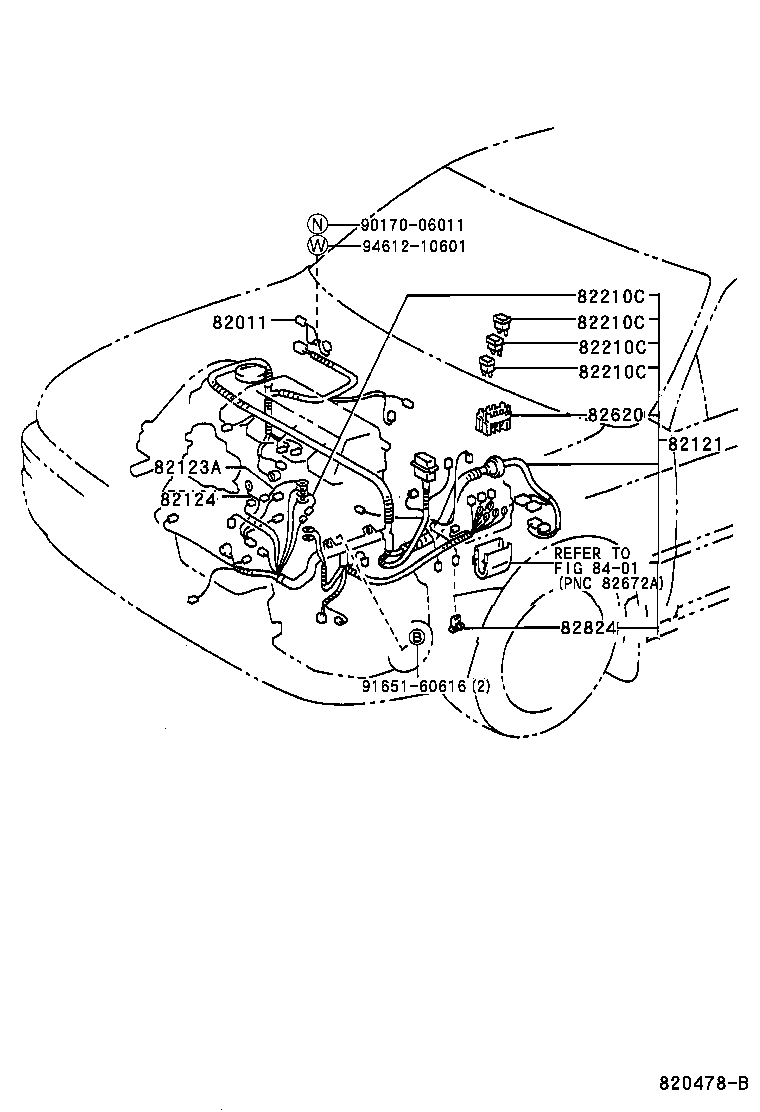

82028 Wiring Sub-assy, Cowl

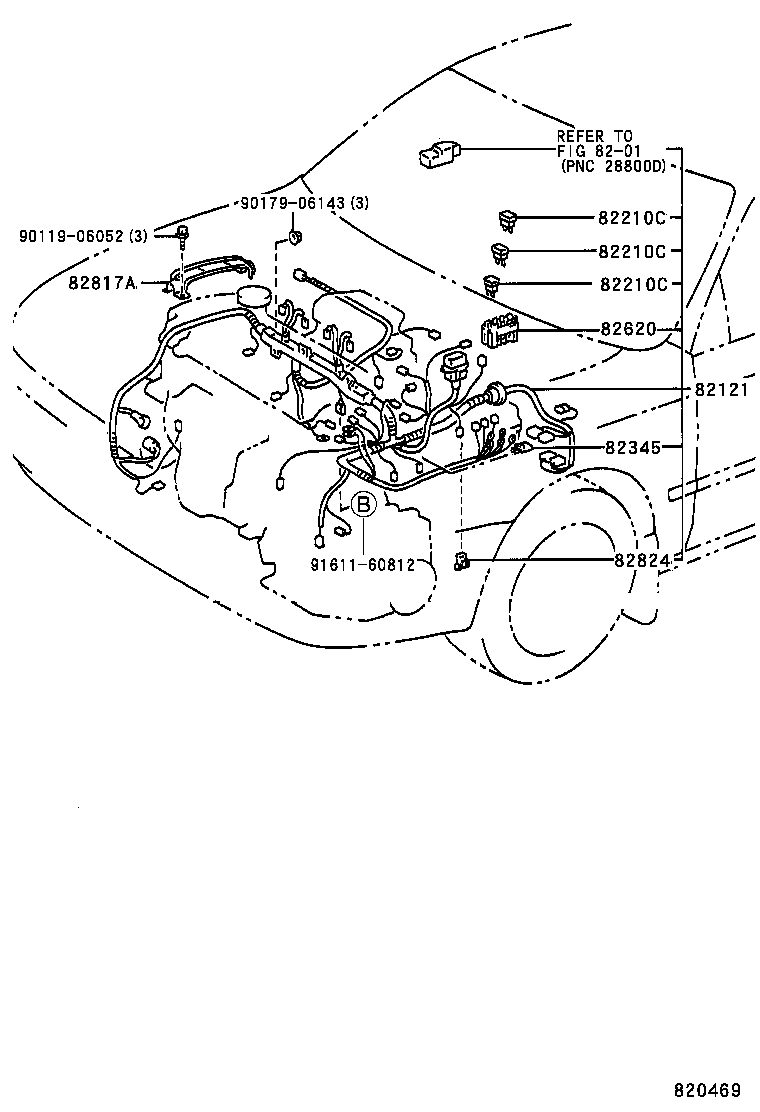

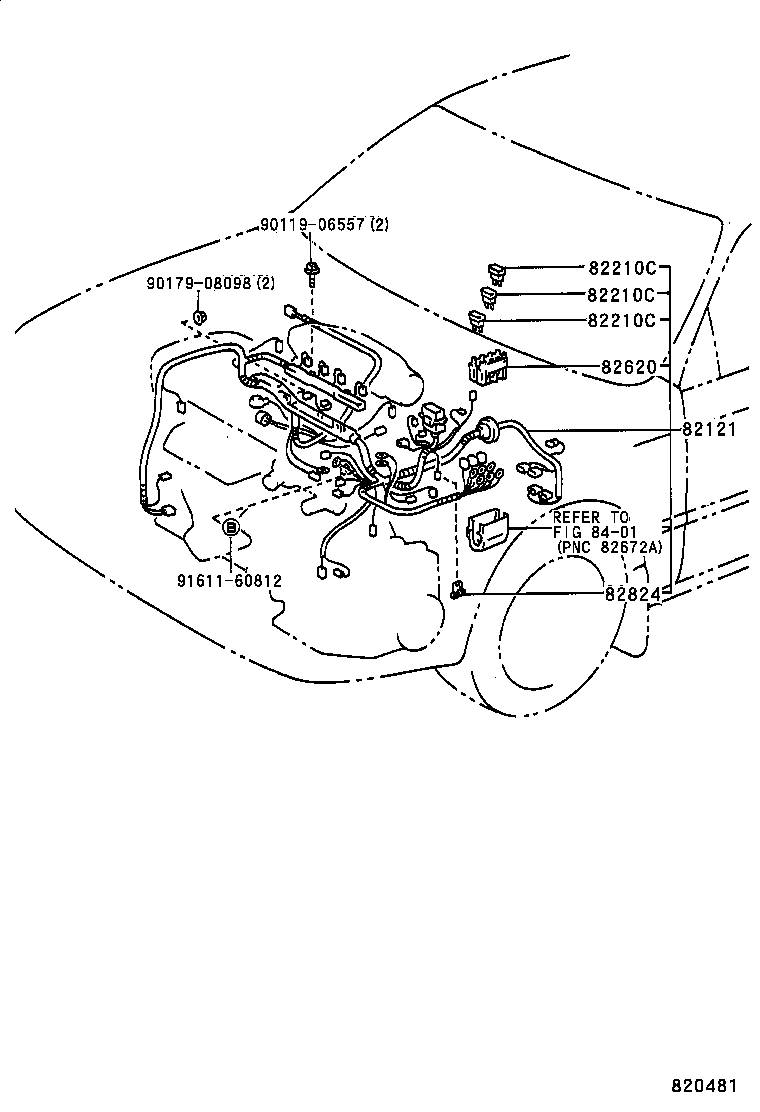

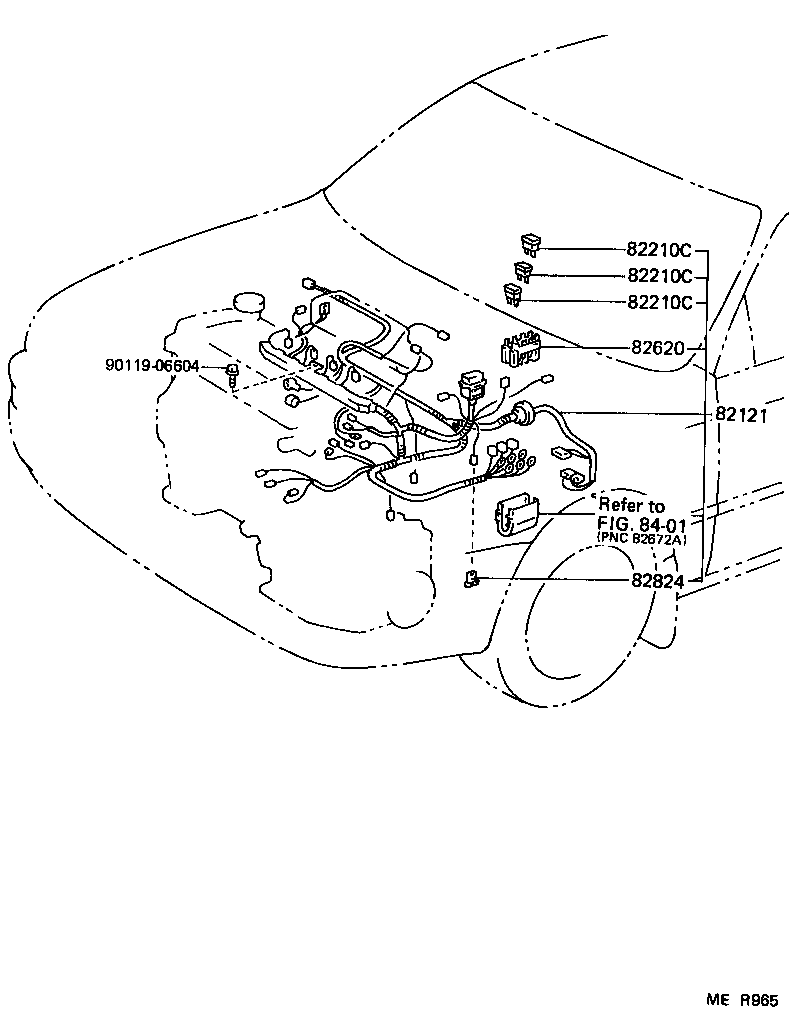

82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123 Wire, Engine, NO.3
82123A Wire, Engine, NO.3
82124 Wire, Engine, NO.4

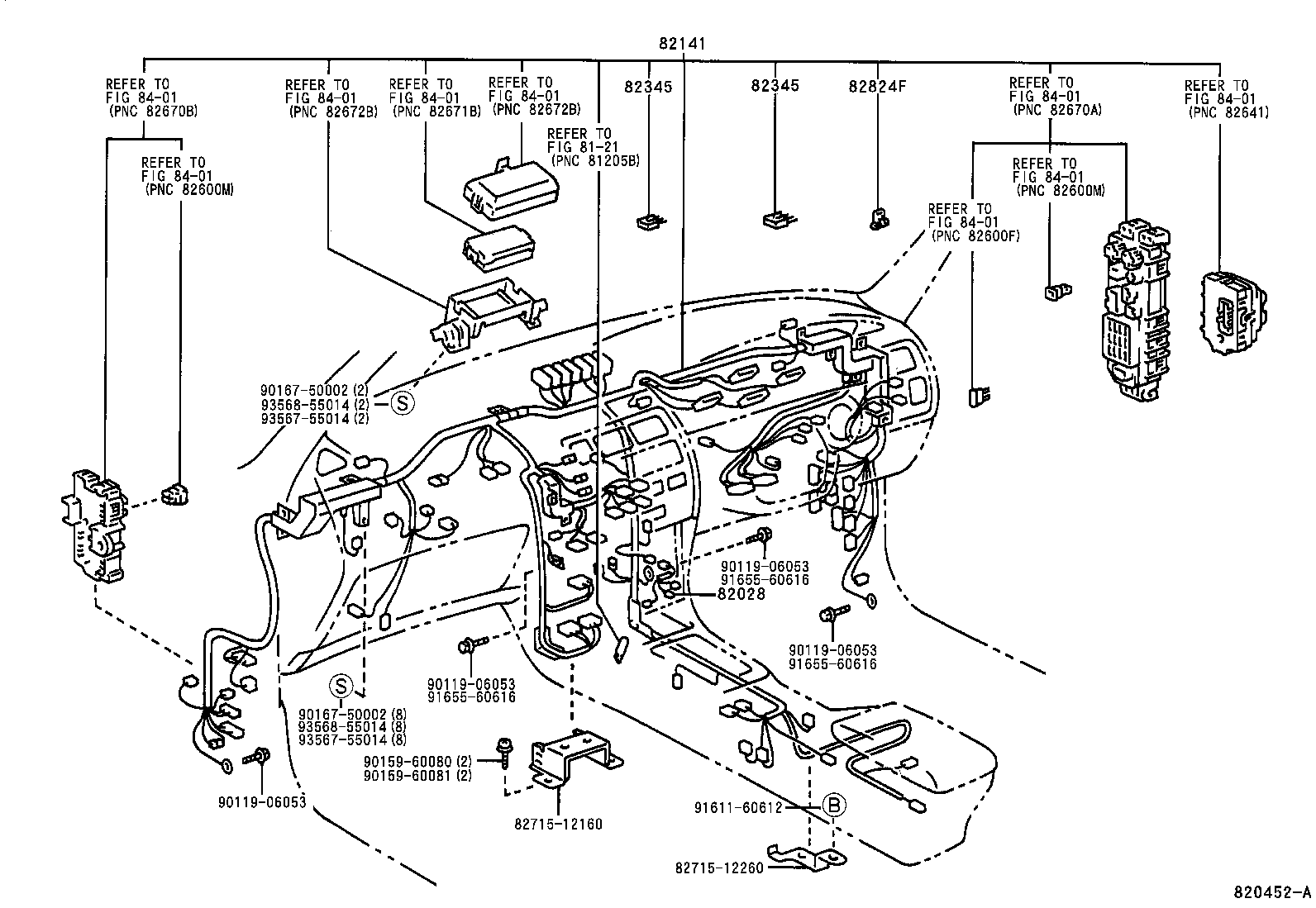

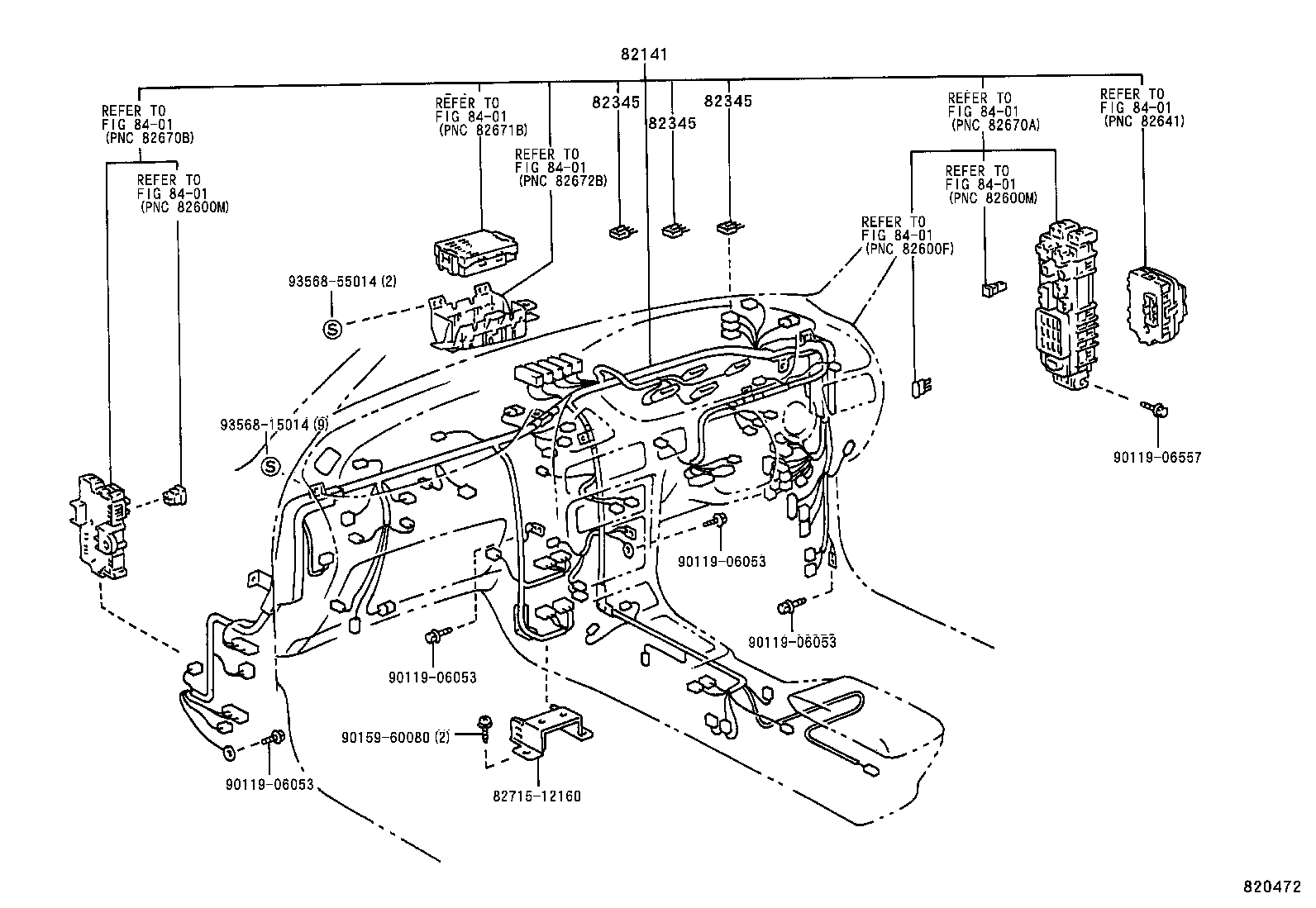

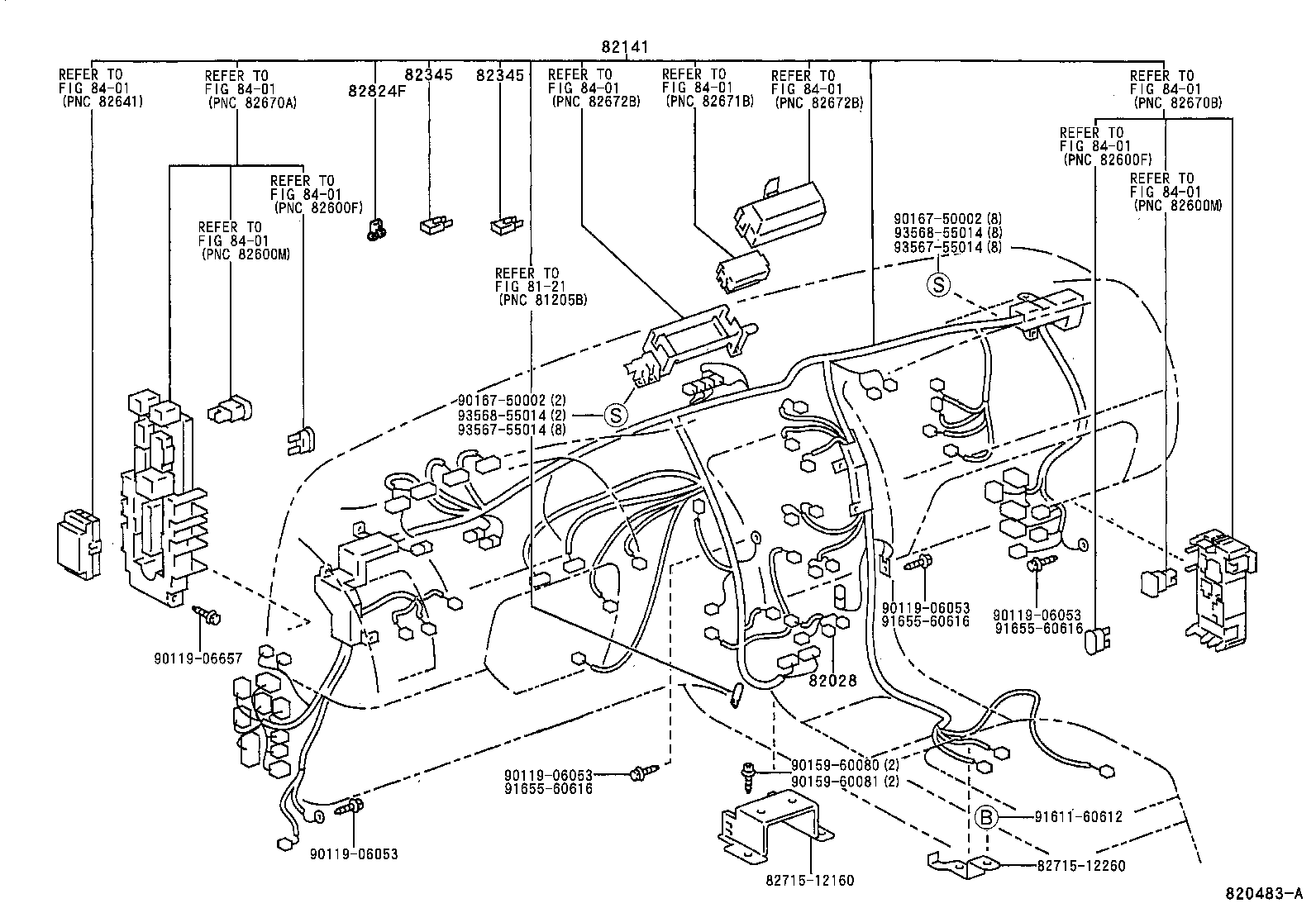

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

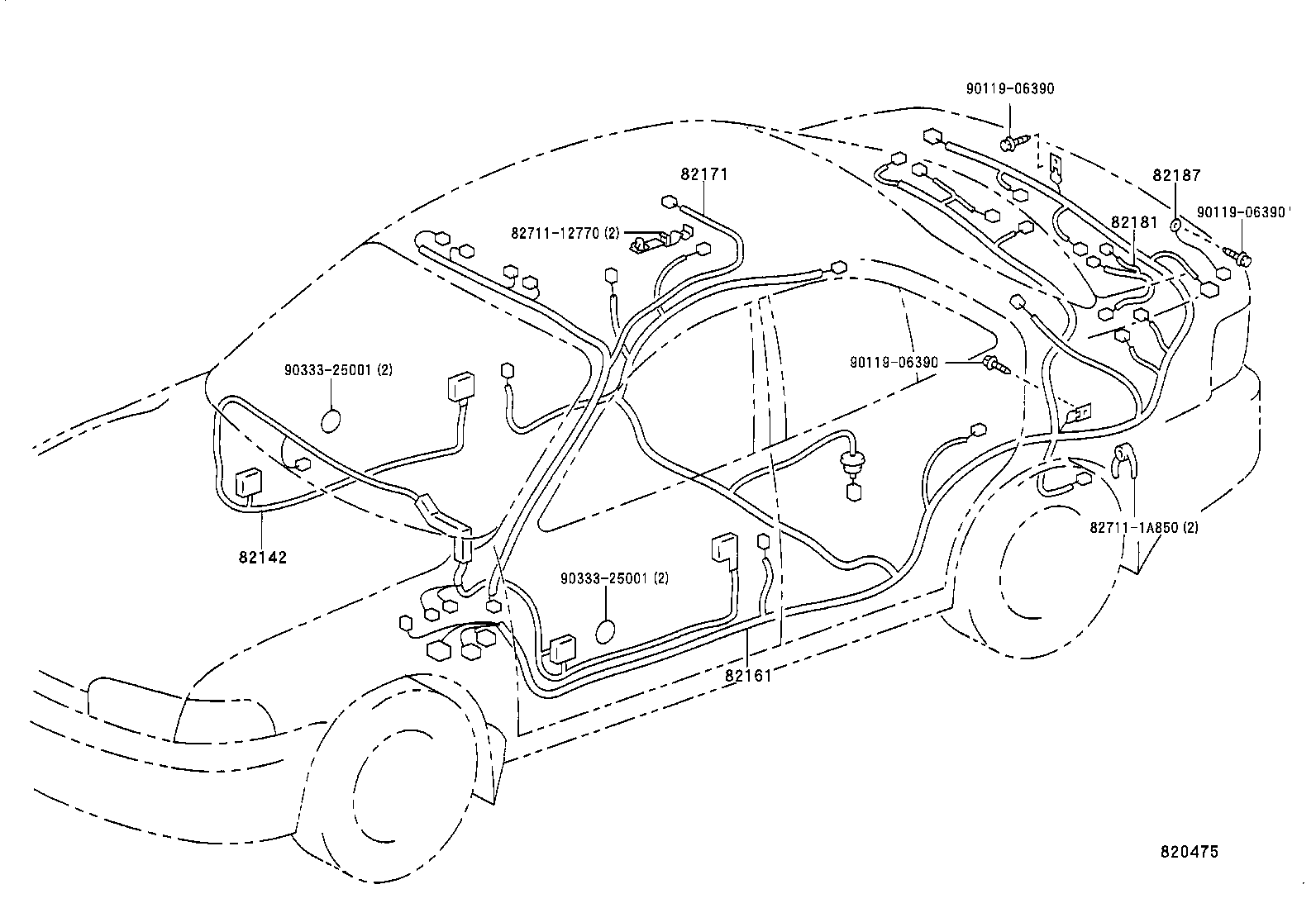

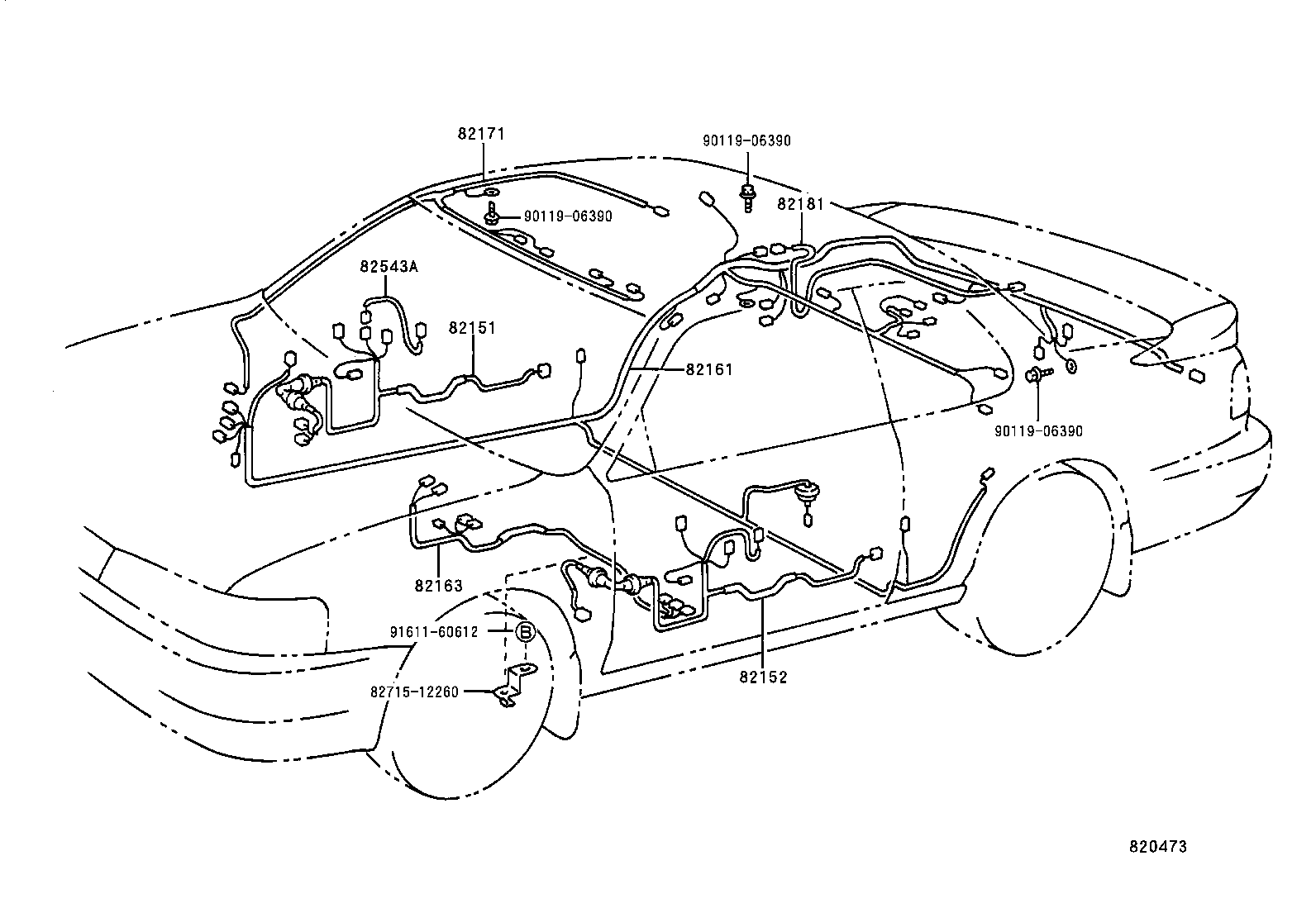

82161 Wire, Floor
82163 Wire, Floor, NO.3

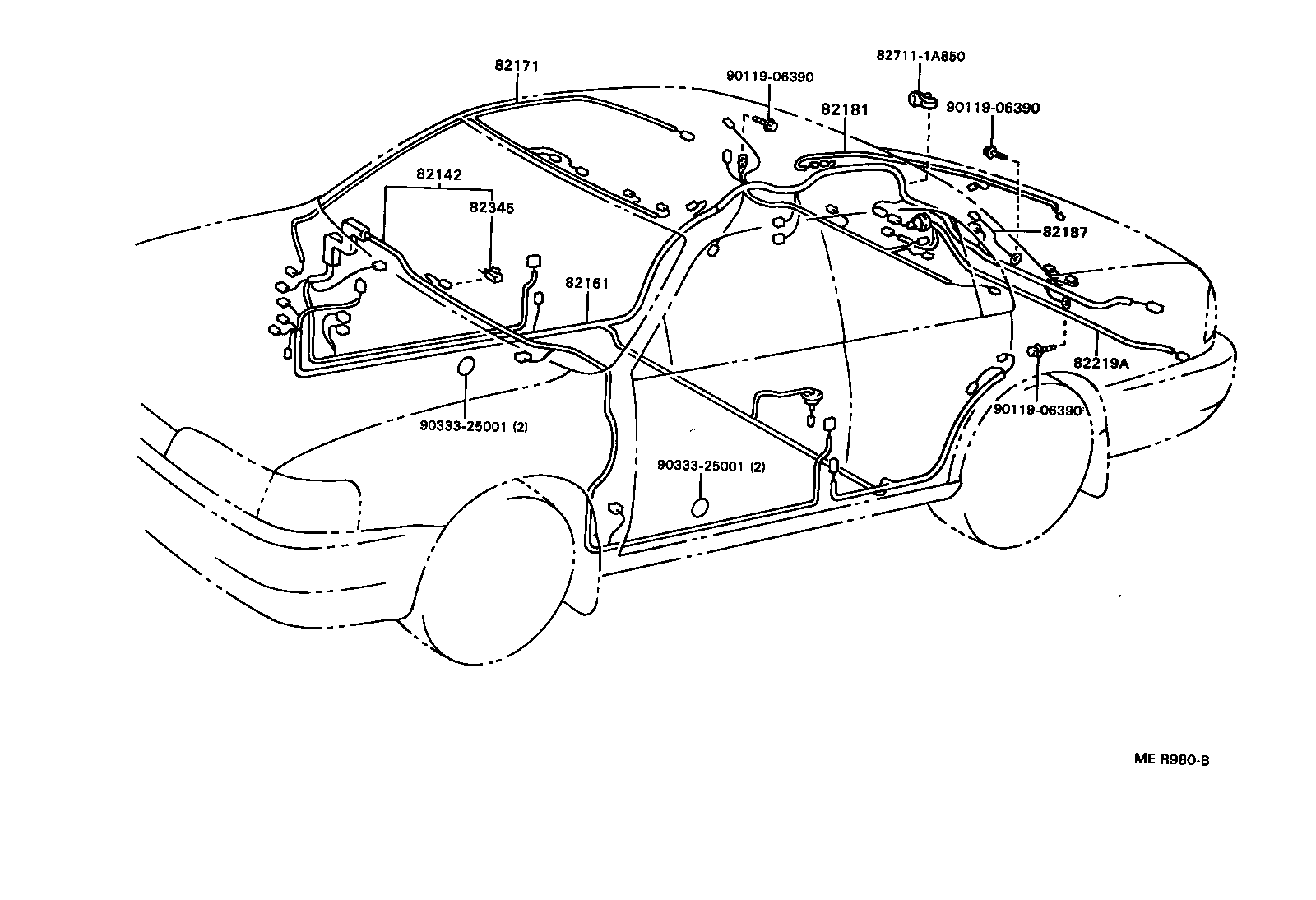

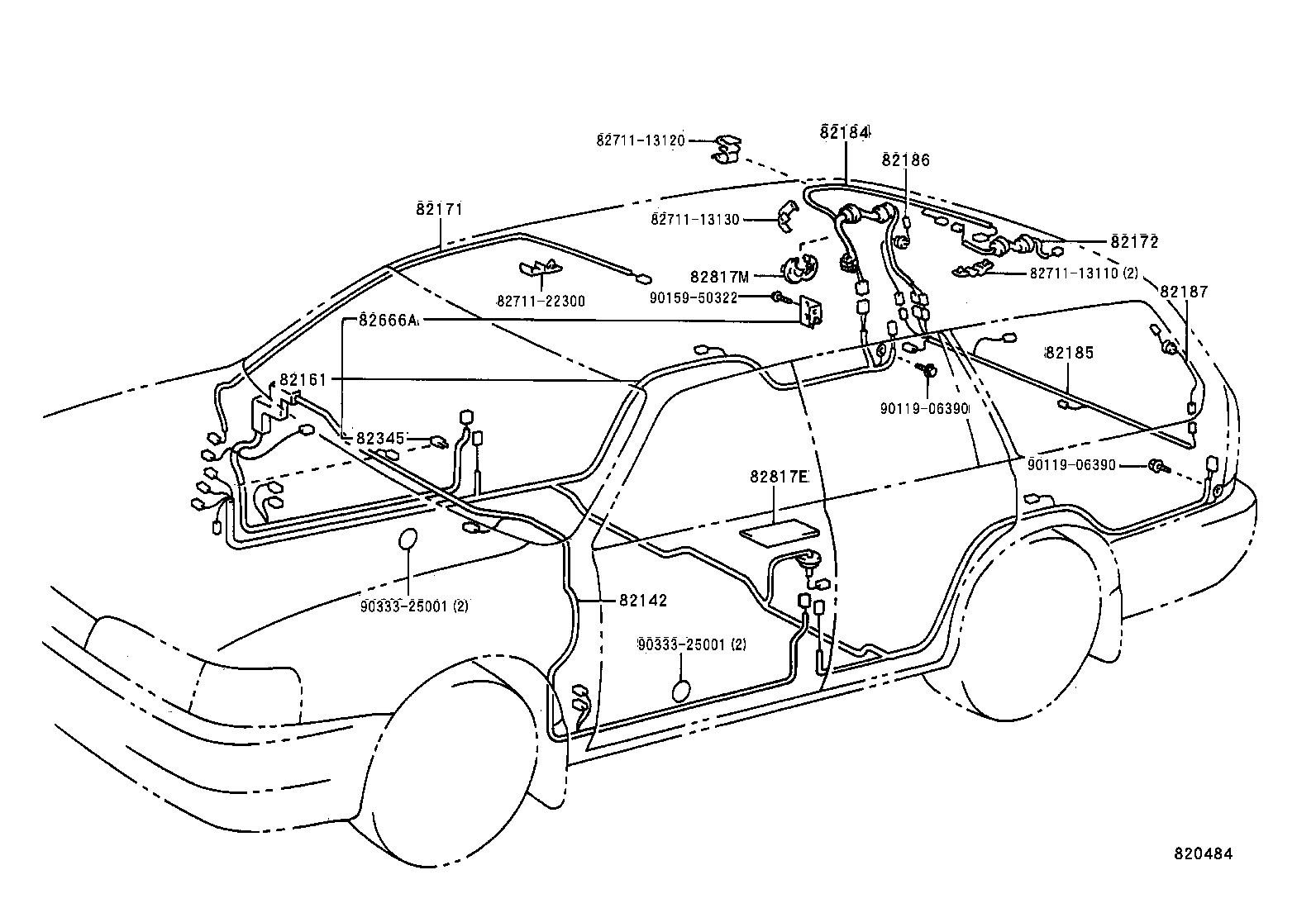

82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82219A Wire, Sensor
82345 Diode
82543A Wire, Power Window, RH
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2

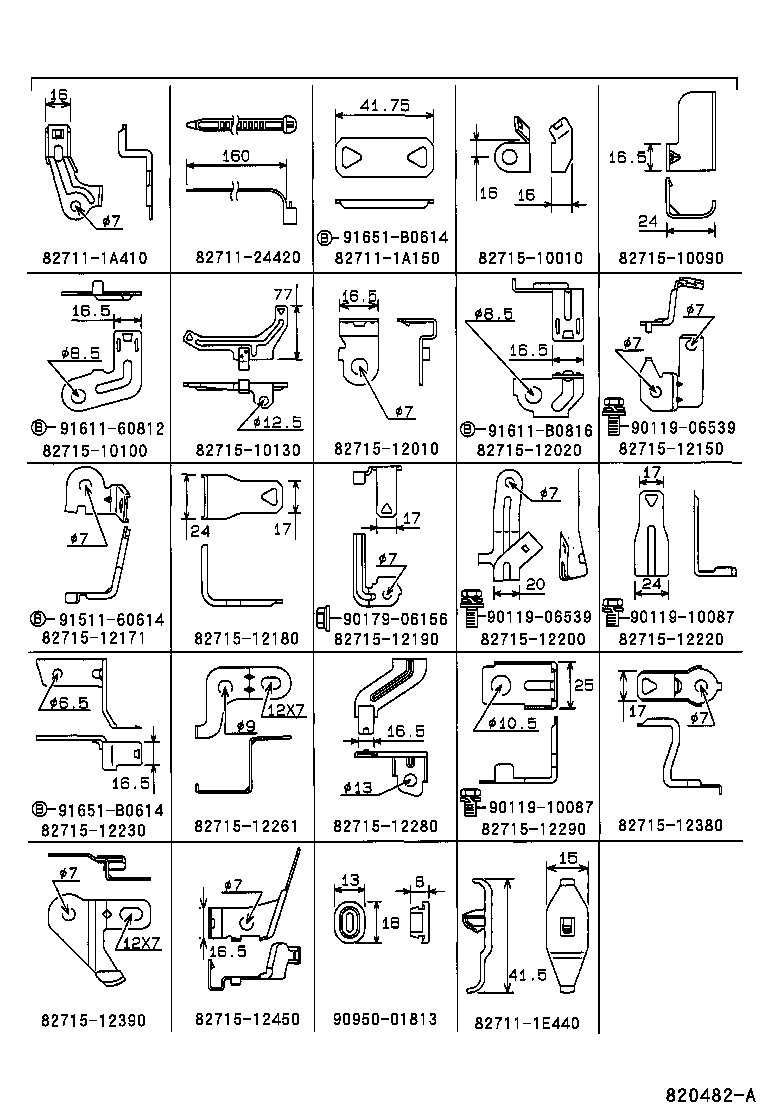

82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817E Protector, Wiring Harness, NO.6
82817M Protector, Wiring Harness, NO.12
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824F Connector, Wiring Harness

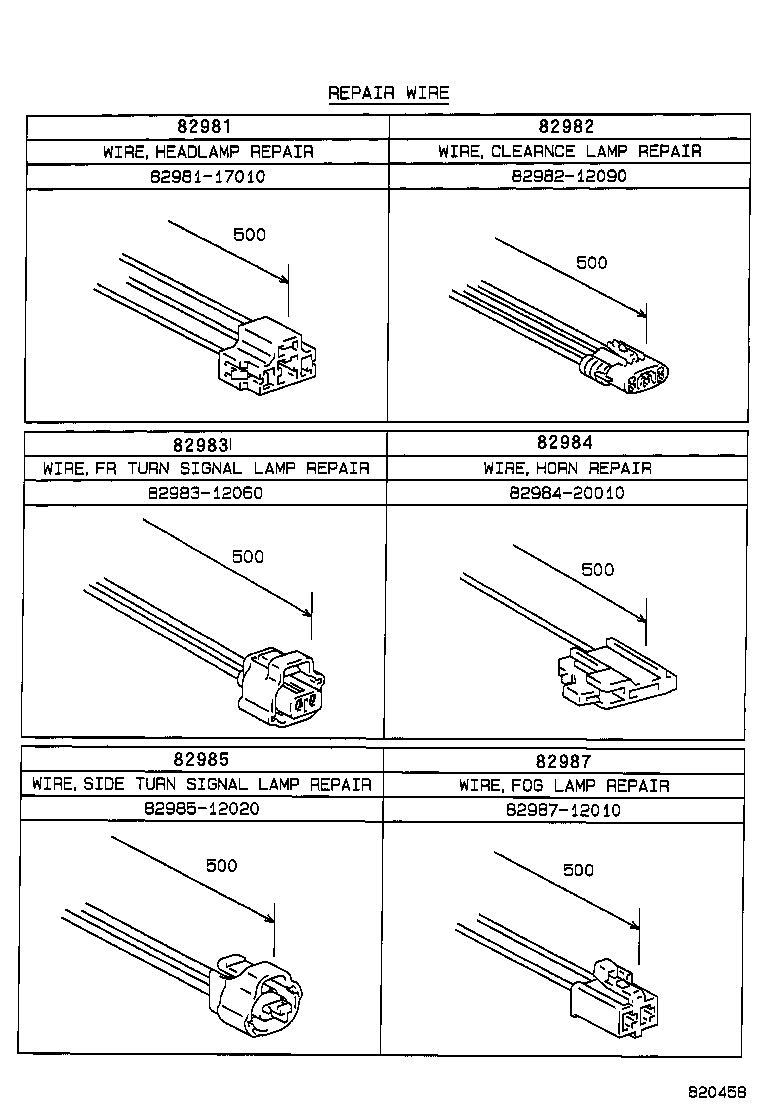

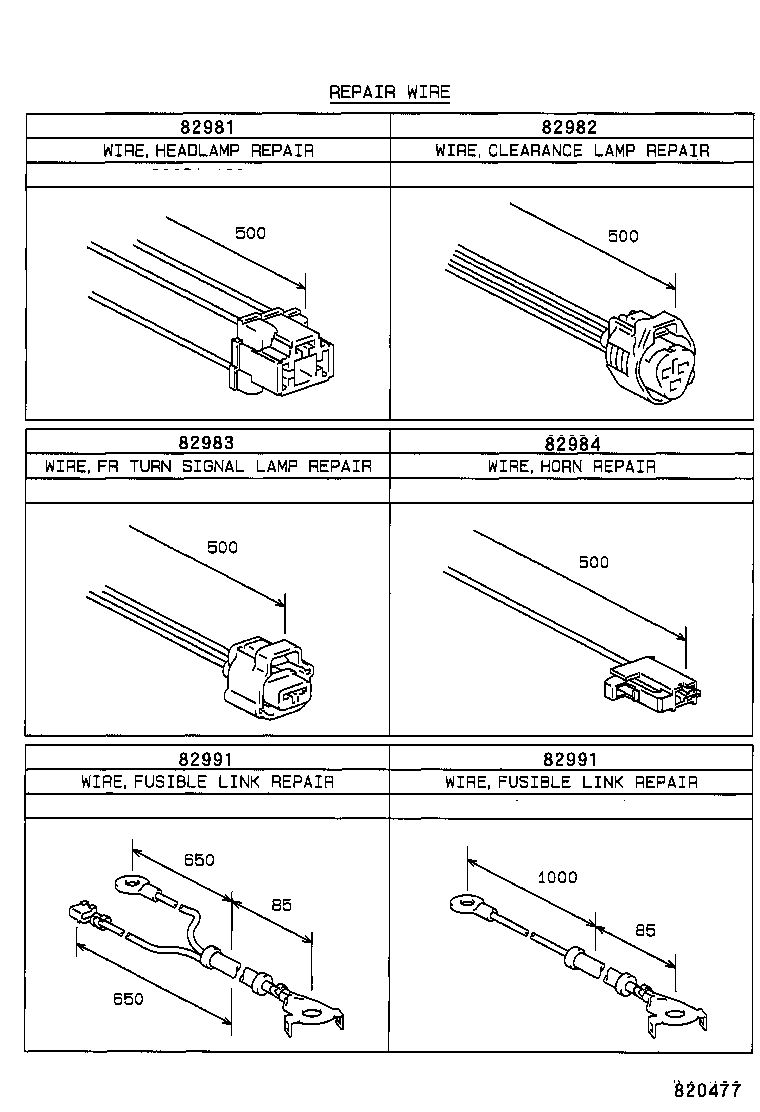

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
