Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04

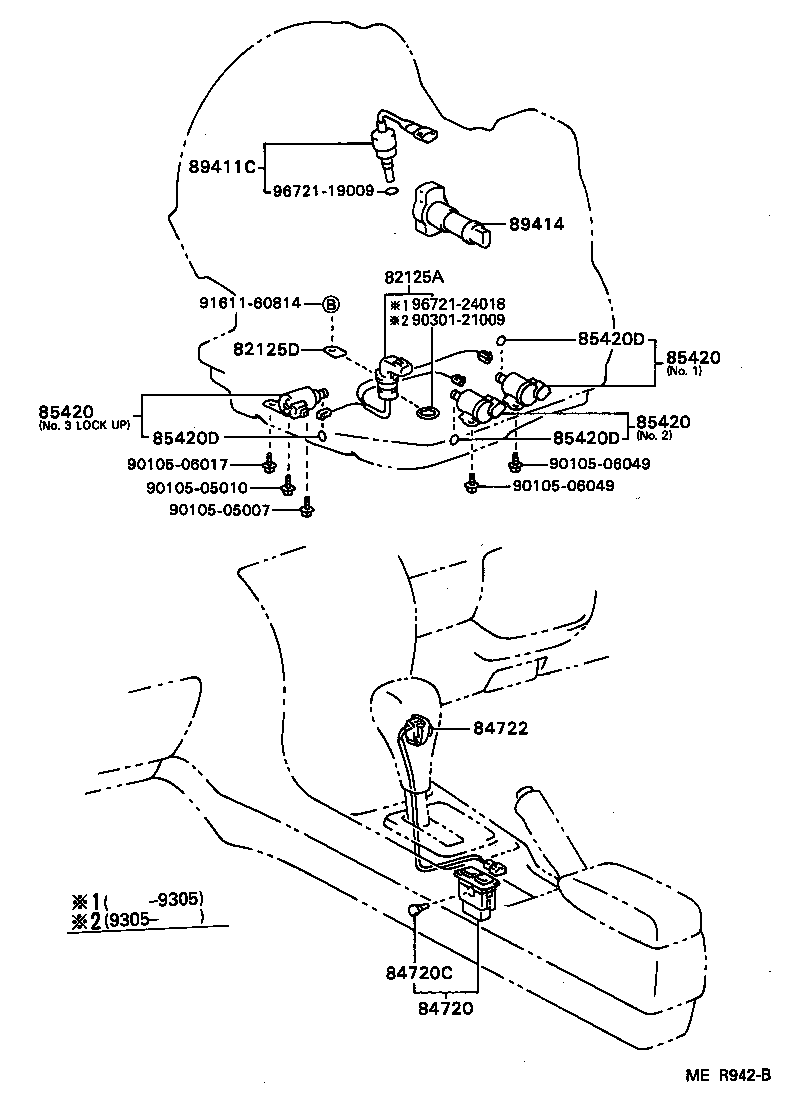

Overdrive & Electronic Controlled Transmission
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 82125D | Plate, Transmission Wire Lock |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85425A | Ring, O (FOR OVERDRIVE SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89427A | Switch, Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
