Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 5 illustrations

Illustrations

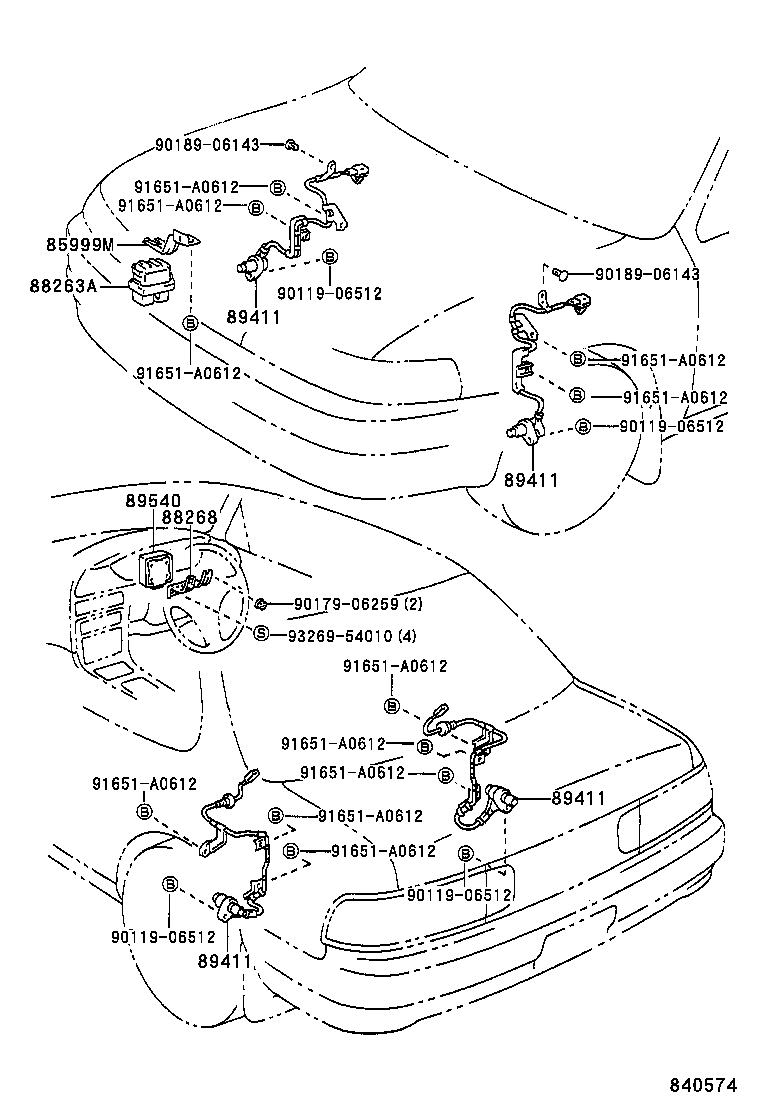

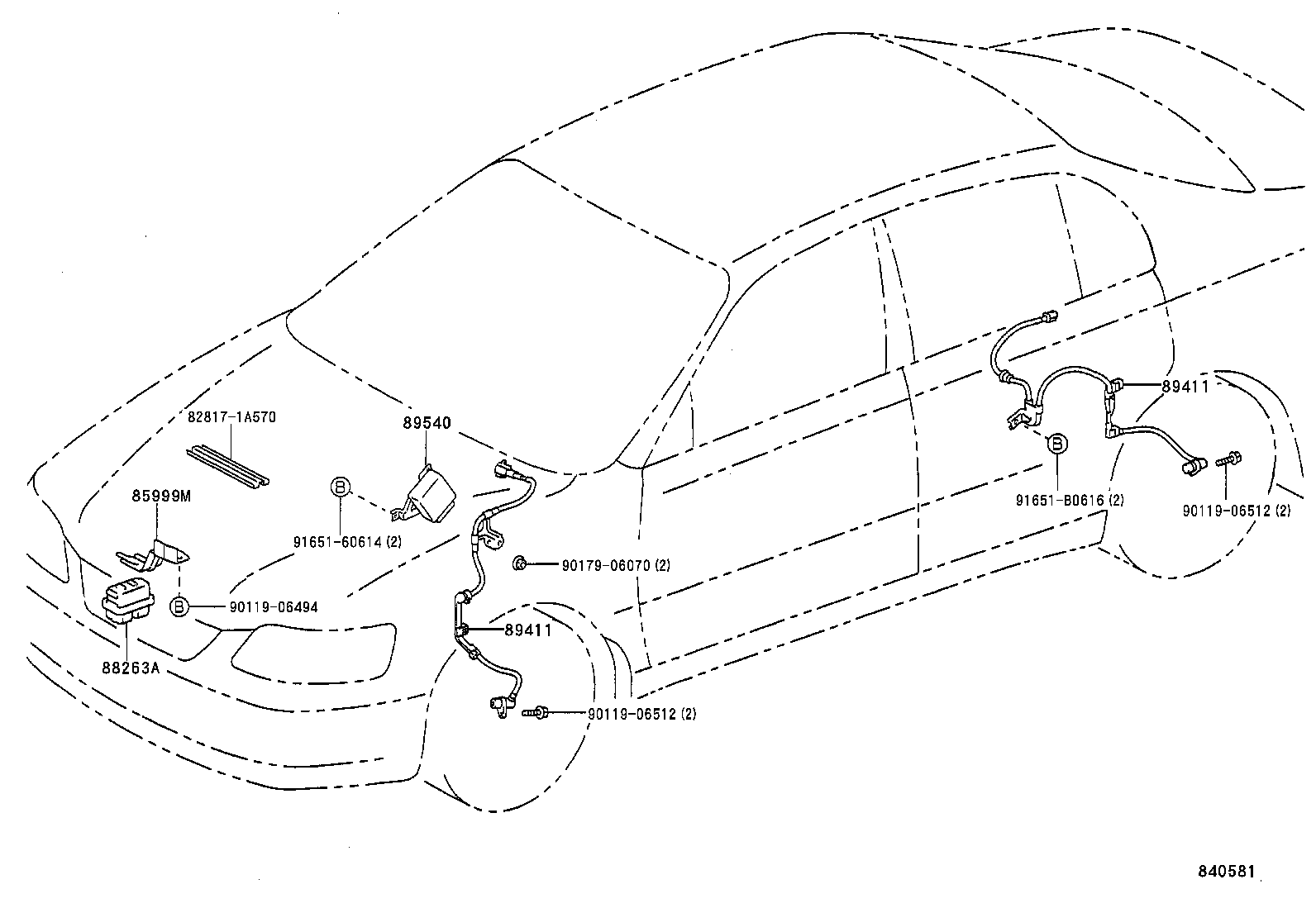

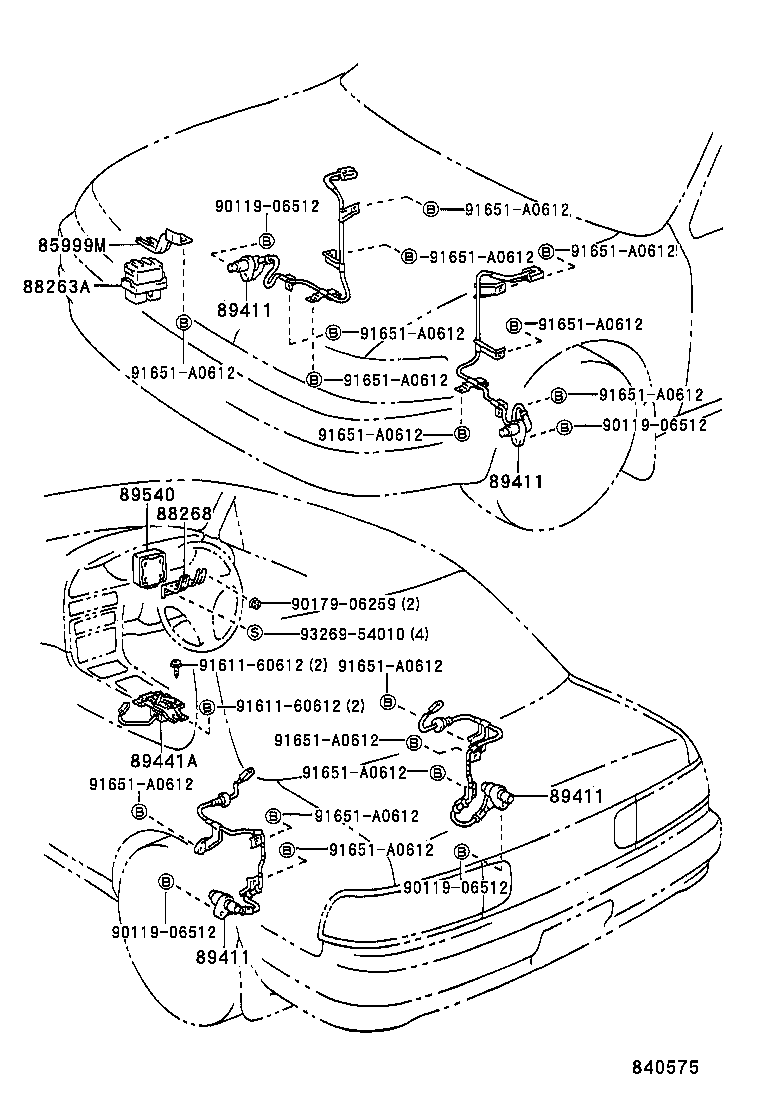

Figure MER943C MER943C 1991-08 → 1995-05 Figure 840574 840574 1991-08 → 1995-05 Figure 840575 840575 1991-08 → 1995-05 Figure 840581 840581 1997-03 → — Figure 840581 840581 1997-08 → —

Part groups

PNCDescription
85999M Bracket, Relay
88263A Relay, Skid Control
88268 Bracket, Skid Control Computer, NO.2
89411 Sensor, Speed
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89549 Bracket, Skid Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
