Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 6 illustrations

Illustrations

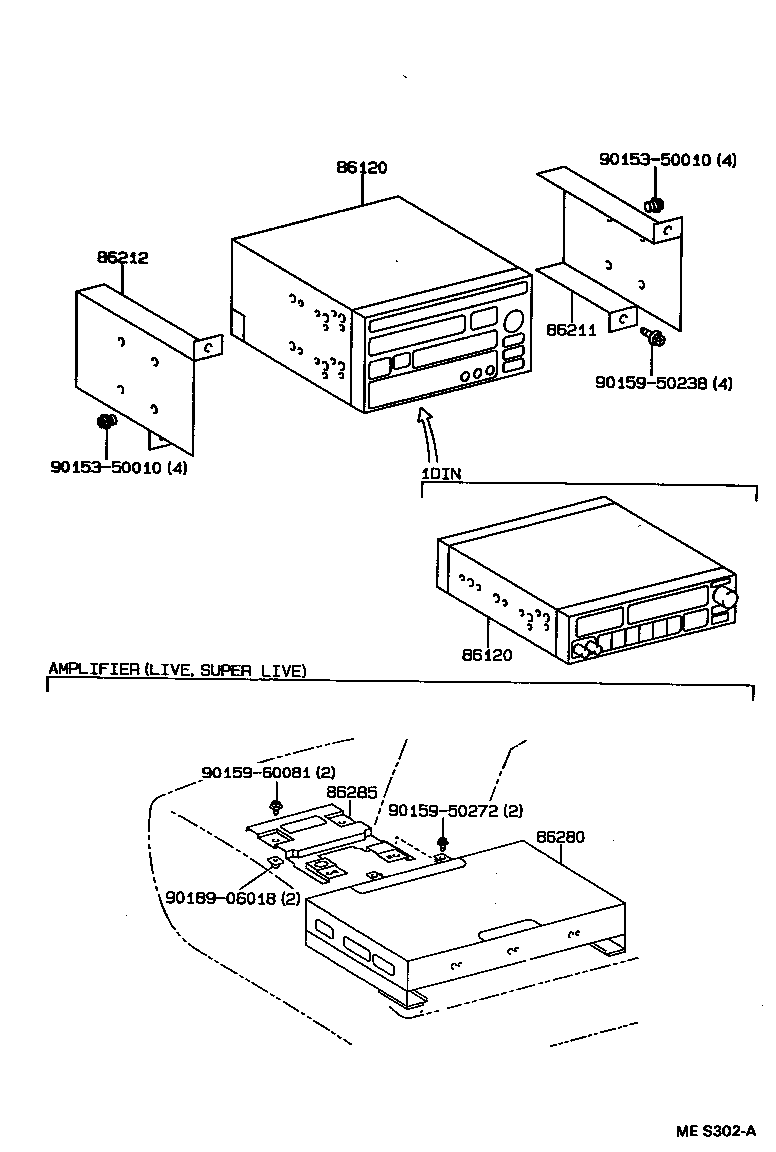

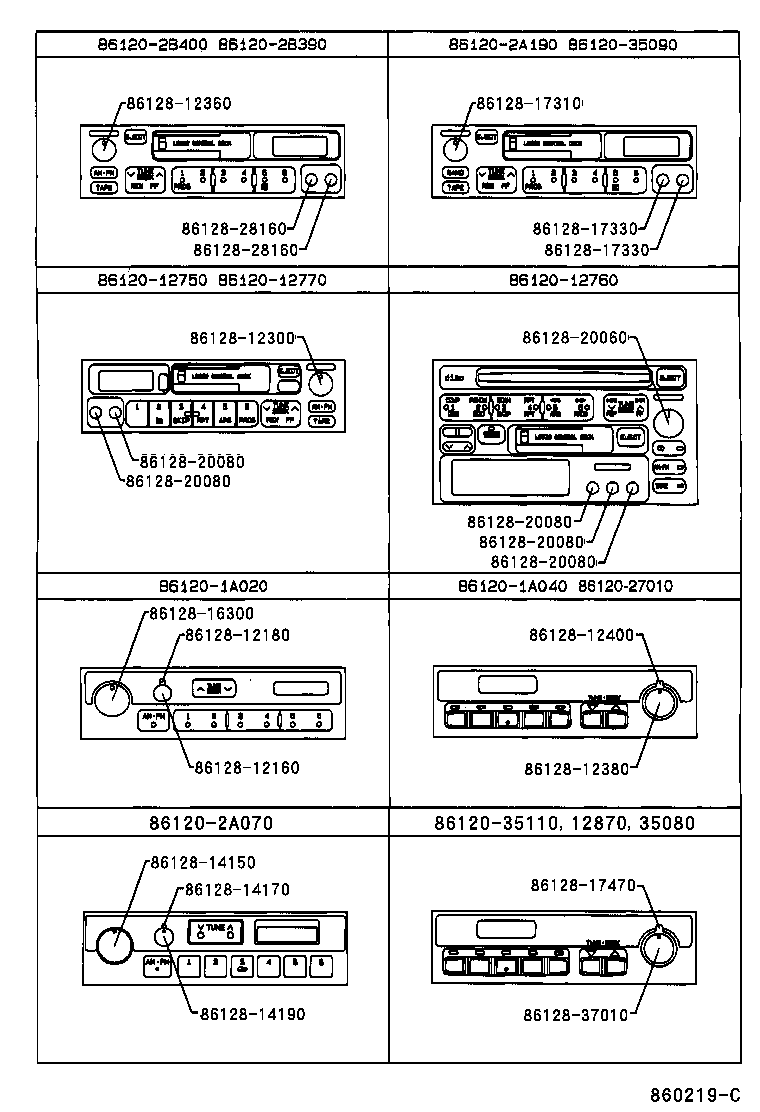

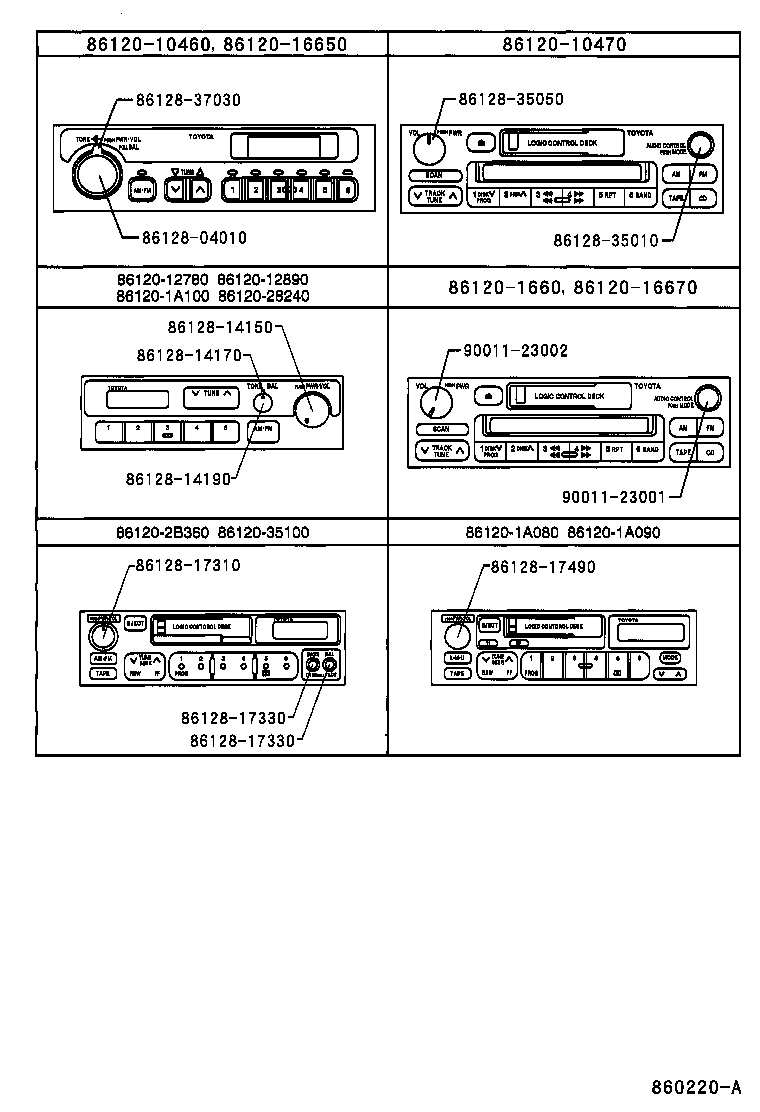

Figure 860325 860325 1991-08 → — Figure MES302A MES302A 1991-08 → 1995-05 Figure MES048B MES048B 1991-08 → — Figure MES050A MES050A 1991-08 → 1995-05 Figure 860219C 860219C 1991-08 → — Figure 860220A 860220A 1991-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86203D Wire, Stereo Component, NO.1
86203H Wire, Stereo Component, NO.2
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86270A Disc Player Assy
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
