Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04
Speaker
6 part groups · 3 illustrations
Part groups

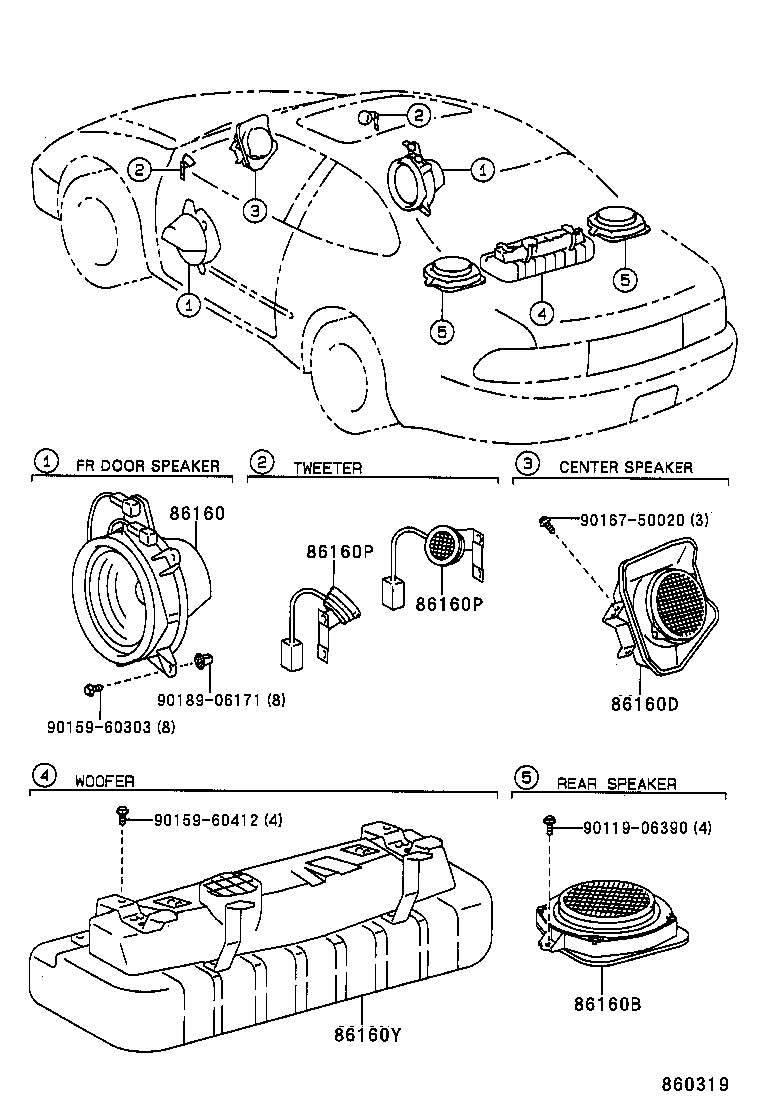

| PNC | Description |
|---|---|
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160D | Speaker Assy, Stereo Component, Front |
| 86160P | Speaker Assy, Front NO.2 |
| 86160Y | Speaker Assy, Rear NO.2 |
| 86660A | Speaker Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
