Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

27 part groups · 9 illustrations

Illustrations

Figure MES186B MES186B 1991-08 → — Figure MES187A MES187A 1991-08 → — Figure MES041B MES041B 1991-08 → — Figure MES045A MES045A 1991-08 → — Figure MES188B MES188B 1991-08 → 1995-08 Figure MES188B MES188B 1995-08 → — Figure 870848 870848 1995-08 → — Figure 871195 871195 1991-08 → — Figure MES189B MES189B 1991-08 → —

Part groups

PNCDescription

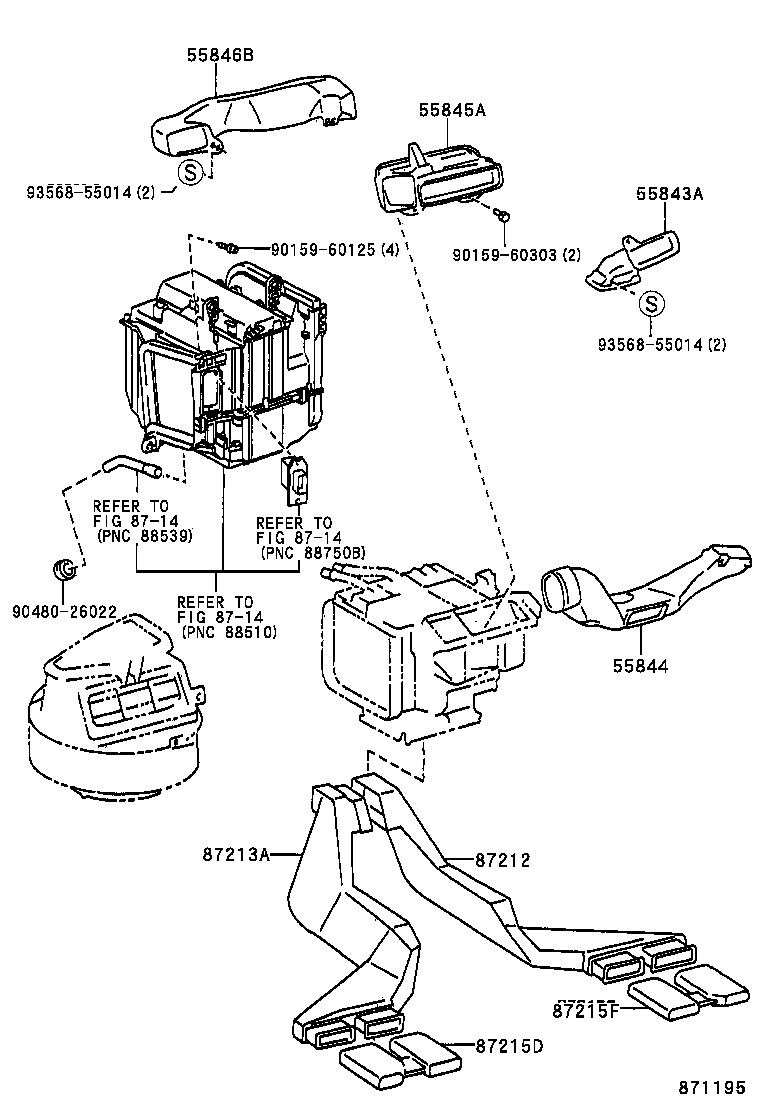

55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4

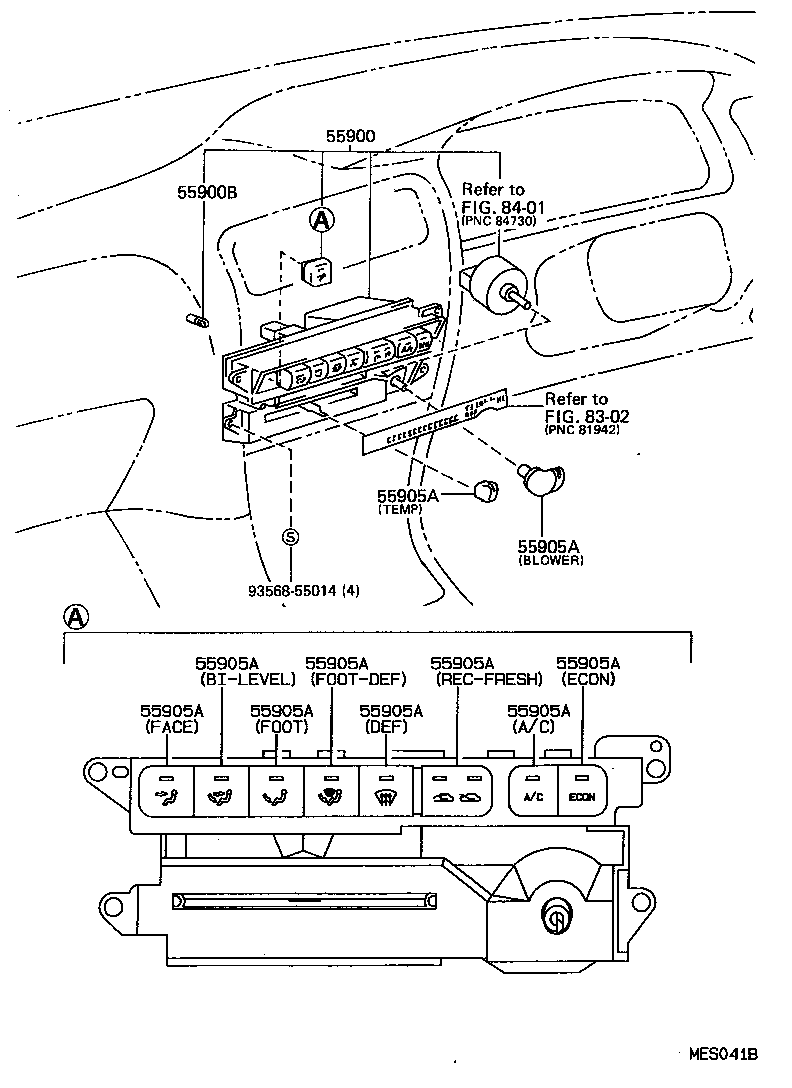

55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control

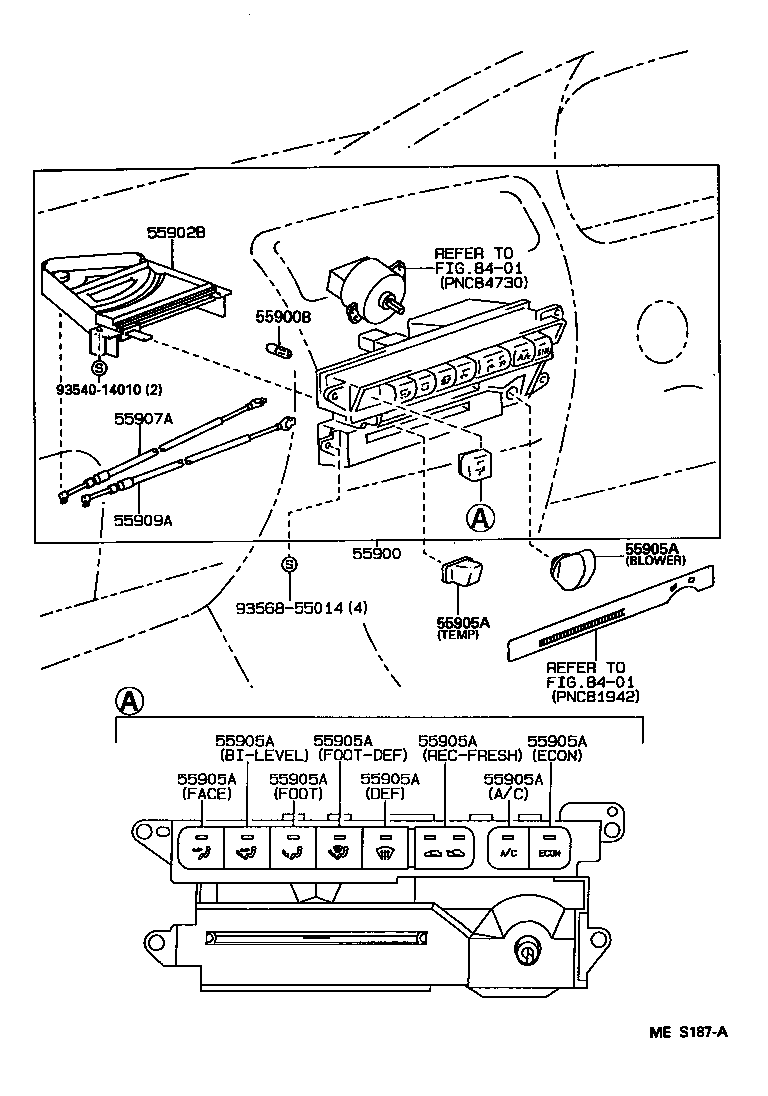

55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control

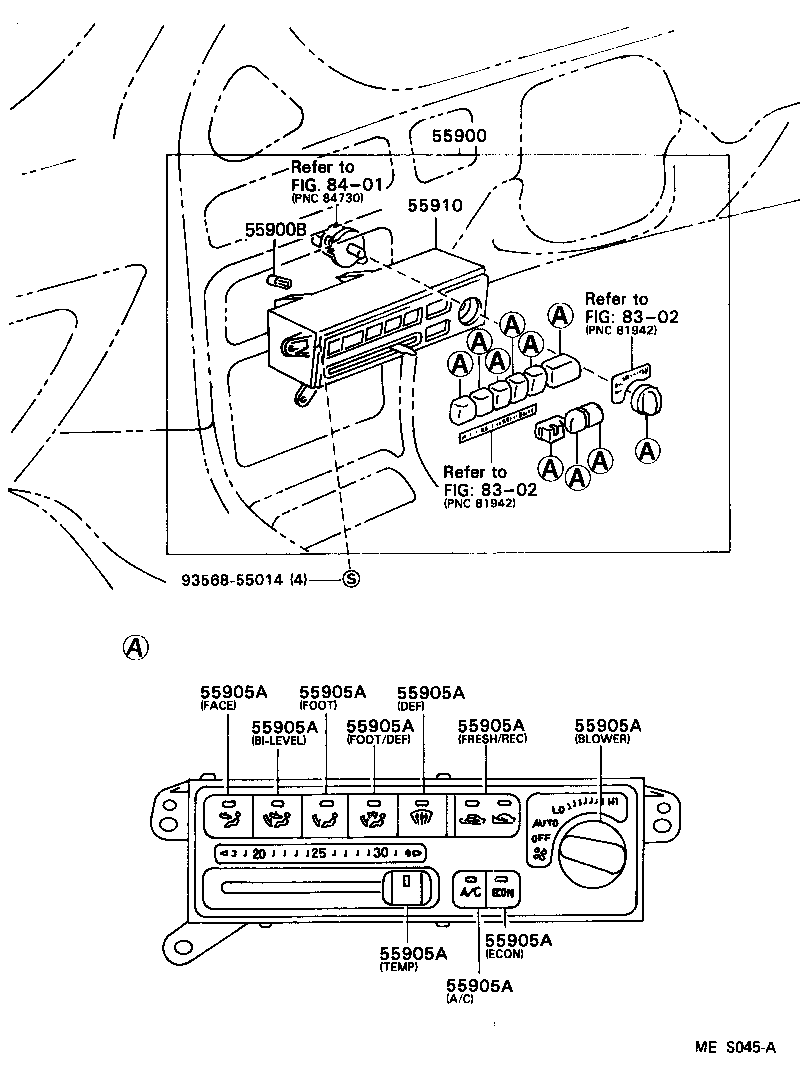

55910 Control Assy, Heater OR Boost Ventilator
55916A Lever, Cooler Control
55917A Lever, Temperature Damper Control
87138B Resistor, Heater Blower

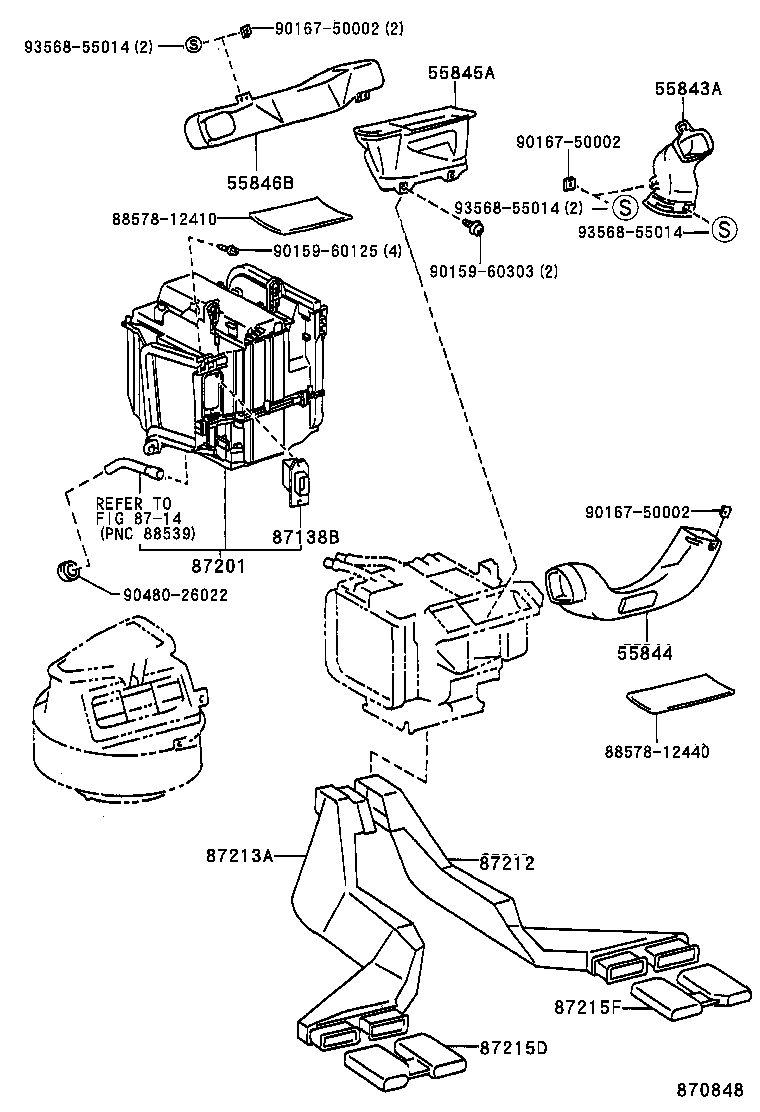

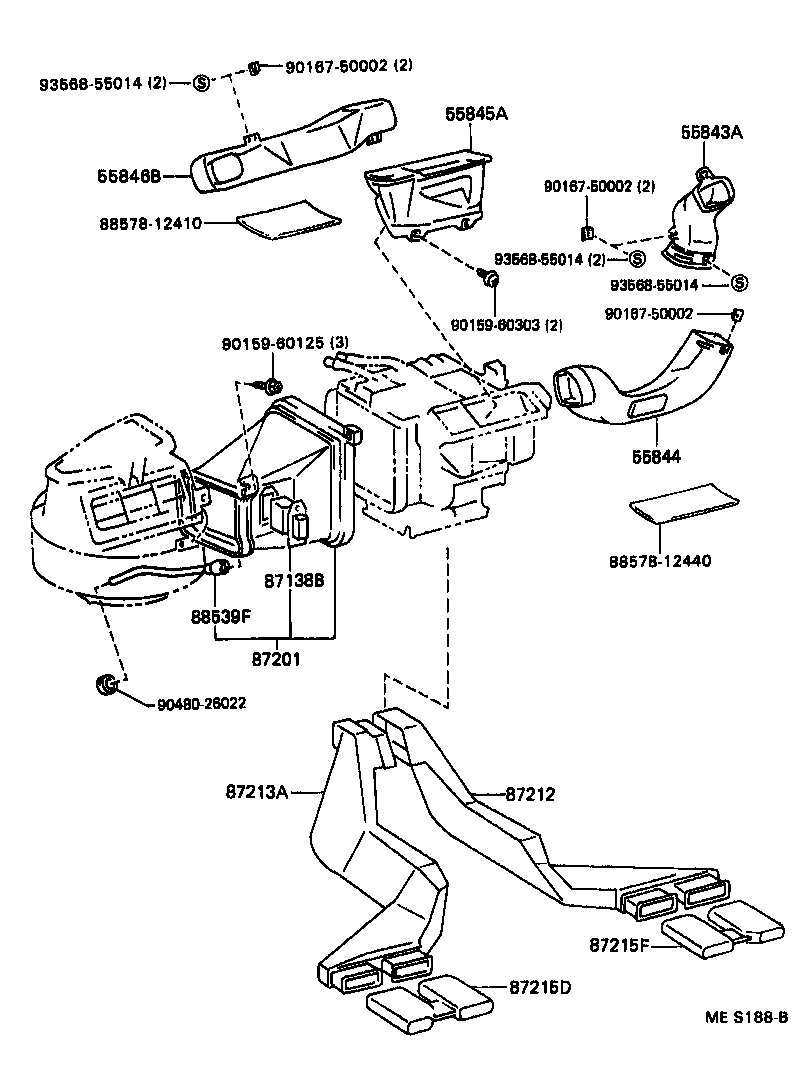

87201 Duct Sub-assy, Air, NO.1
87212 Duct, Air, Rear NO.1
87213A Duct, Air Rear NO.2
87215D Duct, Air, Rear NO.4
87215F Duct, Air, Rear NO.3
87284 Resistor Sub-assy, Variable
88539F Hose, Drain

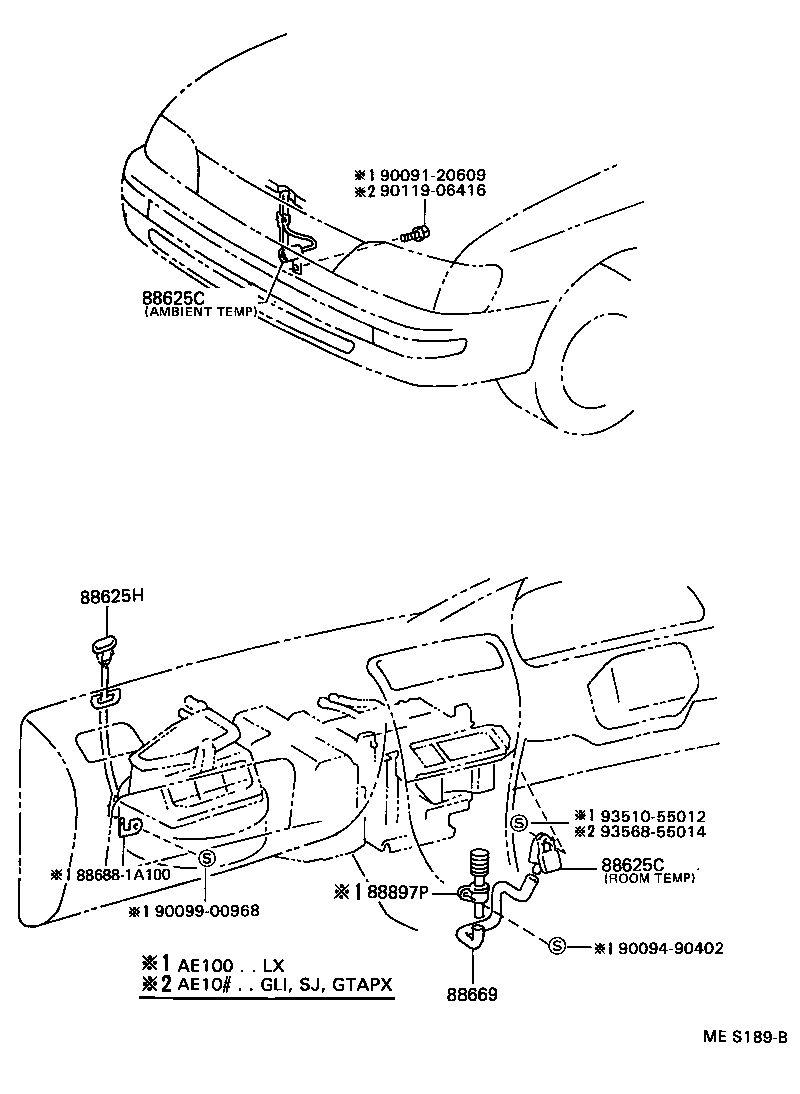

88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88669 Hose, Cooler Air
88897P Aspirator
