Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

7 part groups · 14 illustrations

Illustrations

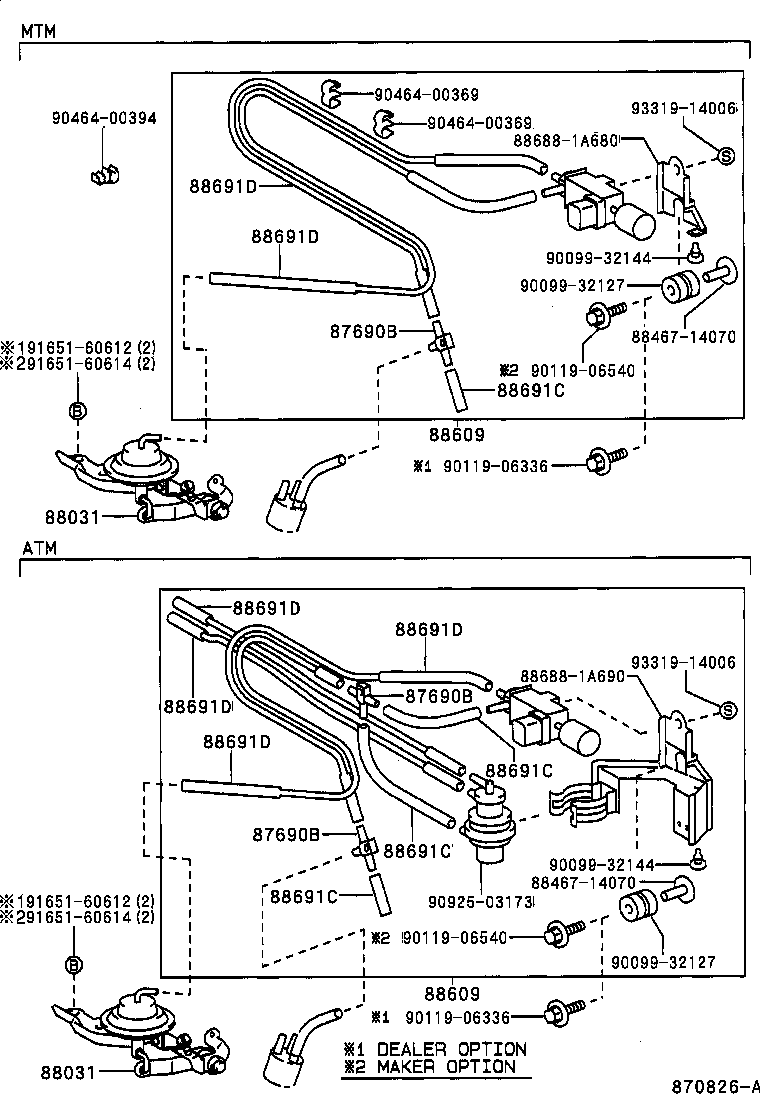

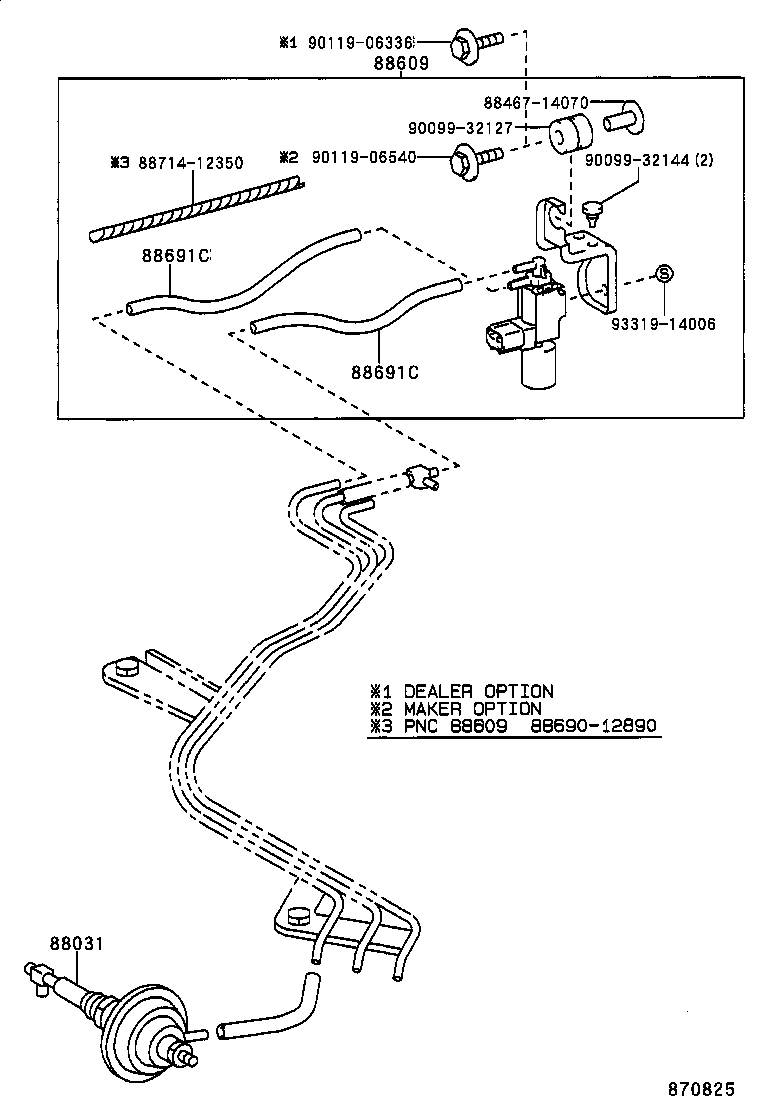

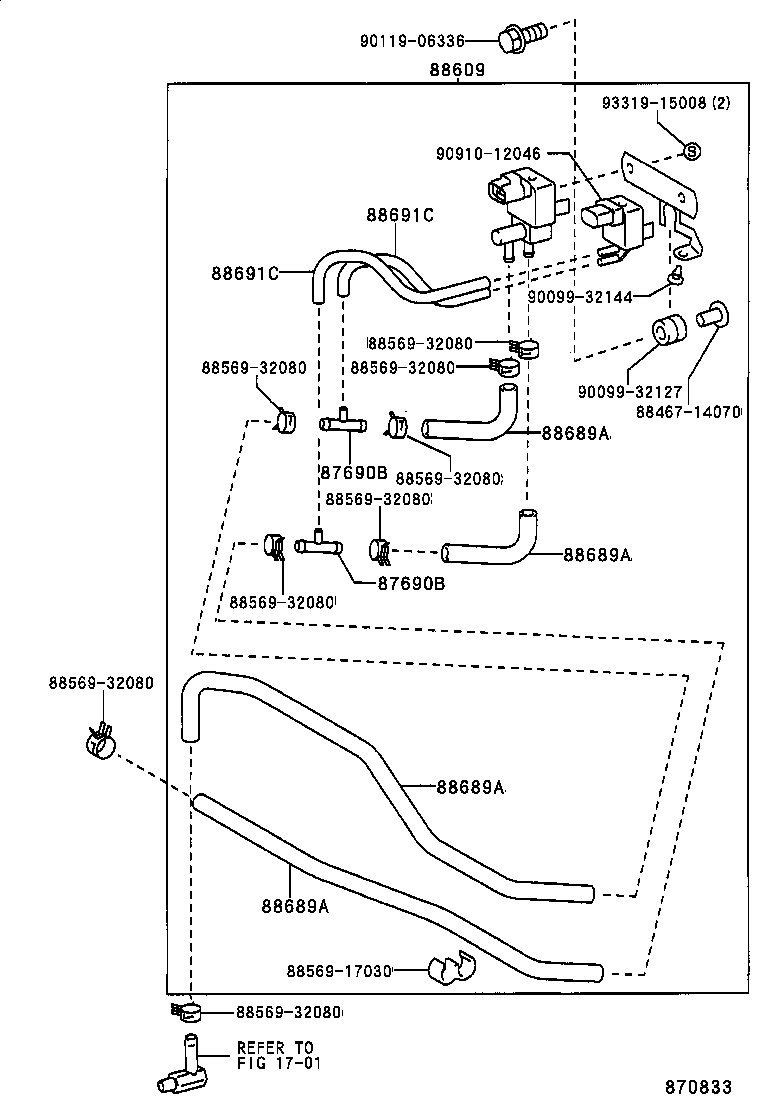

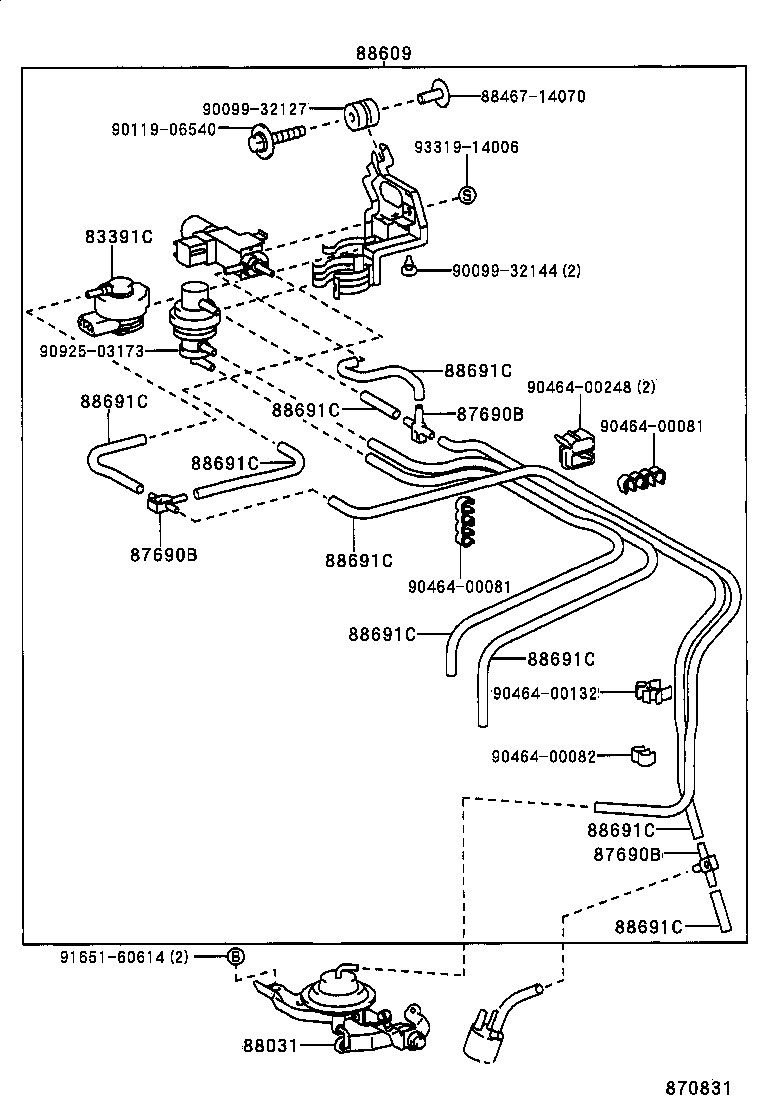

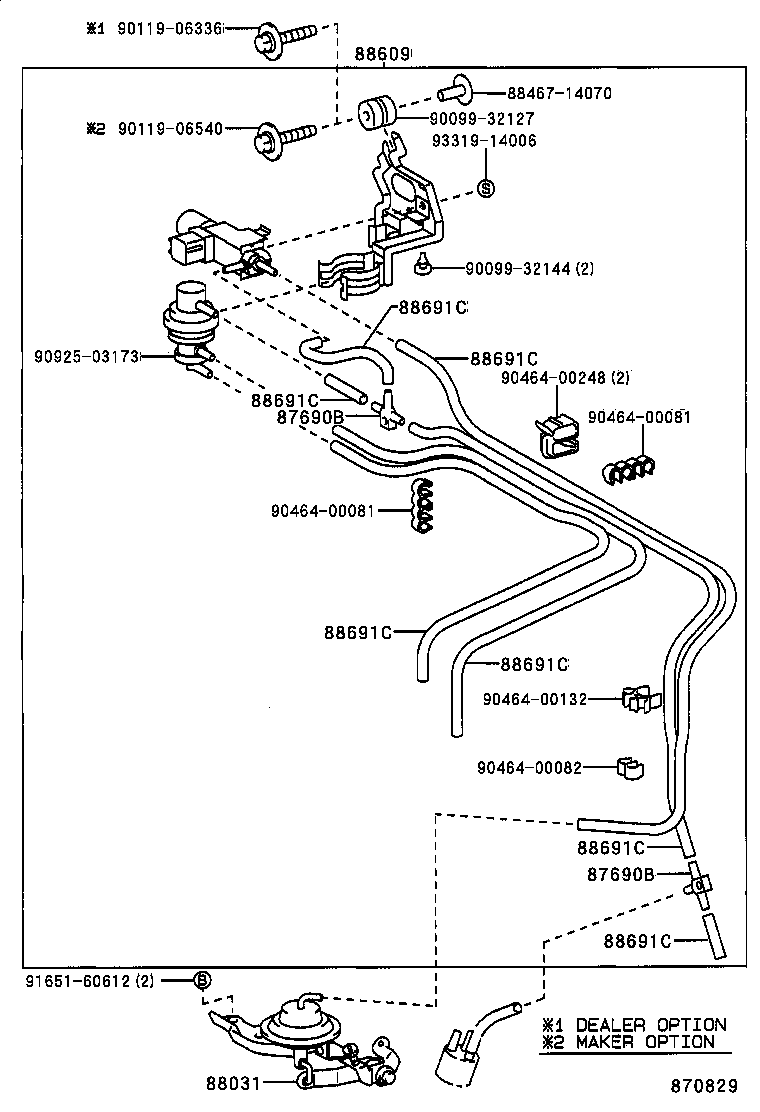

Figure 870815 870815 1991-08 → — Figure 870816 870816 1991-08 → — Figure 870822 870822 1992-05 → — Figure 870823 870823 1992-05 → — Figure 870824 870824 1992-05 → — Figure 870825 870825 1992-05 → — Figure 870826A 870826A 1991-08 → — Figure 870827 870827 1992-05 → 1995-11 Figure 870828 870828 1992-05 → — Figure 870829 870829 1992-05 → — Figure 870830 870830 1992-05 → — Figure 870831 870831 1992-05 → — Figure 870832 870832 1991-09 → 1994-01 Figure 870833 870833 1994-01 → —

Part groups

PNCDescription
83391C Switch, Cooler Vacuum
87690B Way, 3
88031 Actuator Set, Idle-up
88609 Device Sub-assy, Idle UP
88689A Hose, Cooler Vacuum NO.1
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
