Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04

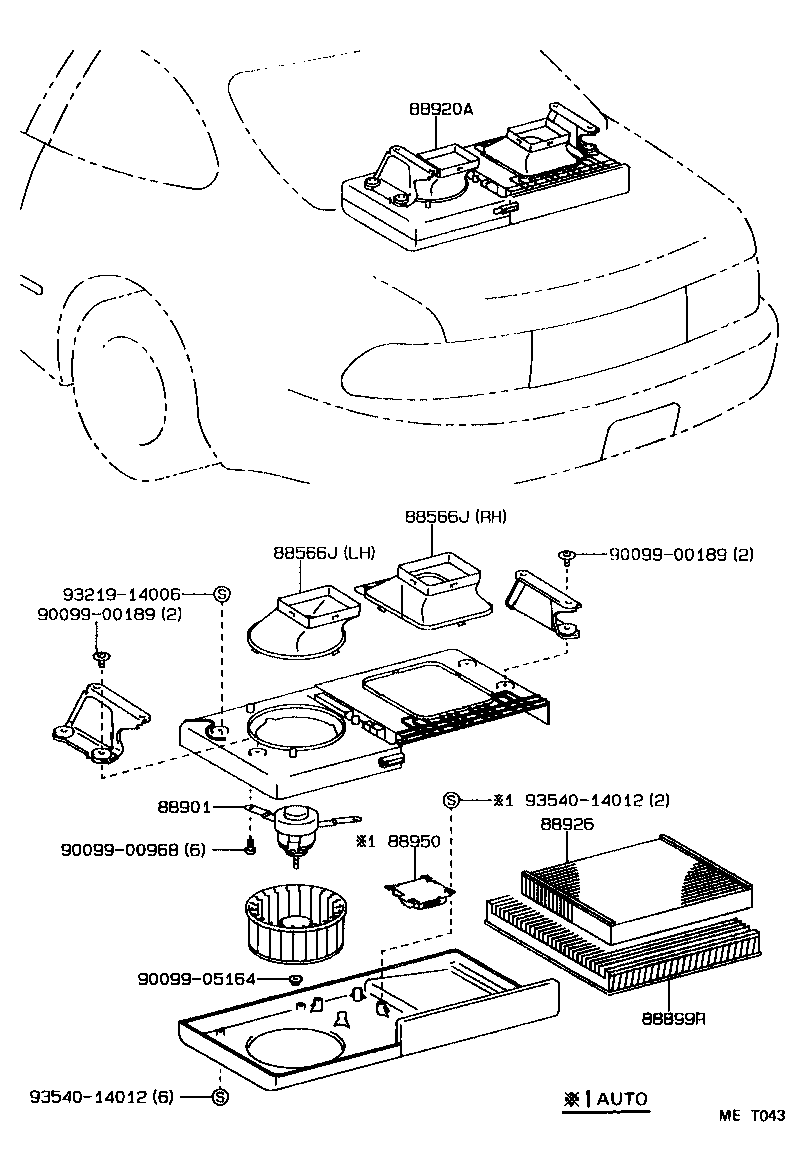

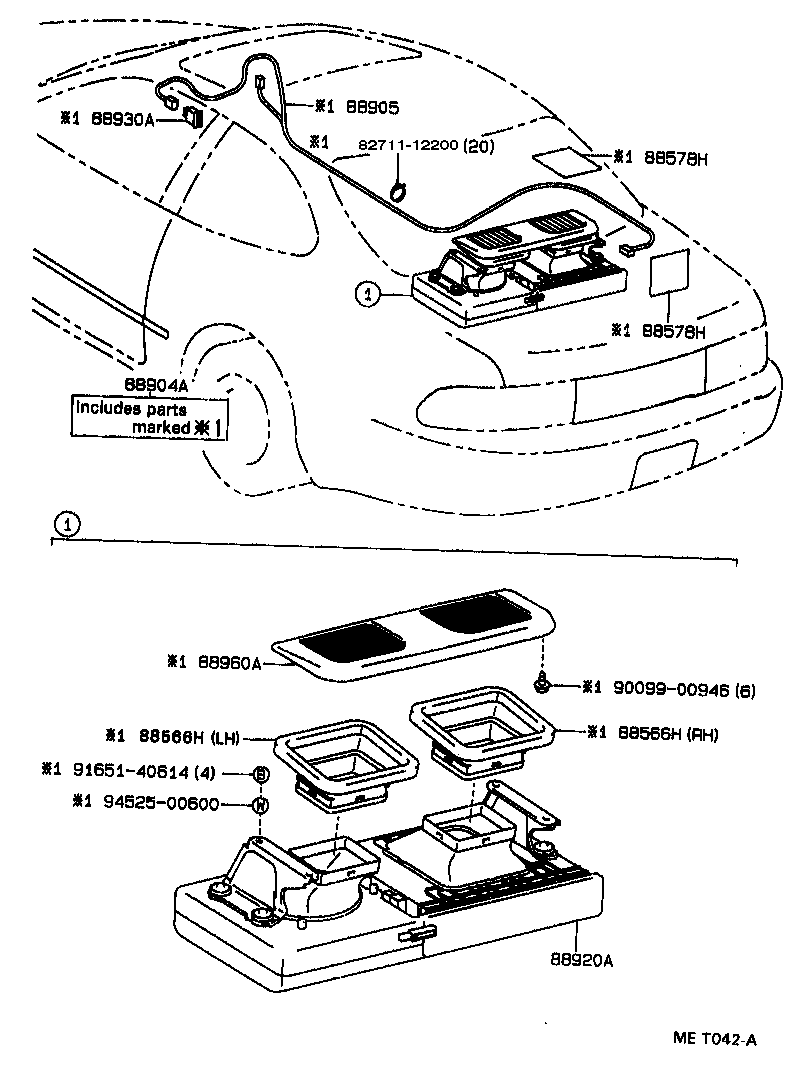

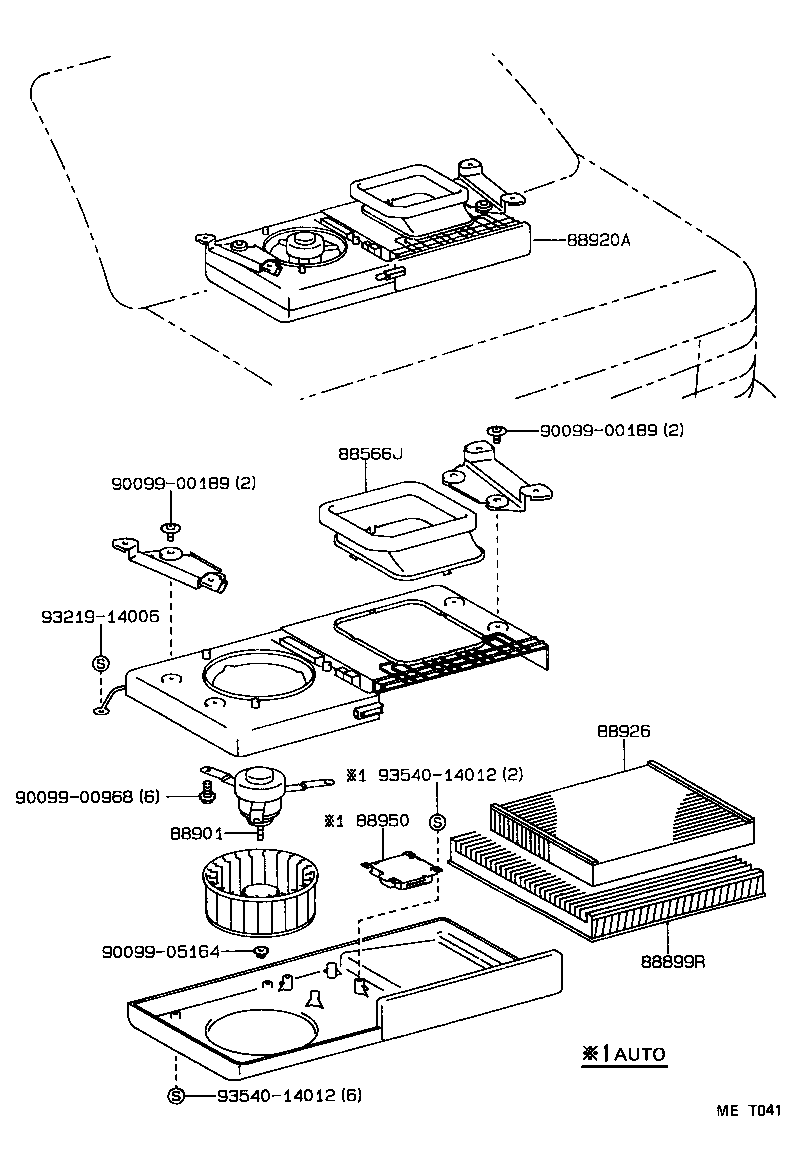

Air Purifier OR Ion Generator
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88566H | Duct, Air, NO.1 |
| 88566J | Duct, Air, NO.2 |
| 88578H | Packing, Air Purifier, NO.2 |
| 88899R | Frame, Air Purifier |
| 88901 | Motor Sub-assy, Air Purifier |
| 88904A | Accessory Sub-assy, Air Purifire |
| 88905 | Wire Sub-assy, Air Purifier, NO.1 |
| 88920A | Purifier Assy, Air |
| 88926 | Filter, Air Purifier |
| 88930A | Switch Assy, Air Purifier |
| 88950 | Amplifier Assy, Air Purifier |
| 88960A | Grille Assy, Air Purifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
