Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 9 illustrations

Illustrations

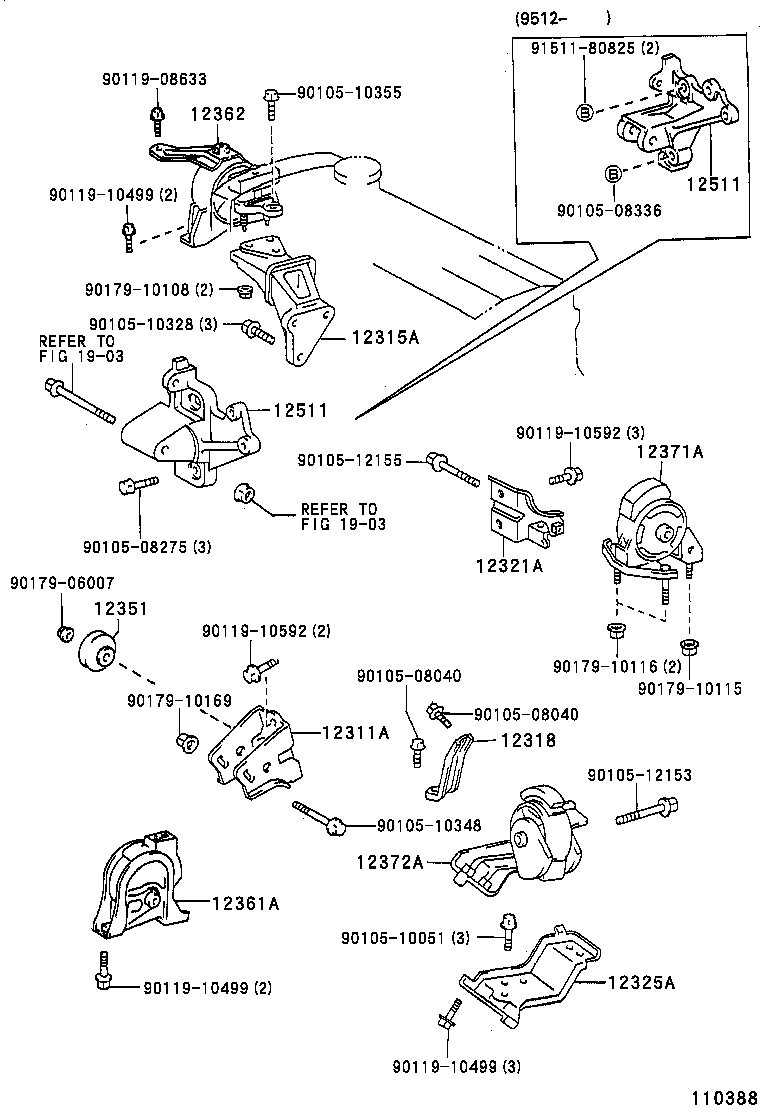

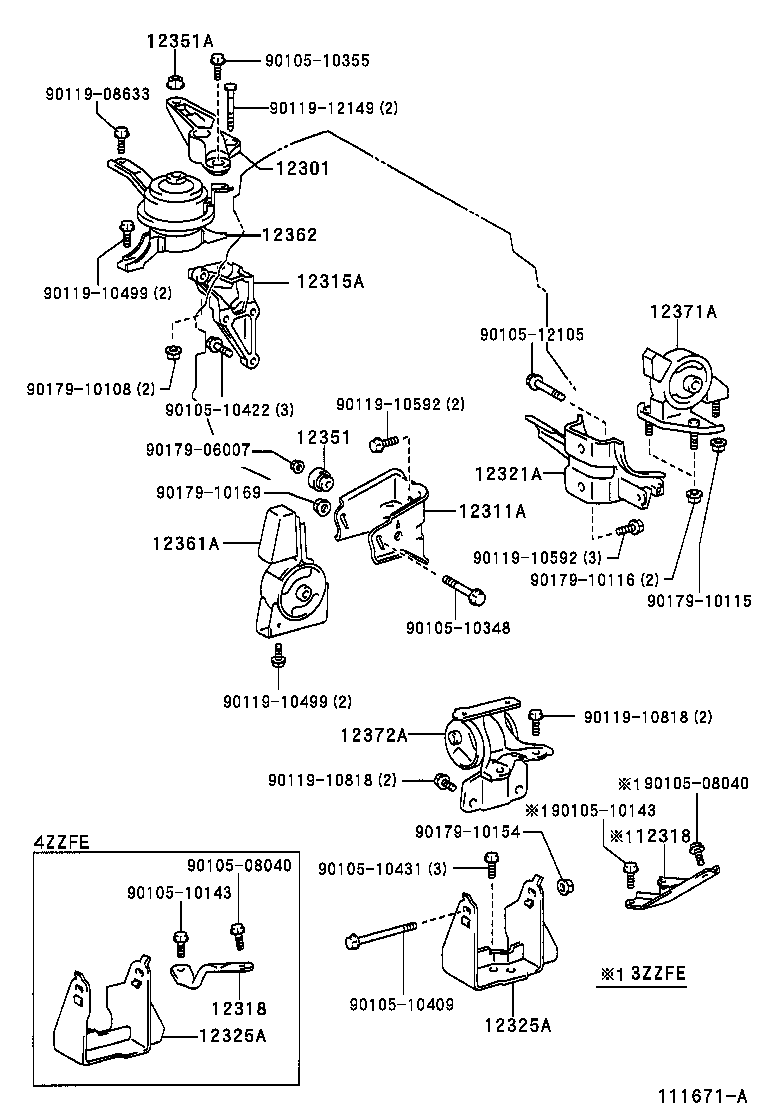

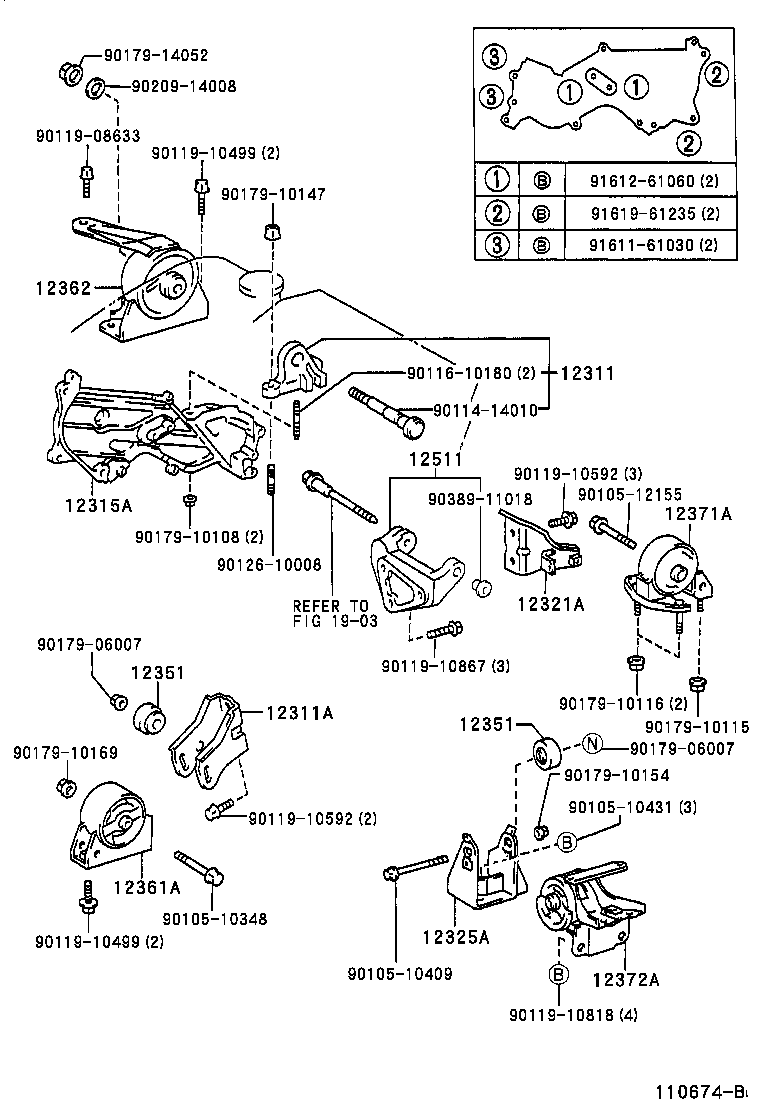

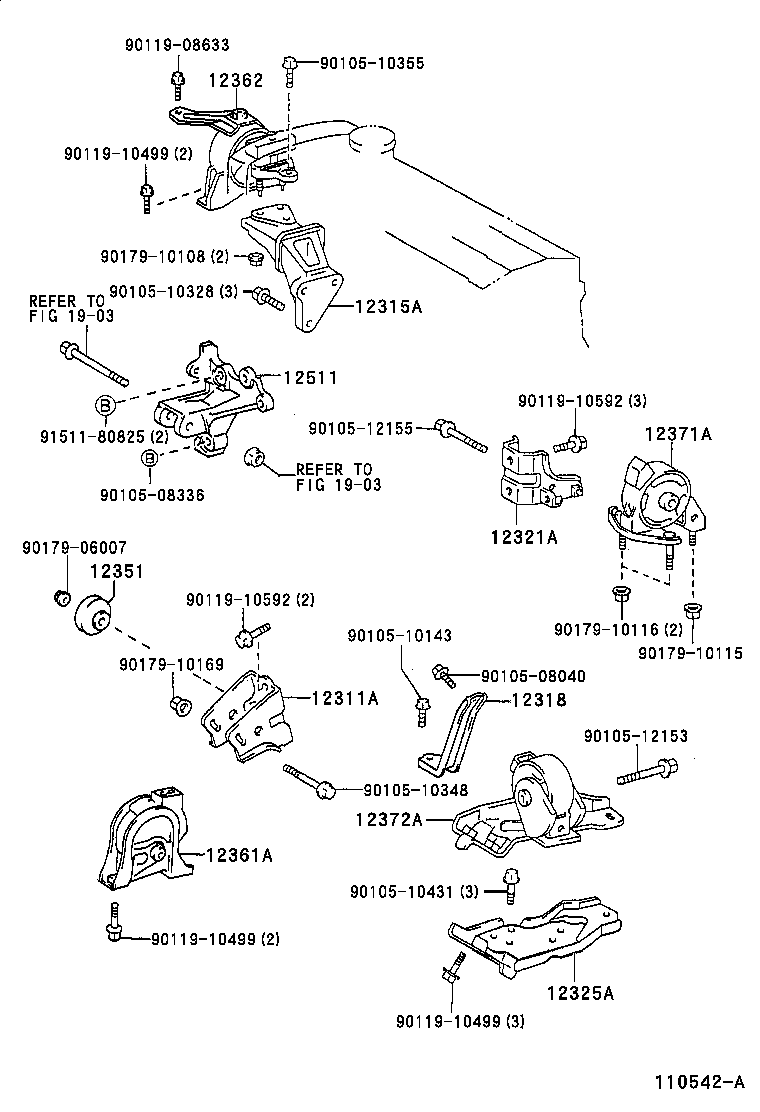

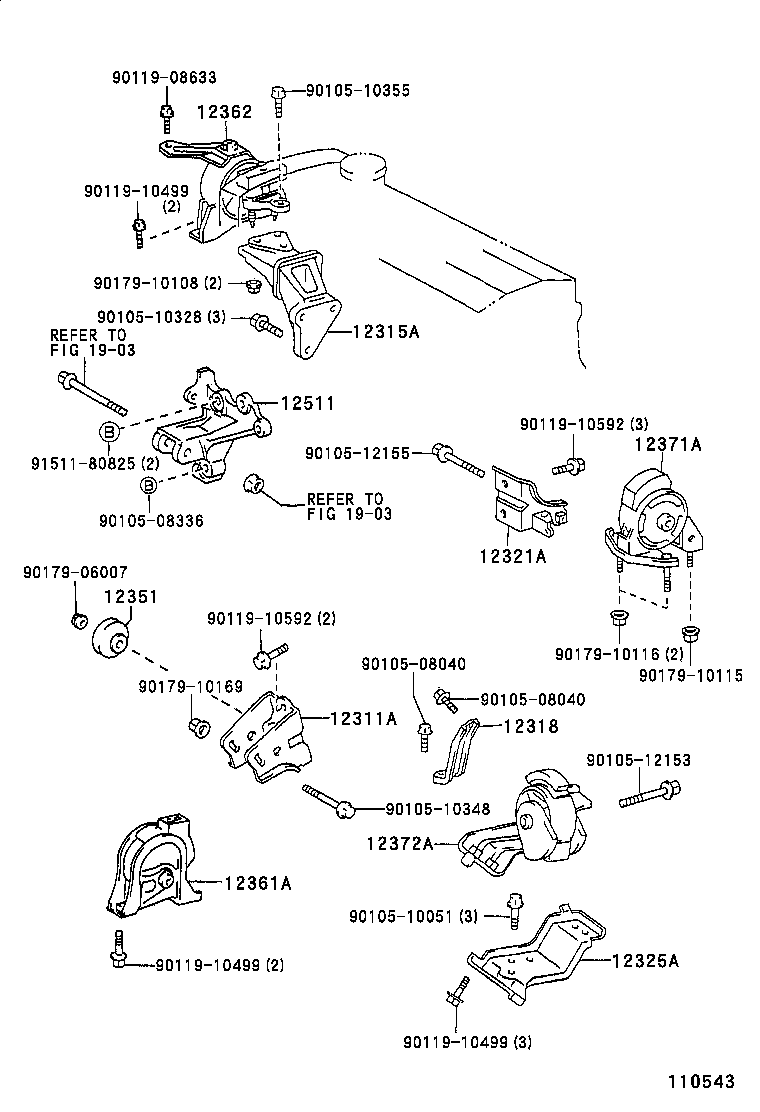

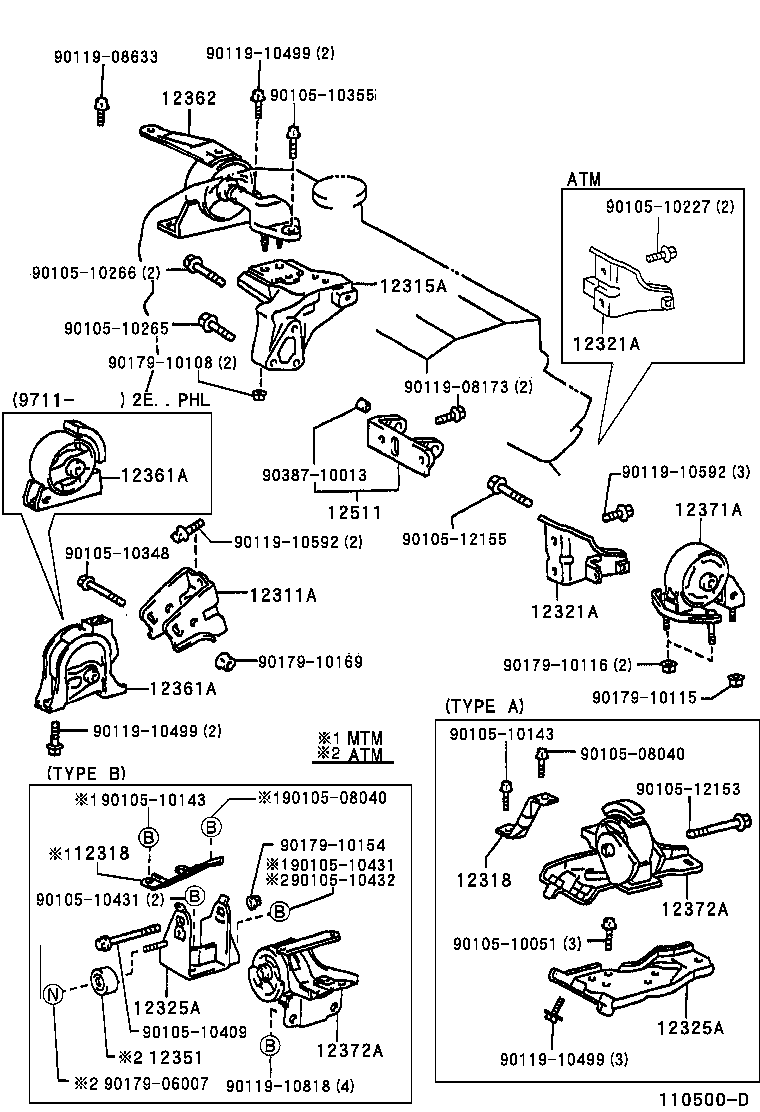

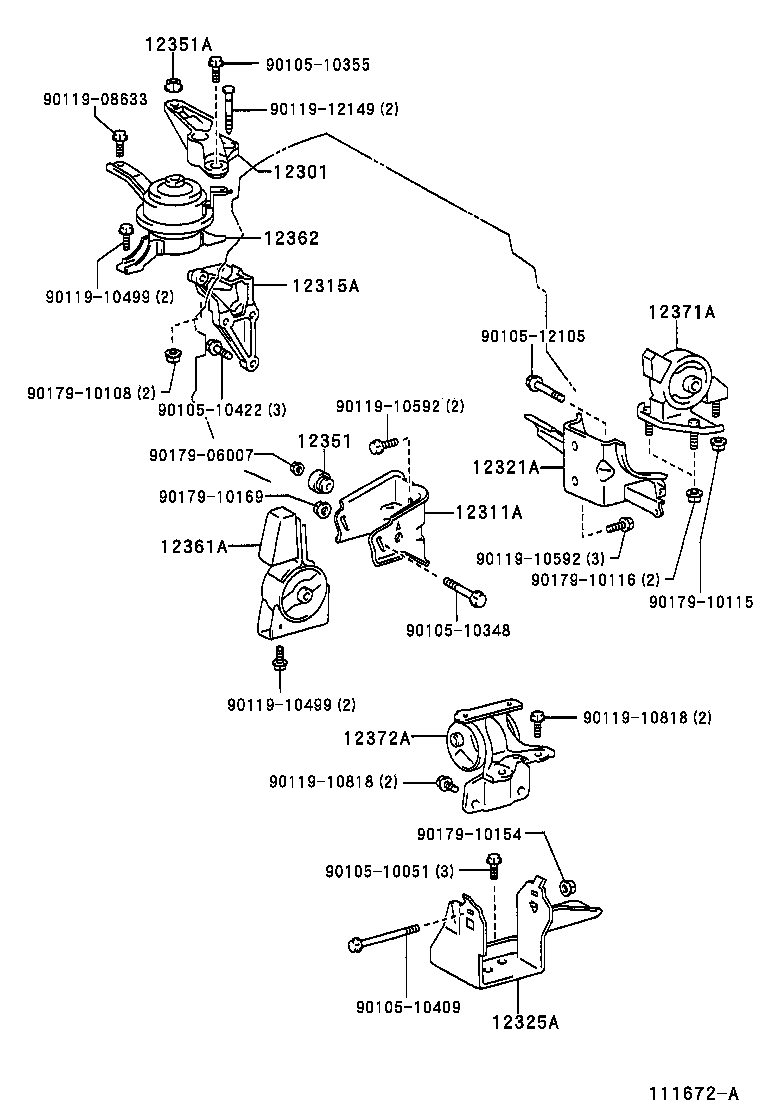

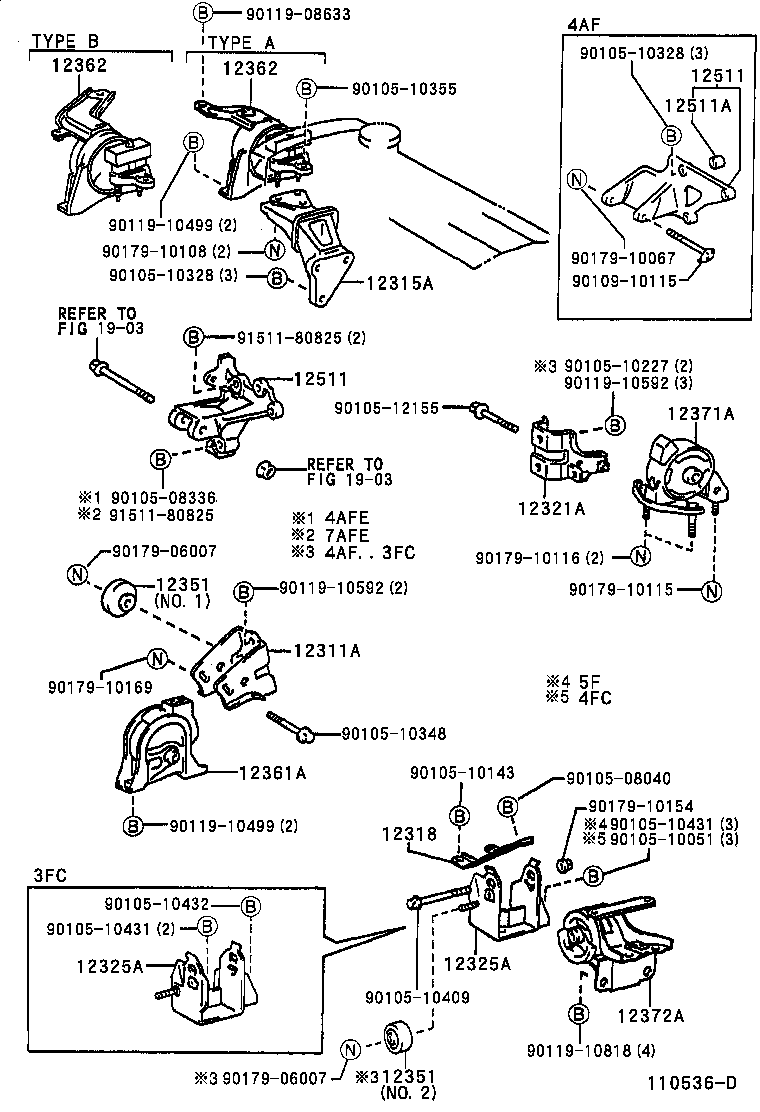

Figure 110387 110387 1995-05 → 1997-04 Figure 110388 110388 1995-05 → 1997-04 Figure 110542A 110542A 1997-04 → 1997-12 Figure 110543 110543 1997-04 → 1997-12 Figure 110536D 110536D 1997-04 → — Figure 110674B 110674B 1997-04 → — Figure 110500D 110500D 1995-05 → — Figure 111672A 111672A 2000-05 → — Figure 111671A 111671A 2000-05 → —

Part groups

PNCDescription
12301 Bracket Sub-assy, Engine Mounting, Front RH
12311 Bracket, Engine Mounting, Front NO.1 RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
