Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

20 part groups · 20 illustrations

Illustrations

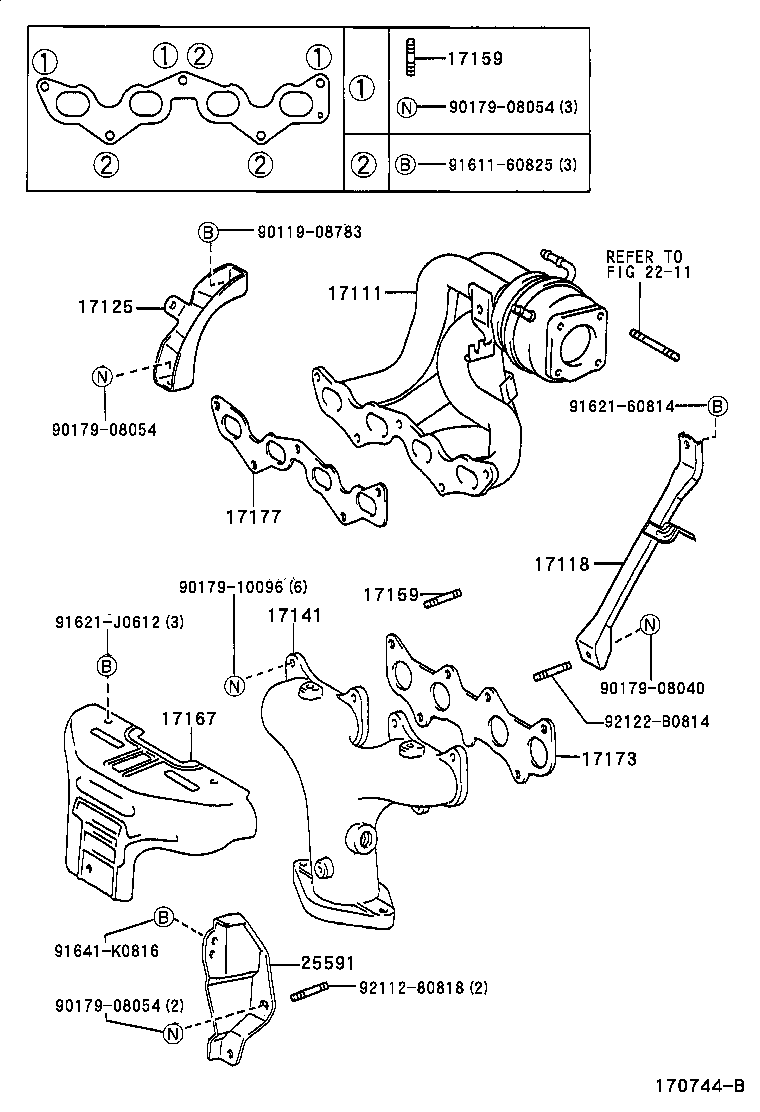

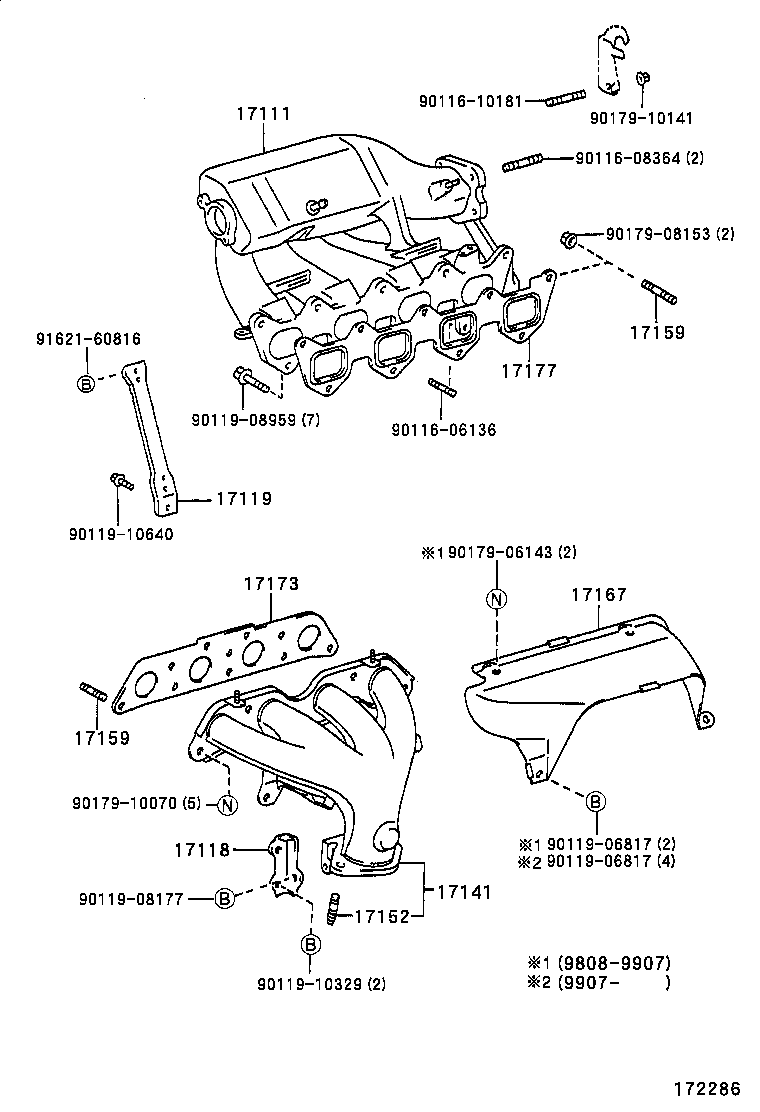

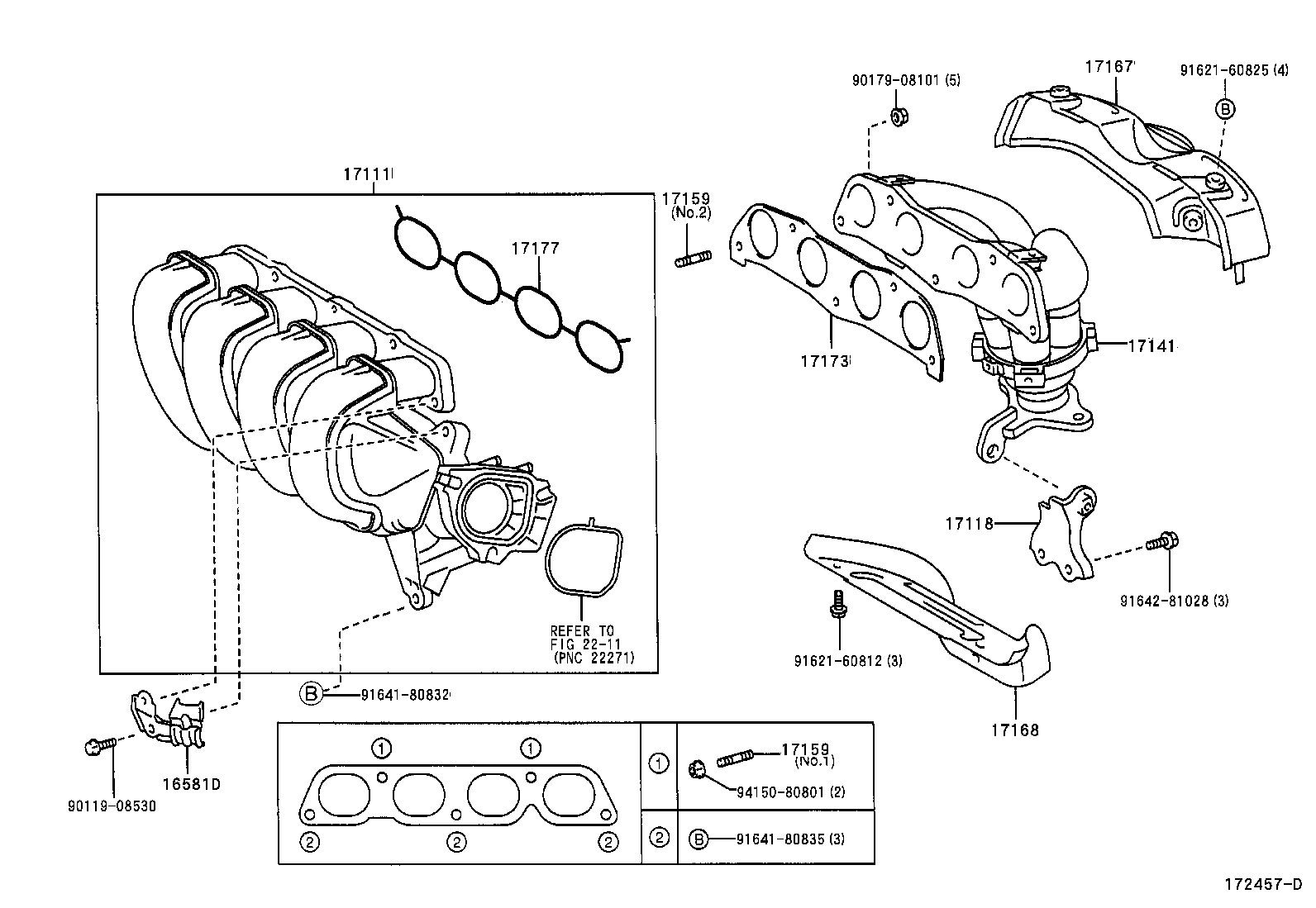

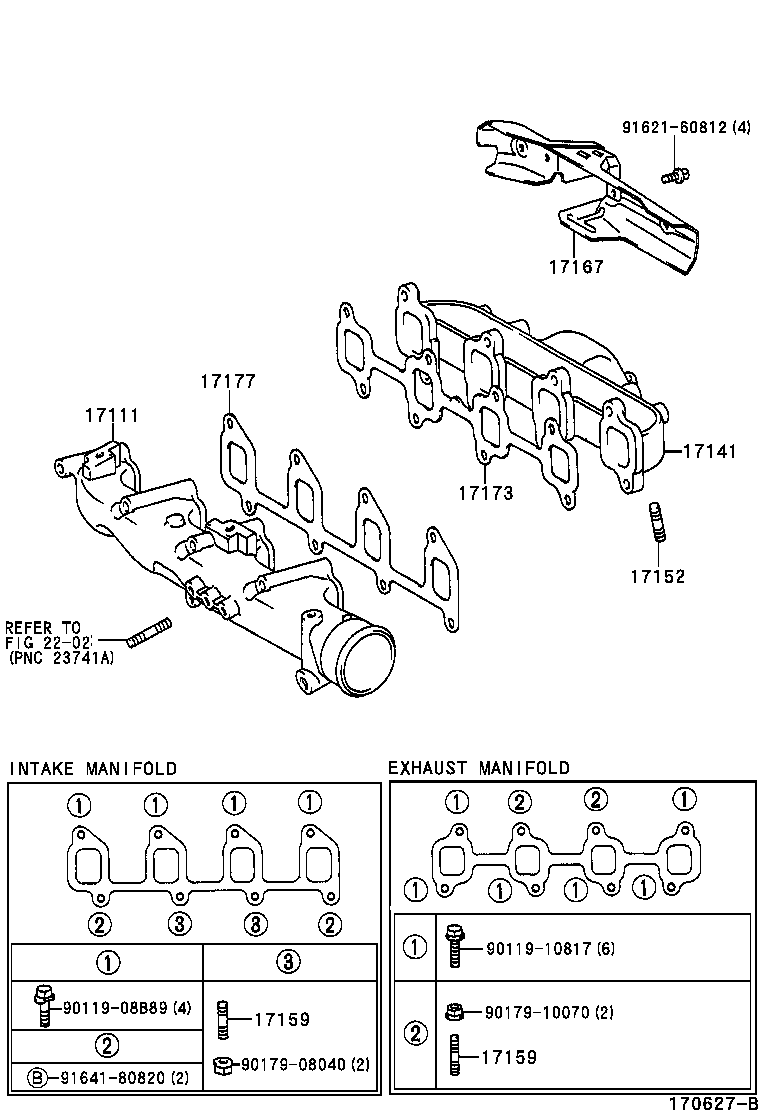

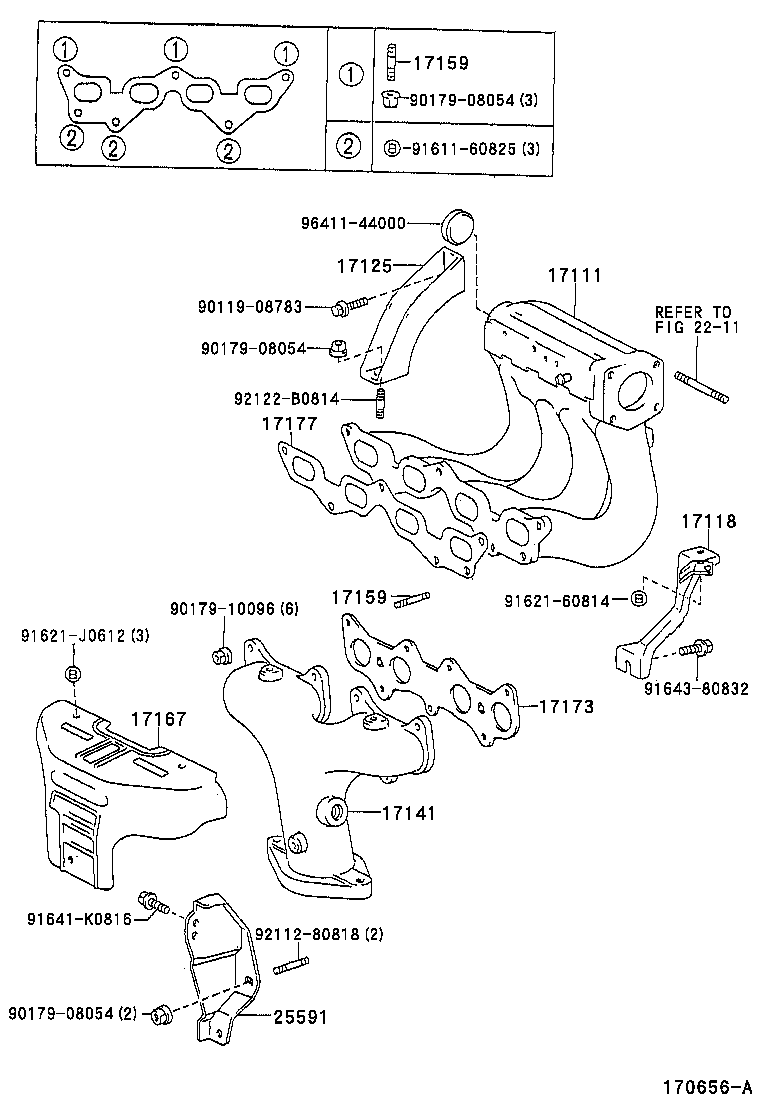

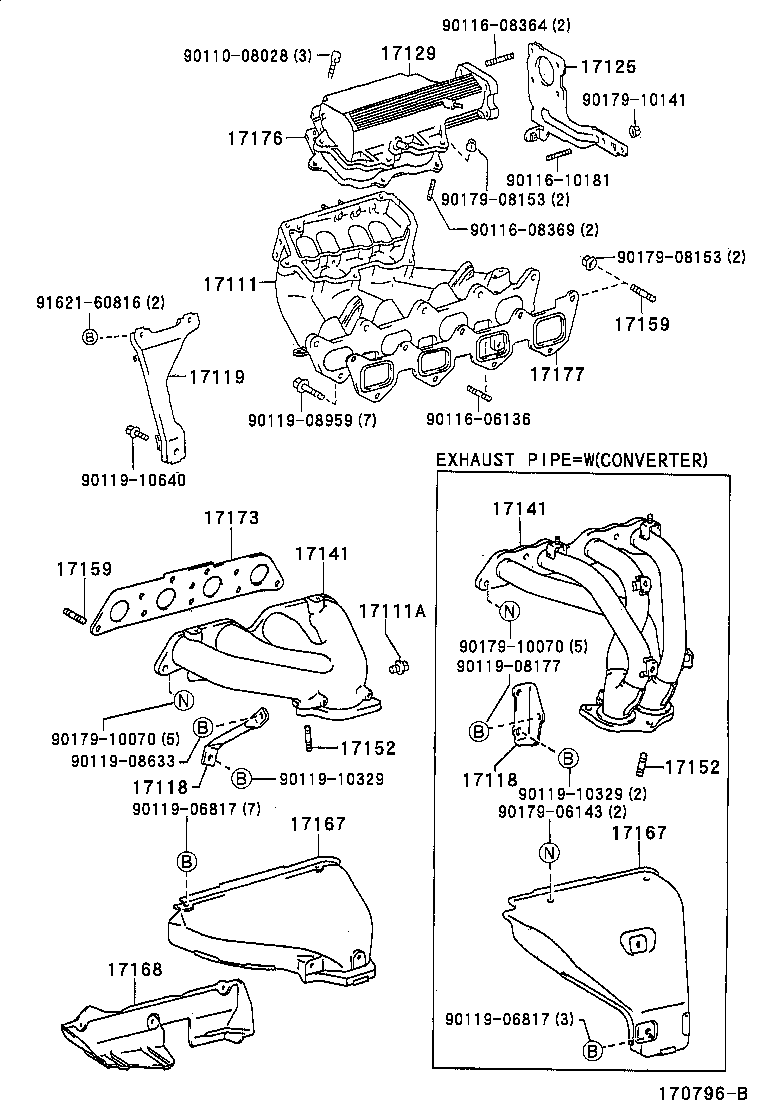

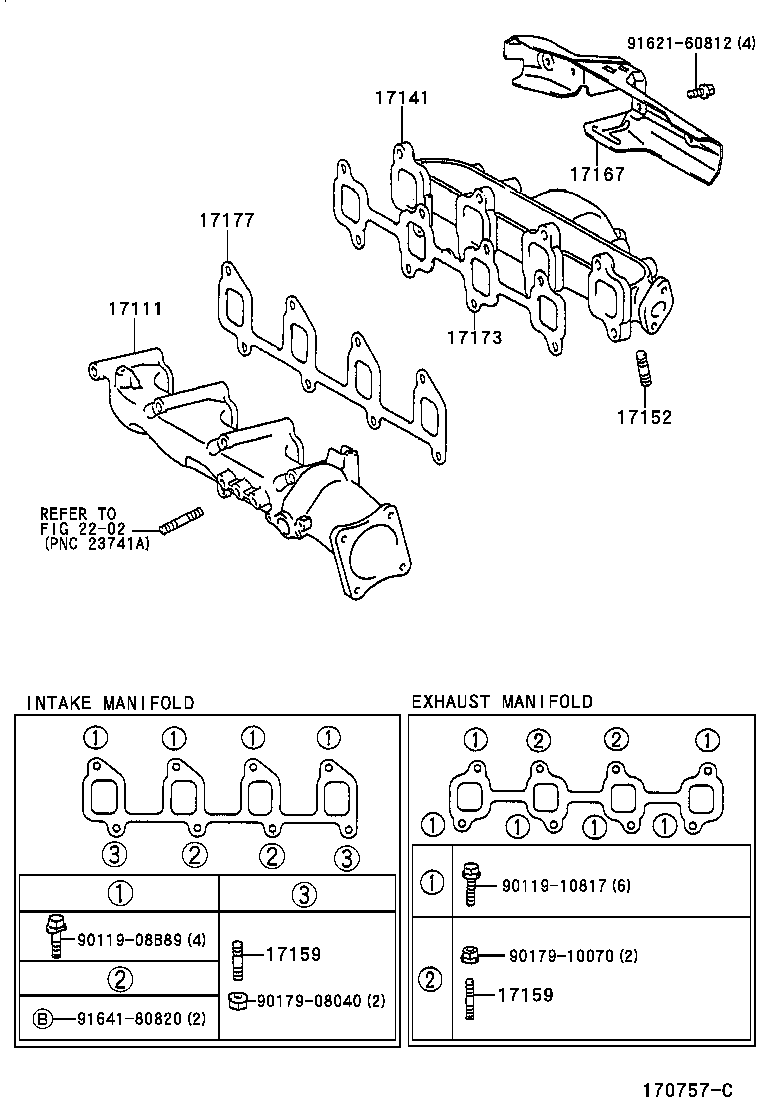

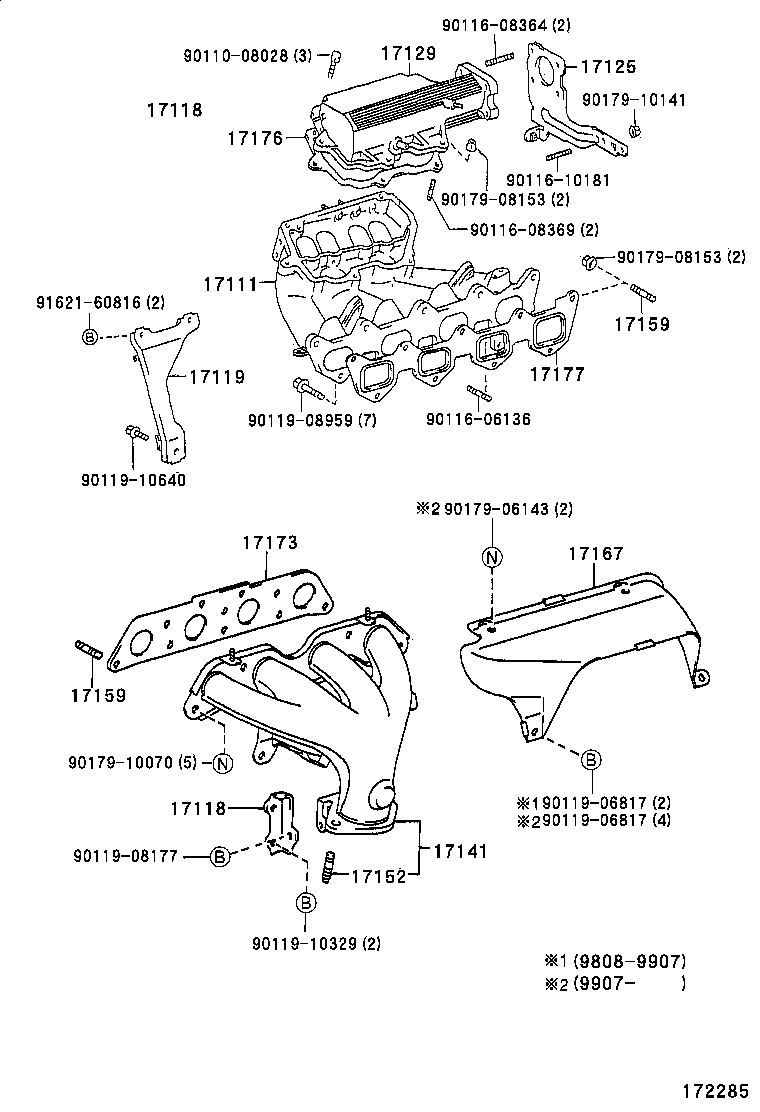

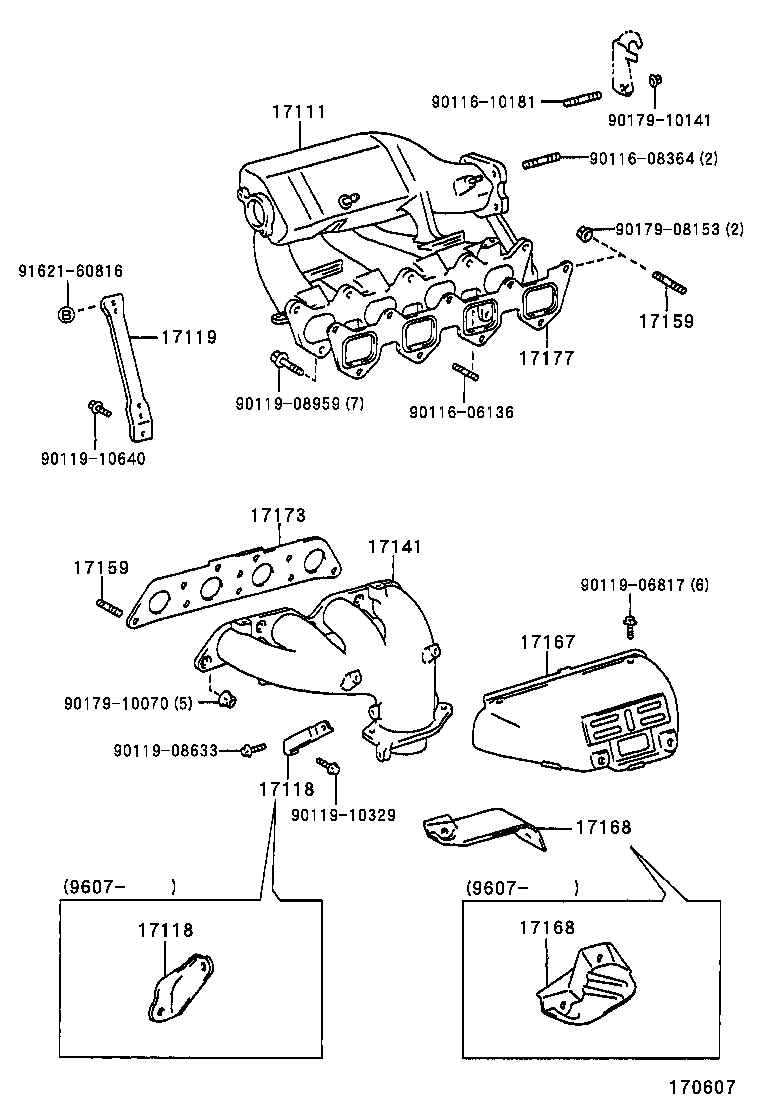

Figure 170447 170447 1997-04 → — Figure 172319 172319 1995-05 → 1997-04 Figure 172319 172319 1997-04 → 1998-08 Figure 172319 172319 1998-08 → — Figure 172285 172285 1998-08 → — Figure 170796B 170796B 1997-04 → 1997-12 Figure 170778B 170778B 1997-04 → 1998-08 Figure 170778B 170778B 1998-08 → — Figure 170607 170607 1995-05 → 1997-01 Figure 170607 170607 1997-01 → — Figure 170608A 170608A 1997-01 → — Figure 170608A 170608A 1998-08 → — Figure 172286 172286 1998-08 → — Figure 170627B 170627B 1997-04 → — Figure 170757C 170757C 1997-10 → — Figure 170655 170655 1995-05 → — Figure 170768 170768 1995-05 → 1997-04 Figure 170744B 170744B 1997-04 → — Figure 170656A 170656A 1997-04 → — Figure 172457D 172457D 2000-05 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16581D Clamp, Hose(FOR WATER HOSE)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
