Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 14 illustrations

Illustrations

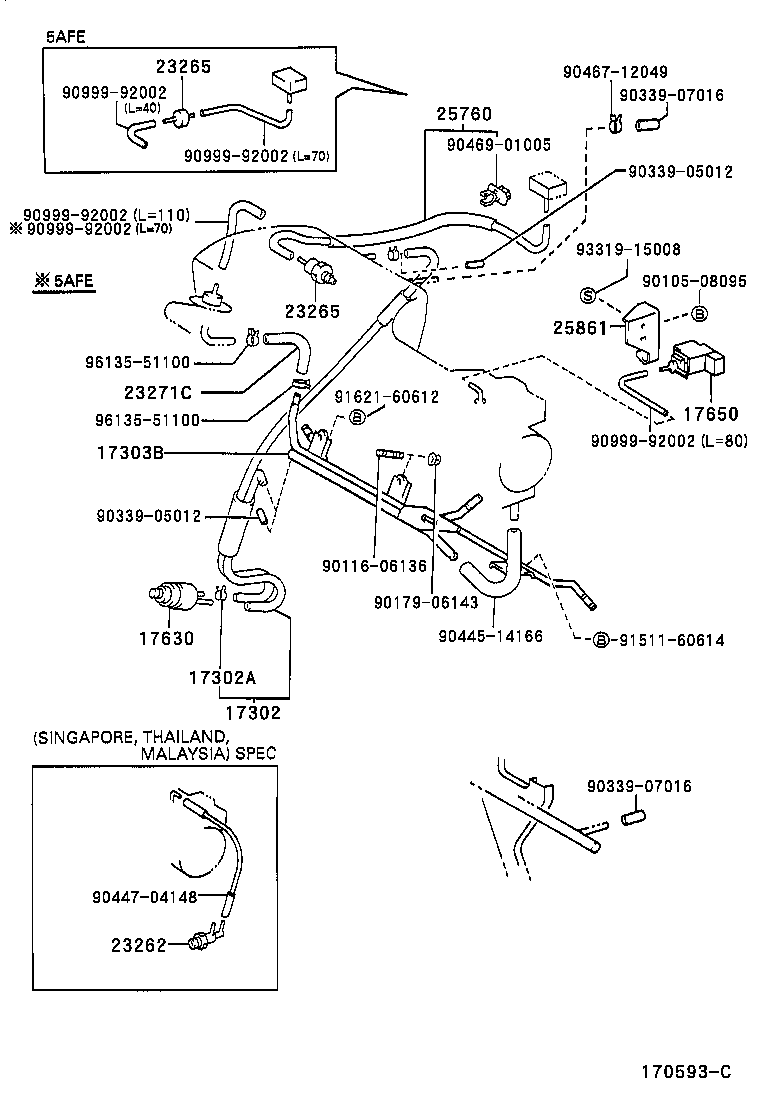

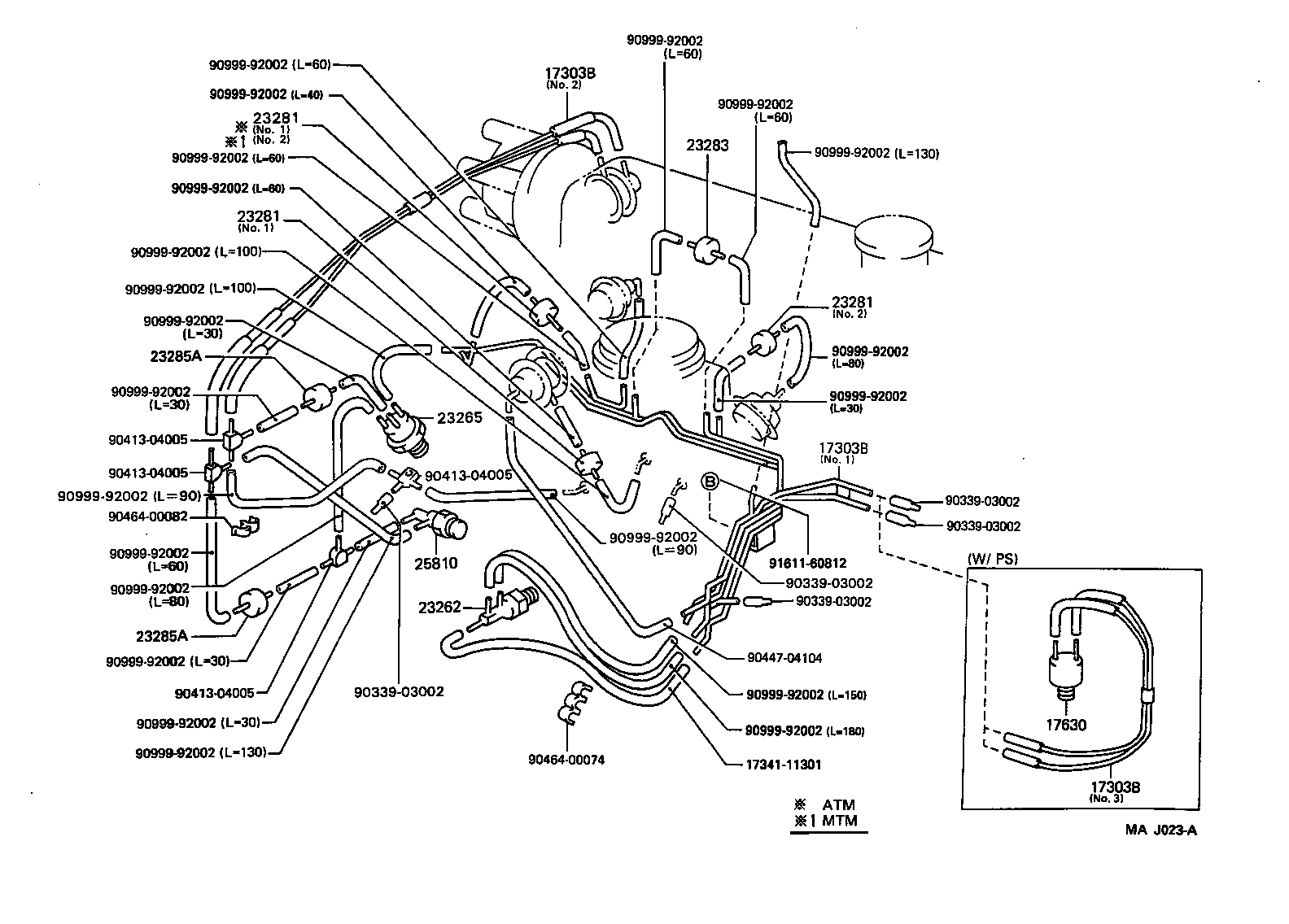

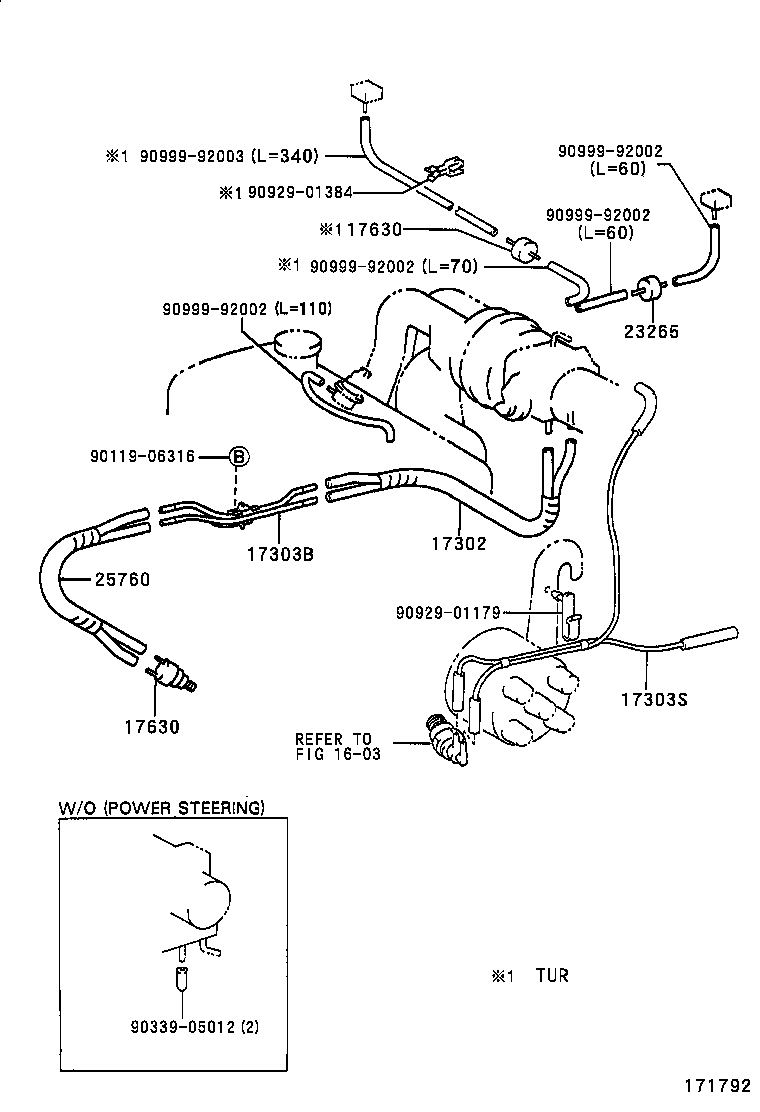

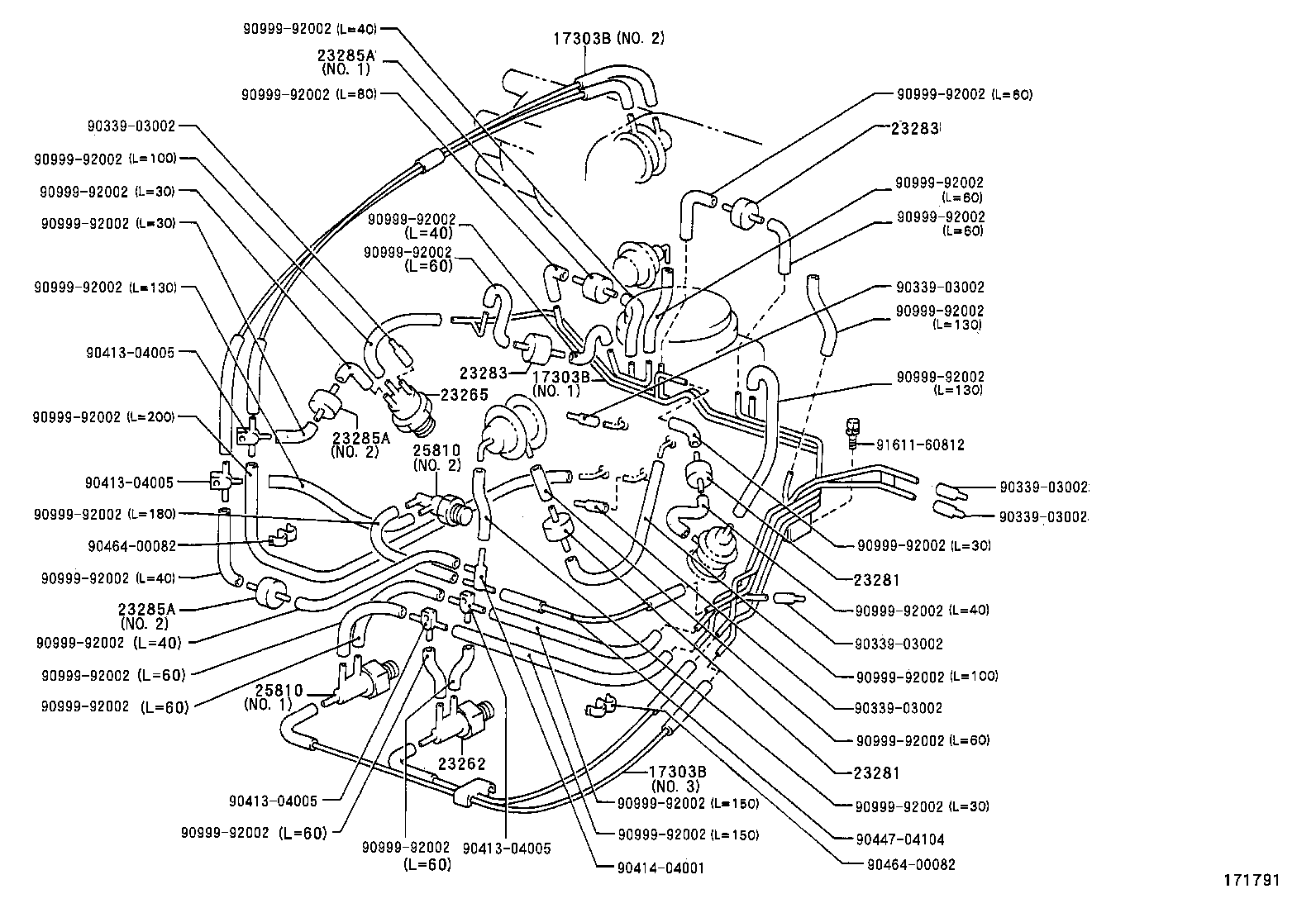

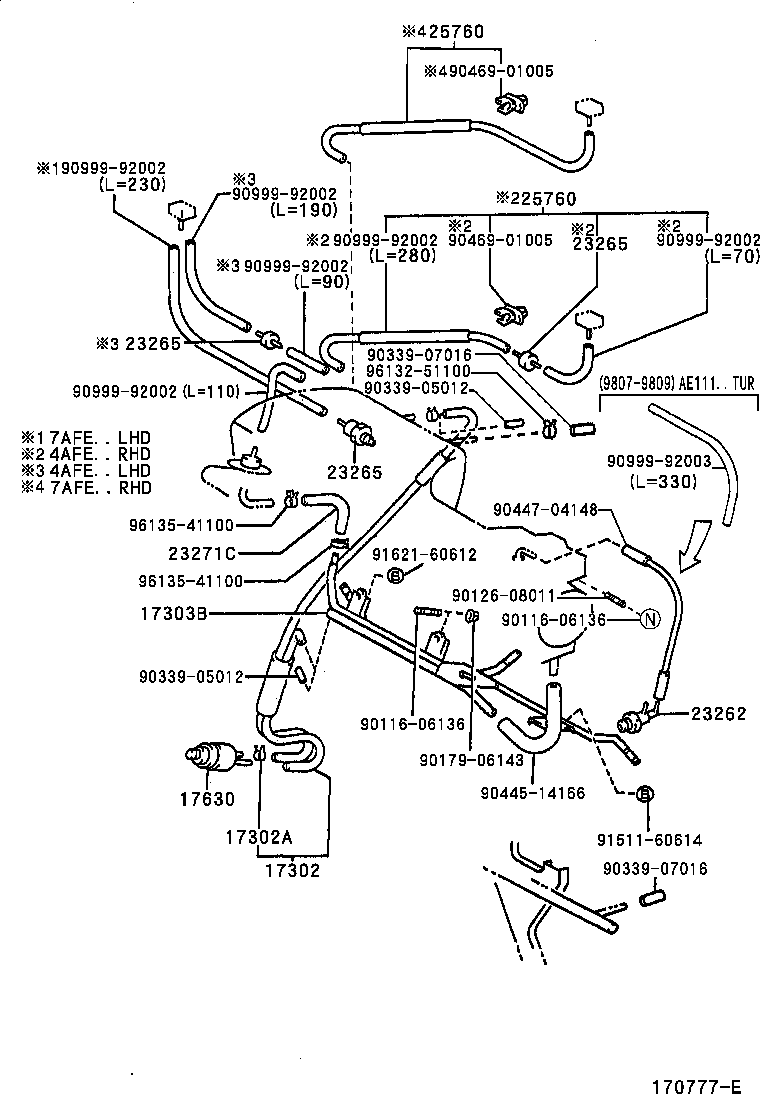

Figure 170021 170021 1995-05 → — Figure 170021 170021 1995-05 → — Figure MAF771 MAF771 1997-04 → — Figure 170593C 170593C 1995-05 → 1997-04 Figure 170593C 170593C 1997-04 → — Figure 170789A 170789A 1997-04 → 1997-12 Figure 170777E 170777E 1997-04 → — Figure 170759A 170759A 1997-10 → — Figure MAJ023A MAJ023A 1995-05 → — Figure 171791 171791 1998-07 → — Figure MAJ024A MAJ024A 1995-05 → 1997-04 Figure 171792 171792 1997-04 → — Figure 170747 170747 1997-04 → — Figure 172321A 172321A 2000-05 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17303S Pipe Sub-assy, Air, NO.3
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23271C Hose, Fuel
23281 Valve, Vacuum Transmitting, NO.1
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23829 Hose, Fuel Vapor Feed, NO.3
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
