Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

22 part groups · 13 illustrations

Illustrations

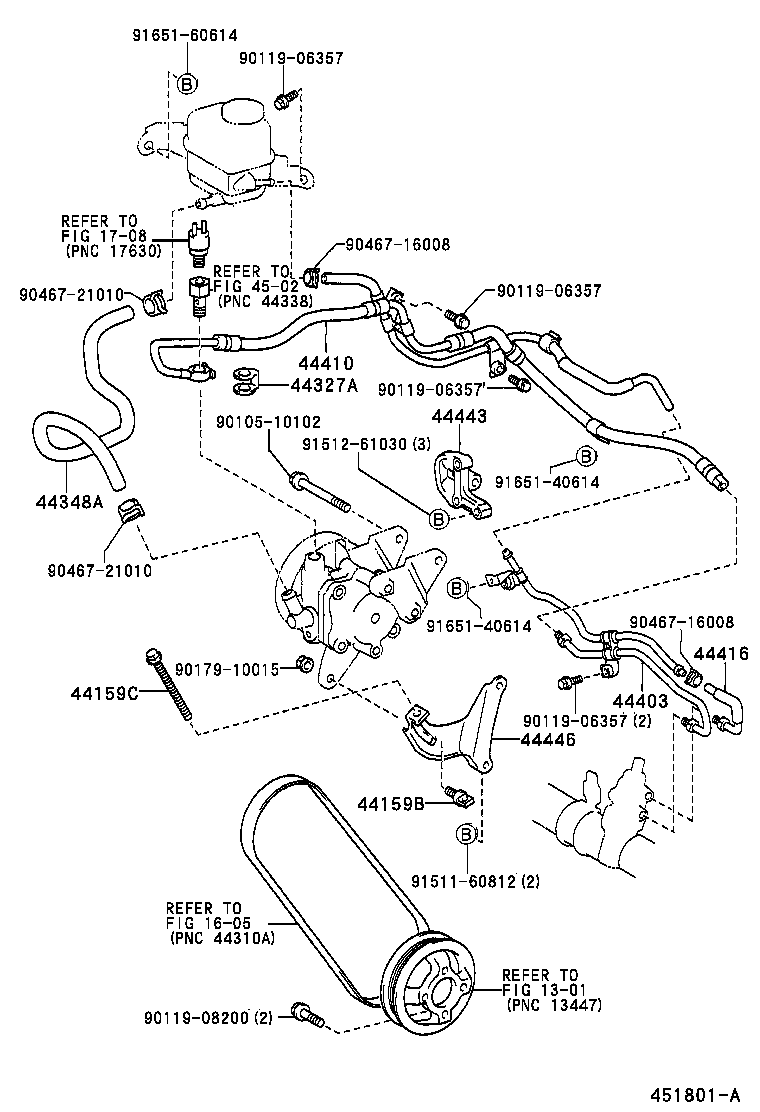

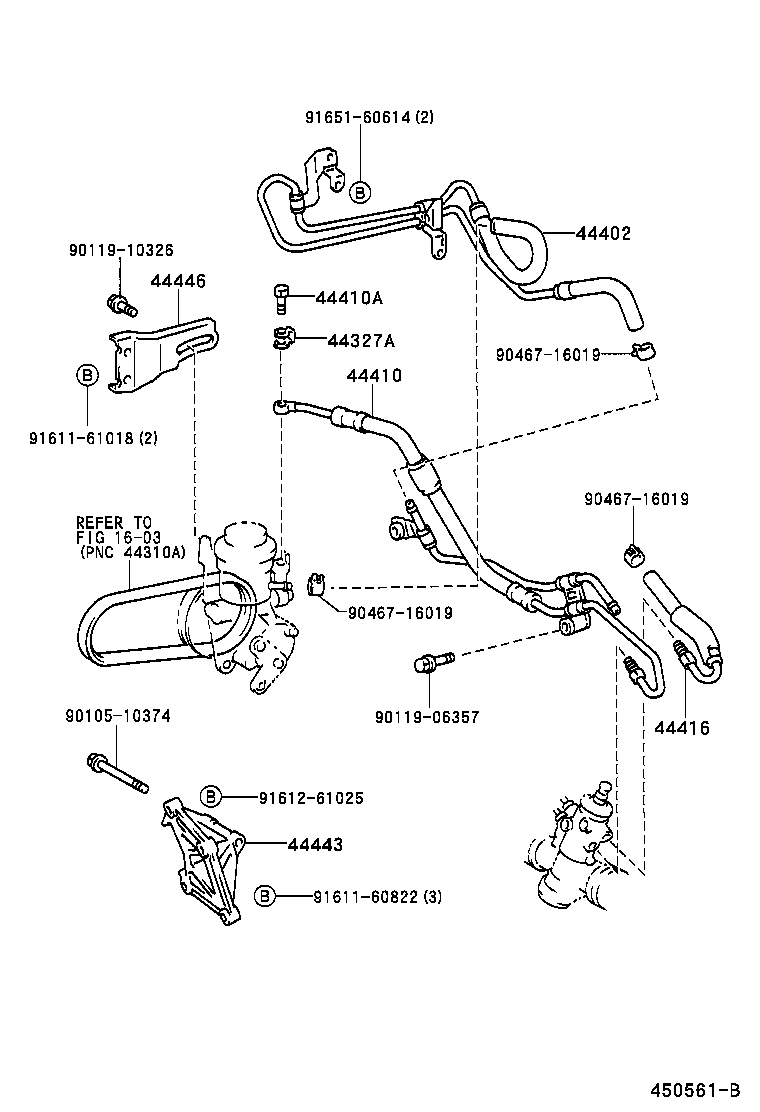

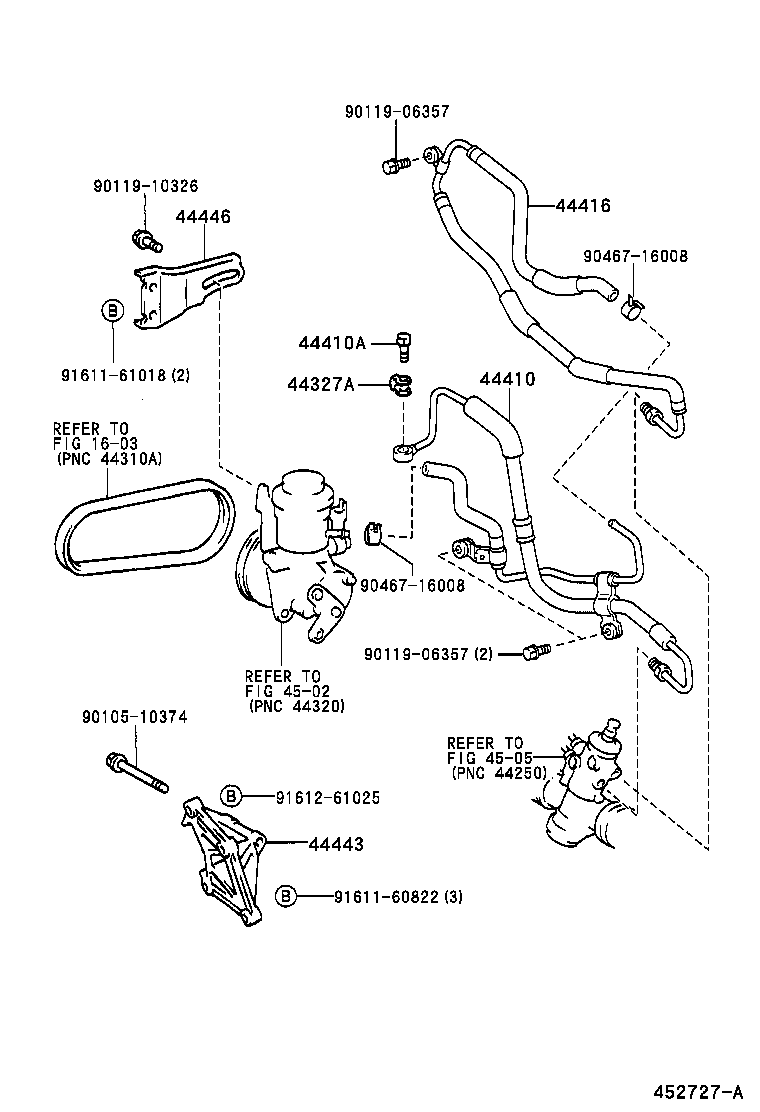

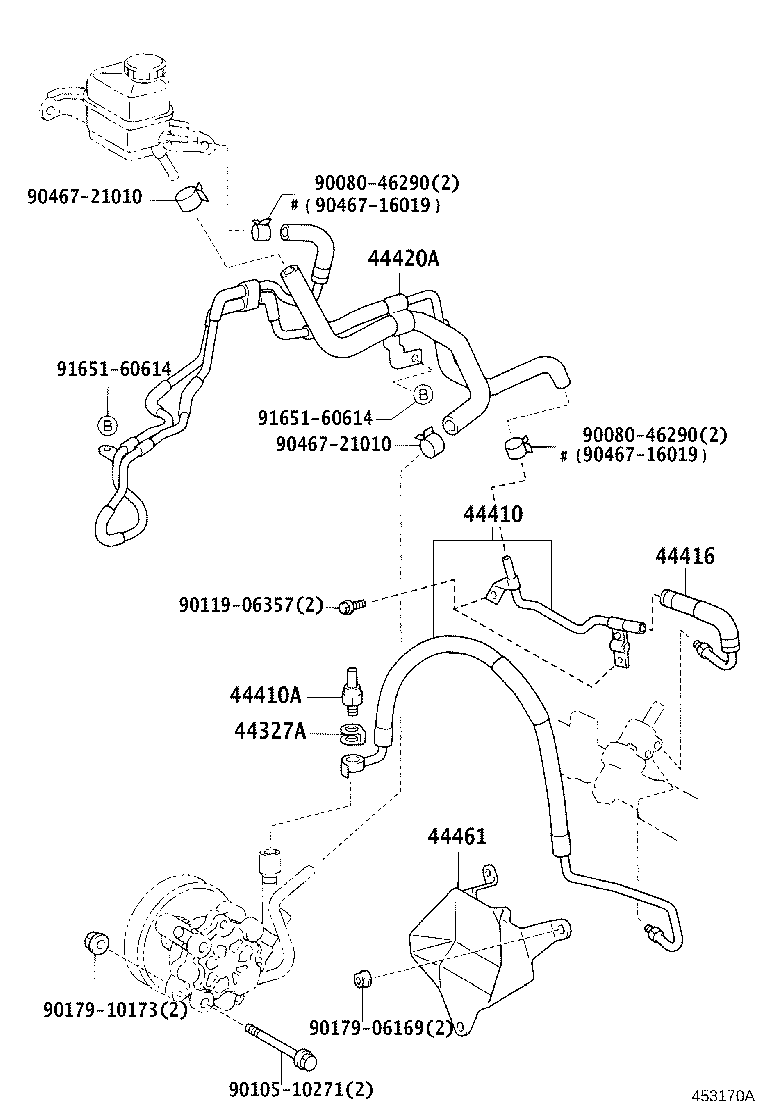

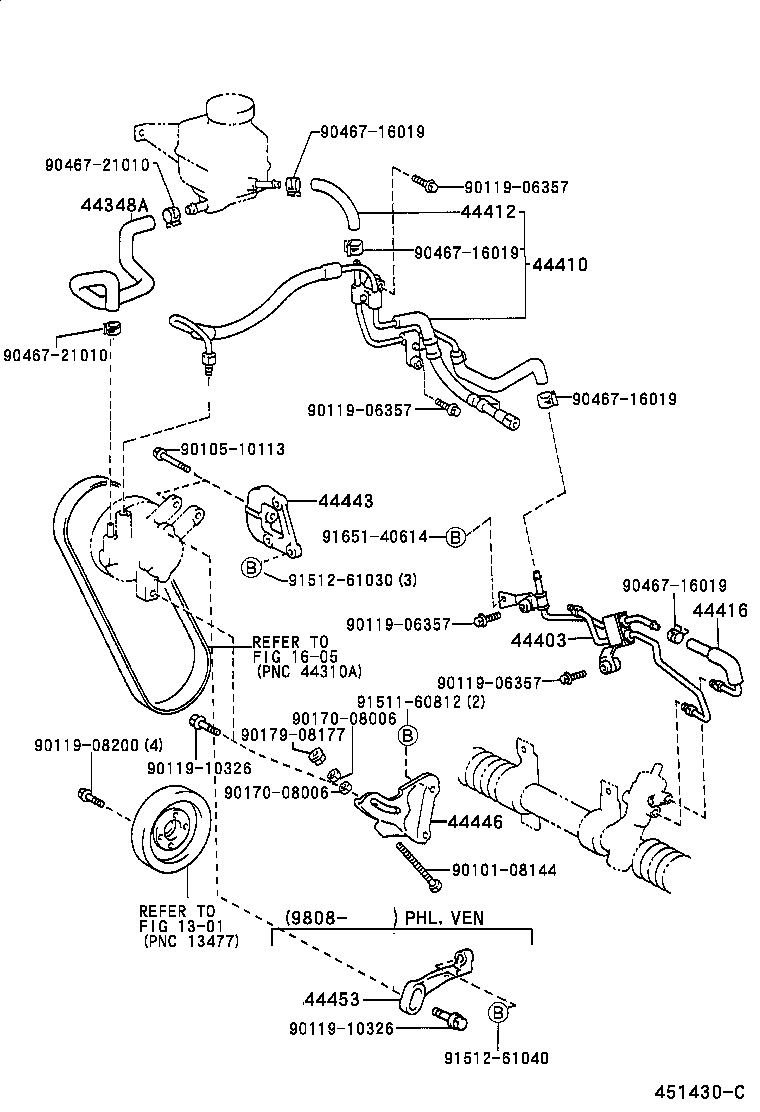

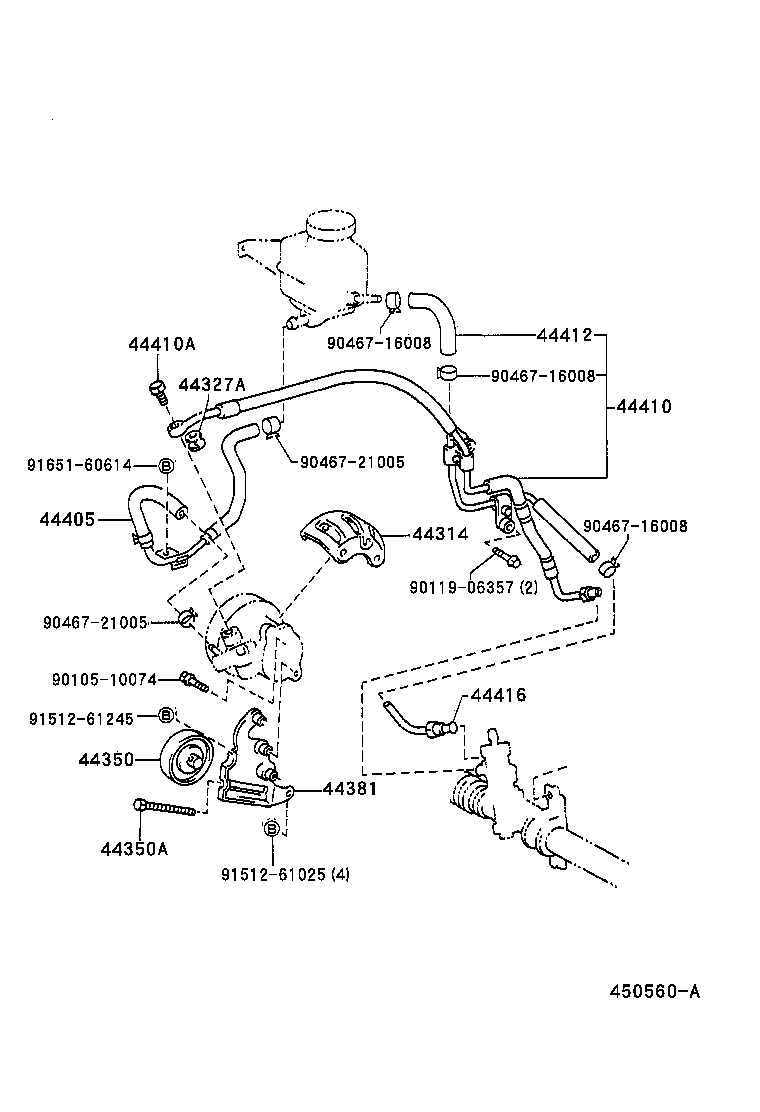

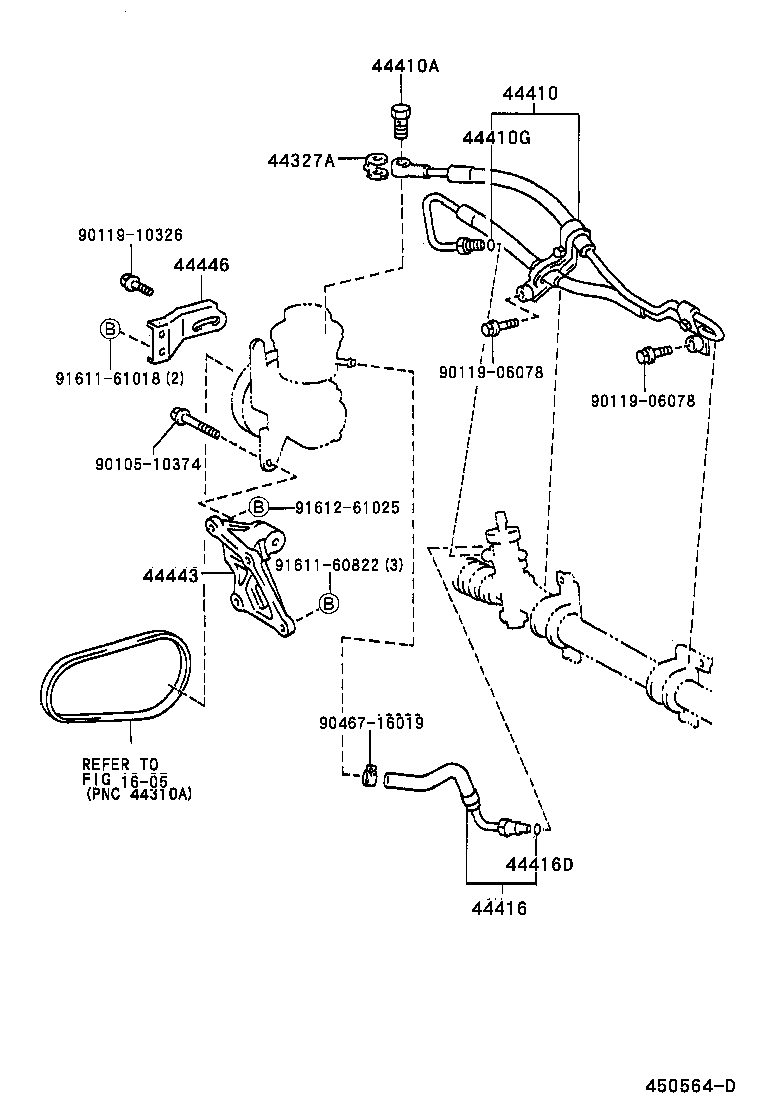

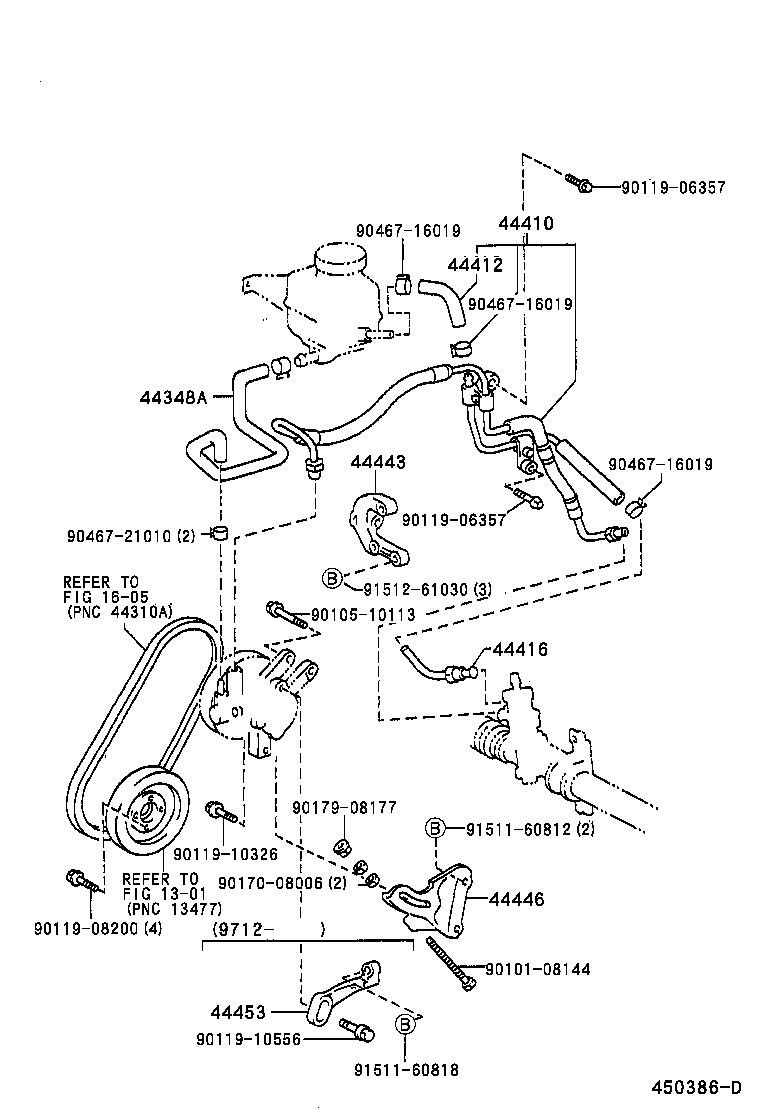

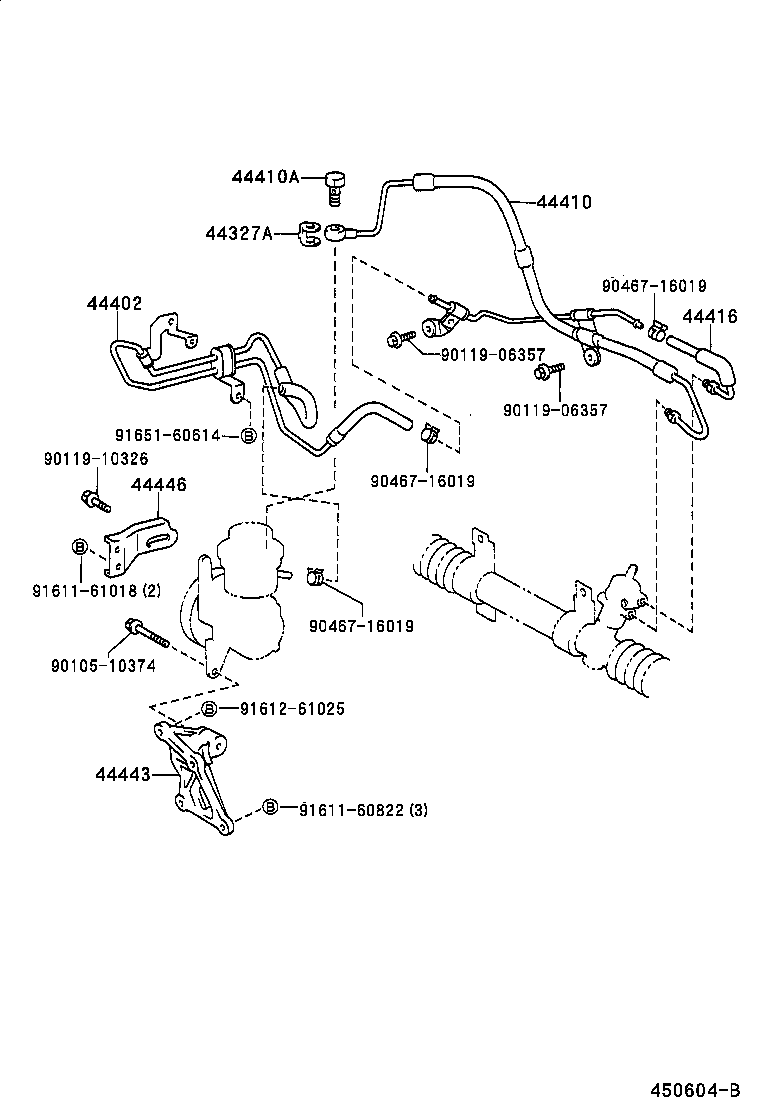

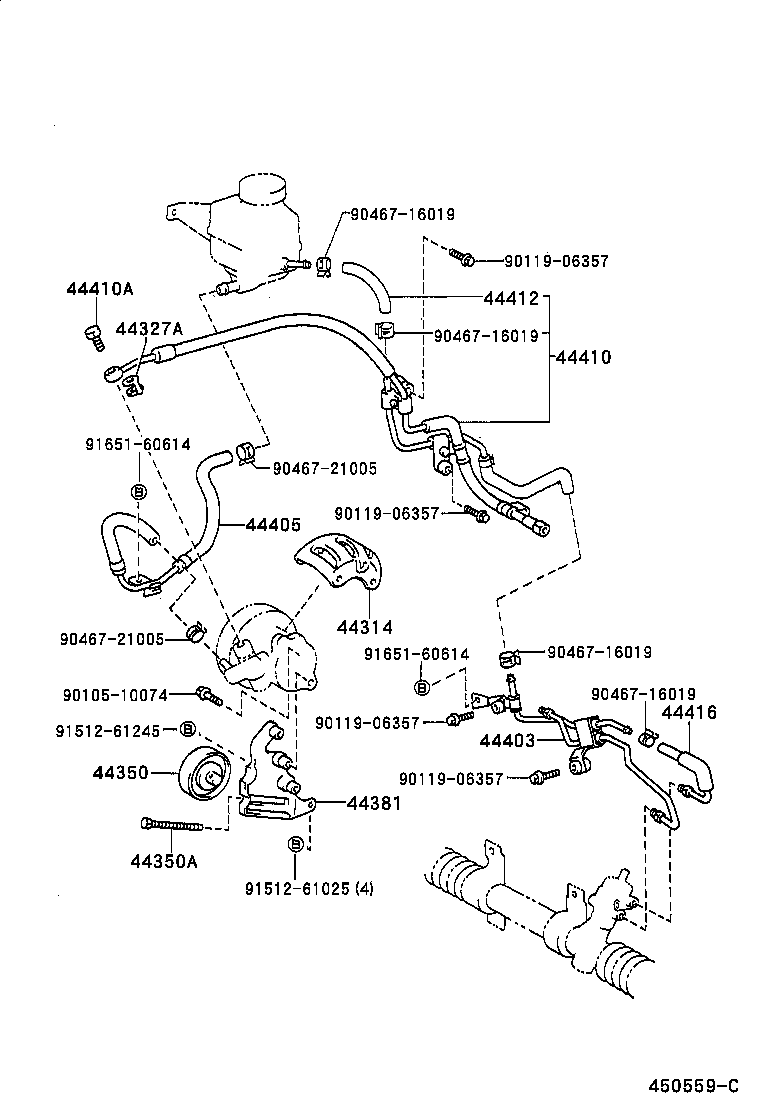

Figure 450558D 450558D 1995-05 → — Figure 450564D 450564D 1995-05 → — Figure 450561B 450561B 1997-04 → 2001-03 Figure 450561B 450561B 1997-04 → — Figure 452727A 452727A 2001-03 → — Figure 450604B 450604B 1998-07 → — Figure 450560A 450560A 1997-04 → — Figure 450559C 450559C 1997-04 → — Figure 450386D 450386D 1995-05 → — Figure 451430C 451430C 1997-04 → — Figure 451430C 451430C 1998-07 → 1999-07 Figure 451801A 451801A 1999-07 → — Figure 453170A 453170A 2000-05 → —

Part groups

PNCDescription
44159B Bolt, Adjust, NO.1(FOR PUMP BRACKET ASSY)
44159C Bolt, Adjust, NO.2(FOR PUMP BRACKET ASSY)
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44403 Tube Sub-assy, Pressure Feed, NO.1
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416D Ring, O(FOR RETURN TUBE)
44420A Tube Assy, Return
44443 Bracket, Pump
44446 Strut, Adjusting
44453 Stay, Pump, Front
44461 Insulator, Tube Refrigerant
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
