Toyota Corolla Sed/WG
1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General
Discontinued model
Data version 2005-07

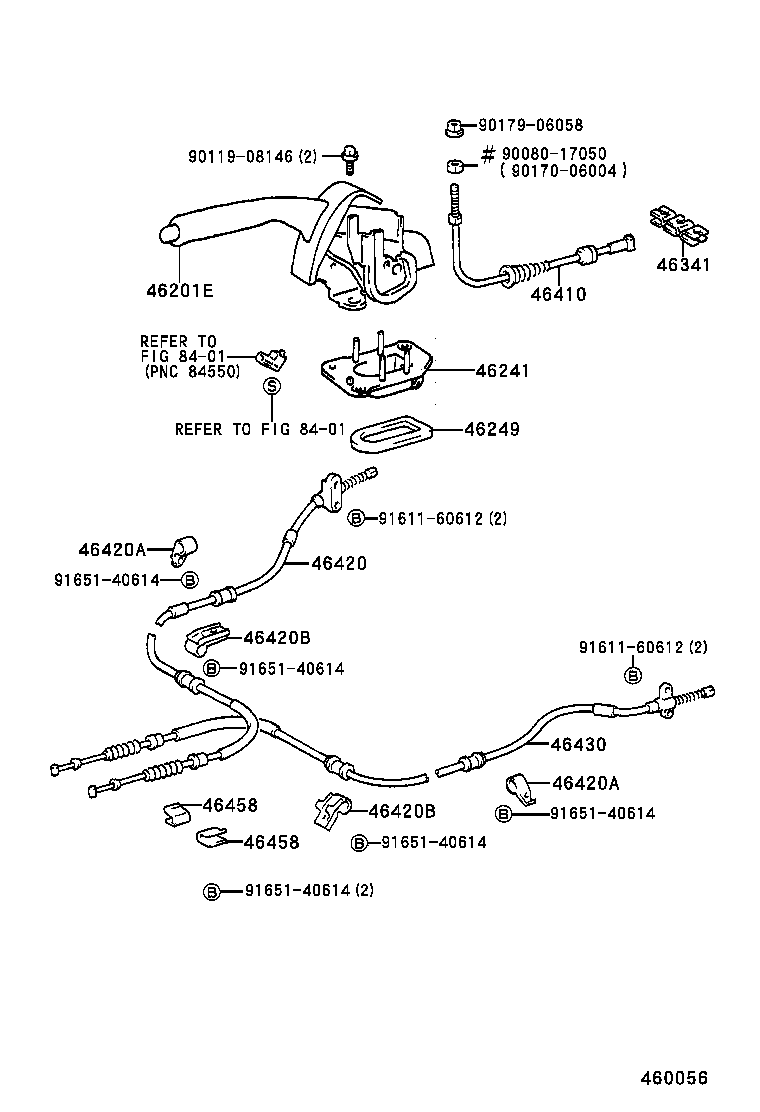

Parking Brake & Cable
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46201E | Lever Sub-assy, Parking Brake |
| 46241 | Boot, Parking Brake Lever |
| 46249 | Shield, Parking Brake Hole |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420A | Clamp, NO.1(FOR PARKING BRAKE CABLE) |
| 46420B | Clamp, NO.2(FOR PARKING BRAKE CABLE) |
| 46420C | Pin, W/Hole(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46458 | Retainer, Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
