Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

14 part groups · 8 illustrations

Illustrations

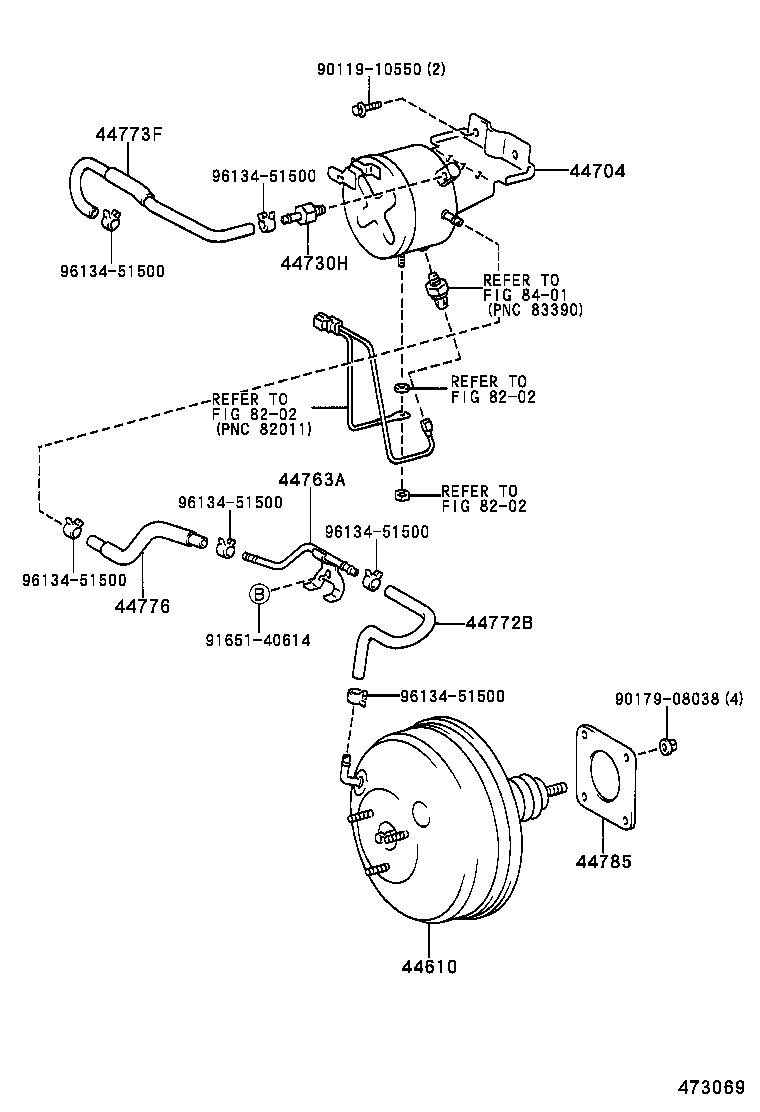

Figure 473065 473065 1995-05 → 1997-04 Figure 473065 473065 1997-04 → — Figure 473066 473066 1995-05 → — Figure 470430A 470430A 1997-04 → — Figure 473067 473067 1997-04 → — Figure 473068 473068 1997-04 → — Figure 473069 473069 1997-04 → — Figure 473070 473070 2000-05 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
