Toyota Corolla Sed/WG
1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General
Discontinued model
Data version 2005-07

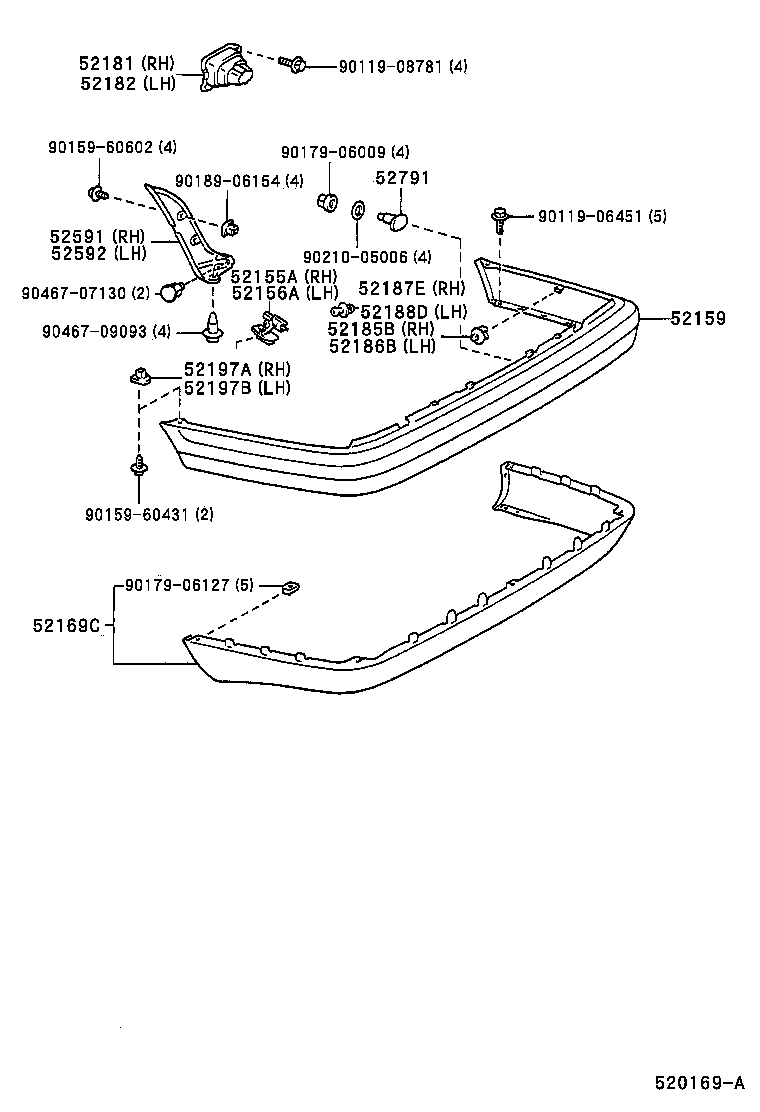

Rear Bumper & Bumper Stay
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52169C | Cover, Rear Bumper, Lower |
| 52181 | Arm, Rear Bumper, RH |
| 52182 | Arm, Rear Bumper, LH |
| 52185B | Bracket, Rear Bumper Side Mounting, RH |
| 52186B | Bracket, Rear Bumper Side Mounting, LH |
| 52187E | Guide, Rear Bumper Location, RH |
| 52188D | Guide, Rear Bumper Location, LH |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52197B | Bracket, Rear Bumper Seal, LH |
| 52552 | Filler, Rear Bumper, RH |
| 52553 | Filler, Rear Bumper, LH |
| 52581A | Protector, Rear Bumper Filler |
| 52582A | Protector, Rear Bumper Filler, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52791 | Bolt, Bumper Moulding Set, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
