Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

44 part groups · 8 illustrations

Illustrations

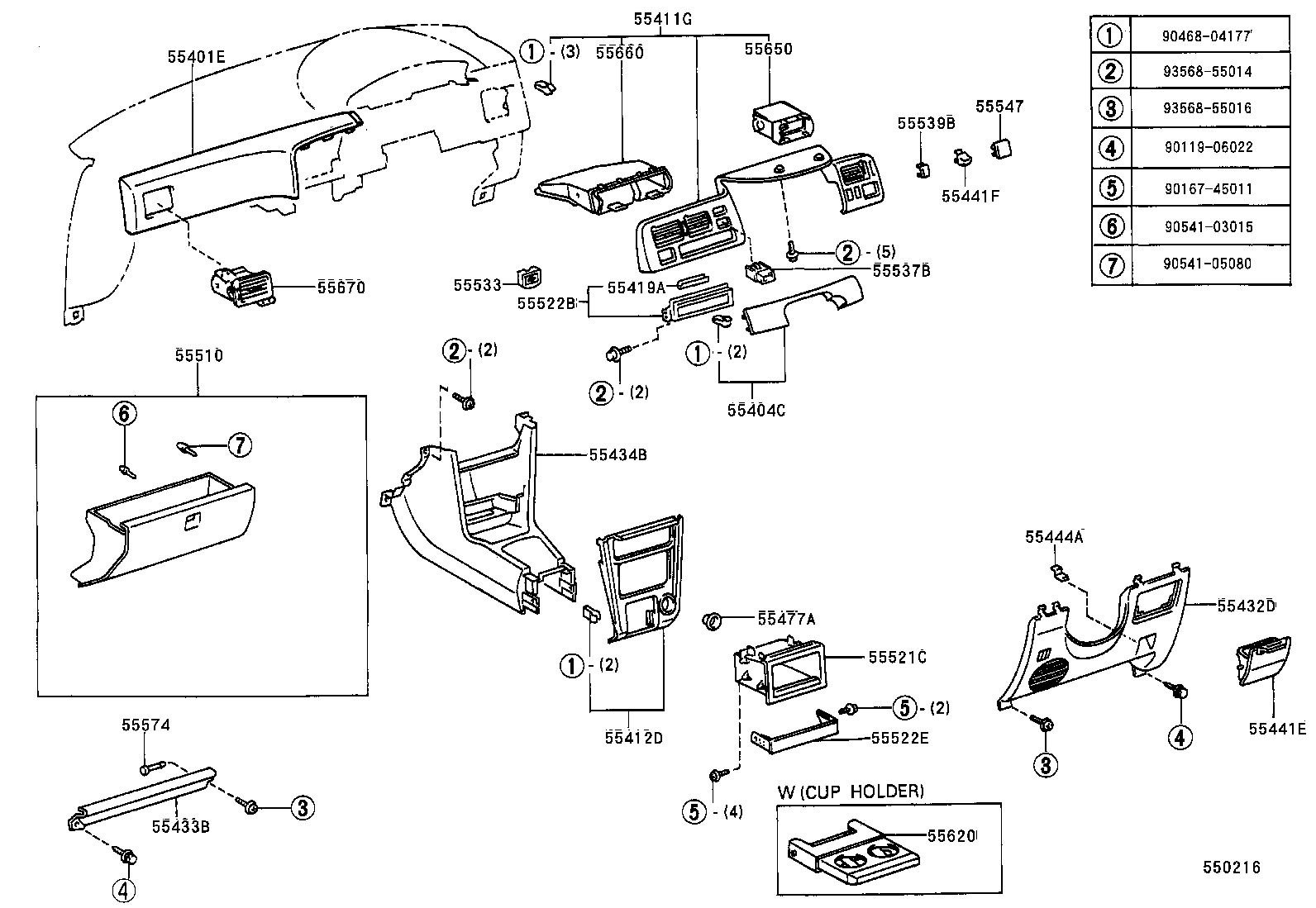

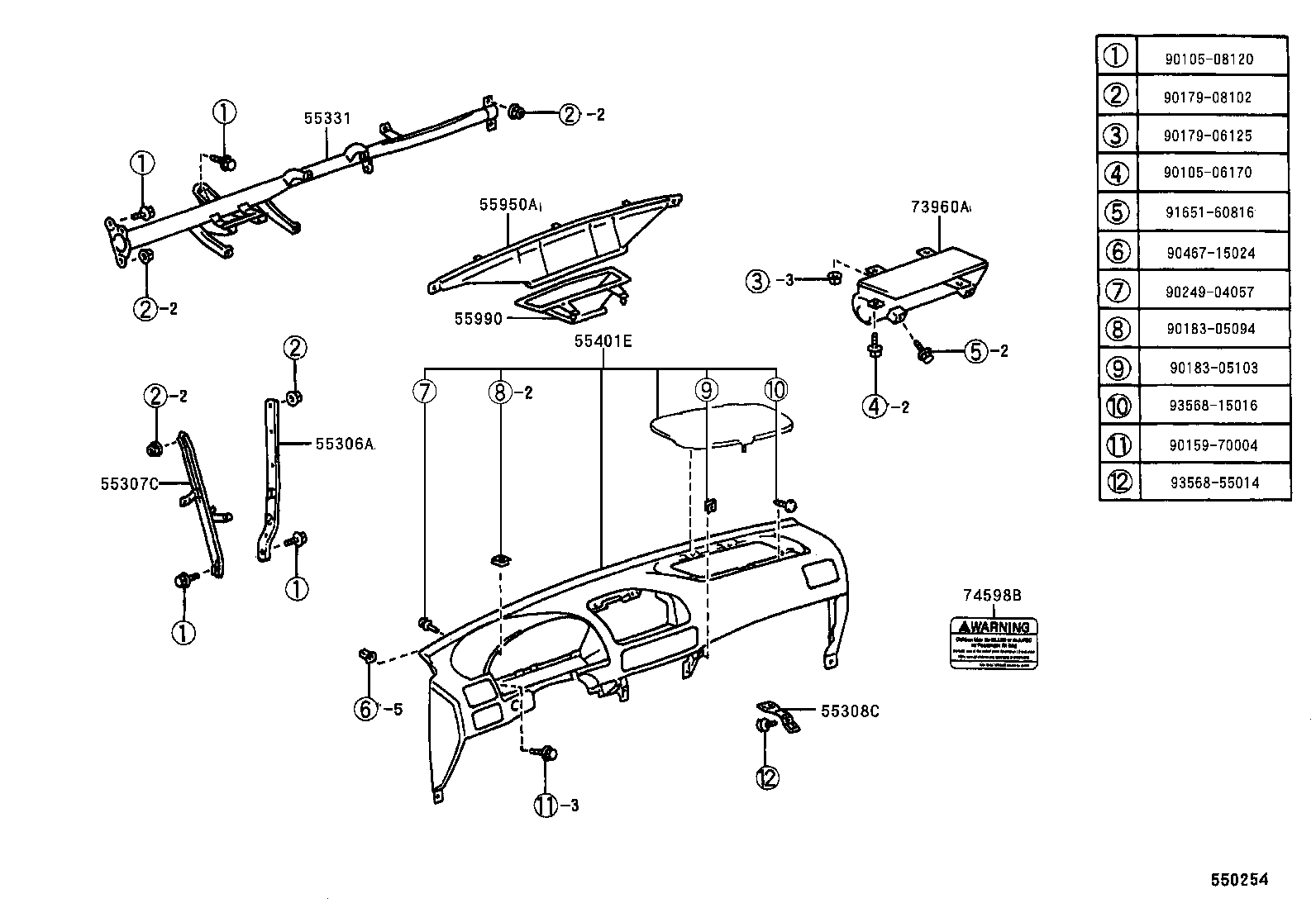

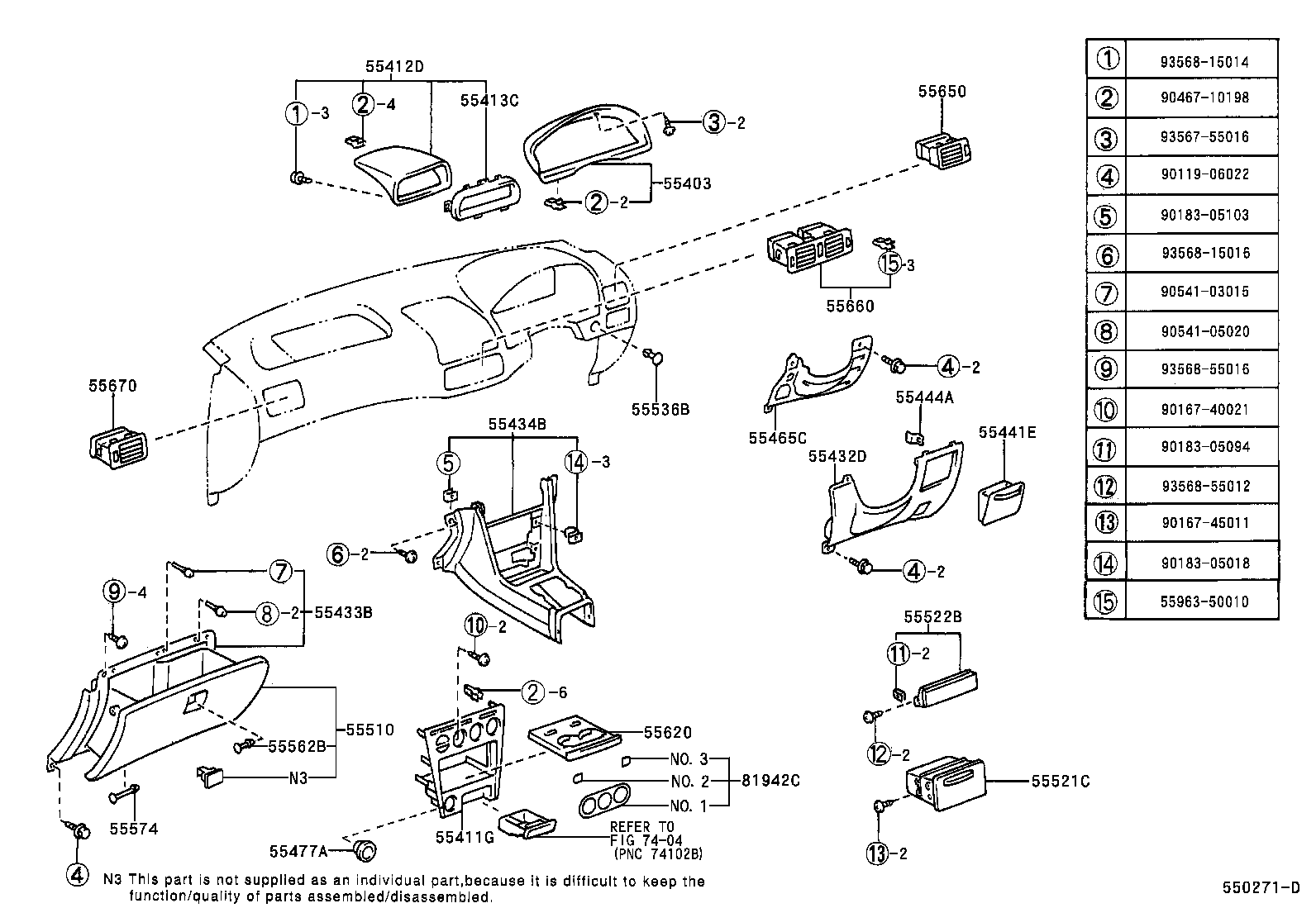

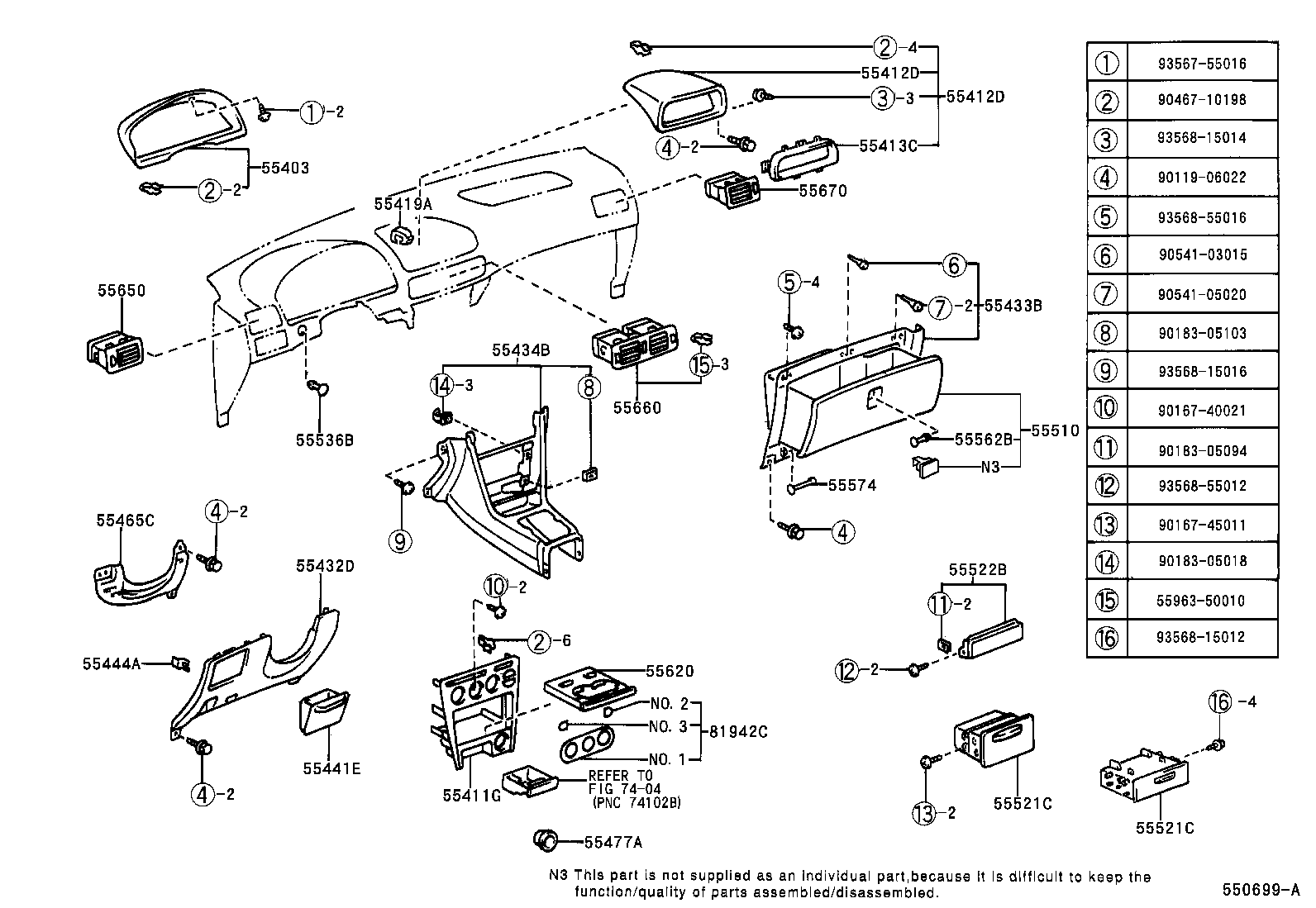

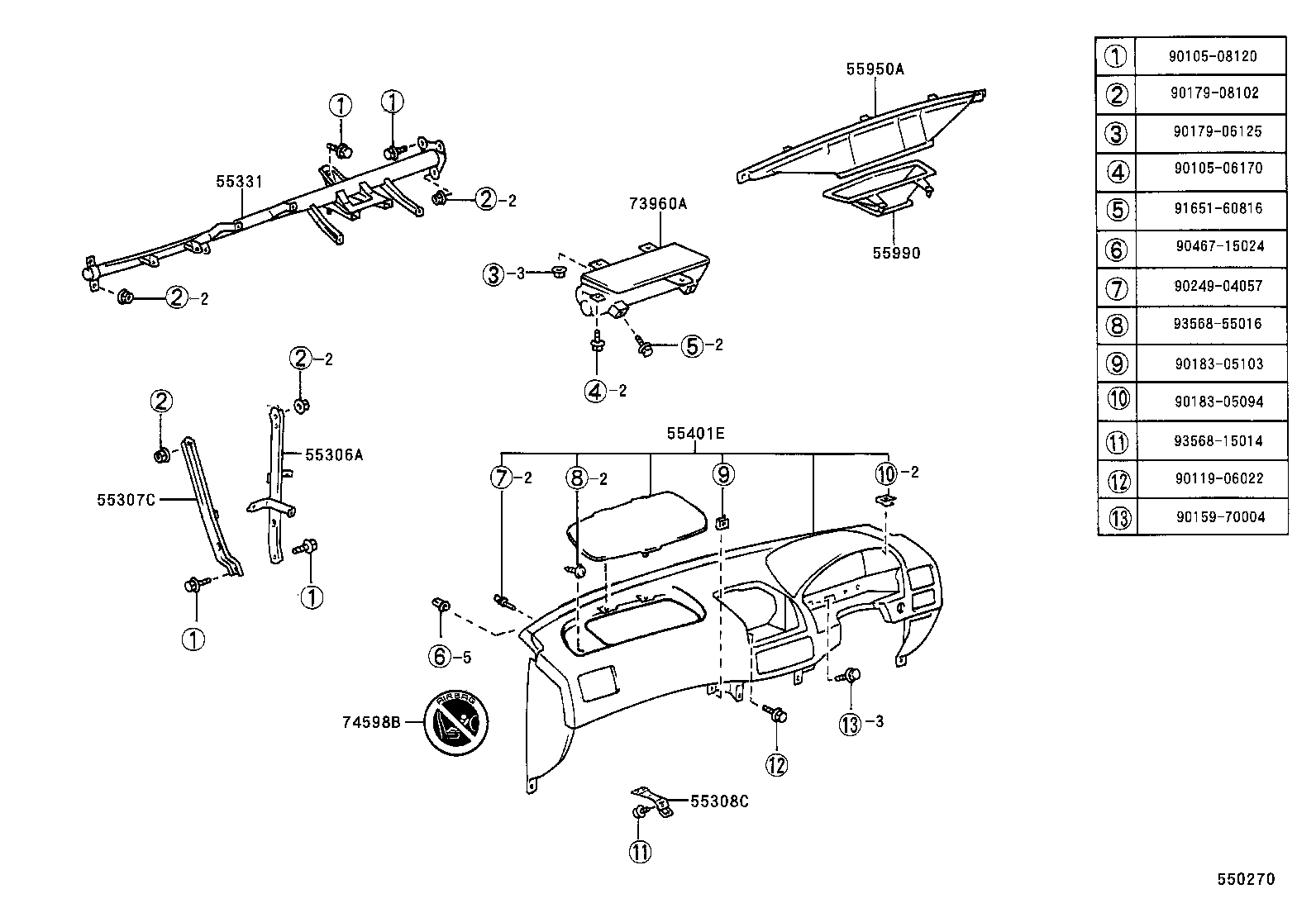

Figure MN3152A MN3152A 1995-05 → 1997-04 Figure MN3152A MN3152A 1997-04 → — Figure 550216 550216 1995-05 → 1997-04 Figure 550216 550216 1997-04 → — Figure 550254 550254 1997-04 → — Figure 550699A 550699A 1997-04 → — Figure 550270 550270 1997-04 → — Figure 550271D 550271D 1997-04 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308C Bracket Sub-assy, Instrument Panel, Center
55331 Reinforcement, Instrument Panel
55368C Bracket, Meter Mounting
55377A Bracket, Instrument Panel Mounting, NO.2
55401E Pad Sub-assy, Instrument Panel Safety
55403 Hood Sub-assy, Meter
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55413C Panel, Instrument Cluster Finish, Center NO.2
55419A Cushion, Instrument Cluster Finish Panel
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
55434B Panel, Instrument Panel Finish, Lower Center
55441E Box, Instrument Panel
55441F Box, Instrument Panel Coin
55444A Spring, Instrument Panel Box
55465C Insert, Instrument Panel Lower Pad, LH
55477A Bezel, Cigarette Lighter Hole
55510 Door Assy, Glove Compartment
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55522E Cover, Cup Holder Opening
55533 Cover, Auto Clock Hole
55536B Cover, Light Control Switch Hole
55537B Cover, Rear Defogger Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55547 Cover, Remote Control Mirror Hole
55562B Pin, Glove Compartment Door Lock
55574 Shaft, Glove Compartment Door Hinge
55620 Holder Assy, Instrument Panel Cup
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55873C Seal, Air Duct, Center
55874A Seal, Air Duct, NO.4
55950A Nozzle Assy, Defroster
55990 Nozzle Assy, Center Defroster
73960A Airbag Assy, Instrument Panel Passenger W/O Door
74598B Label, Passenger Airbag Caution
81942C Sheet, Heater Control Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
