Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

15 part groups · 2 illustrations

Illustrations

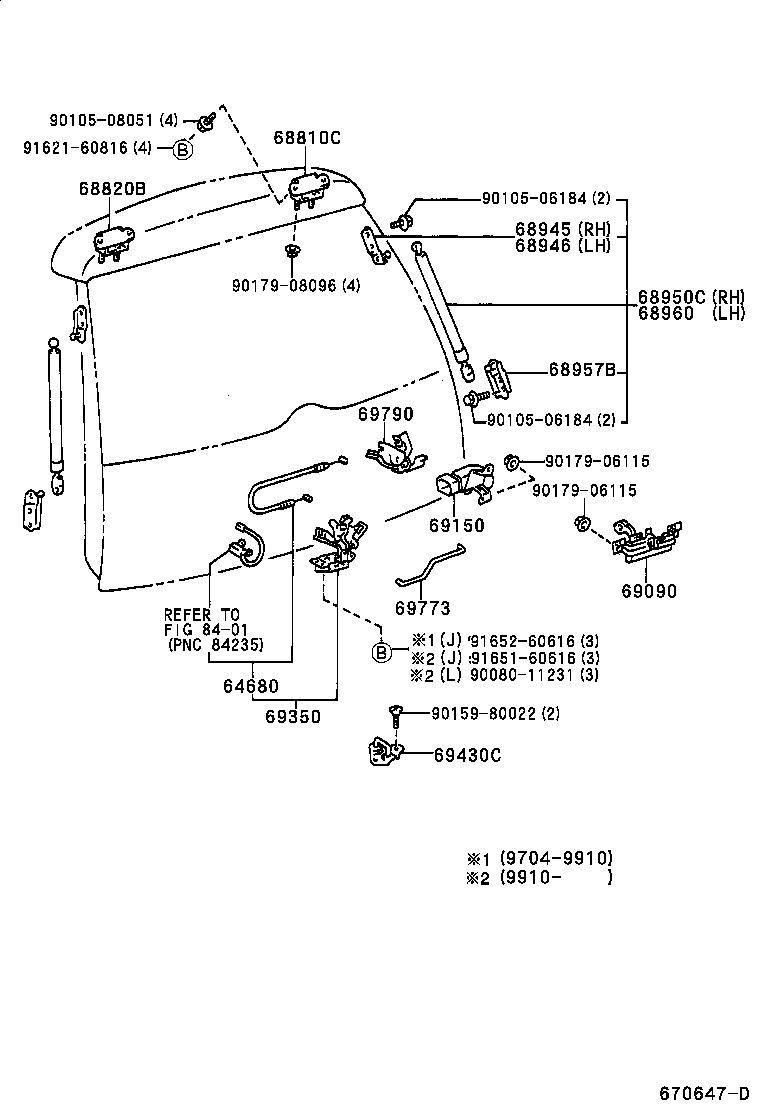

Figure 670645C 670645C 1997-04 → — Figure 670647D 670647D 1997-04 → —

Part groups

PNCDescription
64680 Cable Assy, Back Door Lock Control
68810C Hinge Assy, Back Door, RH
68820B Hinge Assy, Back Door, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68950C Stay Assy, Back Door, RH
68957B Bracket, Back Door Stay, Lower
68960 Stay Assy, Back Door, LH
69090 Handle Assy, Back Door, Outside
69150 Actuator Assy, Back Door Lock
69299 Grommet, Back Door Handle
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
69773 Link, Back Door Lock Control, NO.1
69790 Control Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
