Toyota Corolla Sed/WG
1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General
Discontinued model
Data version 2005-07

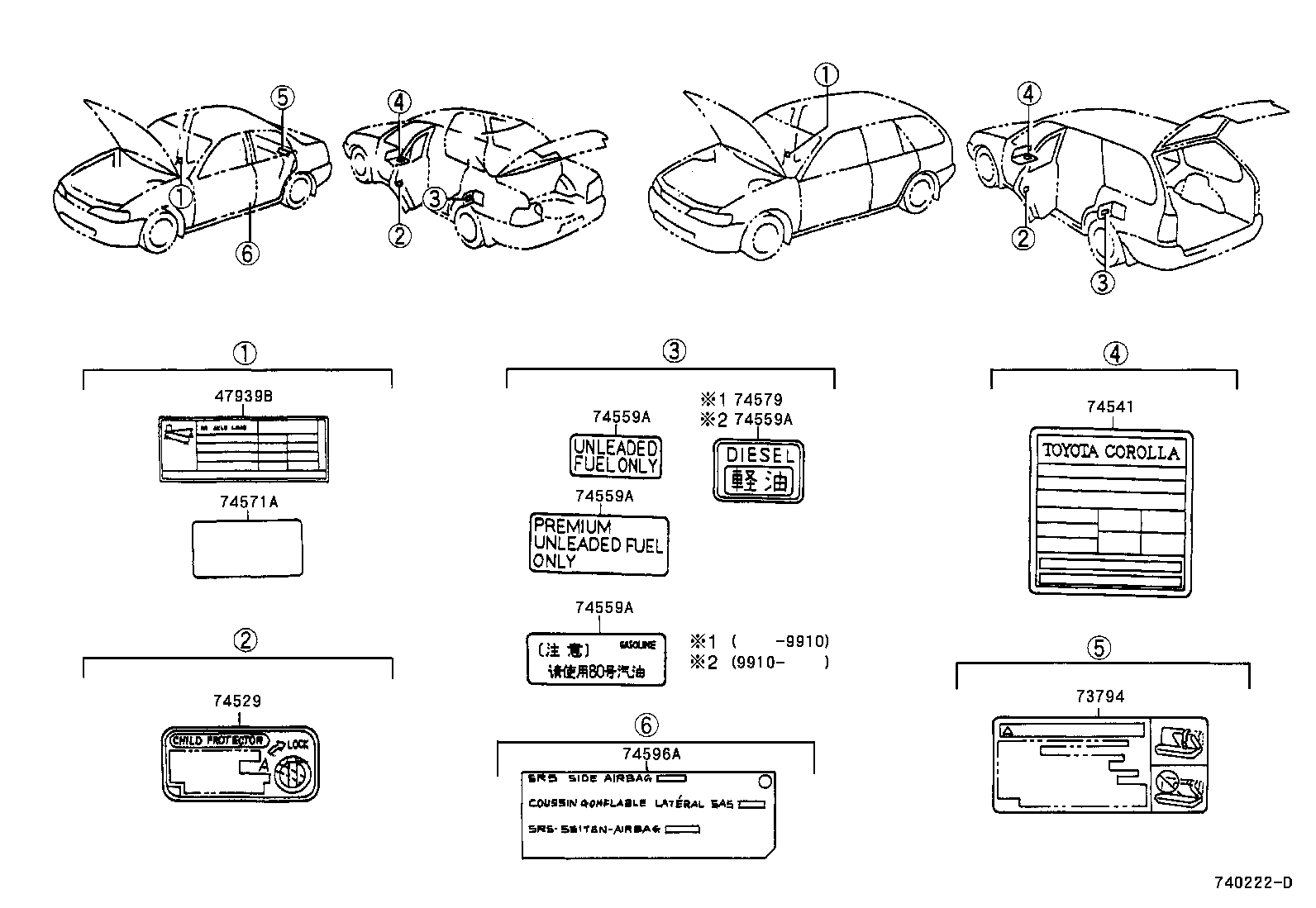

Caution Plate (EXTERIOR & INTERIOR)
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11278B | Label, Engine Emission Compliance Information |
| 11289B | Label, Spark Plug Notice |
| 11291B | Plate, Engine Name |
| 11293C | Label, Tune-up Specification Information |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 13564 | Label, Timing Belt Replacement Information |
| 17791A | Label, Maintenance Information |
| 23923A | Label, Fuel Sedimenter Notice |
| 47939B | Label, Load Sensing Valve Marking Information |
| 73794 | Label, Rear Seat Belt Notice |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74559A | Plate, Fuel Caution |
| 74571A | Film, Label Cover |
| 74579 | Plate, Unleaded Fuel Caution |
| 74596A | Label, Side Airbag Caution |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
