Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

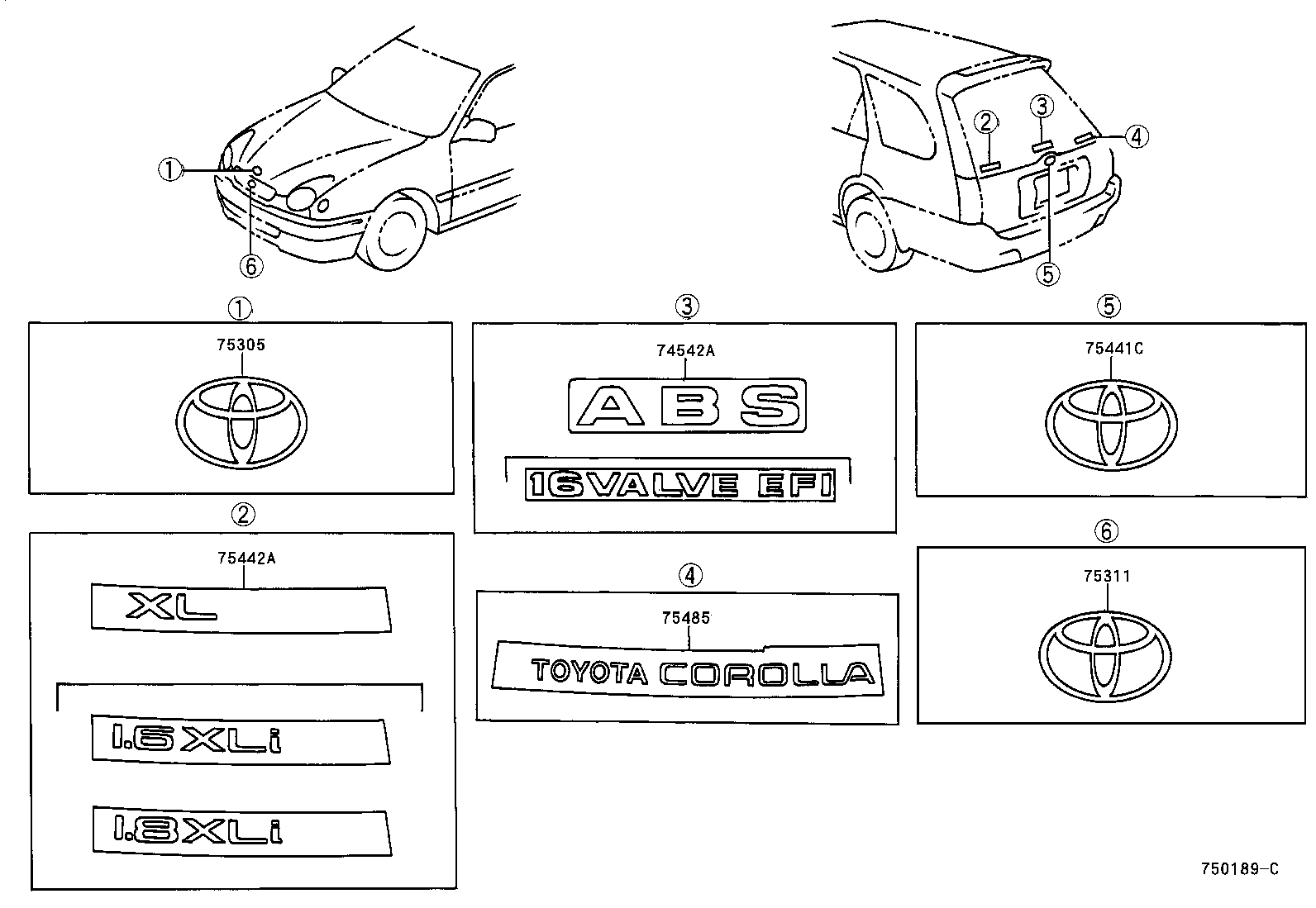

Figure 750190E 750190E 1995-05 → — Figure 750189C 750189C 1997-04 → —

Part groups

PNCDescription
74542A Plate, Rear Window Mark
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75351A Emblem, Front Fender
75431 Emblem, Luggage Compartment Door
75441C Plate, Back Door Name
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75442A Plate, Back Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
75444C Plate, Luggage Compartment Door Name, NO.4
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
