Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

16 part groups · 2 illustrations

Illustrations

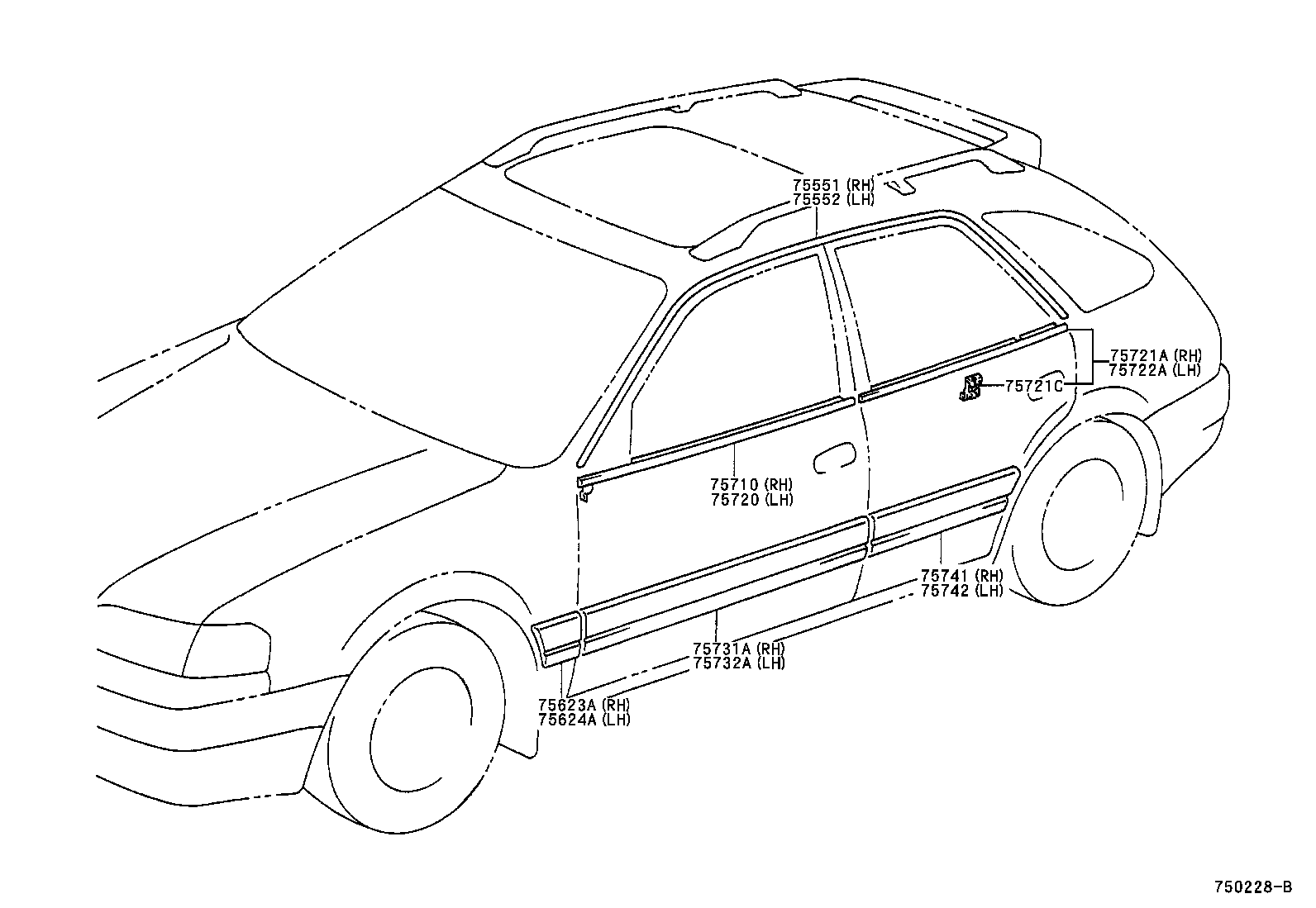

Figure 750296A 750296A 1995-05 → — Figure 750228B 750228B 1997-04 → —

Part groups

PNCDescription
75055C Moulding Sub-assy, Roof Drip Side Finish, Rear RH
75055E Clip, Roof Drip Moulding
75056C Moulding Sub-assy, Roof Drip Side Finish, Rear LH
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75721A Moulding, Rear Door Belt, RH
75721C Clip, Door Glass Weatherstrip
75722A Moulding, Rear Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
