Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 2 illustrations

Illustrations

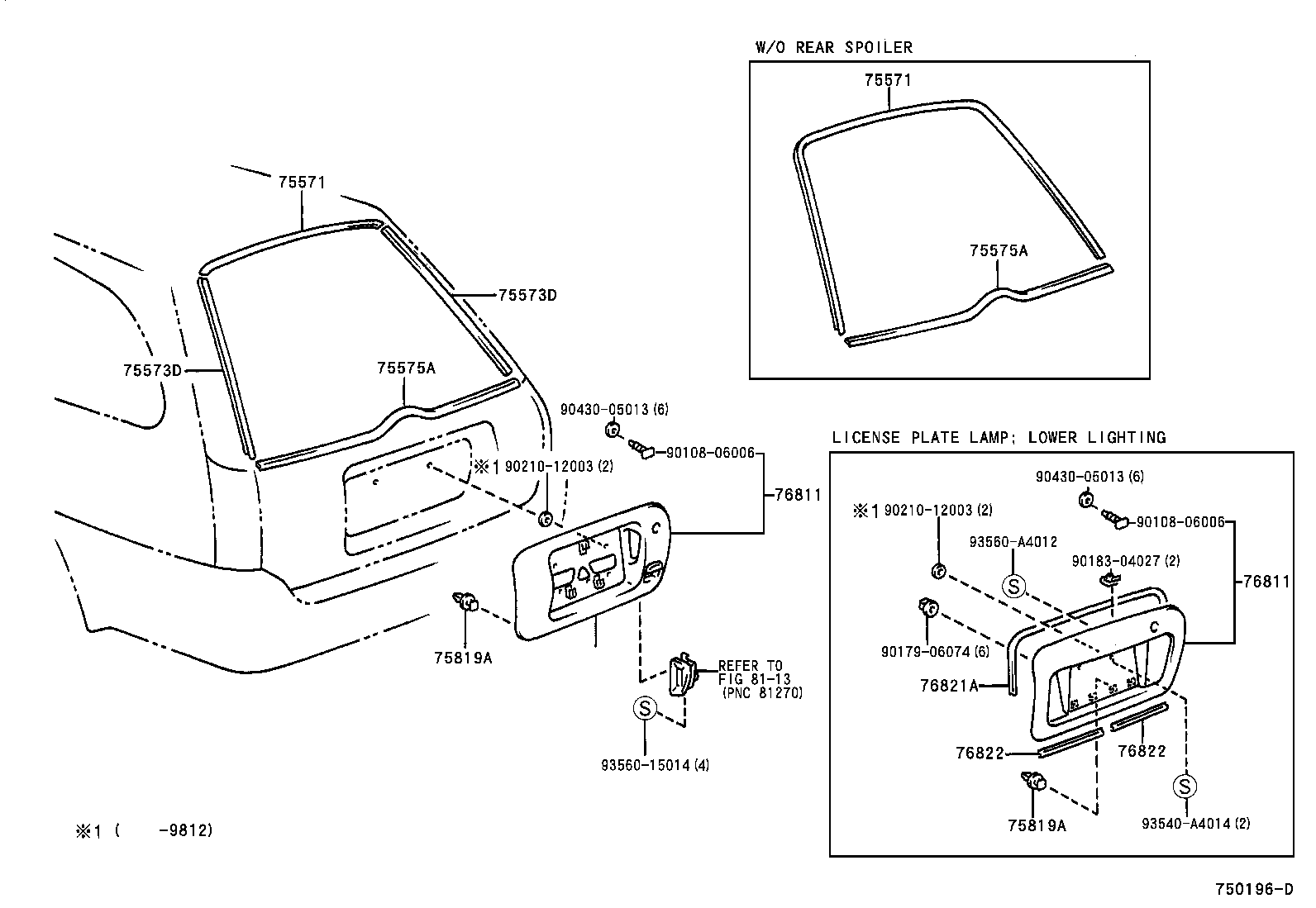

Figure 750523 750523 1995-05 → — Figure 750196D 750196D 1997-04 → —

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75573D Moulding, Back Window, Outside
75575A Moulding, Back Window, Outside Lower
75819A Clip, Back Door Moulding
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76811 Garnish, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76821A Protector, Luggage Compartment Door Outside Garnish
76822 Protector, Back Door Garnish Moulding, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
