Toyota Corolla Sed/WG
1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General
Discontinued model
Data version 2005-07

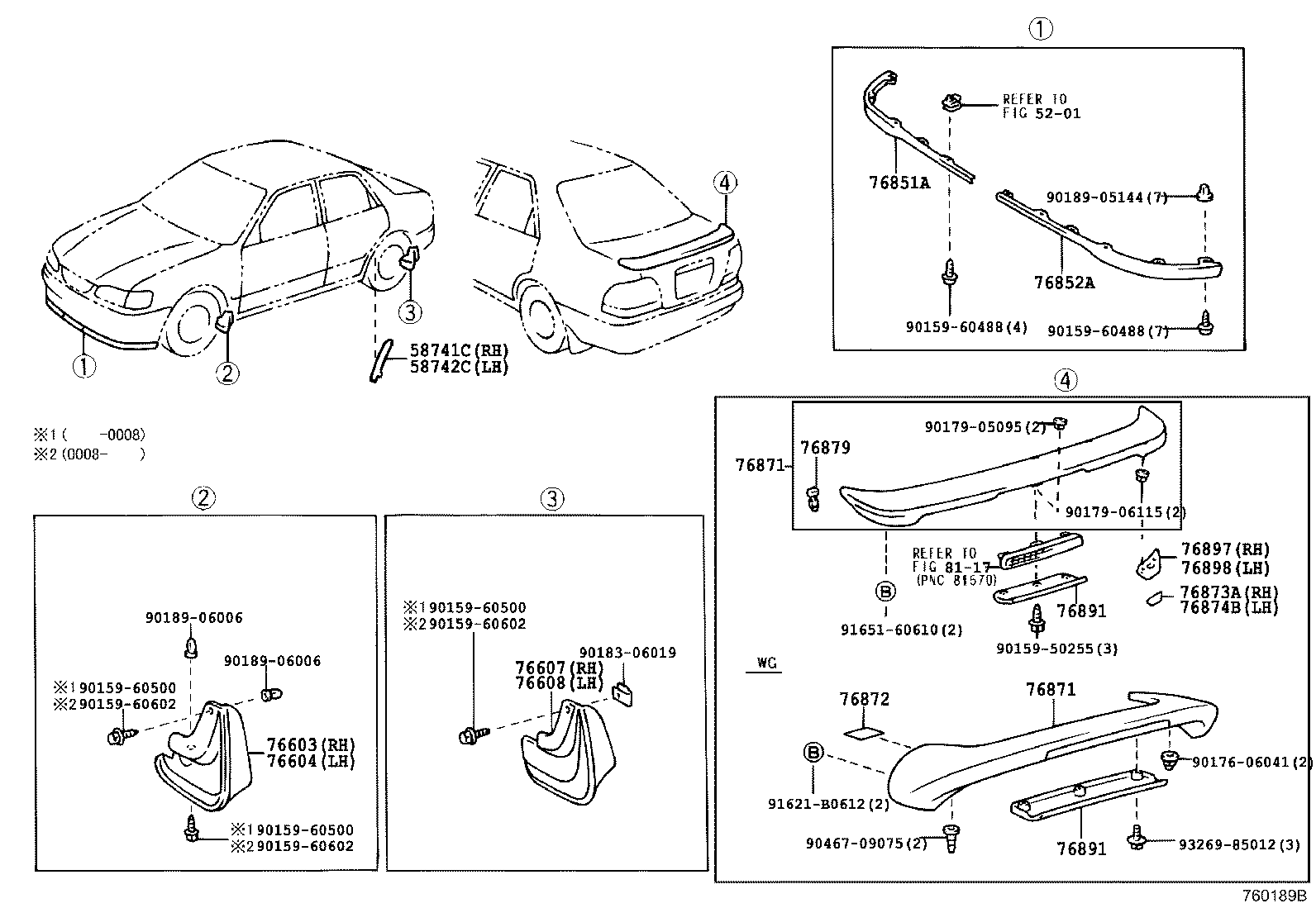

Mudguard & Spoiler
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58741C | Protector, Quarter Panel, RH |
| 58742C | Protector, Quarter Panel, LH |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853A | Retainer, Front Spoiler, Upper NO.1 |
| 76871 | Spoiler, Rear |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873A | Protector, Rear Spoiler, RH |
| 76874B | Protector, Rear Spoiler, LH |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76891 | Spoiler, Rear NO.1 |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |

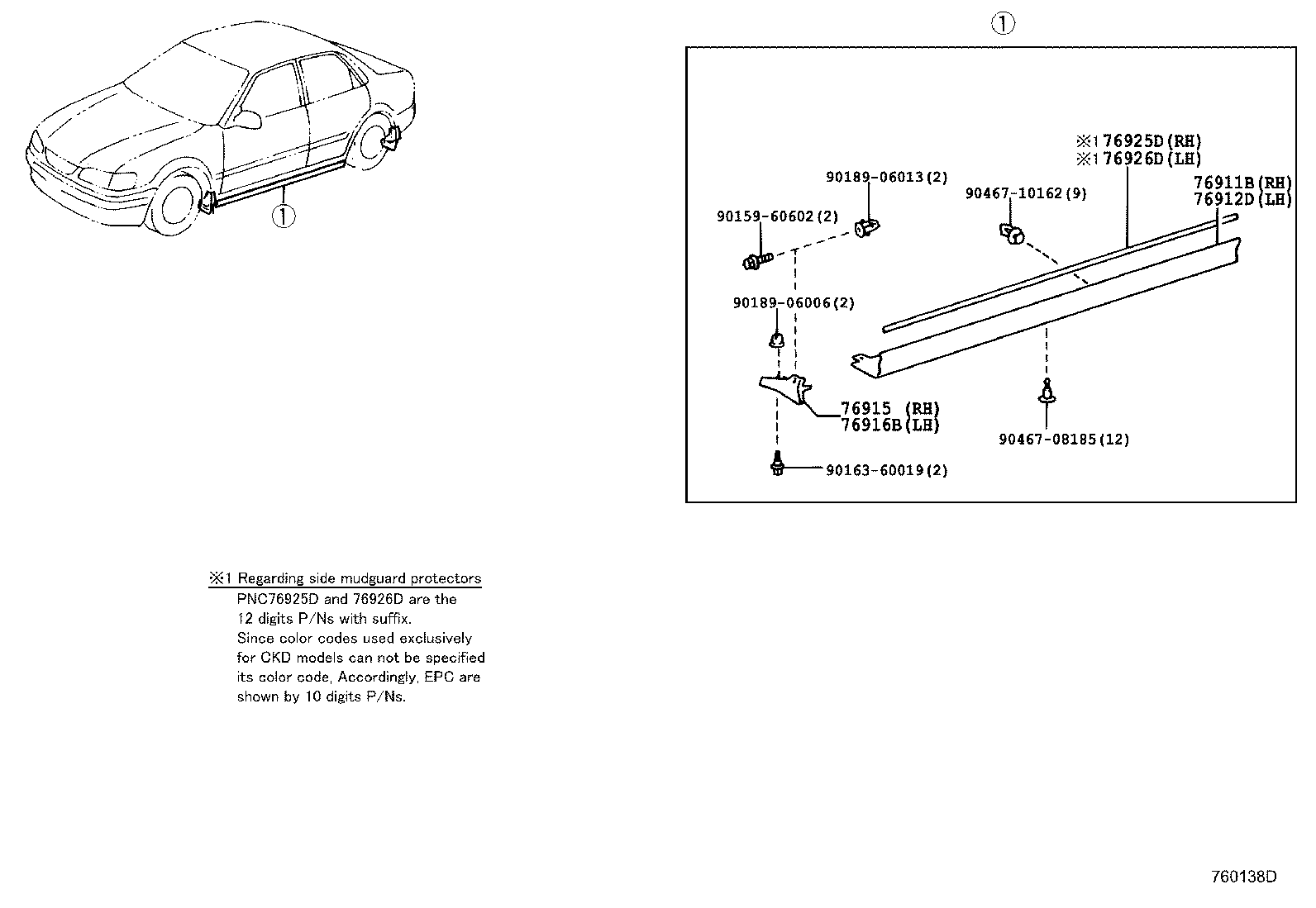

| 76911B | Mudguard, Side, RH |
| 76912D | Mudguard, Side, LH |
| 76915 | Mudguard, Rear Door, RH |
| 76916B | Mudguard, Rear Door, LH |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
