Toyota Corolla Sed/WG
1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General
Discontinued model
Data version 2005-07

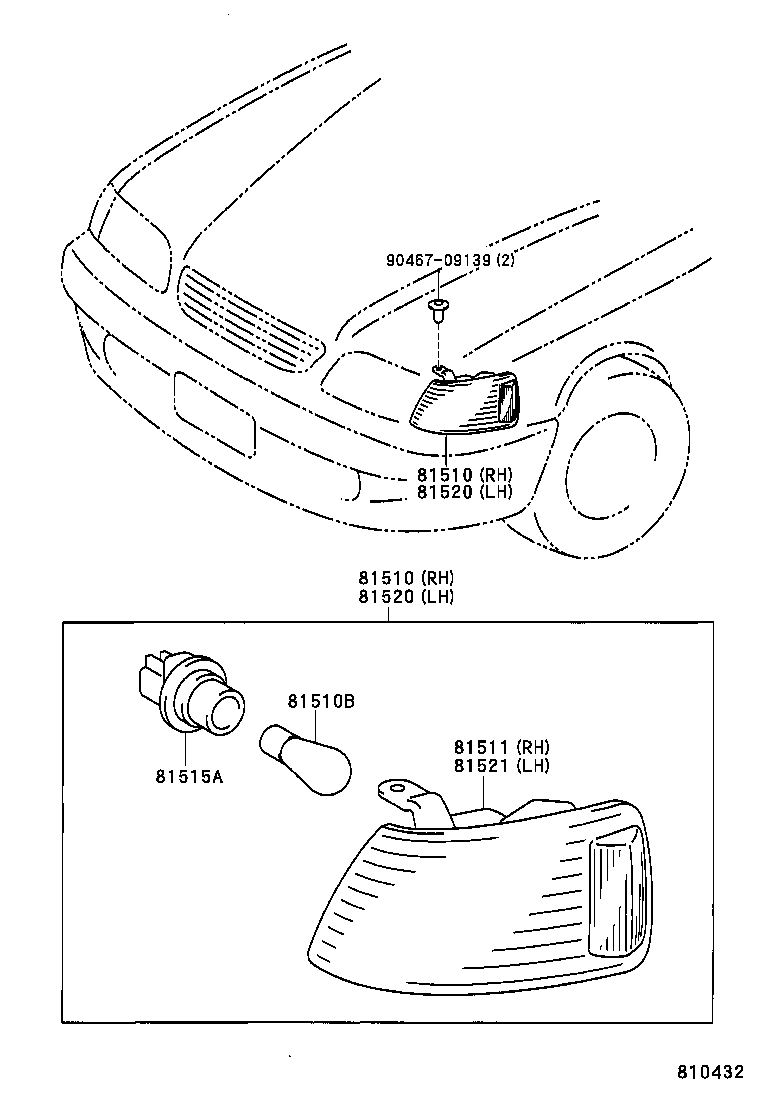

Front Turn Signal Lamp
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81510 | Lamp Assy, Front Turn Signal, RH |
| 81510B | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81511 | Lens, Front Turn Signal Lamp, RH |
| 81515A | Plug Assy, Front Turn Signal Lamp |
| 81520 | Lamp Assy, Front Turn Signal, LH |
| 81521 | Lens, Front Turn Signal Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
