Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

3 part groups · 5 illustrations

Illustrations

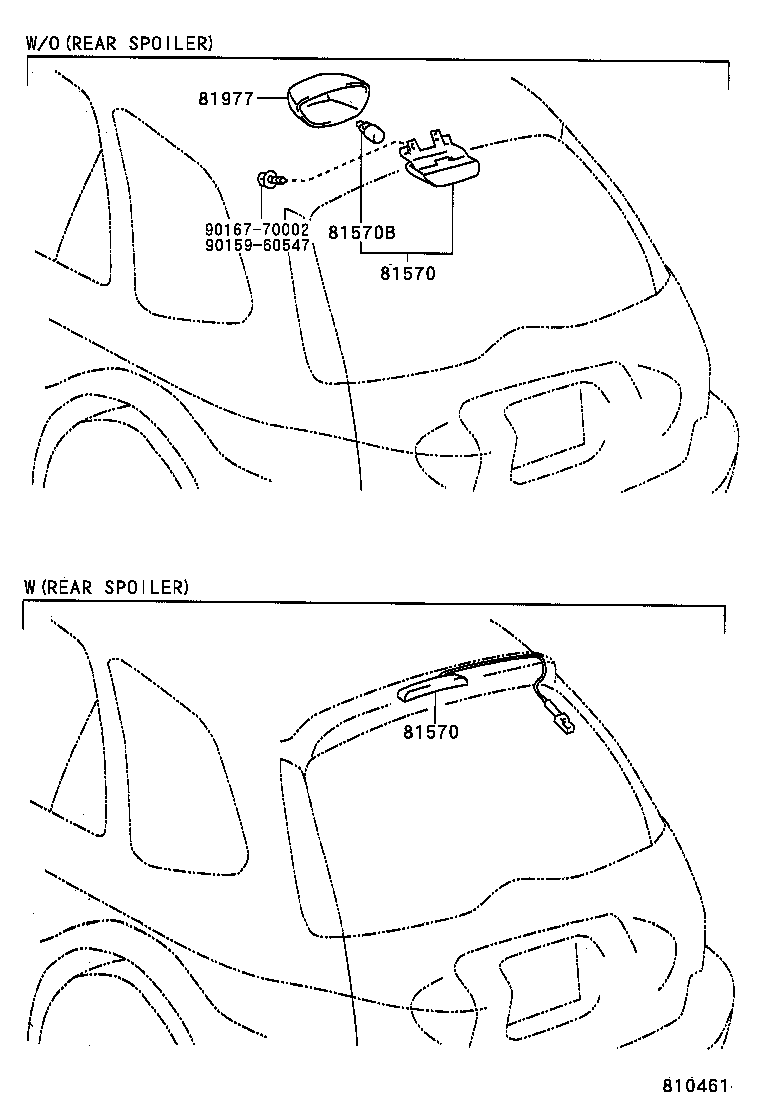

Figure 810352 810352 1995-05 → 1997-04 Figure 810352 810352 1997-04 → — Figure 810353 810353 1995-05 → 1997-04 Figure 810353 810353 1997-04 → — Figure 810461 810461 1997-04 → —

Part groups

PNCDescription
81570 Lamp Assy, Center Stop
81570B Bulb (FOR CENTER STOP LAMP)
81977 Cover, Center Stop Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
