Toyota Corolla Sed/WG
1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General
Discontinued model
Data version 2005-07
Switch & Relay & Computer

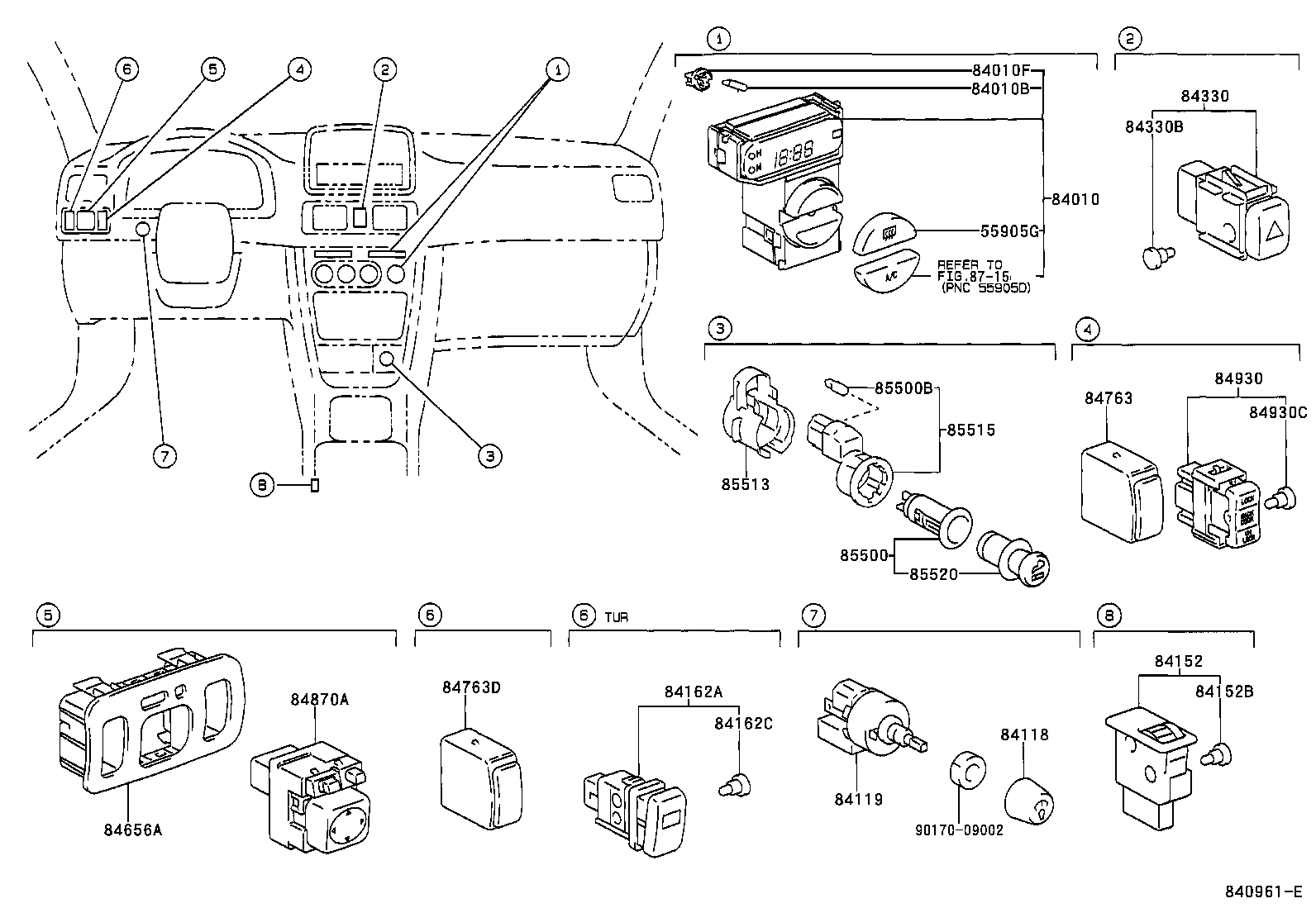

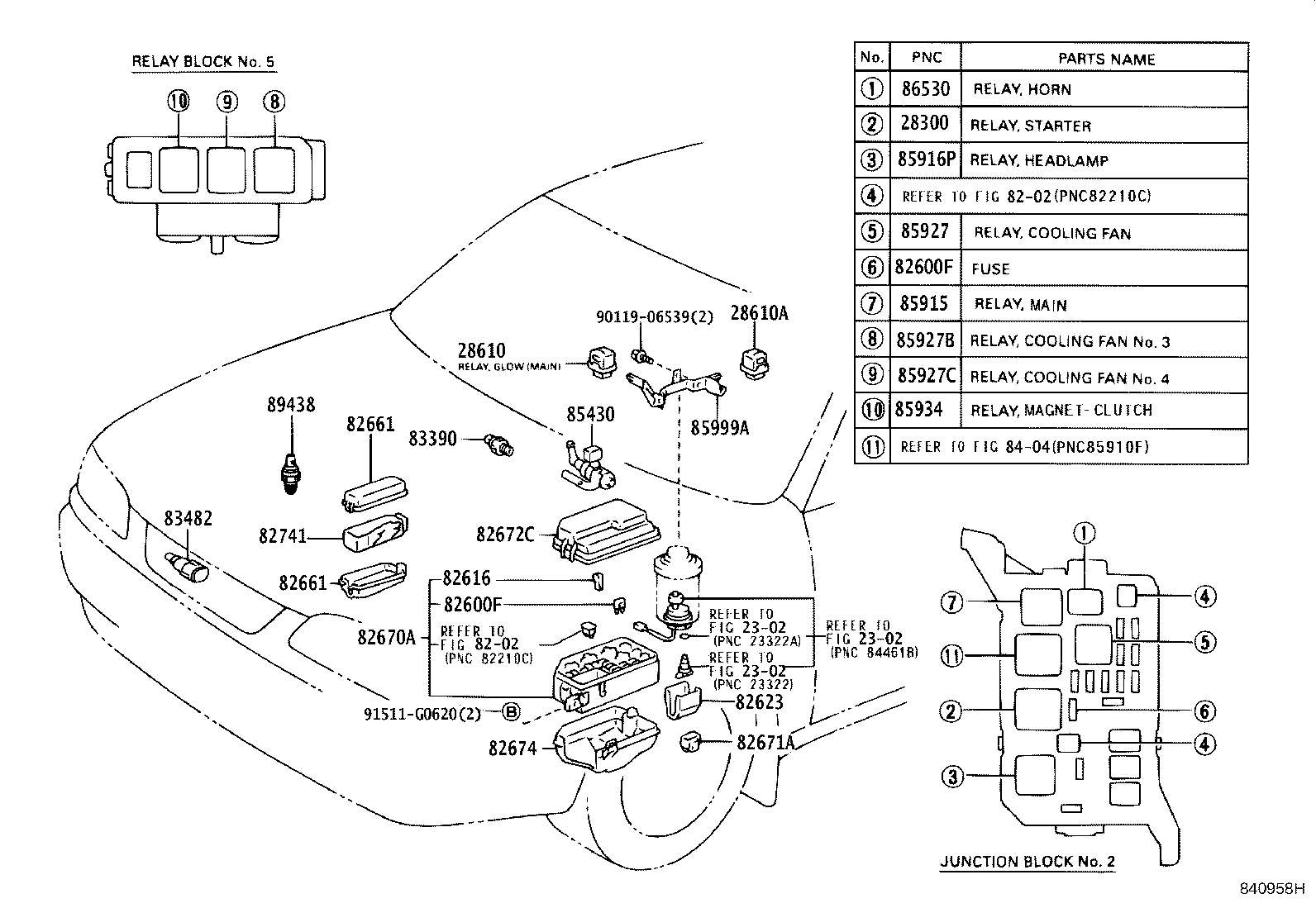

113 part groups · 17 illustrations
Illustrations
Part groups

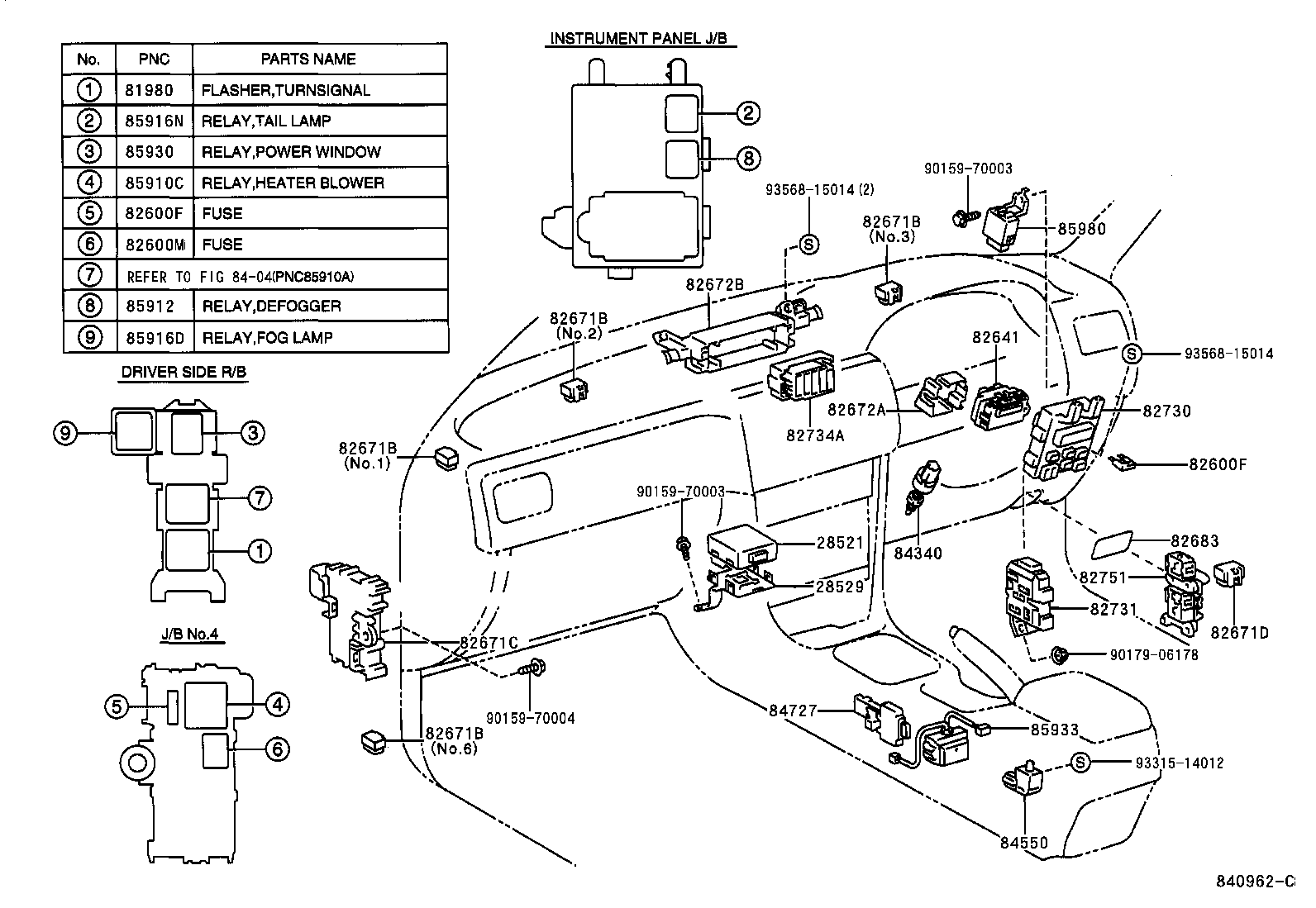

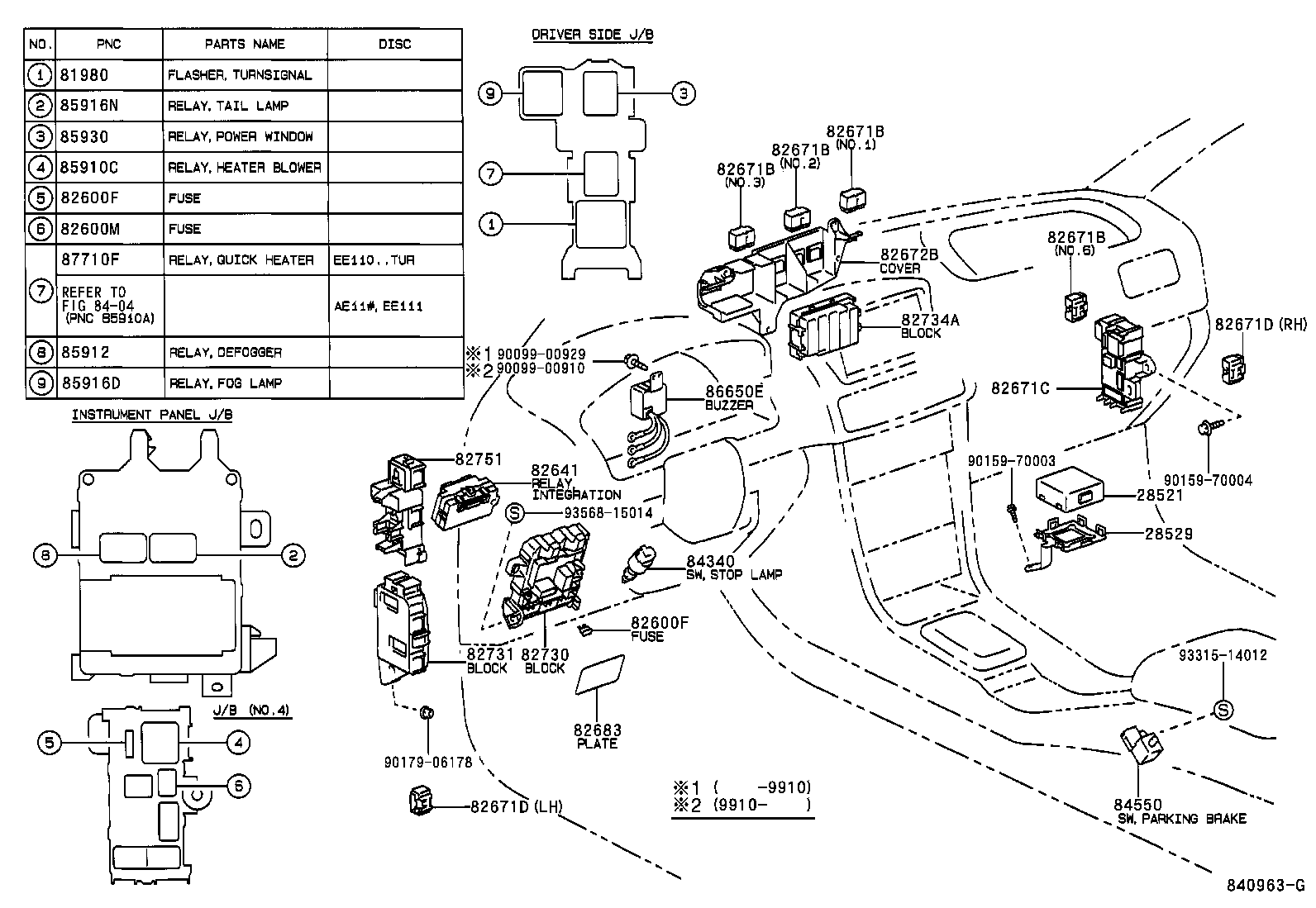

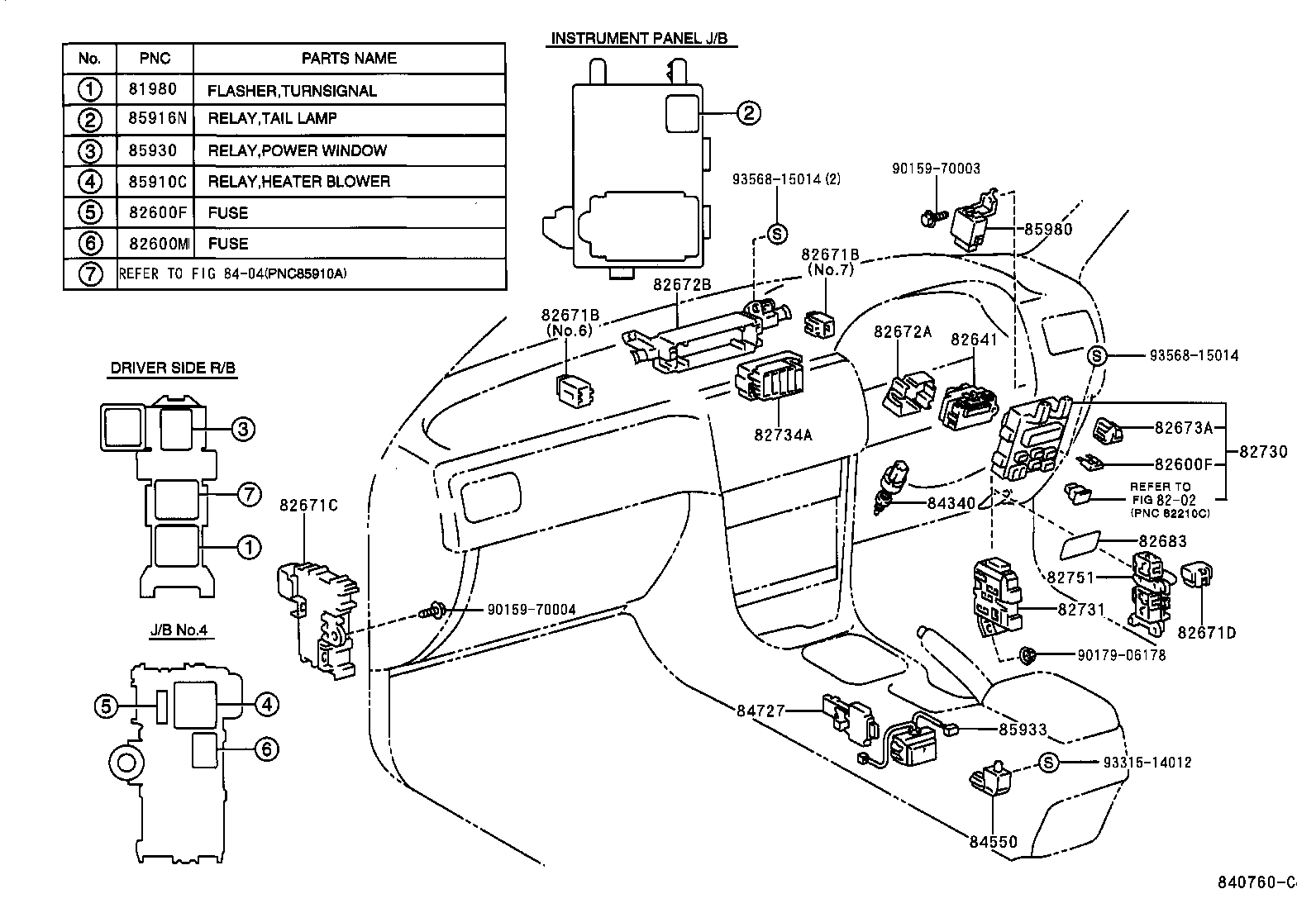

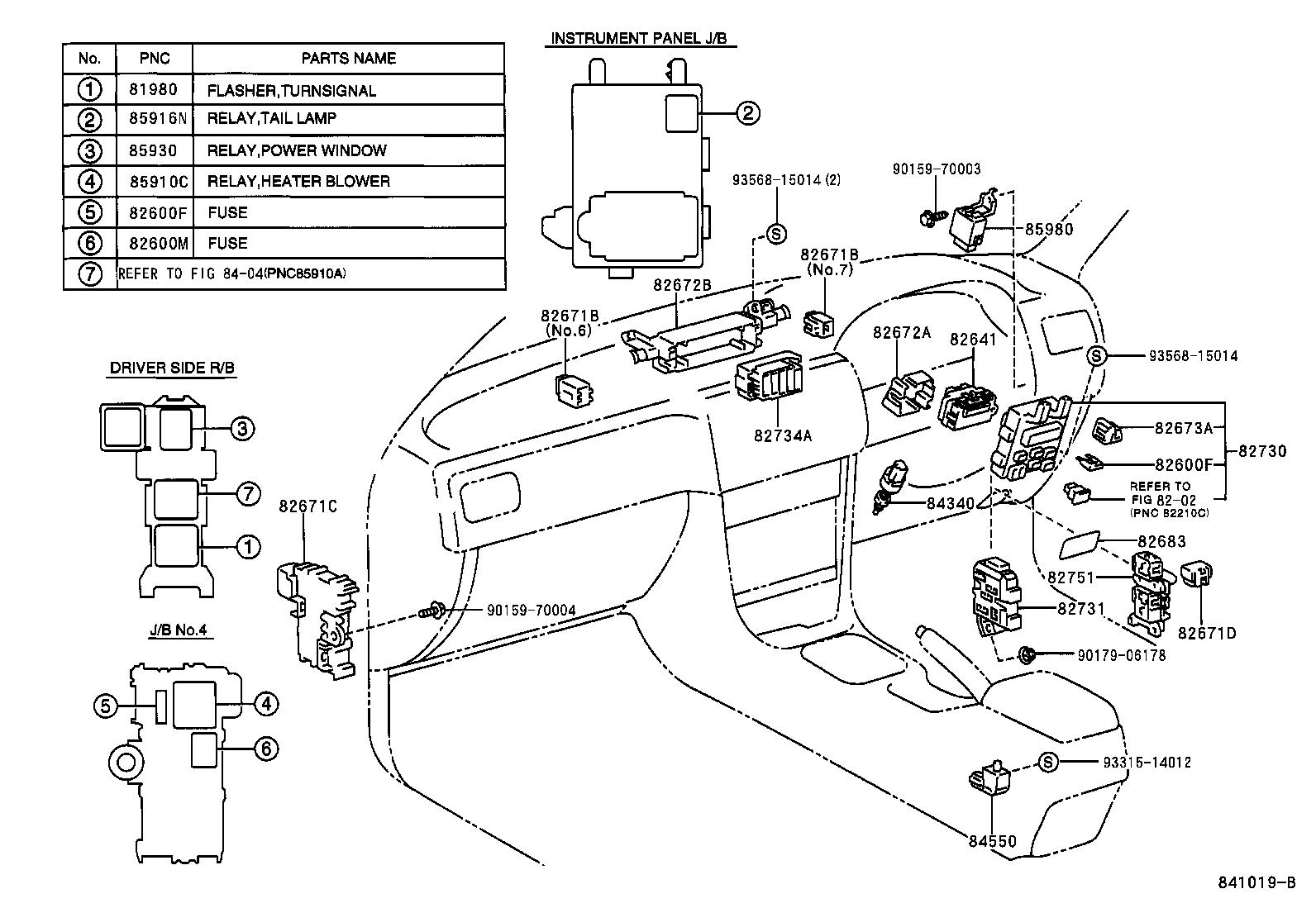

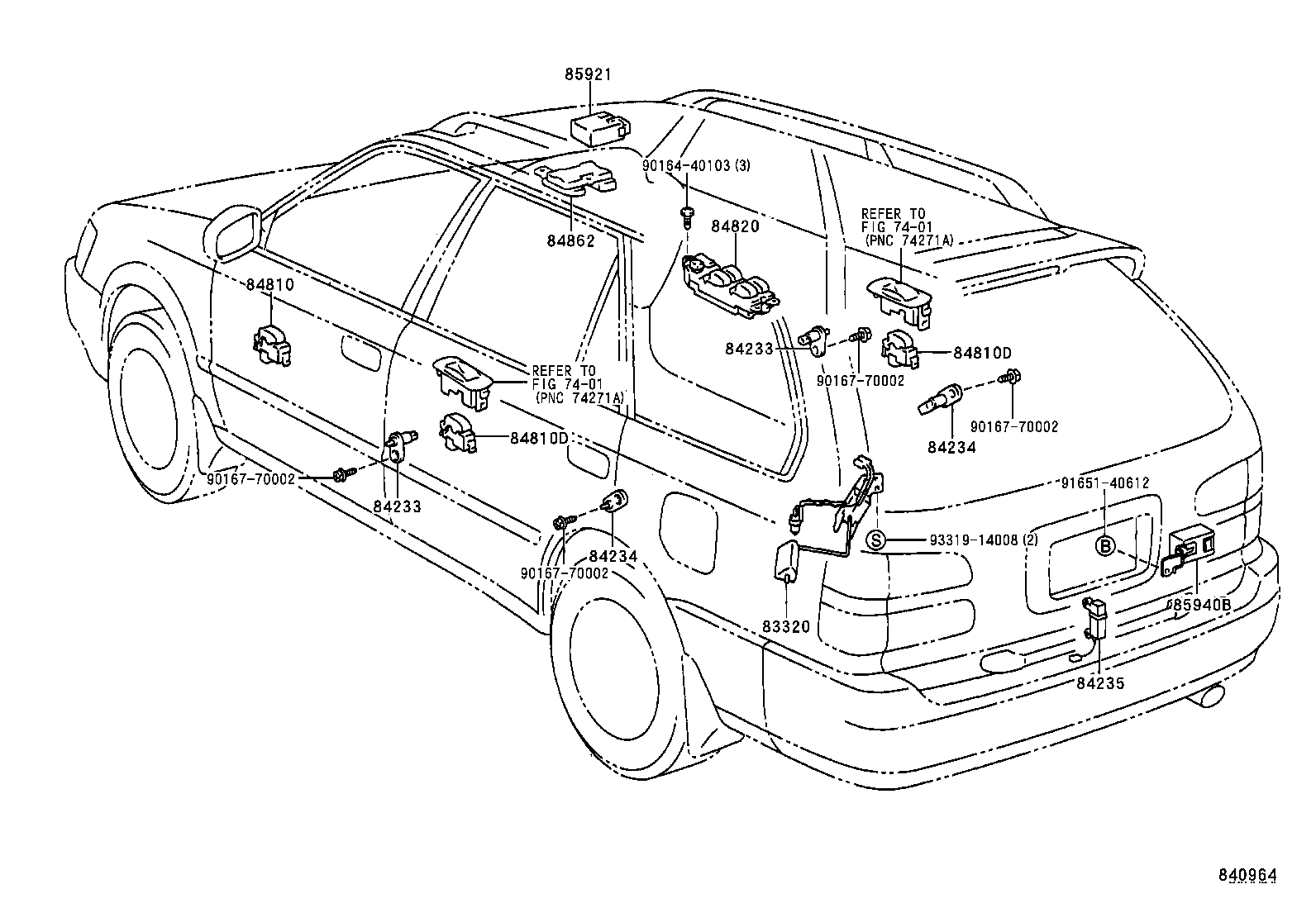

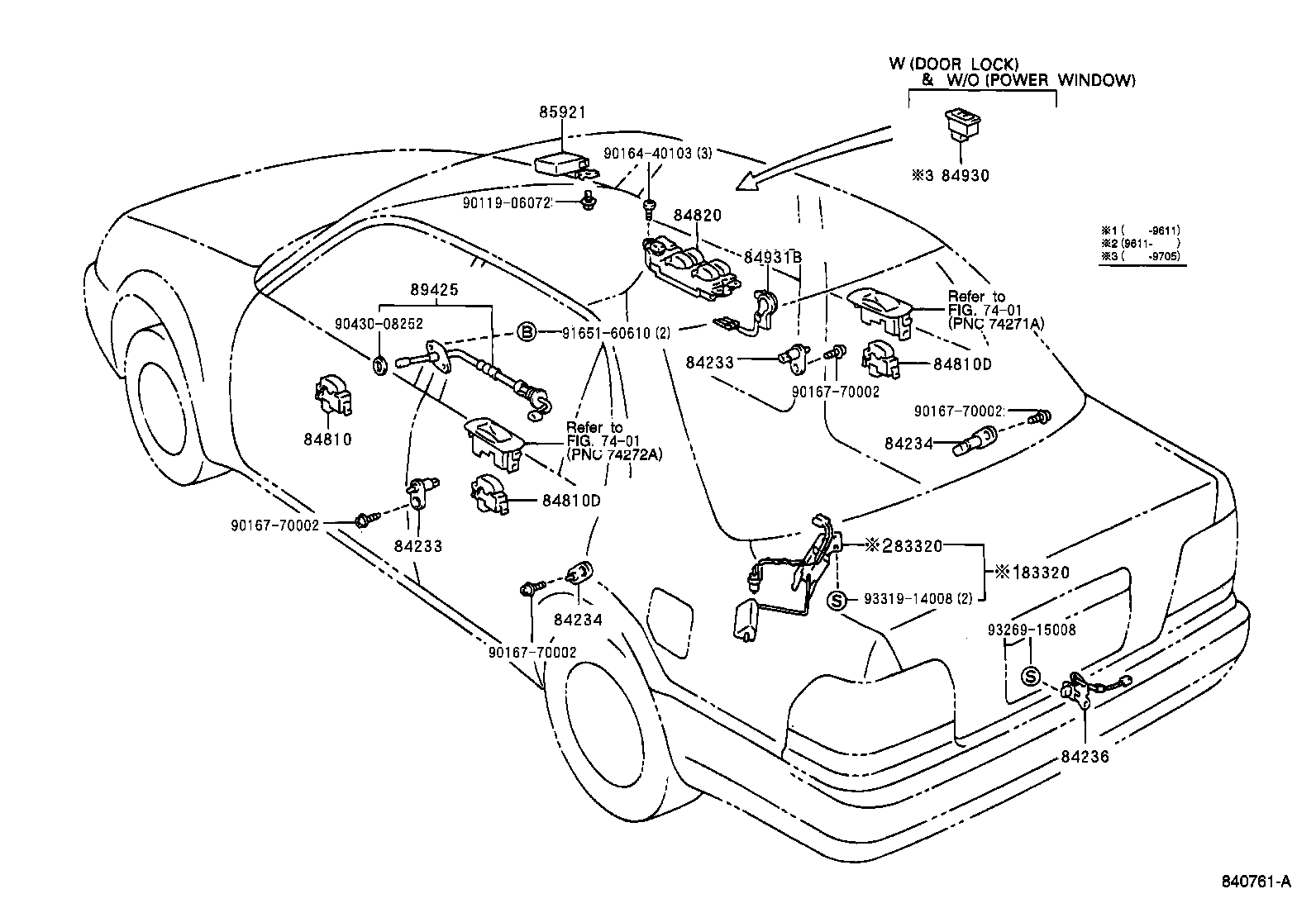

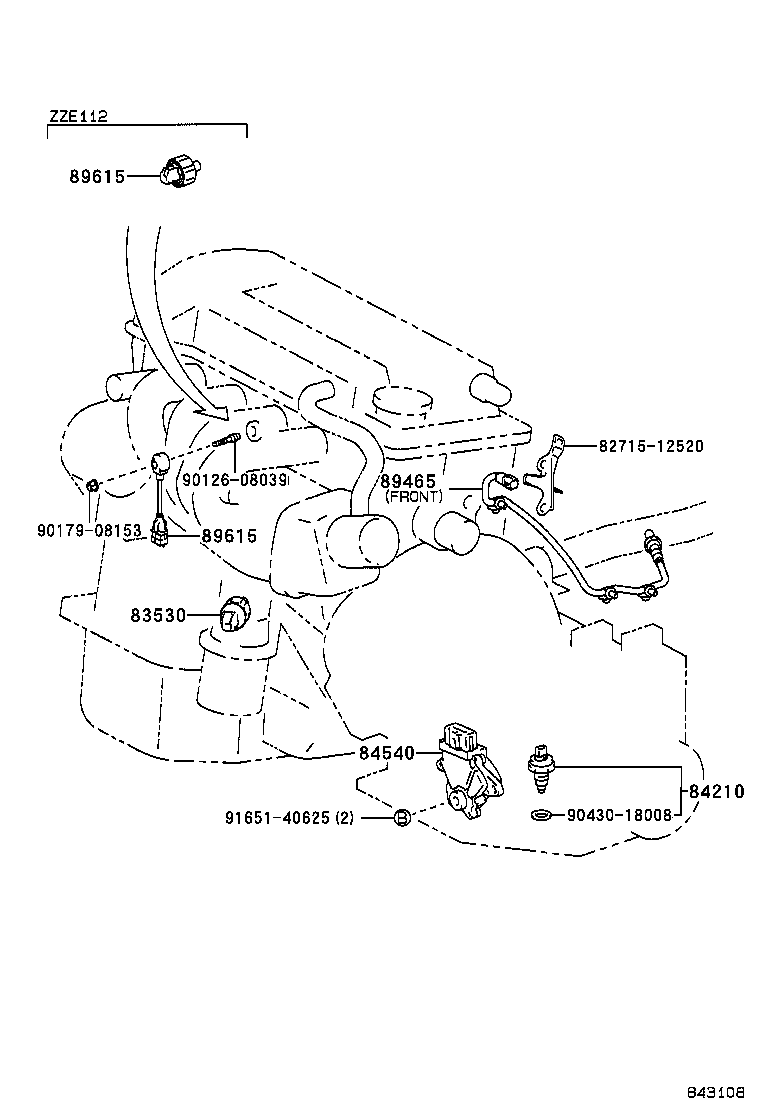

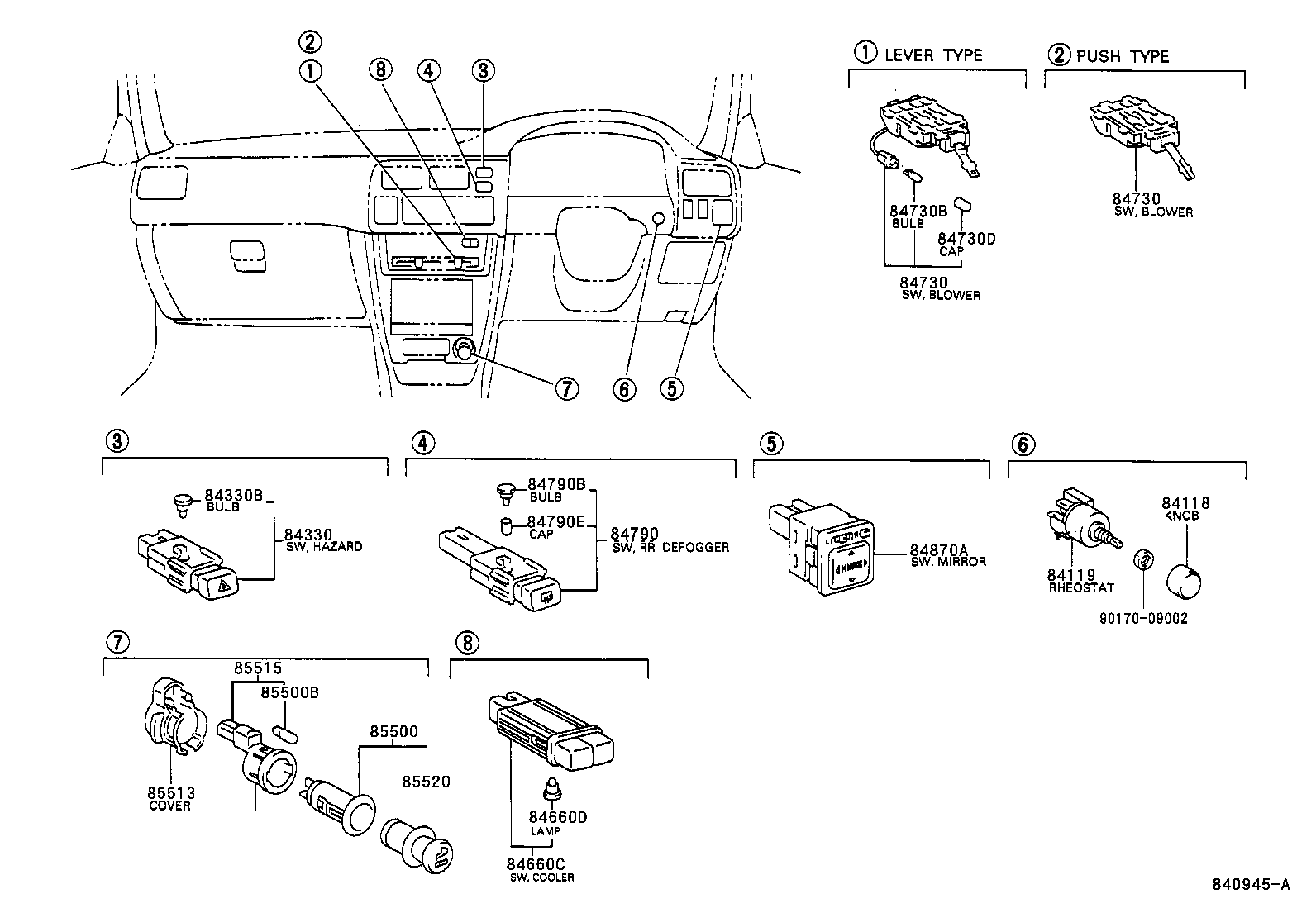

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 55905G | Knob Sub-assy, Control |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82623 | Cover, Fusible Link, Lower |
| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 82670A | Block Assy, Junction, NO.1 |
| 82671A | Block, Junction |
| 82671B | Block, Junction |
| 82671C | Block, Junction |
| 82671D | Block, Junction |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82672C | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82674 | Cover, Junction Block Lower |
| 82683 | Plate, Fuse Block Caution |
| 82730 | Block Assy, Instrument Panel Junction |
| 82731 | Block, Driver Side Junction |
| 82734A | Block, Center Junction |
| 82741 | Block, Engine Room Relay |
| 82751 | Block, Driver Side Relay |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83482 | Sensor, Outer Ambient Temperature |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84010 | Switch Assy, Center Cluster Integration |
| 84010B | Bulb, Integration Control & Panel |
| 84010F | Socket, Integration Control & Panel Bulb |
| 84052 | Switch Assy, Un-lock Warning |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84727 | Switch, Shift Lock Control |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 84763 | Plate, Switch |
| 84763D | Plate, Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84790E | Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84862 | Switch, Slide Roof Motor |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 84930C | Bulb(FOR DOOR CONTROL SWITCH) |
| 84931B | Switch, Door Control |
| 85430 | Valve, Outer Vent Control |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85921 | Relay, Sliding Roof Control |
| 85927 | Relay, Cooling Fan |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85927C | Relay, Cooling Fan, NO.4 |
| 85930 | Relay Assy, Power Window |
| 85933 | Computer, Shift Lock Control |
| 85934 | Relay, Magnet-clutch |
| 85940B | Relay Assy, Rear Wiper |
| 85980 | Relay Assy, Door Control |
| 85999A | Bracket, Relay, NO.2 |
| 86530 | Relay Assy, Horn |
| 86650E | Buzzer Assy |
| 87710F | Relay, Quick Heater |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89615 | Sensor, Knock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
