Toyota Corolla Sed/WG
1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General
Discontinued model
Data version 2005-07
Abs & Vsc

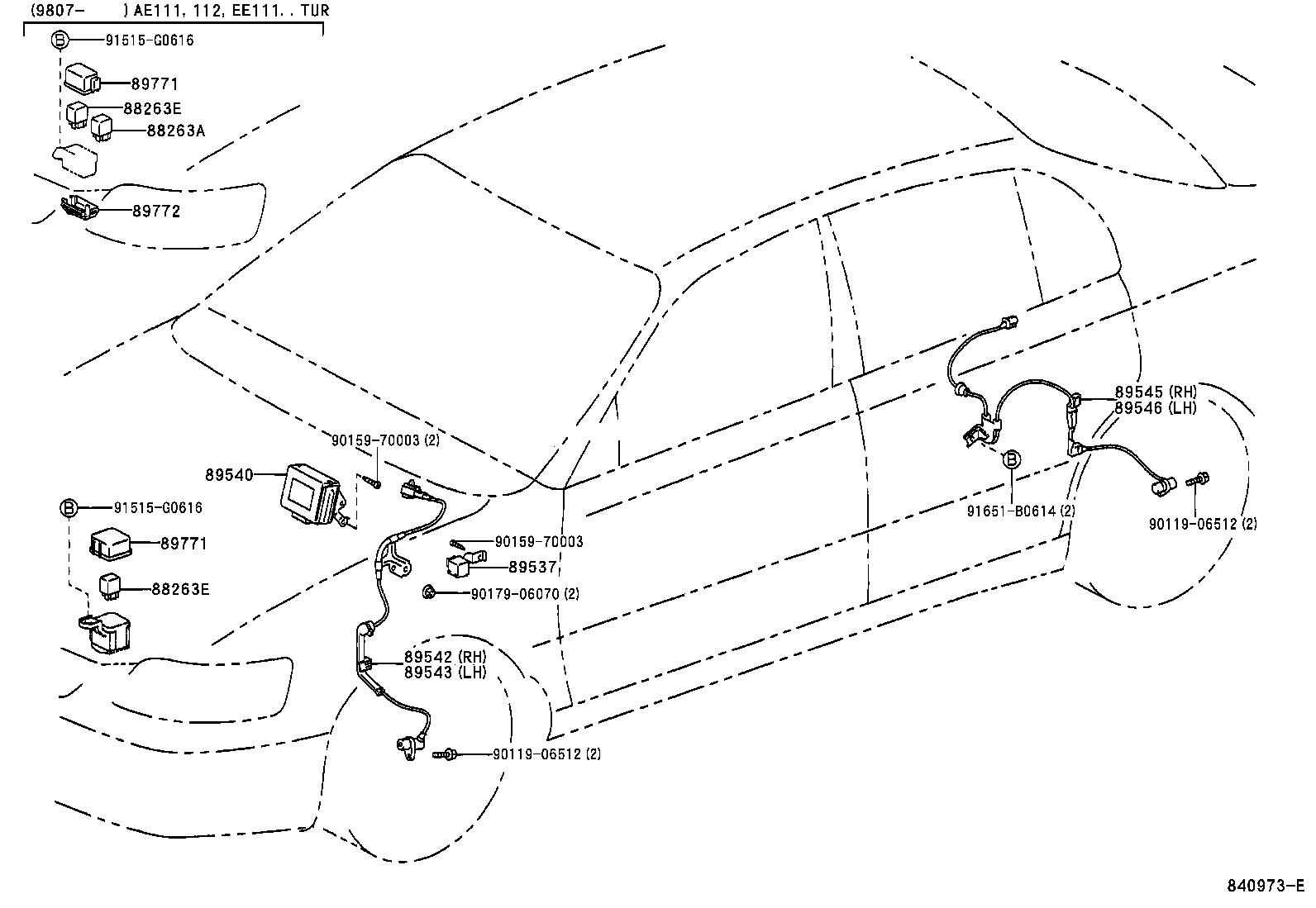

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89537 | Relay, Active Lamp |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89771 | Cover, Abs Relay Block, Upper |
| 89772 | Cover, Abs Relay Block, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
