Toyota Corolla Sed/WG
1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General
Discontinued model
Data version 2005-07

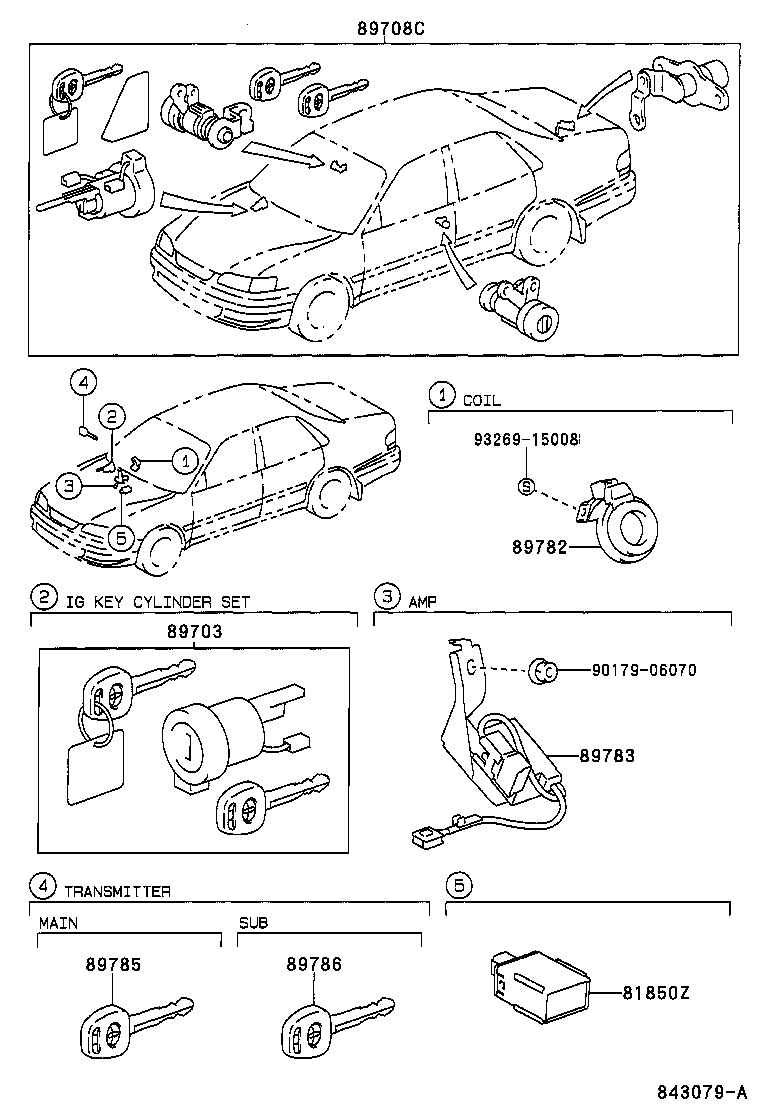

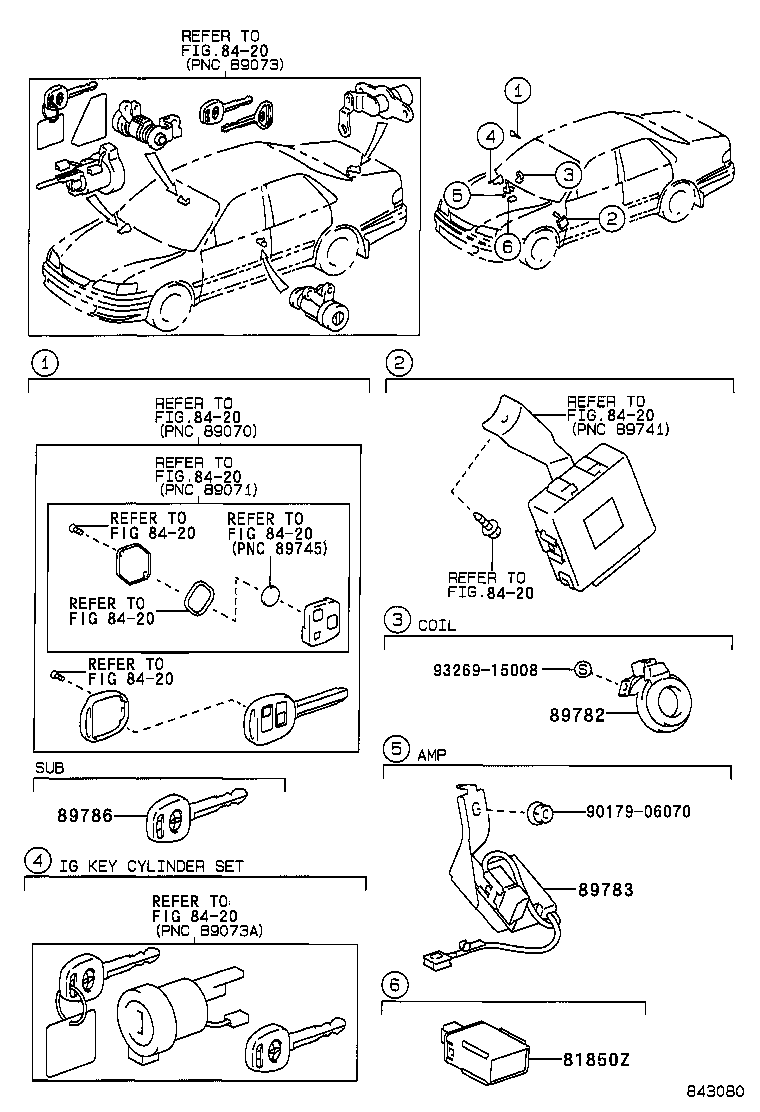

Anti-theft Device
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81850Z | Lamp Assy, Theft Warning Indicator |
| 89703 | Cylinder & Key Set, Ignition W/Transponder |
| 89708C | Cylinder Set, Lock W/Transponder Key Transmitter |
| 89709 | Computer Set, Transponder Key |
| 89780 | Computer Assy, Transponder Key |
| 89782 | Coil, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89786 | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
