Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 6 illustrations

Illustrations

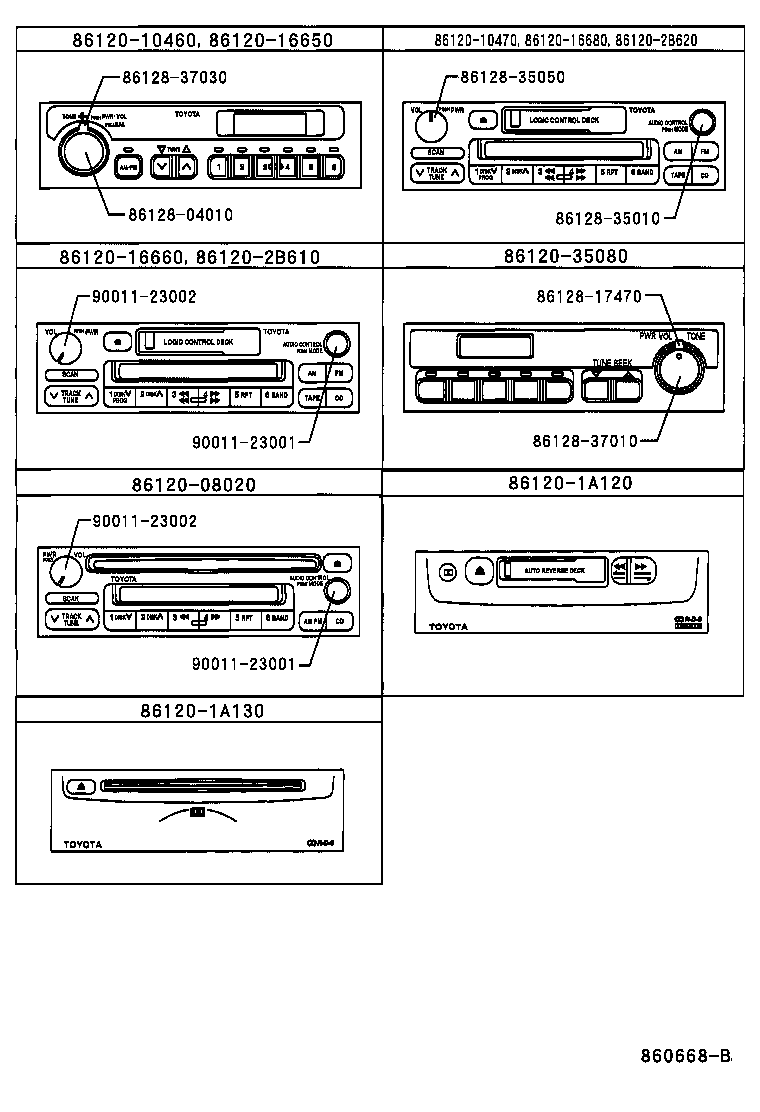

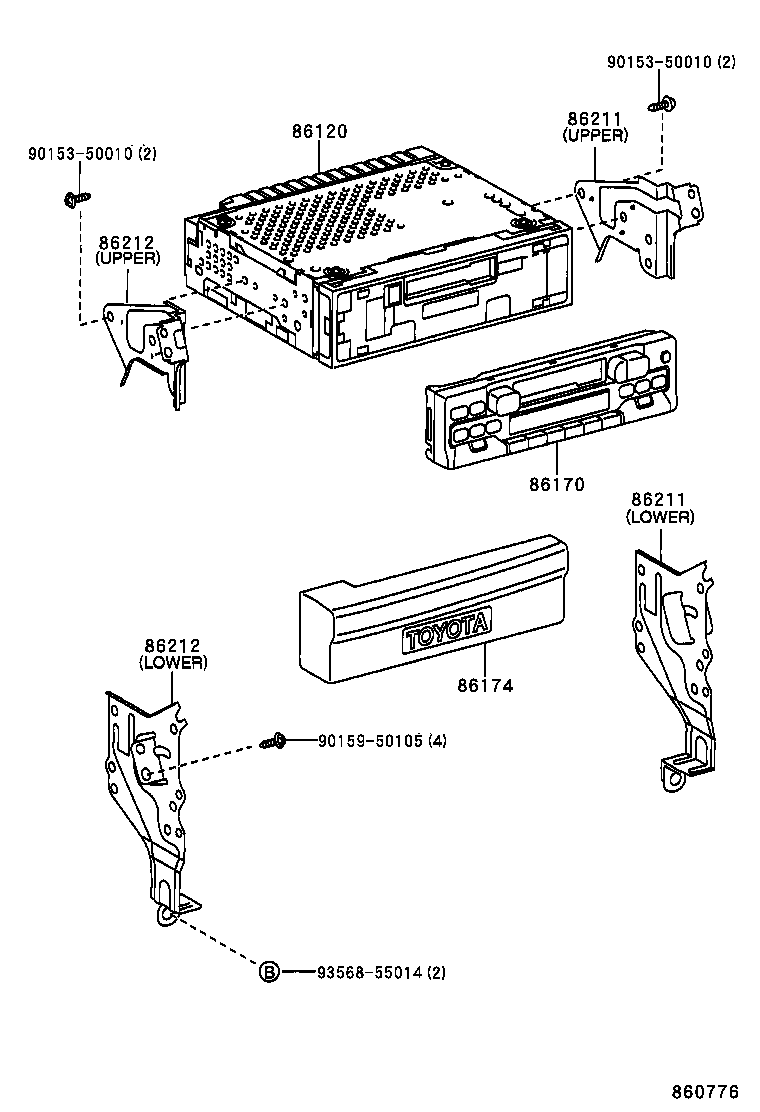

Figure MEZ042 MEZ042 1995-05 → 1997-04 Figure 860359A 860359A 1997-04 → — Figure 860776 860776 1998-07 → — Figure 860301A 860301A 1995-05 → 1998-04 Figure 860668B 860668B 1998-04 → — Figure 861130A 861130A 1995-05 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86170 Switch And Volume Assy, Radio
86174 Case, Switch & Volume
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
