Factory parts data · Europe

Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 2 illustrations

Illustrations

860966 1995-05 → —

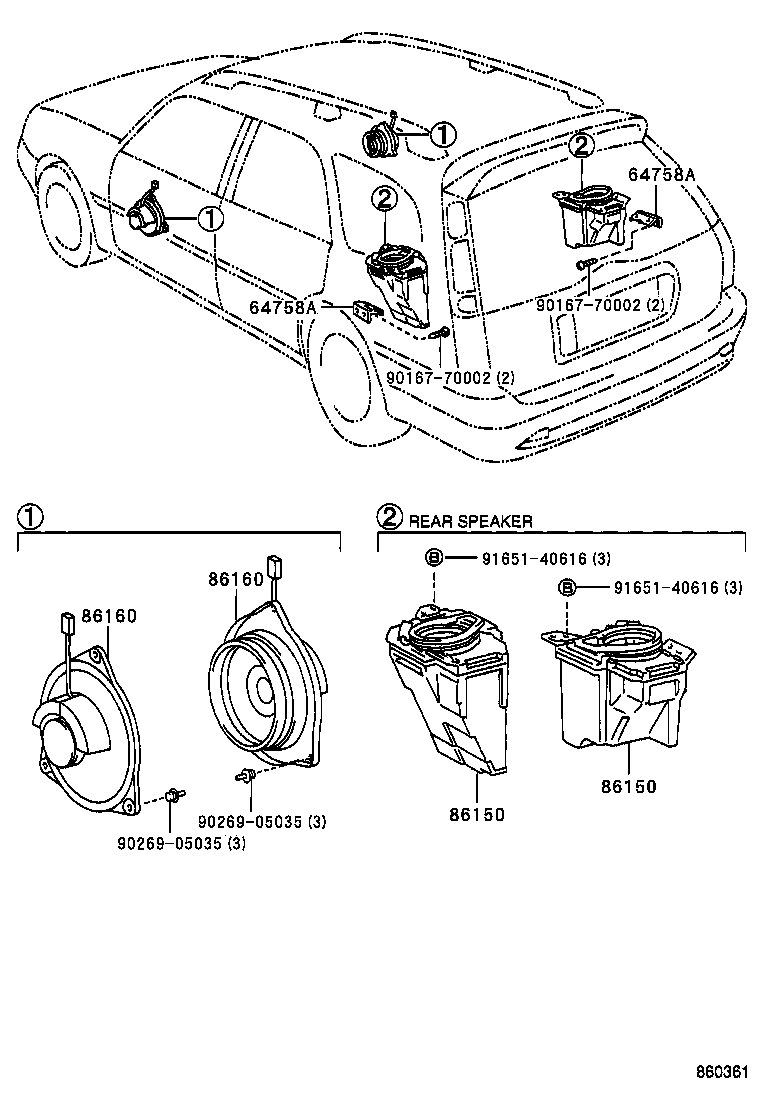

860361 1997-04 → —

Part groups

PNC	Description
64758A	Bracket, Speaker Set
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
