Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

42 part groups · 11 illustrations

Illustrations

Figure 871041 871041 1995-05 → 1997-04 Figure 871311 871311 1997-04 → — Figure 871250B 871250B 1997-04 → — Figure 871312 871312 1995-05 → 1997-04 Figure 871322 871322 1997-04 → — Figure 873069B 873069B 1997-04 → — Figure 873046A 873046A 1997-04 → — Figure 871080A 871080A 1995-05 → 1997-04 Figure 871251B 871251B 1997-04 → — Figure 872758C 872758C 1998-07 → — Figure MEZ104 MEZ104 1995-12 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55523B Cover, Heater Control Opening
55843A Duct, Heater TO Register, NO.1
55843B Clip, Heater TO Register Duct
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
55905K Knob, Heater Control, NO.4
55905L Knob, Heater Control, NO.5
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907F Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55909C Cable Sub-assy, Airmix Damper Control

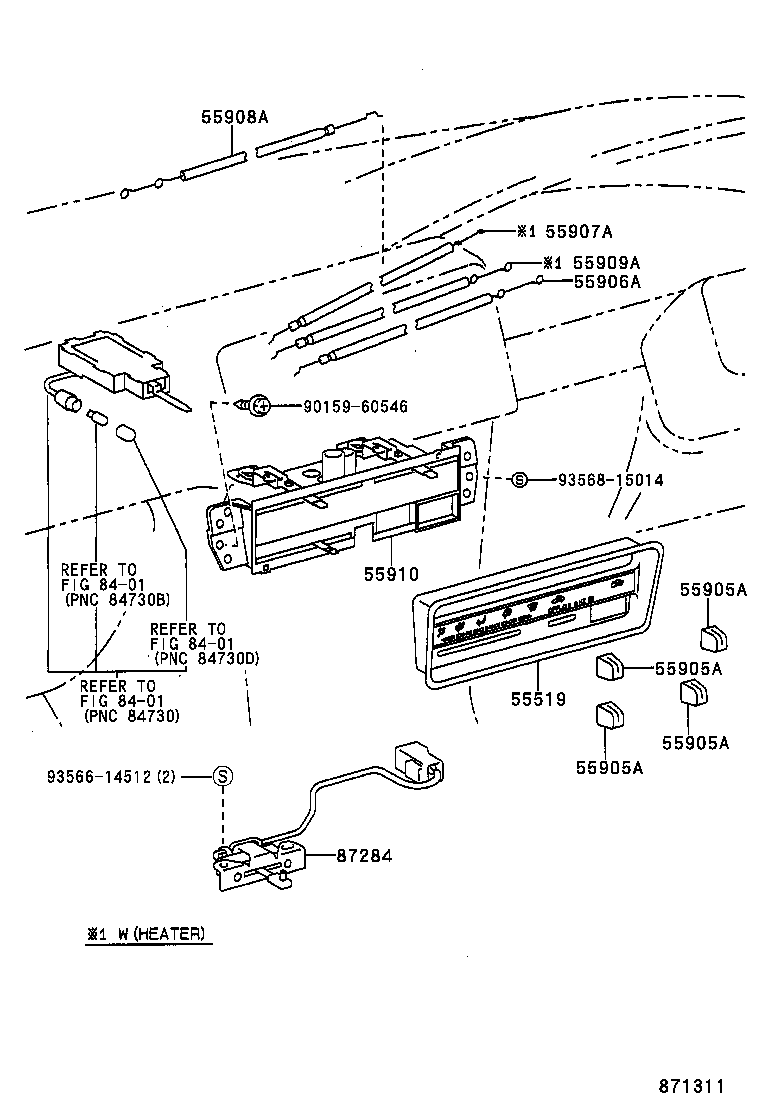

55910 Control Assy, Heater OR Boost Ventilator
55912A Housing, Heater Control
55921A Retainer, Heater Control
55921B Retainer, Heater Control

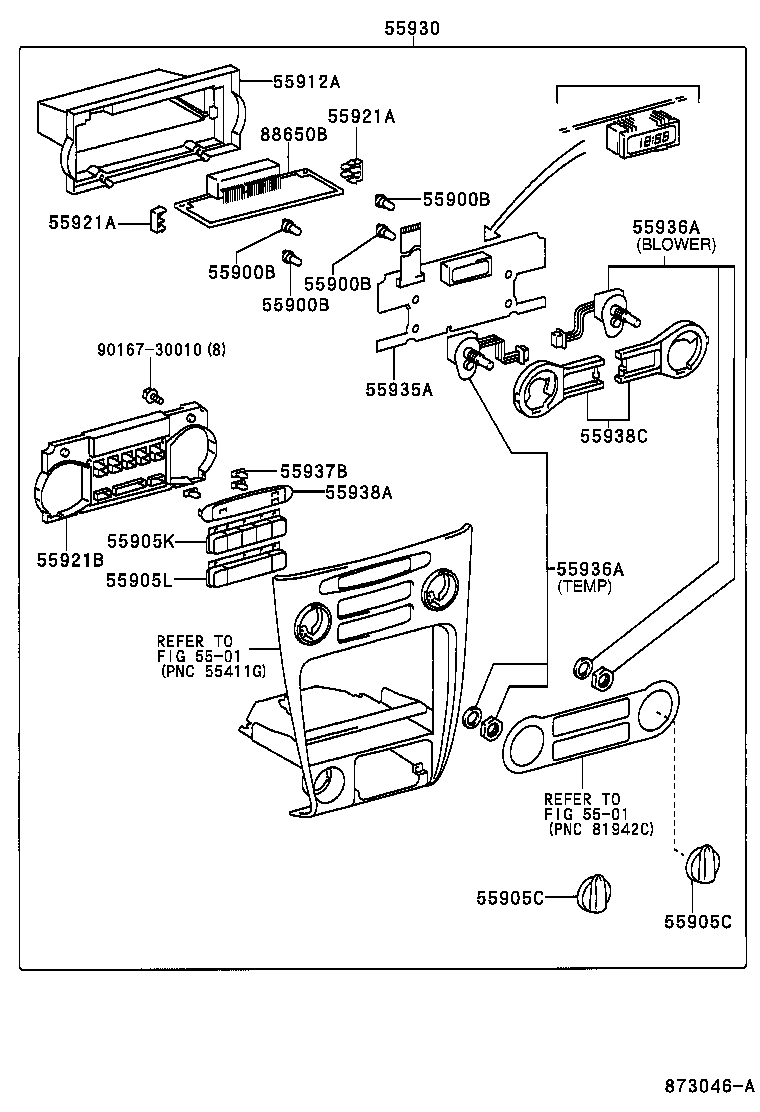

55930 Control Assy, Center Cluster Module
55935A Circuit, Center Cluster Module
55935B Circuit, Center Cluster Module
55936A Switch, Heater Control Volume
55937B Knob, Clock Adjust
55938A Lens, Clock
55938C Lens, Center Cluster Module
87138B Resistor, Heater Blower

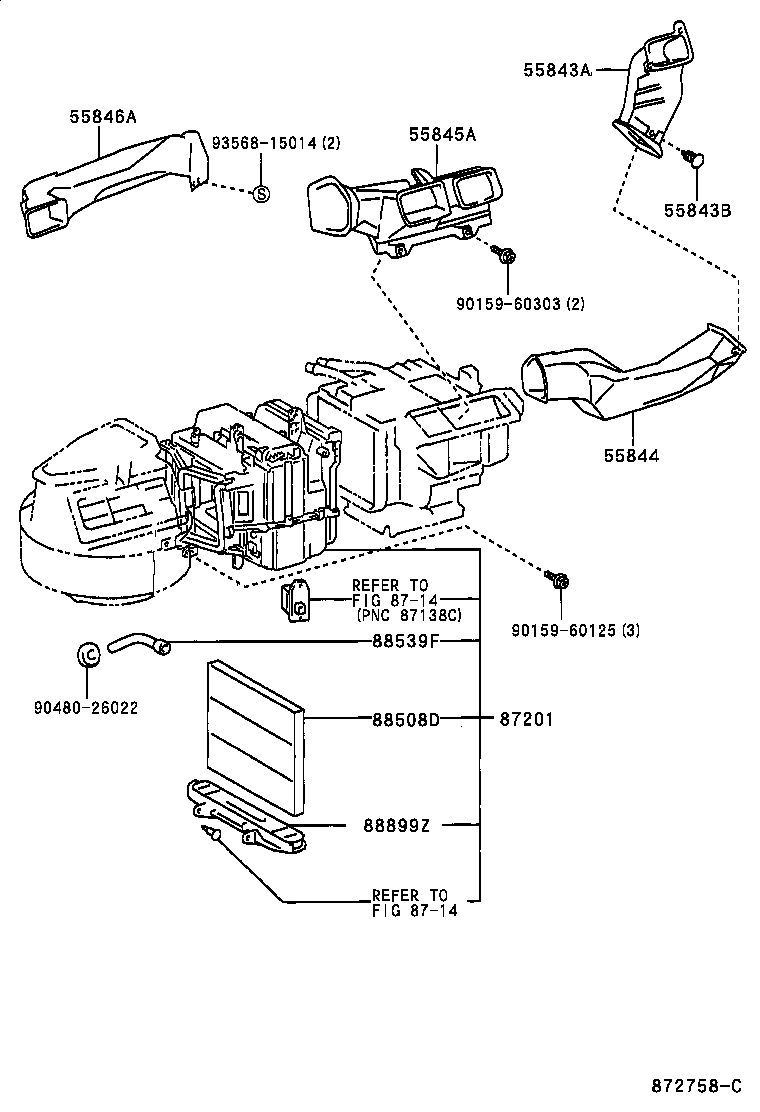

87201 Duct Sub-assy, Air, NO.1
87284 Resistor Sub-assy, Variable
88508D Filter Sub-assy, Air
88539F Hose, Drain
88625C Thermistor, Cooler

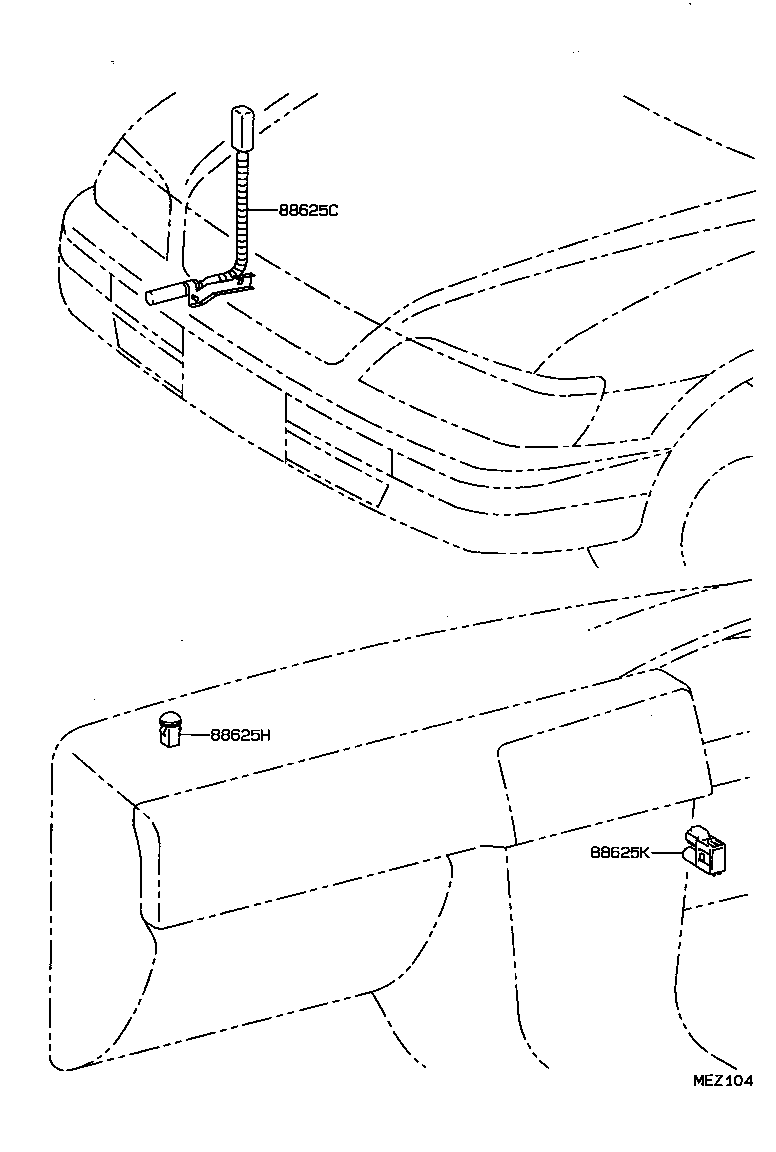

88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
88899Z Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
